Bitumen Storage Tank

Bitumen Storage Tank
Availability:
Quantity:
Inquire Add to Basket

Asphalt Storage Tanks, Fuel Oil Storage Tanks, Horizontal Asphalt Storage Tanks, Vertical Asphalt Storage Tanks

  •

  •

          Factory Customization!     Cost  Control !   Built How You Want it !   at a Price You Can Afford !



  •

  •

          Online     call me            Call me!Tom       LinkedIn Facebook Blogger     Cell: +861527135767



Asphalt Storage Tanks, Fuel Oil Storage Tanks, Horizontal Asphalt Storage Tanks, Vertical Asphalt Storage Tanks, 30,000 Gallon AC Tank

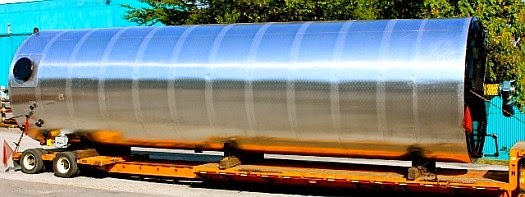

   Horizontal Asphalt Storage Tanks



     These tanks are constructed from 1/4" A-36 plate and are built according to UL-142. The horizontal asphalt storage tanks can be designed as stationary or portal units. These tanks are offered with lateral heating coils with hot oil control valve or direct firetube with hot scavenger system. All asphalt connections are 150# flanged with 2-way plug valves mounted. As standard, tanks are insulated with 3" thick fiberglass insulation covered with a jacket. Option available include 6" thick fiberglass insulation, split compartments, walkways with handrails for multiple tank arrangements and top mount agitators.




    Asphalt Storage Tank


   Vertical Asphalt Storage Tanks



     The vertical asphalt storage tanks are constructed for 1/4" A-36 plate and are built according to UL-142. The vertical tanks require less space than do the horizontals and are used for maintaining regular grades o f asphalt as well as the modified asphalts. The vertical asphalt tanks include internal heating coils with hot oil control valve and 6" thick fiberglass insulation with jacket. All asphalt connections are 150# flanged with two way valves mounted. If the vertical tank is for the storage of polymer-modified asphalt, internal baffles will be added as well as a top mount agitator, caged ladder and top handrails.



   Fuel Oil Storage Tanks



     The fuel oil storage tanks are offered as single or double wall, vertical or horizontal, stationary or portable designs. The fuel tanks are build accourding to UL-142. These fuel tanks are designed for #2 fuel oil and the heavier blended fuel oils. Heavier blended fuel oils require heating which can be done with fuel preheaters or internal heating coils with hot oil control valve. Options available for the fuel tank include 3" thick fiberglass insulation with jacket, fuel oil pump, duplex strainer and piping.




     Additive Tank





       The additive tank is a horizontal tank designed to hold additive at a usable temperature. These tanks include heating coils with hot oil control valve, additive pump, controls, necessary piping and 3" thick fiberglass insulation with jacket. The additive tank can be setup to operate in a batch plant or drum mix plant.




      Additive Tank




     Asphalt-Metering Pumps





       The asphalt-metering pump is a dual pump and is designed for metering the proper amount of asphalt to the drum mixer. The asphalt-metering pump works well with the regular grades of asphalt or the modified asphalt grades. The asphalt-metering pump includes dual jacketed asphalt pumps, electric AC motor with inverter drive, 3-way jacketed asphalt valves. hot oil piping, jacketed asphalt strainer all mounted on a base, The asphalt-metering pumps are designed to operate at a drum mix plants rated at 100-400 TPH.




      Asphalt Metering Pumps
      Storage Tank Manufacturer In China. We are engaged in exporting and supplying of superior quality Asphalt Storage Tanks.   Asphalt (Bitumen) Tank is fabricated from 5 ~6mm thick, inner sheet and the external insulation with ceramic wool (Glass wool). The thickness our Asphalt Storage Tank varies from 50 mm to100 mm. The thickness depends on the capacity of the tank and the tank is covered with 18 Gauge G.I. Sheet. The Bitumen pump is coupled with Reduction gear box and powered by a variable speed motor. We have managed to become a respected name in the market as a reliable Bitumen Storage Tank Manufacturer  .












      We present two types of Asphalt Tanks :


  •          Direct Heating Type : This Asphalt Tank is supplied with automatic imported pressure jet burner.
    •
  •          Indirect Heating Type : This Asphalt Tank is supplied with a Thermic Oil Heater.
    •

      Note : The storage capacities of our Asphalt Tanks are 15 MT to 60 MT.

        asphalt storage tank is as below:



       TIC TRUCKS , www.truckinchina.com



                No.

                Item

                Specification

                Remark


                1

               Exterior

               Cylinder

               Horizontal


                2

               Maximum Capacity (CBM)

               35 ~100

                10~100 CBM


                3

               Dimension (mm)

               Ø2400*7800*2818

               Ø*L*H


                4

               Curb Weight (kg)

               5000




                5

               Payload (kg)

               30000

               Water load at 20°C


                6

               Working Temperature (°C)

               250




                7

               Working Pressure (Mpa)

               0.09




                8

               Tank Materials

               GBQ345B

               Carbon steel


                9

               Thickness (mm)

               6




                10

               End Enclosure (mm)

               6

               Flanged flat head


                11

               Stiffener (mm)

               4

               4 pcs


                12

               Saddle

               A2000-S

               2 pcs


                13

               Heating Pipe (mm)

               Ø57*3.5

               L=132000


                14

               Manhole (mm)

               DN500

               With overhead nitrogen blanketing valve DN25


                15

               Asphalt Filling Hole (mm)

               DN250




                16

               Sheet Gasket



               PTFE


                17

               Anti-leaking Breather Valve (mm)

               DN60

               2 pcs


                18

               Asphalt Protective Frame (mm)

               800*750*150



               With asphalt flooding pipe DN50


                19

               Thermometer (°C)

               0~300




                20

               Volume meter

               Ball floating type




                21

               Reserve Feeding Flange Hole (mm)

               DN100

               2 pcs


                22

               Flange Hole of Asphalt Discharge Hole (mm)

               DN100




                23

               Asphalt Detecting Value (mm)

               DN25




                24

               Flange Hole of Heating Pipe (mm)

               DN50

               2 pcs


                25

               Insulated Layer (mm)

               100

               Fiberglass wool


                26

               Exterior Paneling(mm)

               0.6

               Sandwich steel plate plus stainless baling strip with waterproof sealing


                27

               Guardrail of Ladder (mm)

               W=400
