JAC 6-16 Ton Intelligent Asphalt Distributor Truck Spraying Nozzles 24-30 Nos (Asphalt Emulsion Tank 8000-16000L Insulated Spray Bitumen 4-6 meters)

Quantity:
  • Shanghai, China
  • 8000
  • T/T
  • JAC intelligent Asphalt Distributor Truck
  • 3
  • 150-250hp
  • <4L
  • Asphalt
  • ECE, ISO, DOT
  • Radial
  • New
  • 8335X2480X3050
  • 11.00r20 /10
  • Burner

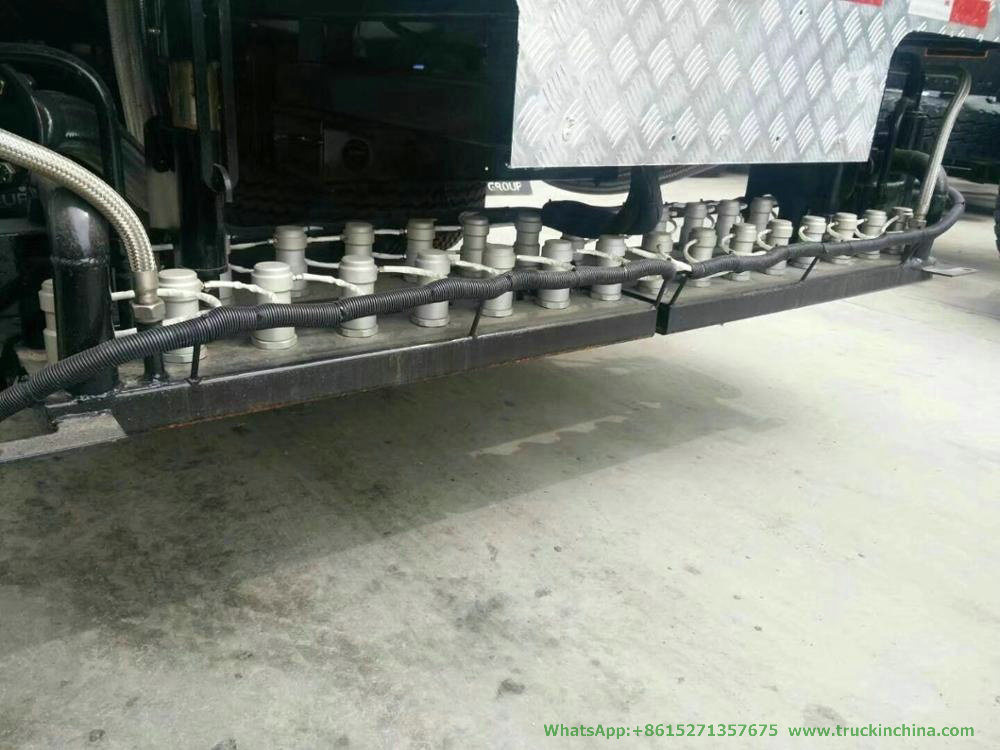

  • Nozzle 30 Nos
  • 6m
  • Asphalt Pump Oil Hydraulic Pump Asphalt Pump Hydra
  • 6000~16000L
  • JAC
  • Nil
  • OEM
  • Cn
  • 8705090990
  • Manual
  • Diesel
  • 1-10t
  • Euro 3-5 -6 -7
  • 5001-10000L
  • 4×2
Road Construction Intelligent Asphalt Distributor
JAC 16 Ton Intelligent Asphalt Distributor Truck Spraying Nozzles 24-30 Nos (Asphalt Emulsion Tank 8000-16000L Insulated Spray Bitumen 4 -6 meters)
JAC 6-16 Ton Intelligent Asphalt Distributor Truck Spraying Nozzles 24-30 Nos (Asphalt Emulsion Tank 8000-16000L Insulated Spray Bitumen 4-6 meters)
JAC 6-16 Ton Intelligent Asphalt Distributor Truck Spraying Nozzles 24-30 Nos (Asphalt Emulsion Tank 8000-16000L Insulated Spray Bitumen 4-6 meters)
JAC 6-16 Ton Intelligent Asphalt Distributor Truck Spraying Nozzles 24-30 Nos (Asphalt Emulsion Tank 8000-16000L Insulated Spray Bitumen 4-6 meters)
JAC 6-16 Ton Intelligent Asphalt Distributor Truck Spraying Nozzles 24-30 Nos (Asphalt Emulsion Tank 8000-16000L Insulated Spray Bitumen 4-6 meters)


Cell: 0086 152 7135 7675

JAC Asphalt Distributor 6 -16m3

Brief introduction of asphalt distributor truck

JAC 6-16 Ton Intelligent Asphalt Distributor Truck Spraying Nozzles 24-30 Nos (Asphalt Emulsion Tank 8000-16000L Insulated Spray Bitumen 4-6 meters)



standard asphalt distributor is an high-tech product which can spread emulsified asphalt, fluxed asphalt, oil refining asphalt, heated asphalt, heavy traffic paving asphalt and high viscosity modified asphalt (vehicle with high configuration). The product has been widely used in highway construction and road maintenance projects. It can be used for construction of upper and lowers seal coat, prime coat, waterproof layer, bonding layer, bituminous surface treatment, bituminous penetration pavement, fog seal and other projects of different grades of highway pavement. It can also be used for transportation of liquid asphalt or other heavy oil

JAC 6-16 Ton Intelligent Asphalt Distributor Truck Spraying Nozzles 24-30 Nos (Asphalt Emulsion Tank 8000-16000L Insulated Spray Bitumen 4-6 meters)

1. Bitumen spray truck, aslo called asphalt sprayer or saphalt paving truck, is specially designed and produced for transporting or spraying liquid asphalt(Including hot asphalt, emulsified asphalt and residue),in addition it can also supply loose asphalt binder to the soil, the construction of asphalt stabilized soil pavement or pavement base.
Bitumen spray truck is a black road construction machinery, one of the main equipment for the construction of road, city roads, airports and port terminals.
2. Type of our asphalt paving truck:

a. Common type

b. Standard type

c. Smart type(domestic main components)

d. Smart type(import main components)

(See more details in the comparation table below)

3. Capacity of spraying asphalt:

Type: whole four types above can work with liquid asphalt, such as hot asphalt, emulsified asphalt and residue, etc.

Rubber asphalt: need special equipment and customized.

Spraying rate: according to equipped asphalt pump(from 300~680 liters/min)

Spraying width: 4.5~6m

Spraying area: 0.2~0.3 liters/cbm

4. Structure of our asphalt spray truck:

Automobile system, asphalt tank, asphalt pumping and spraying system, thermal oil heating system, hydraulic system, combustion system, control system, pneumatic system, operating platform.

DRZ5061GLQ Manual ASPHALT DISTRIBUTOR 4x2 85 HP

Specification:

Product name Asphalt Distributor
Product model DRZ5061GLQ
Dimension(LxWxH mm) 6460×1980×2400
Tank Capacity 3.5T
Chassis model HFC1065K1DT
Chassis Brand JAC
Vehicle type Cab-over the Engine 4×2
Tire model 6.50-16
Approach/ Departure angle (°) 23°/14°
Engine power (kw/r/min) 85/3200
Fuel type Diesel
Engine model, type, category YC4F115-30
Inline-four cylinder pressurization
Displacement Standard EURO III
Cab seating capacity(including driver) 3
Max speed(km/h) 95
Vehicle kerb mass (kg) 6495
Rated load weight (kg) 2380
Working speed(km/h) 1.5-10
Asphalt pump displacement(L/r) 0.3
Max spray width(m) 4.5
Asphalt spray volume(L/m2) 0.3-3.0
Transmission system Mechanical Drive
Asphalt heat preservation type Exhaust Heat Preservation
Cleaning System High pressure air cleaning and Diesel

Our asphalt distributor truck for sale features and advantage

1.) Automatic asphalt distributor boasts three layers. It can adjust the spray amount according to its operational speed.
2.) The whole asphalt spraying process can be finished in the cab.
3.) Each nozzle is controlled by separate computer. The spray width can be adjusted at random.
4.) The control procedure is equipped with two control systems, cab and post operational platform to ensure the reliability of asphalt spray.
5.)The computer control system adopts modular design for lower accident rate and maintenance.
6.)The temperature of asphalt in tank is kept below or equal to two degrees per hour
7.)The distributor is equipped with automatic blowing device to shift the asphalt outside to the tank

The overall description of our Asphalt truck series

Automatic Asphalt Distributor/Bitumen Sprayer The main fitting adopts the most advanced components with computer system controlled spraying. Our intelligent asphalt distributor's accuracy meets Euro standards. Together with the advantages of asphalt distributors in the world, with automatic asphalt distributor, we innovated four new technologies

1. Any asphalt used is displaced.
2. Asphalt nozzle is multilayer filtrate and keeps the quality of spray.
3. Asphalt spraying is controlled by computer system.
4. Asphalt spray is suitable for asphalt pavement construction, which can improve performance achievements to international standards with zero tolerance.
5.Automatic asphalt distributor boasts three layers. It can adjust the spray amount according to its operational speed.
6. The whole asphalt spraying process can be finished in the cab.
7. Each nozzle is controlled by separate computer. The spray width can be adjusted at random.
8. The control procedure is equipped with two control systems, cab and post operational platform to ensure the reliability ofasphalt spray.

Q1. What is the advantage of your Asphalt Distributor?
We have two categories of Asphalt Distributors: Ordinary and Intelligent. Please take a look at our catalog to know the advantages of the Ordinary type. The advantages of the Intelligent type:
1. The main accessories (asphalt pump, burner, control system) are imported;
2. Adjustable spray amount based on the viscosity of the medium;
3. Two sets of control systems (cab and back operating platform) and newly launched GPS remote control and diagnose system.

Q2. What is the price of your Asphalt Distributor?
We have three kinds of Asphalt Distributors: Ordinary, Standard and Intelligent. Prices are based on the type, capacity and configuration.

Q3. What is the difference between Intelligent Asphalt Distributor and Standard Asphalt Distributor?
A. Intelligent: The whole operation can be carried out in the cab; Standard: Manual operation.
B. Intelligent: Imported accessories (asphalt pump--Danish ROTAN, burner-Italian Riello, hydraulic pump -Germany Rexroth, temperature control system-Omron, computer control components-Siemens. The standard type also uses imported accessories.
C. Intelligent: heat transfer oil heating system, each nozzle is controlled by separate computer. Standard: asphalt pump+ heat transfer oil, one computer controls three nozzles.

Q4. What warranty coverage do I have?
Our Asphalt Distributor has one-year warranty. We will provide free accessories for exported products.

Asphalt tanker truck,bitumen spraying truck,which is mainly used for road construction.
Currently our company produce the asphalt spraying truck 3000~14000 liter design.
Meanwhile,our company also produce the multi-function truck that asphalt spraying with crush stone paver.Welcome for your inquiry.




Parameters of Semi-Automatic Asphalt Distributor.


Model

5251GLQ

5162GLQ

5161GLQ

5120GLQ

5111GLQ

5090GLQ

5081GLQ

Truck

Cab-over-engine 6*4

Cab-over-engine 4*2

Cab-over-engine 4*2

Cab-over-engine 4*2

Cab-over-engine 4*2

Cab-over-engine 4*2

Cab-over-engine 4*2

Chassis Model

ZZ1257M4647C

DFL1160BX

BJ5163ELFFD

BJ1123VJPEG-S

EQ1110TJ12D5

EQ1090T9ADJ3AC

HFC1081KT

Burner model

G20

G20

G20

G20

G20

G20

G20

Asphalt capacity

12000

8000

8000

6600

5400

4500

5000

Spray bar variable(m)

0-6M

0-6M

0-6M

0-6M

0-6M

0-6M

0-5.5M

Spray bar value(kg)

0.3-3.0

0.3-3.0

0.3-3.0

0.3-3.0

0.3-3.0

0.3-3.0

0.3-3.0

Dimension

10500*2496*3350

8995*2490*3200

8785*2455*3015

8990*2350*2855

7998*2260*2870

7445*2285*2560

7350*2010*2460
Configuration Type Details of Asphalt truck
Normal configuration Simple type 1. Asphalt pump: ZP230 insulation type high viscosity asphalt pump;
2. Asphalt pump drive motor: GM05 series high-torque plunger motor;
3. Burner: G10 imported from Italy
4. Temperature control: AI-218 microcomputer temperature controller;
5. Spreading width: 1.2m ~ 4.5m, optional 6m
6. Spray control: manual adjustment
7. Asphalt pipeline compressed air cleaning function
Ordinary configuration 1. Asphalt pump: ZP230 insulation type high viscosity asphalt pump;
2. Asphalt pump drive motor: GM05 series high-torque plunger motor;
3. Hydraulic pump: F563 aluminum alloy gear pump;
4. Hydraulic system: manual flow control valve imported;
5. Burner: G10 imported from Italy
6. Temperature control: AI-218 microcomputer temperature controller;
7. Spreading width: 1.2m ~ 4.5m, optional 6m
8. Sprinkler control: manually adjust asphalt pipe
9. Asphalt pipeline compressed air cleaning function
Ordinary upgrade configuration
1. Asphalt pump: ZP230 insulation type high viscosity asphalt pump;
2. Asphalt pump drive motor: GM05 series high-torque plunger motor;
3. Hydraulic pump: F563 aluminum alloy gear pump;
4. Hydraulic system: imported proportional flow control valve;
5. Burner: G10 imported from Italy
6. Heating method: automatically heating by heat-conduction oil
7. Temperature control: AI microcomputer temperature controller;
8. Width of Spray : 1.2m ~ 4.5m, optional 6m precise triple overlappingSpray ,
9. Spraying quantity control: manually adjust asphalt nozzle;
10. Asphalt pipeline compressed air cleaning function
Semi-intelligent configuration
1. Asphalt pump: ZP230 insulation type high viscosity asphalt pump;
2. Asphalt pump drive motor: GM05 series high-torque plunger motor;
3. Hydraulic pump: F563 aluminum alloy gear pump;
4. Hydraulic system: imported proportional flow control valve;
5. Burner: G10 imported from Italy
6. Heating method: automatically heating by heat-conduction oil
7. Temperature control: AI microcomputer temperature controller;
8. Maximum width of Spray : 4.5 meters, optional 6 meters, precise three overlapping Spray , fully electric controln ozzle,
9. Sprinkler control: front and background potentiometer adjustment, digital display;
10. Asphalt pipeline compressed air cleaning function
Full intelligent configuration
1. Asphalt pump: ZP230 insulation type high viscosity asphalt pump;
2. Asphalt pump drive motor: GM05 series high-torque plunger motor;
3. Hydraulic pump: F563 aluminum alloy gear pump;
4. Hydraulic system: imported proportional flow control valve;
5. Burner: G10 imported from Italy
6. Heating method: automatically heating by heat-conduction oil with selective heating function
7.temperature control: Germany Siemens temperature control module, computer temperature control
8. Maximum width of Spray : 4.5 meters, optional 6 meters, precise three overlapping Spray , fully electric control nozzle,
9. Sprinkling width is precisely controlled by computer: sprinkling quantity control: Germany Siemens PLC, intelligent control, sprinkling quantity and speed precise linkage, front touch screen control system.
10. Asphalt pipeline compressed air cleaning function
Full intelligent configuration
imported Pump
  1. Asphalt pump: European TGGP-86-100 heat preservation pump
2. Asphalt pump drive motor: GM05 series high-torque plunger motor;
3. Hydraulic pump: Germany leisler plunger variable pump;
4. Hydraulic system: imported proportional flow control valve;
5. Burner: G10 imported from Italy
6. Heating method: automatically heating by heat-conduction oil with selective heating function
7. temperature control: Germany Siemens temperature control module, computer temperature control
8. Maximum width of Spray : 4.5 meters, optional 6 meters, precise three overlapping Spray , fully electric control nozzle,
9. Sprinkling width is precisely controlled by computer: sprinkling quantity control: Germany Siemens PLC, intelligent control, sprinkling quantity and speed precise linkage, front touch screen control system.
10. Asphalt pipeline compressed air cleaning function
11.spray volume 0.2 ~ 3 kg / , 28 sets of full electric nozzle,

Our products enjoy a good reputation for the good quality!
The asphalt distributor is made up by chassis, asphalt tank, asphalt pump, optional conduction oil heating system, electronic control system and spraybar system, etc.
Major features:
1) Digital display meters and instruments to indicate speed of the vehicle and the asphalt pump rotation, as well as temperature of asphalt inside the tank.
2) Possesses heat preservation, conduction oil recycling heating, transportation, spray, pumping and discharge function, etc.
3) Nozzle controlled through pneumatic joint control operation of cylinder for opening and closing.
4) Cleaning system of compressed air

5) Hydraulic power take-off of chassis or auxiliary diesel engine for drive, heated with burner, optional conduction oil recycling system.
JAC 6-16 Ton Intelligent Asphalt Distributor Truck Spraying Nozzles 24-30 Nos (Asphalt Emulsion Tank 8000-16000L Insulated Spray Bitumen 4-6 meters)
