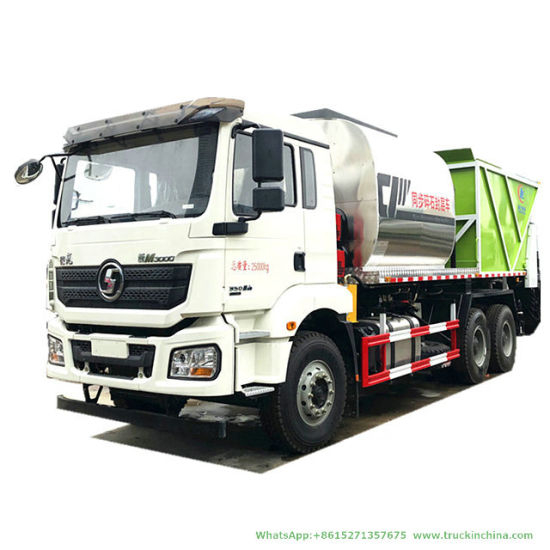

Shacman Asphalt Synchronous Chip Sealer Truck Customize H3000

Quantity:
  • Shanghai, China
  • 8000
  • T/T
  • Shacman Chip Sealer Truck
  • Emulsified Asphalt
  • SHACMAN
  • Nil
  • OEM
  • Cn
  • 8705090990
  • 10350X2500X3500mm
  • 11.00r20 /10
  • Burner
  • Synchronous Chip Sealer Truck
  • Chip Sealer Truck
  • Asphalt Road Paving
Road Construction Shacman Asphalt Synchronous Chip Sealer Truck Customize

Cell: 0086 152 7135 7675

Shacman Asphalt Synchronous Chip Sealer
Shacman asphalt synchronous chip sealer truck,6 CBM asphalt sprayer truck Shacman Asphalt Synchronous Chip Sealer Truck Customize H3000
Shacman Asphalt Synchronous Chip Sealer Truck Customize H3000
Shacman Asphalt Synchronous Chip Sealer Truck Customize H3000

road patcher

1. Bitumen spray truck, aslo called asphalt sprayer or saphalt paving truck, is specially designed and produced for transporting or spraying liquid asphalt(Including hot asphalt, emulsified asphalt and residue),in addition it can also supply loose asphalt binder to the soil, the construction of asphalt stabilized soil pavement or pavement base.
Bitumen spray truck is a black road construction machinery, one of the main equipment for the construction of road, city roads, airports and port terminals.
2. Type of our asphalt paving truck:

a. Common type

b. Standard type

c. Smart type(domestic main components)

d. Smart type(import main components)

(See more details in the comparation table below)

3. Capacity of spraying asphalt:

Type: whole four types above can work with liquid asphalt, such as hot asphalt, emulsified asphalt and residue, etc.

Rubber asphalt: need special equipment and customized.

Spraying rate: according to equipped asphalt pump(from 300~680 liters/min)

Spraying width: 4.5~6m

Spraying area: 0.2~0.3 liters/cbm

4. Structure of our asphalt spray truck:

Automobile system, asphalt tank, asphalt pumping and spraying system, thermal oil heating system, hydraulic system, combustion system, control system, pneumatic system, operating platform.

Item Descriptions Spesifications and Types
Vehicle Brand DRZ
Overall Dimensions L*W*H 10350*2500*3500mm
Weights GVW. 25000kgs
Kurb Weight 9725kgs
Rated Payload 15000kgs
Chassis Chassis Brand SHACMAN
Drive Type 6×4
Steering LHD
Engine Brand weichai engine
Power 180Kw /245HP
Emmission Level EURO 2 or Euro 3 or EURO 4
Performance Max. Speed 80km/h
Wheel base 1860+4800 mm
Tyre Specifications 10.00R20 18PR,11.00-20,11.00R20,12R22.5
No. of Tyre 8 pcs (1 spare tyre included)
Cab Cab Capacity 3 persons allowed
The Parameters of Equipment for Rubber Asphalt Synchronous Chip Sealer
16 CBM Version 20 CBM Normal Version 20 CBM Advance Version 26 CBM Normal Version 26 CBM Advance Version
Asphalt Tank 6 CBM 8 CBM 8 CBM 10 CBM 10 CBM
Gravel Tank 10 CBM 12 CBM 12 CBM 16 CBM 16 CBM
Asphalt Pump QGB680 high viscosity asphalt pump QGB950 high viscosity asphalt pump TGG185-125 asphalt pump (Belgium) QGB950 high viscosity asphalt pump TGG185-125 asphalt pump (Belgium)
Hydraulic Motor for Asphalt Pump 05-130-BD31 05-130-BD31 05-130-BD31 05-130-BD31 05-130-BD31
Hydraulic Pump 50-20-16 50-20-16 German Rexroth hydraulic pump A11V060EP20D-10L 50-20-16 German Rexroth hydraulic pump A11V060EP20D-10L
Control System Siemens control system, computer intelligentized control, one control one. Siemens control system, computer intelligentized control, one control one. Siemens control system, computer intelligentized control, one control one. Siemens control system, computer intelligentized control, one control one. Siemens control system, computer intelligentized control, one control one.
Nozzles 32 intelligentized nozzles 32 intelligentized nozzles 32 intelligentized nozzles 32 intelligentized nozzles 32 intelligentized nozzles
Heating Mode Transfer oil automatic heating Transfer oil automatic heating Transfer oil automatic heating Transfer oil automatic heating Transfer oil automatic heating
Heating Burner G20 (Italy) G20 (Italy) G20 (Italy) G20 (Italy) G20 (Italy)
Radiator Sunrise Sunrise Sunrise Sunrise Sunrise
Heat Transfer Oil Pump 40-25-160 40-25-160 40-25-160 40-25-160 40-25-160
Gasoline Engine Generator 6 kilowatt 6 kilowatt 5.5 Honda kilowatt 6 kilowatt 5.5 Honda kilowatt
Spreading Width 4 meters 4 meters 4.5-6 meters 4.5 meters 4.5 meters
Spreading Volume 0.3-3.5 L/m2 0.2-3.5 L/m2 0.2-4.0 L/m2 0.3-3.5 L/m2 0.3-4.0 L/m2

Our asphalt distributor truck for sale features and advantage
1.) Automatic asphalt distributor boasts three layers. It can adjust the spray amount according to its operational speed.

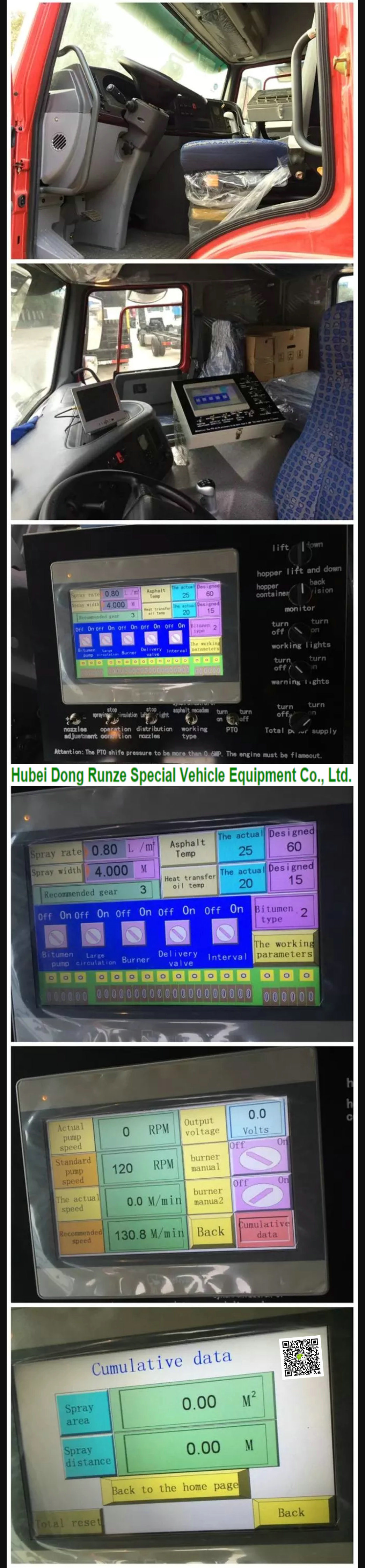

2.) The whole asphalt spraying process can be finished in the cab.
3.) Each nozzle is controlled by separate computer. The spray width can be adjusted at random.
4.) The control procedure is equipped with two control systems, cab and post operational platform to ensure the reliability of asphalt spray.
5.)The computer control system adopts modular design for lower accident rate and maintenance.
6.)The temperature of asphalt in tank is kept below or equal to two degrees per hour
7.)The distributor is equipped with automatic blowing device to shift the asphalt outside to the tank

The overall description of our Crane truck series

Automatic Asphalt Distributor/Bitumen Sprayer The main fitting adopts the most advanced components with computer system controlled spraying. Our intelligent asphalt distributor's accuracy meets Euro standards. Together with the advantages of asphalt distributors in the world, with automatic asphalt distributor, we innovated four new technologies

1. Any asphalt used is displaced.
2. Asphalt nozzle is multilayer filtrate and keeps the quality of spray.
3. Asphalt spraying is controlled by computer system.
4. Asphalt spray is suitable for asphalt pavement construction, which can improve performance achievements to international standards with zero tolerance.
5.Automatic asphalt distributor boasts three layers. It can adjust the spray amount according to its operational speed.
6. The whole asphalt spraying process can be finished in the cab.
7. Each nozzle is controlled by separate computer. The spray width can be adjusted at random.
8. The control procedure is equipped with two control systems, cab and post operational platform to ensure the reliability ofasphalt spray.

Q1. What is the advantage of your Asphalt Distributor?
We have two categories of Asphalt Distributors: Ordinary and Intelligent. Please take a look at our catalog to know the advantages of the Ordinary type. The advantages of the Intelligent type:
1. The main accessories (asphalt pump, burner, control system) are imported;
2. Adjustable spray amount based on the viscosity of the medium;
3. Two sets of control systems (cab and back operating platform) and newly launched GPS remote control and diagnose system.

Q2. What is the price of your Asphalt Distributor?
We have three kinds of Asphalt Distributors: Ordinary, Standard and Intelligent. Prices are based on the type, capacity and configuration.

Q3. What is the difference between Intelligent Asphalt Distributor and Standard Asphalt Distributor?
A. Intelligent: The whole operation can be carried out in the cab; Standard: Manual operation.
B. Intelligent: Imported accessories (asphalt pump--Danish ROTAN, burner-Italian Riello, hydraulic pump -Germany Rexroth, temperature control system-Omron, computer control components-Siemens. The standard type also uses imported accessories.
C. Intelligent: heat transfer oil heating system, each nozzle is controlled by separate computer. Standard: asphalt pump+ heat transfer oil, one computer controls three nozzles.

Q4. What warranty coverage do I have?
Our Asphalt Distributor has one-year warranty. We will provide free accessories for exported products.

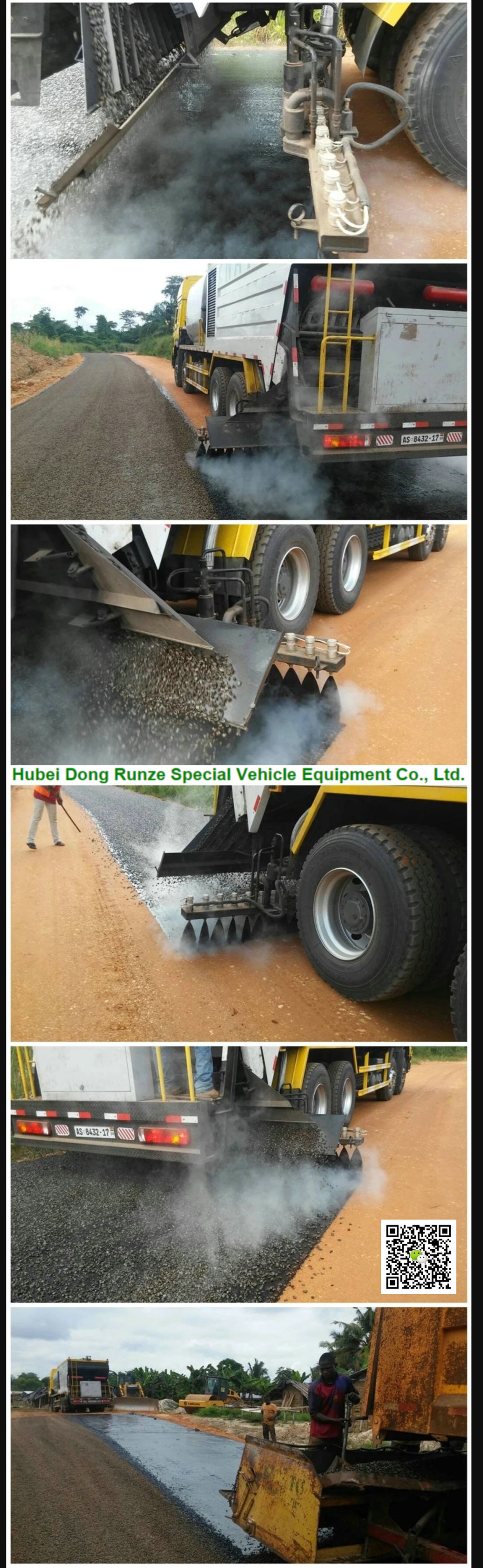

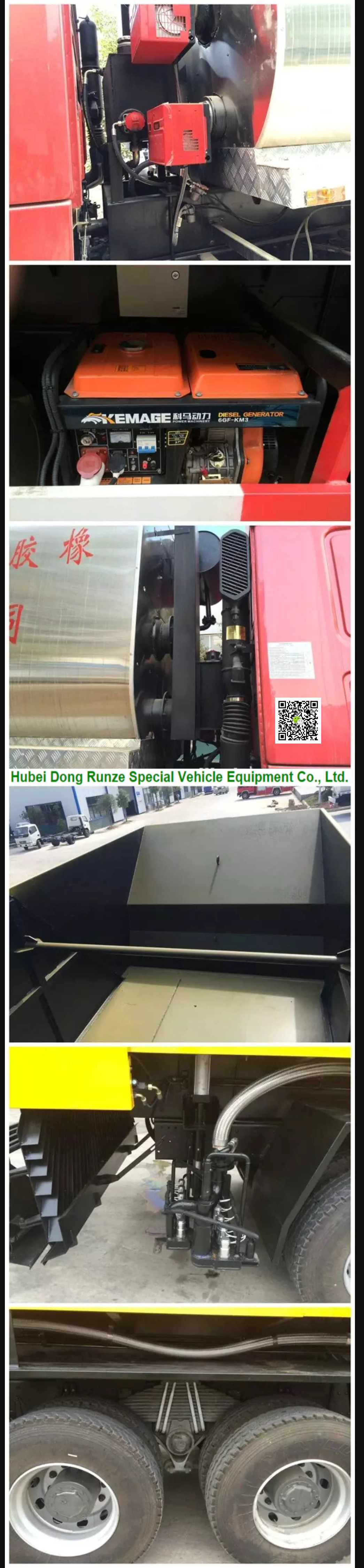

Product Photos

Shacman Asphalt Synchronous Chip Sealer Truck Customize H3000
Shacman Asphalt Synchronous Chip Sealer Truck Customize H3000
Shacman Asphalt Synchronous Chip Sealer Truck Customize H3000


Parameters of Semi-Automatic Asphalt Distributor.


Model

5251GLQ

5162GLQ

5161GLQ

5120GLQ

5111GLQ

5090GLQ

5081GLQ

Truck

Cab-over-engine 6*4

Cab-over-engine 4*2

Cab-over-engine 4*2

Cab-over-engine 4*2

Cab-over-engine 4*2

Cab-over-engine 4*2

Cab-over-engine 4*2

Chassis Model

ZZ1257M4647C

DFL1160BX

BJ5163ELFFD

BJ1123VJPEG-S

EQ1110TJ12D5

EQ1090T9ADJ3AC

HFC1081KT

Burner model

G20

G20

G20

G20

G20

G20

G20

Asphalt capacity

12000

8000

8000

6600

5400

4500

5000

Spray bar variable(m)

0-6M

0-6M

0-6M

0-6M

0-6M

0-6M

0-5.5M

Spray bar value(kg)

0.3-3.0

0.3-3.0

0.3-3.0

0.3-3.0

0.3-3.0

0.3-3.0

0.3-3.0

Dimension

10500*2496*3350

8995*2490*3200

8785*2455*3015

8990*2350*2855

7998*2260*2870

7445*2285*2560

7350*2010*2460
Configuration Type Details of Asphalt truck
Normal configuration Simple type 1. Asphalt pump: ZP230 insulation type high viscosity asphalt pump;
2. Asphalt pump drive motor: GM05 series high-torque plunger motor;
3. Burner: G10 imported from Italy
4. Temperature control: AI-218 microcomputer temperature controller;
5. Spreading width: 1.2m ~ 4.5m, optional 6m
6. Spray control: manual adjustment
7. Asphalt pipeline compressed air cleaning function
Ordinary configuration 1. Asphalt pump: ZP230 insulation type high viscosity asphalt pump;
2. Asphalt pump drive motor: GM05 series high-torque plunger motor;
3. Hydraulic pump: F563 aluminum alloy gear pump;
4. Hydraulic system: manual flow control valve imported;
5. Burner: G10 imported from Italy
6. Temperature control: AI-218 microcomputer temperature controller;
7. Spreading width: 1.2m ~ 4.5m, optional 6m
8. Sprinkler control: manually adjust asphalt pipe
9. Asphalt pipeline compressed air cleaning function
Ordinary upgrade configuration
1. Asphalt pump: ZP230 insulation type high viscosity asphalt pump;
2. Asphalt pump drive motor: GM05 series high-torque plunger motor;
3. Hydraulic pump: F563 aluminum alloy gear pump;
4. Hydraulic system: imported proportional flow control valve;
5. Burner: G10 imported from Italy
6. Heating method: automatically heating by heat-conduction oil
7. Temperature control: AI microcomputer temperature controller;
8. Width of Spray : 1.2m ~ 4.5m, optional 6m precise triple overlappingSpray ,
9. Spraying quantity control: manually adjust asphalt nozzle;
10. Asphalt pipeline compressed air cleaning function
Semi-intelligent configuration
1. Asphalt pump: ZP230 insulation type high viscosity asphalt pump;
2. Asphalt pump drive motor: GM05 series high-torque plunger motor;
3. Hydraulic pump: F563 aluminum alloy gear pump;
4. Hydraulic system: imported proportional flow control valve;
5. Burner: G10 imported from Italy
6. Heating method: automatically heating by heat-conduction oil
7. Temperature control: AI microcomputer temperature controller;
8. Maximum width of Spray : 4.5 meters, optional 6 meters, precise three overlapping Spray , fully electric controln ozzle,
9. Sprinkler control: front and background potentiometer adjustment, digital display;
10. Asphalt pipeline compressed air cleaning function
Full intelligent configuration
1. Asphalt pump: ZP230 insulation type high viscosity asphalt pump;
2. Asphalt pump drive motor: GM05 series high-torque plunger motor;
3. Hydraulic pump: F563 aluminum alloy gear pump;
4. Hydraulic system: imported proportional flow control valve;
5. Burner: G10 imported from Italy
6. Heating method: automatically heating by heat-conduction oil with selective heating function
7.temperature control: Germany Siemens temperature control module, computer temperature control
8. Maximum width of Spray : 4.5 meters, optional 6 meters, precise three overlapping Spray , fully electric control nozzle,
9. Sprinkling width is precisely controlled by computer: sprinkling quantity control: Germany Siemens PLC, intelligent control, sprinkling quantity and speed precise linkage, front touch screen control system.
10. Asphalt pipeline compressed air cleaning function
Full intelligent configuration
imported Pump
  1. Asphalt pump: European TGGP-86-100 heat preservation pump
2. Asphalt pump drive motor: GM05 series high-torque plunger motor;
3. Hydraulic pump: Germany leisler plunger variable pump;
4. Hydraulic system: imported proportional flow control valve;
5. Burner: G10 imported from Italy
6. Heating method: automatically heating by heat-conduction oil with selective heating function
7. temperature control: Germany Siemens temperature control module, computer temperature control
8. Maximum width of Spray : 4.5 meters, optional 6 meters, precise three overlapping Spray , fully electric control nozzle,
9. Sprinkling width is precisely controlled by computer: sprinkling quantity control: Germany Siemens PLC, intelligent control, sprinkling quantity and speed precise linkage, front touch screen control system.
10. Asphalt pipeline compressed air cleaning function
11.spray volume 0.2 ~ 3 kg / , 28 sets of full electric nozzle,

Our products enjoy a good reputation for the good quality!
The asphalt distributor is made up by chassis, asphalt tank, asphalt pump, optional conduction oil heating system, electronic control system and spraybar system, etc.
Major features:
1) Digital display meters and instruments to indicate speed of the vehicle and the asphalt pump rotation, as well as temperature of asphalt inside the tank.
2) Possesses heat preservation, conduction oil recycling heating, transportation, spray, pumping and discharge function, etc.
3) Nozzle controlled through pneumatic joint control operation of cylinder for opening and closing.
4) Cleaning system of compressed air

5) Hydraulic power take-off of chassis or auxiliary diesel engine for drive, heated with burner, optional conduction oil recycling system.
Shacman Asphalt Synchronous Chip Sealer Truck Customize H3000
