Road Construction Intelligent Asphalt Distributor 5000 Liter to 6000 Liters
Road Construction Intelligent Asphalt Distributor 5000 Liter to 6000 Liters
| Quantity: | |
|---|---|
- Shanghai, China
- 8000
- T/T
Road Construction Intelligent Asphalt Distributor
Road Construction Intelligent Asphalt Distributor 5000 Liter to 6000 Liters
Cell: 0086 152 7135 7675
Asphalt distributor 5090GLQ 5000 liter to 6000 liters
Brief introduction of asphalt distributor truck
| Model | DRZ5161GLQT | Curb weight | 9700 |
| Overall size | 8950×2500×3250(mm) | Type | 4x2 |
| wheelbase | 4500mm | Power steering | Equipped |
| Front Axle | 3.6ton | Rear axle | 9ton |
| Gearbox | Manual | Tire | 10.00-20 |
| Engine | 190hp | Power steering | Equipped |
| Asphalt pump | 950L/MIN | Generator power | 6kw |
| Capacity of Asphalt | 0.25-2.5L/m2 | Diesel burner | G10 from Italy |
Vehicle model | Dongfeng Bitumen Distributor | |||
Overall dimensions | mm | 8995*2490*3200 | ||
Fact cubage | L | 5000-8000 | ||
Mass in working order | kg | Appro×10100(ref) | ||
Body internal dimensions | mm | TBD | ||
Wheel base | 4700 | |||
Engine | Displacement/power | 5193mL/140KW | ||
Model | B190-33 | |||
Torque | 520N.m | |||
Max speed | km/h | 90 | ||
Tire specification | 9.00-20 | Drive seat | LHD | |
Electric system | 24v | transmission | ,6 speed,6 Forward ,1 reserve, 600000 kilometers without pitting, broken teeth | |
Cabin | air conditioning / radio / cassette / oil brake / cab can flip / power steering | |||
Frame | Collision energy absorbing frame + double no exposed rivets + double hydraulic shock absorber | |||
Color | Identify by customer | |||
Equipment | ||||
bitumen pump | QGB950 | |||
Motor | 05-110-bd31 | |||
Hydraulic pump | CBA550-L | |||
Spray Width | 4.5-6M | |||
Asphalt nozzle No | 48 | |||
Heating mode | Heat conducting oil , heat automatic | |||
burner | G20 from Italy | |||
Heat conducting oil pump | 40-25-160 made in China | |||
standard asphalt distributor is an high-tech product which can spread emulsified asphalt, fluxed asphalt, oil refining asphalt, heated asphalt, heavy traffic paving asphalt and high viscosity modified asphalt (vehicle with high configuration). The product has been widely used in highway construction and road maintenance projects. It can be used for construction of upper and lowers seal coat, prime coat, waterproof layer, bonding layer, bituminous surface treatment, bituminous penetration pavement, fog seal and other projects of different grades of highway pavement. It can also be used for transportation of liquid asphalt or other heavy oil
| Mass parameter: | |||
| Kerb Weight(kg) | 8900 | Total Weight(kg) | 16000 |
| Rated loading Weight(kg) | 7100 | Dimension(mm) | 9500x2490x3160 |
| Chassis Parameter: | |||
| Chassis Model | ZZ1164G4715C | Tyre model | 9.00-20 |
| Wheelbase (mm) | 5000 | Tread mm | 2020/1860 |
| Front Overhang(mm) | 1430 | Rear Overhang(mm) | 2565 |
| Approach angle,Departure angle | 20°/11.3° | Minimum Ground Clearance (mm) | 250 |
| Engine parameter: | |||
| Engine model | JID17B00287/YC6J90-33 | Manufacturer | SINO TRUCK |
| Max.Power(kw) | 140 | Max. Torque(N.m) | 550/1300-1800 |
| Fuel | Diesel | Displacement(ml) | 4752 |
| Spray specification: | |||
| Tank Capacity(L) | 10000 | Spray width | 6000mm |
| Hydraulic pump model | CBQ-F550 | Spray Value | 0.5-3.0(Kg) |
Hydraulic motor | L2F63W2P2 (Liyuan) | Insulation Thickness | 50mm |
| Controller | / | Nozzles | 39 |
| Burner | G20(Riello) | Asphalt pump | CB450 |
| Generator(Converter) | YGBT2500 | ||
| Other parameter: | |||
| Max. truck speed(km/h) | 95 | Max. Grade ability | >23% |
Spring films(Front/Rear) | 11/10+10 | Minimum turning diameter (m) | 18.4 |
| Axis No. | 2(4*2) | ||
1.Performance Feature
1.1. 6*4 chassis form makes the vehicle load more uniform. The passing ability is more reasonable. The driving is safer and more reliable;
1.2.TFT LCD touch screen man-machine interface;Man-machine communication are more friendly. It is easier to operate
1.3.Temperature control module always monitors temperature of heat conduction oil. Temperature contror module always monitors temperature of heat conduction oil,
1.4. PTO power take-off method is used. Zero distance spraying can be realized
1.5. Three overlapping spraying ensures more uniform spreading with higher precision..
The asphalt distributor truck is also called asphalt paver truck, asphalt spray truck, bitumen sprayer truck, asphalt bitumen tank truck, road black tar sealing truck, etc.
The asphalt distributor truck for sale are consisted with truck chassis, insulated asphalt tank, heater, hydraulic system, conducting oil pipeline, asphalt pump, spray nozzle, etc. The tank volume is from 3m3 to 18m3. The spray nozzle quantity is from 30 to 48 nos.
The asphalt distributor truck is mainly used to transport asphalt and distribut it for sealing the road.
Our asphalt distributor truck adopt advanced technology and foreign imported parts. It has more advantages than other asphalt suppliers.
Advantages of our asphalt distributor truck
1.The temperature rising speed is 5% faster than the trucks manufacture by other factory.
2.High quality metal hose, won't broken, long service life.
3.The distribution width can be adjusted according to your demand from 4.5m to 6m.
4.Start quickly, though the truck stop, still can distribute.
Technical parameters of Dongfeng 5 to 6 tons asphalt distributor truck
Items | Descriptions | Specifications and Types |
General | Truck Name | Asphalt Distributor Truck |
Drive Type | 4*2 | |
Gross Vehicle Weight(kg) | 9750 | |
Curb Weight (kg) | 5600 | |
Overall Dimensions L*W*H(mm) | 7330×2300×2750 | |
Engine Brand | CHAOCHAI | |
Fuel Type | Diesel | |
Power | 90kw/120HP | |
Emission Standard | Euro III | |
Displacement(ml) | 3856 | |
Engine Type | 4 cylinders in line,water cooling, turbo-charged diesel engine,inter-cooling | |
Chassis | Chassis Brand | Dongfeng |
Tire No. | 6 | |
Tire Specification | 7.00-16 Nylon tire | |
Wheelbase (mm) | 3800 | |
Steering Wheel | Left hand drive | |
Gear Box | 5 speed forward with 1 reverse, manual | |
Brake | Air brake | |
Radiator | Suitable for tropical climate | |
Tank | Asphalt Tank Volume(m?3;) | 6 |
Pump | Asphalt Pump | QGB270 (300L/min) |
Heating | Burner | Italy imported |
Control System | Control Type | Manual control |
Spray system | Asphalt spray nozzle | 30 nos |
Spray Width | 4.5m |

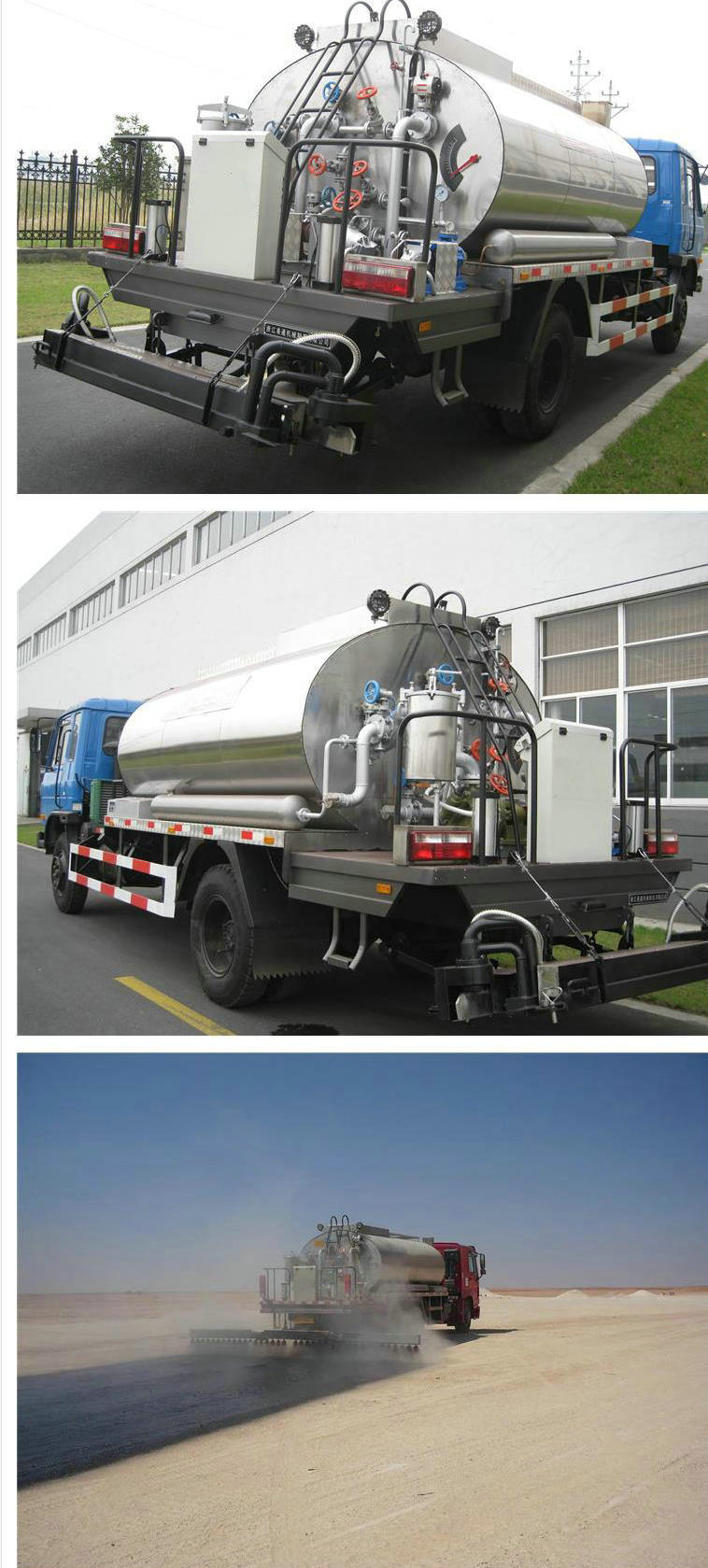

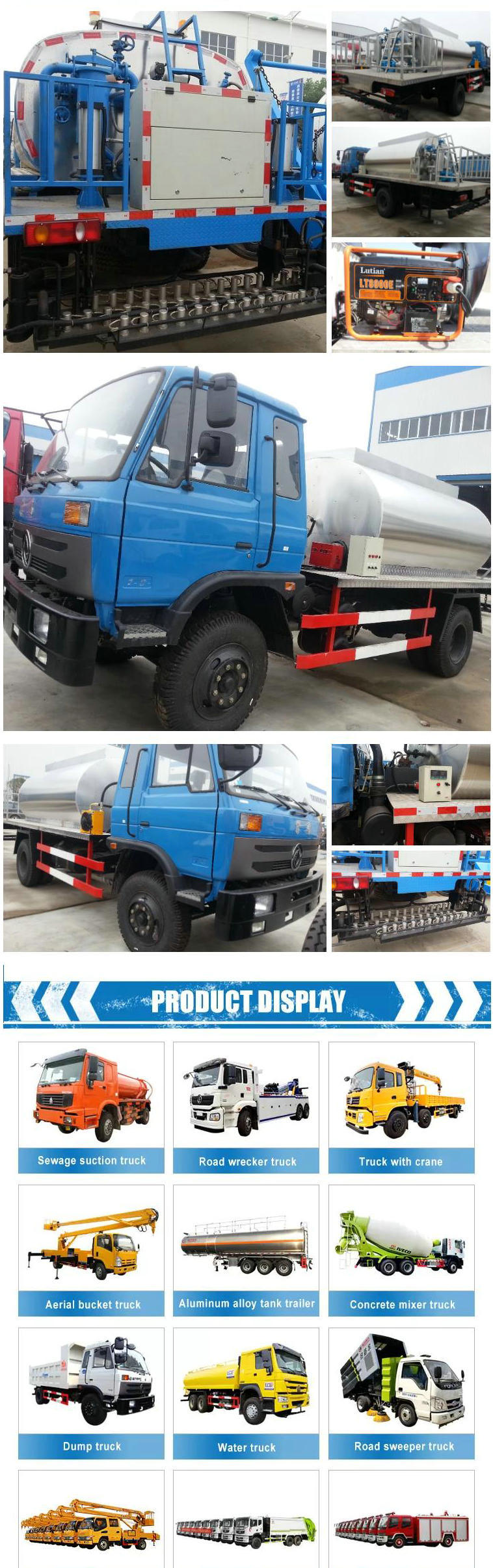

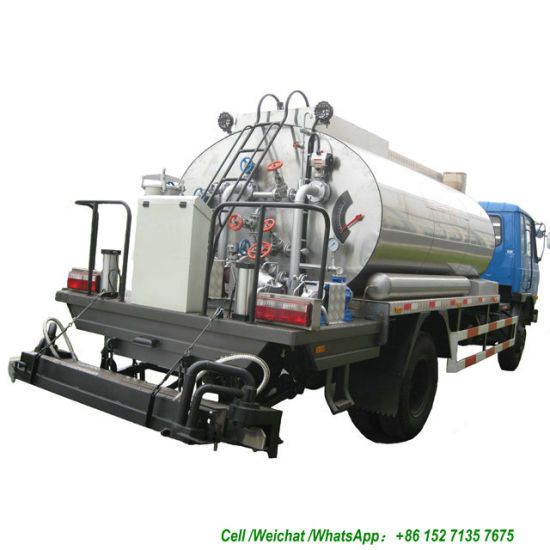

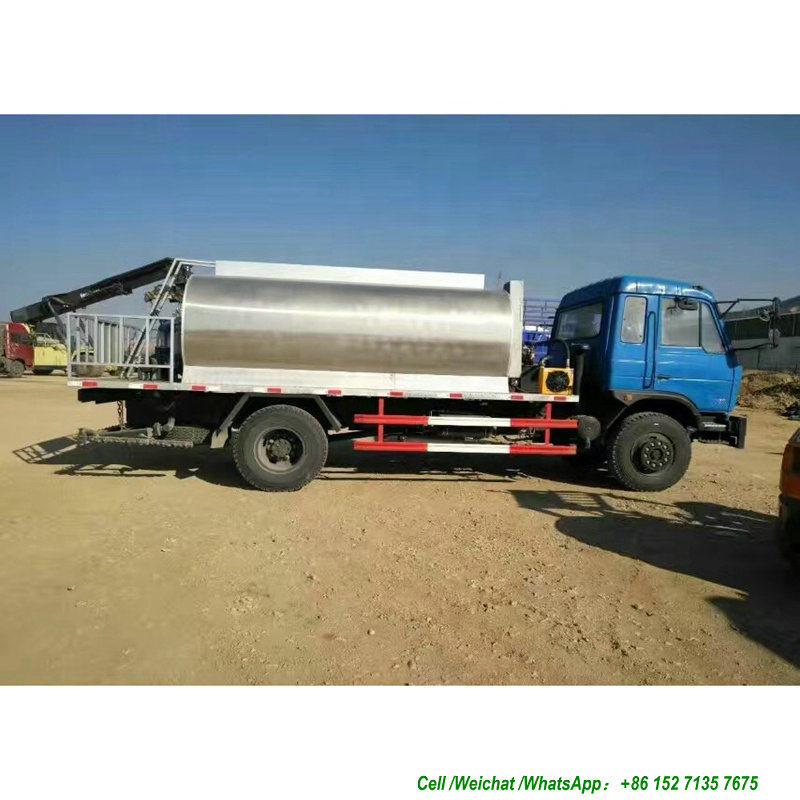

Pictures of 4X2 dongfeng heating asphalt distributor truck
Detailed parameters, more photoes, latest price and other information needed pls contact us.
Parameters of Semi-Automatic Asphalt Distributor.
Model | 5251GLQ | 5162GLQ | 5161GLQ | 5120GLQ | 5111GLQ | 5090GLQ | 5081GLQ |
Truck | Cab-over-engine 6*4 | Cab-over-engine 4*2 | Cab-over-engine 4*2 | Cab-over-engine 4*2 | Cab-over-engine 4*2 | Cab-over-engine 4*2 | Cab-over-engine 4*2 |
Chassis Model | ZZ1257M4647C | DFL1160BX | BJ5163ELFFD | BJ1123VJPEG-S | EQ1110TJ12D5 | EQ1090T9ADJ3AC | HFC1081KT |
Burner model | G20 | G20 | G20 | G20 | G20 | G20 | G20 |
Asphalt capacity | 12000 | 8000 | 8000 | 6600 | 5400 | 4500 | 5000 |
Spray bar variable(m) | 0-6M | 0-6M | 0-6M | 0-6M | 0-6M | 0-6M | 0-5.5M |
Spray bar value(kg) | 0.3-3.0 | 0.3-3.0 | 0.3-3.0 | 0.3-3.0 | 0.3-3.0 | 0.3-3.0 | 0.3-3.0 |
Dimension | 10500*2496*3350 | 8995*2490*3200 | 8785*2455*3015 | 8990*2350*2855 | 7998*2260*2870 | 7445*2285*2560 | 7350*2010*2460 |
| Configuration Type | Details of Asphalt truck | |||
| Normal configuration Simple type | 1. Asphalt pump: ZP230 insulation type high viscosity asphalt pump; 2. Asphalt pump drive motor: GM05 series high-torque plunger motor; 3. Burner: G10 imported from Italy 4. Temperature control: AI-218 microcomputer temperature controller; 5. Spreading width: 1.2m ~ 4.5m, optional 6m 6. Spray control: manual adjustment 7. Asphalt pipeline compressed air cleaning function | |||
| Ordinary configuration | 1. Asphalt pump: ZP230 insulation type high viscosity asphalt pump; 2. Asphalt pump drive motor: GM05 series high-torque plunger motor; 3. Hydraulic pump: F563 aluminum alloy gear pump; 4. Hydraulic system: manual flow control valve imported; 5. Burner: G10 imported from Italy 6. Temperature control: AI-218 microcomputer temperature controller; 7. Spreading width: 1.2m ~ 4.5m, optional 6m 8. Sprinkler control: manually adjust asphalt pipe 9. Asphalt pipeline compressed air cleaning function | |||
| Ordinary upgrade configuration | 1. Asphalt pump: ZP230 insulation type high viscosity asphalt pump; 2. Asphalt pump drive motor: GM05 series high-torque plunger motor; 3. Hydraulic pump: F563 aluminum alloy gear pump; 4. Hydraulic system: imported proportional flow control valve; 5. Burner: G10 imported from Italy 6. Heating method: automatically heating by heat-conduction oil 7. Temperature control: AI microcomputer temperature controller; 8. Width of Spray : 1.2m ~ 4.5m, optional 6m precise triple overlappingSpray , 9. Spraying quantity control: manually adjust asphalt nozzle; 10. Asphalt pipeline compressed air cleaning function | |||
| Semi-intelligent configuration | 1. Asphalt pump: ZP230 insulation type high viscosity asphalt pump; 2. Asphalt pump drive motor: GM05 series high-torque plunger motor; 3. Hydraulic pump: F563 aluminum alloy gear pump; 4. Hydraulic system: imported proportional flow control valve; 5. Burner: G10 imported from Italy 6. Heating method: automatically heating by heat-conduction oil 7. Temperature control: AI microcomputer temperature controller; 8. Maximum width of Spray : 4.5 meters, optional 6 meters, precise three overlapping Spray , fully electric controln ozzle, 9. Sprinkler control: front and background potentiometer adjustment, digital display; 10. Asphalt pipeline compressed air cleaning function | |||
| Full intelligent configuration | 1. Asphalt pump: ZP230 insulation type high viscosity asphalt pump; 2. Asphalt pump drive motor: GM05 series high-torque plunger motor; 3. Hydraulic pump: F563 aluminum alloy gear pump; 4. Hydraulic system: imported proportional flow control valve; 5. Burner: G10 imported from Italy 6. Heating method: automatically heating by heat-conduction oil with selective heating function 7.temperature control: Germany Siemens temperature control module, computer temperature control 8. Maximum width of Spray : 4.5 meters, optional 6 meters, precise three overlapping Spray , fully electric control nozzle, 9. Sprinkling width is precisely controlled by computer: sprinkling quantity control: Germany Siemens PLC, intelligent control, sprinkling quantity and speed precise linkage, front touch screen control system. 10. Asphalt pipeline compressed air cleaning function | |||
| Full intelligent configuration imported Pump |
3. Hydraulic pump: Germany leisler plunger variable pump; 4. Hydraulic system: imported proportional flow control valve; 5. Burner: G10 imported from Italy 6. Heating method: automatically heating by heat-conduction oil with selective heating function 7.temperature control: Germany Siemens temperature control module, computer temperature control 8. Maximum width of Spray : 4.5 meters, optional 6 meters, precise three overlapping Spray , fully electric control nozzle, 9. Sprinkling width is precisely controlled by computer: sprinkling quantity control: Germany Siemens PLC, intelligent control, sprinkling quantity and speed precise linkage, front touch screen control system. 10. Asphalt pipeline compressed air cleaning function 11.spray volume 0.2 ~ 3 kg / , 28 sets of full electric nozzle, | |||
Our products enjoy a good reputation for the good quality!

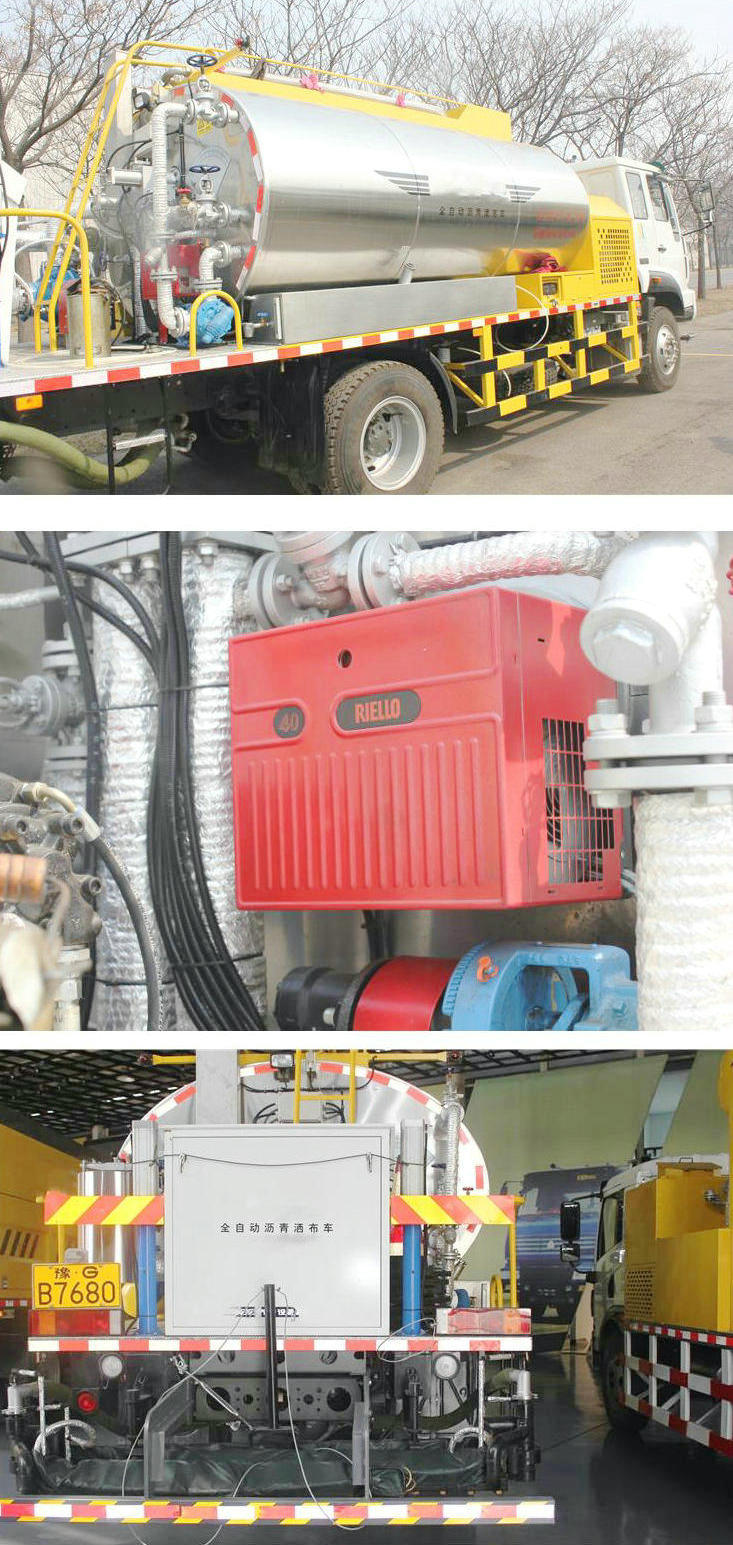

The asphalt distributor is made up by chassis, asphalt tank, asphalt pump, optional conduction oil heating system, electronic control system and spraybar system, etc.
Major features:
1) Digital display meters and instruments to indicate speed of the vehicle and the asphalt pump rotation, as well as temperature of asphalt inside the tank.
2) Possesses heat preservation, conduction oil recycling heating, transportation, spray, pumping and discharge function, etc.
3) Nozzle controlled through pneumatic joint control operation of cylinder for opening and closing.
4) Cleaning system of compressed air
5) Hydraulic power take-off of chassis or auxiliary diesel engine for drive, heated with burner, optional conduction oil recycling system.
