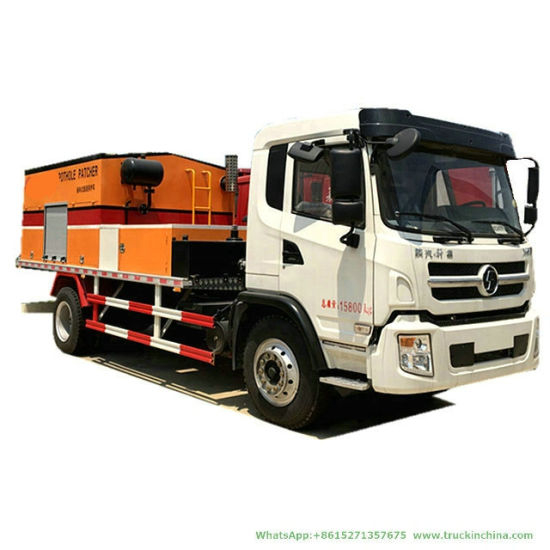

Shacman Asphalt Pothole Patcher 6wheels for Asphalt Road Maintenance

Shacman Asphalt Pothole Patcher 6wheels for Asphalt Road Maintenance

Quantity:
  • Shanghai, China
  • 8000
  • T/T

Road Construction Shacman Asphalt Pothole Patcher 6wheels for Asphalt Road maintenance
SHACMAN 4X2 ASPHALT POTHOLE PATCHER VEHICLE,ASPHALT PAVEMENT/ROAD REPAIR/MAINTENANCE EQUIPMENT TRUCK

Cell: 0086 152 7135 7675

Shacman Asphalt Pothole Patcher 6wheels for Asphalt Road maintenance
 Shacman asphalt synchronous chip sealer truck,6 CBM asphalt sprayer truckShacman Asphalt Pothole Patcher 6wheels for Asphalt Road Maintenance
Shacman Asphalt Pothole Patcher 6wheels for Asphalt Road Maintenance
Shacman Asphalt Pothole Patcher 6wheels for Asphalt Road Maintenance

road patcher

1. Bitumen spray truck, aslo called asphalt sprayer or saphalt paving truck, is specially designed and produced for transporting or spraying liquid asphalt(Including hot asphalt, emulsified asphalt and residue),in addition it can also supply loose asphalt binder to the soil, the construction of asphalt stabilized soil pavement or pavement base.
Bitumen spray truck is a black road construction machinery, one of the main equipment for the construction of road, city roads, airports and port terminals.
2. Type of our asphalt paving truck:

a. Common type

b. Standard type

c. Smart type(domestic main components)

d. Smart type(import main components)

(See more details in the comparation table below)

3. Capacity of spraying asphalt:

Type: whole four types above can work with liquid asphalt, such as hot asphalt, emulsified asphalt and residue, etc.

Rubber asphalt: need special equipment and customized.

Spraying rate: according to equipped asphalt pump(from 300~680 liters/min)

Spraying width: 4.5~6m

Spraying area: 0.2~0.3 liters/cbm

4. Structure of our asphalt spray truck:

Automobile system, asphalt tank, asphalt pumping and spraying system, thermal oil heating system, hydraulic system, combustion system, control system, pneumatic system, operating platform.

Overall parameters
Type of Vehicle
road patcher
Dimension(L*W*H)
9150,8750×2450×3120(mm)
GVW
15800(Kg)
Curb Weight
10000(Kg)
Rated loading weight
5000(Kg)
Chassis parameters

Chassis Model
SX1168GP5
Manufacture
SHANGQI SHACMAN
Cab
single and a half
front/rear suspension
1500/2280(mm)
Engine
Engine Model
ISD180 50
Fuel
diesel-oil
Quantity of cylinder
6
Horse Power
160hp
Rated Power
117kw
Air Displacement
4730ML
Emission
EURO 5

Driving Type
4*2
Steering Wheel
left hand driving
Gear-box
5
Brake Type
air
Quantity of Axle
2
Wheel Base
4600,5000(mm)
Axle load
6500/7000/17500
Quantity of Tire
12
Tire Type
9.00-20,9.00R20,10.00-20,10.00R20,10R22.5
Basic Parameters of Pothole Patcher Truck
Asphalt Combination Box 1 set
Generator 1 set
Feed Delivery Device 1 set
Mixing System 1 set
Driving System 1 set
Dusting System 1 set
Electronic Control System 1 set
Asphalt Feed System 1 set
Transfer Oil Heating System 1 set
Spraying System 1 set
Burner 2 sets
Lighting System 1 set
Warning Light System 1 set
Rated Volume of Tank of Insulated Silo 4.5m³
Heating Way for Asphalt Automatic heating of transfer oil
Heating Way for Mixed Material Transfer oil + fume
Heating Temperature of Mixed Material 140-160ºC
Heating Power of Burner 100000Kcal/h(Italy RIELLO)
Discharge Method Spiral discharging
Allowable Viscosity of Working Medium ≤300 Cst
Maximum Pressure of Cleaning System 0.6 Mpa
Maximum Pressure of Hydraulic System 20 Mpa
Highest Oil Temperature of Hydraulic System 85ºC
Highest Temperature of Transfer Oil 180ºC
Maximum Pressure of Transfer Oil System 0.15Mpa

Our asphalt distributor truck for sale features and advantage
1.) Automatic asphalt distributor boasts three layers. It can adjust the spray amount according to its operational speed.
2.) The whole asphalt spraying process can be finished in the cab.
3.) Each nozzle is controlled by separate computer. The spray width can be adjusted at random.
4.) The control procedure is equipped with two control systems, cab and post operational platform to ensure the reliability of asphalt spray.
5.)The computer control system adopts modular design for lower accident rate and maintenance.
6.)The temperature of asphalt in tank is kept below or equal to two degrees per hour
7.)The distributor is equipped with automatic blowing device to shift the asphalt outside to the tank

The overall description of our Synchronous Chipsealer Truck series

Automatic Asphalt Distributor/Bitumen Sprayer The main fitting adopts the most advanced components with computer system controlled spraying. Our intelligent asphalt distributor's accuracy meets Euro standards. Together with the advantages of asphalt distributors in the world, with automatic asphalt distributor, we innovated four new technologies

1. Any asphalt used is displaced.
2. Asphalt nozzle is multilayer filtrate and keeps the quality of spray.
3. Asphalt spraying is controlled by computer system.
4. Asphalt spray is suitable for asphalt pavement construction, which can improve performance achievements to international standards with zero tolerance.
5.Automatic asphalt distributor boasts three layers. It can adjust the spray amount according to its operational speed.
6. The whole asphalt spraying process can be finished in the cab.
7. Each nozzle is controlled by separate computer. The spray width can be adjusted at random.
8. The control procedure is equipped with two control systems, cab and post operational platform to ensure the reliability ofasphalt spray.

Q1. What is the advantage of your Asphalt Distributor?
We have two categories of Asphalt Distributors: Ordinary and Intelligent. Please take a look at our catalog to know the advantages of the Ordinary type. The advantages of the Intelligent type:
1. The main accessories (asphalt pump, burner, control system) are imported;
2. Adjustable spray amount based on the viscosity of the medium;
3. Two sets of control systems (cab and back operating platform) and newly launched GPS remote control and diagnose system.

Q2. What is the price of your Asphalt Distributor?
We have three kinds of Asphalt Distributors: Ordinary, Standard and Intelligent. Prices are based on the type, capacity and configuration.

Q3. What is the difference between Intelligent Asphalt Distributor and Standard Asphalt Distributor?
A. Intelligent: The whole operation can be carried out in the cab; Standard: Manual operation.
B. Intelligent: Imported accessories (asphalt pump--Danish ROTAN, burner-Italian Riello, hydraulic pump -Germany Rexroth, temperature control system-Omron, computer control components-Siemens. The standard type also uses imported accessories.
C. Intelligent: heat transfer oil heating system, each nozzle is controlled by separate computer. Standard: asphalt pump+ heat transfer oil, one computer controls three nozzles.

Q4. What warranty coverage do I have?
Our Asphalt Distributor has one-year warranty. We will provide free accessories for exported products.

Product Photos

Shacman Asphalt Pothole Patcher 6wheels for Asphalt Road Maintenance
Shacman Asphalt Pothole Patcher 6wheels for Asphalt Road Maintenance
Shacman Asphalt Pothole Patcher 6wheels for Asphalt Road Maintenance


Parameters of Semi-Automatic Asphalt Distributor.


Model

5251GLQ

5162GLQ

5161GLQ

5120GLQ

5111GLQ

5090GLQ

5081GLQ

Truck

Cab-over-engine 6*4

Cab-over-engine 4*2

Cab-over-engine 4*2

Cab-over-engine 4*2

Cab-over-engine 4*2

Cab-over-engine 4*2

Cab-over-engine 4*2

Chassis Model

ZZ1257M4647C

DFL1160BX

BJ5163ELFFD

BJ1123VJPEG-S

EQ1110TJ12D5

EQ1090T9ADJ3AC

HFC1081KT

Burner model

G20

G20

G20

G20

G20

G20

G20

Asphalt capacity

12000

8000

8000

6600

5400

4500

5000

Spray bar variable(m)

0-6M

0-6M

0-6M

0-6M

0-6M

0-6M

0-5.5M

Spray bar value(kg)

0.3-3.0

0.3-3.0

0.3-3.0

0.3-3.0

0.3-3.0

0.3-3.0

0.3-3.0

Dimension

10500*2496*3350

8995*2490*3200

8785*2455*3015

8990*2350*2855

7998*2260*2870

7445*2285*2560

7350*2010*2460
Configuration Type Details of Asphalt truck
Normal configuration Simple type 1. Asphalt pump: ZP230 insulation type high viscosity asphalt pump;
2. Asphalt pump drive motor: GM05 series high-torque plunger motor;
3. Burner: G10 imported from Italy
4. Temperature control: AI-218 microcomputer temperature controller;
5. Spreading width: 1.2m ~ 4.5m, optional 6m
6. Spray  control: manual adjustment
7. Asphalt pipeline compressed air cleaning function
Ordinary configuration 1. Asphalt pump: ZP230 insulation type high viscosity asphalt pump;
2. Asphalt pump drive motor: GM05 series high-torque plunger motor;
3. Hydraulic pump: F563 aluminum alloy gear pump;
4. Hydraulic system: manual flow control valve imported;
5. Burner: G10 imported from Italy
6. Temperature control: AI-218 microcomputer temperature controller;
7. Spreading width: 1.2m ~ 4.5m, optional 6m
8. Sprinkler control: manually adjust asphalt pipe
9. Asphalt pipeline compressed air cleaning function
Ordinary upgrade configuration
1. Asphalt pump: ZP230 insulation type high viscosity asphalt pump;
2. Asphalt pump drive motor: GM05 series high-torque plunger motor;
3. Hydraulic pump: F563 aluminum alloy gear pump;
4. Hydraulic system: imported proportional flow control valve;
5. Burner: G10 imported from Italy
6. Heating method: automatically heating by heat-conduction oil
7. Temperature control: AI microcomputer temperature controller;
8. Width of Spray : 1.2m ~ 4.5m, optional 6m precise triple overlappingSpray ,
9. Spraying quantity control: manually adjust asphalt nozzle;
10. Asphalt pipeline compressed air cleaning function
Semi-intelligent configuration

1. Asphalt pump: ZP230 insulation type high viscosity asphalt pump;
2. Asphalt pump drive motor: GM05 series high-torque plunger motor;
3. Hydraulic pump: F563 aluminum alloy gear pump;
4. Hydraulic system: imported proportional flow control valve;
5. Burner: G10 imported from Italy
6. Heating method:  automatically heating by heat-conduction oil
7. Temperature control: AI microcomputer temperature controller;
8. Maximum width of Spray : 4.5 meters, optional 6 meters, precise three overlapping Spray , fully electric controln ozzle,
9. Sprinkler control: front and background potentiometer adjustment, digital display;
10. Asphalt pipeline compressed air cleaning function
Full intelligent configuration

1. Asphalt pump: ZP230 insulation type high viscosity asphalt pump;
2. Asphalt pump drive motor: GM05 series high-torque plunger motor;
3. Hydraulic pump: F563 aluminum alloy gear pump;
4. Hydraulic system: imported proportional flow control valve;
5. Burner: G10 imported from Italy
6. Heating method:  automatically heating by heat-conduction oil with selective heating function
7.temperature control: Germany Siemens temperature control module, computer temperature control
8. Maximum width of Spray : 4.5 meters, optional 6 meters, precise three overlapping Spray , fully electric control nozzle,
9. Sprinkling width is precisely controlled by computer: sprinkling quantity control: Germany Siemens PLC, intelligent control, sprinkling quantity and speed precise linkage, front touch screen control system.
10. Asphalt pipeline compressed air cleaning function
Full intelligent configuration
imported Pump
  1. Asphalt pump:  European TGGP-86-100 heat preservation pump

2. Asphalt pump drive motor: GM05 series high-torque plunger motor;
3. Hydraulic pump: Germany leisler plunger variable pump;
4. Hydraulic system: imported proportional flow control valve;
5. Burner: G10 imported from Italy
6. Heating method:         automatically heating by heat-conduction oil   with selective heating function
7.       temperature control: Germany Siemens temperature control module, computer temperature control
8. Maximum width of Spray : 4.5 meters, optional 6 meters, precise three overlapping Spray ,       fully electric   control   nozzle,
9.       Sprinkling width is precisely controlled by computer: sprinkling quantity control: Germany Siemens PLC, intelligent control, sprinkling quantity and speed precise linkage, front touch screen control system.
10. Asphalt pipeline compressed air cleaning function
11.spray volume 0.2 ~ 3 kg / , 28 sets of full electric nozzle,


Our products enjoy a good reputation for the good quality!
The asphalt distributor is made up by chassis, asphalt tank, asphalt pump, optional conduction oil heating system, electronic control system and spraybar system, etc.
Major features:
1) Digital display meters and instruments to indicate speed of the vehicle and the asphalt pump rotation, as well as temperature of asphalt inside the tank.
2) Possesses heat preservation, conduction oil recycling heating, transportation, spray, pumping and discharge function, etc.
3) Nozzle controlled through pneumatic joint control operation of cylinder for opening and closing.
4) Cleaning system of compressed air

5) Hydraulic power take-off of chassis or auxiliary diesel engine for drive, heated with burner, optional conduction oil recycling system.
Shacman Asphalt Pothole Patcher 6wheels for Asphalt Road Maintenance
