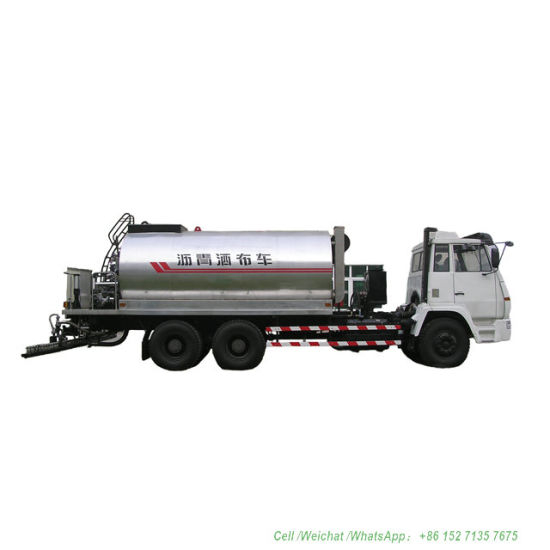

Shacman Asphalt Distributor 12t (Intelligent Asphalt Distributor Nozzles 30 Nos Asphalt Tank 8000-12000L Insulated Spray Bitumen 4.5 -6 meters))

Shacman Asphalt Distributor 12t (Intelligent Asphalt Distributor Nozzles 30 Nos Asphalt Tank 8000-12000L Insulated Spray Bitumen 4.5 -6 meters))

Quantity:
  • Shanghai, China
  • 8000
  • T/T

Road Construction Intelligent Asphalt Distributor
King Run Asphalt Distributor 6-10 m3 (Road Paver Asphalt Bitumen Sprayer)  6000-10000L Tank Spraying Nozzles 30 Nos (Asphalt Tank 8000-10000L Insulated Spray Bitumen 4.5 -6 meters)

Cell: 0086 152 7135 7675


Brief introduction of asphalt distributor truck




Mass parameter:
Kerb Weight(kg)13800Total Weight(kg)25000
Rated loading Weight(kg)11070Dimension(mm)

11260×2490

×3690

Chassis Parameter:
Chassis ModelZZ1257N4641VTyre model12.00-20
Wheelbase (mm)4600+1350Tread mm2022/2022/1830
Engine parameter:
Engine modelWD615.69ManufacturerChina Heavy Duty Truck Group Co., Ltd.
Max. Power(kw)247Max. Torque(N/m)1160/1300-1600
Displacement(ml)9726FuelDiesel
Spray specification:
Tank Capacity(m³)12Spray width6000mm
Hydraulic pump modelCBQ-F563FPLSpray Value0.5-3.0(Kg)
Hydraulic motor

L2F107W2P2

(Liyuan)

Insulation Thickness50mm
ControllerZM-3DNozzles39
BurnerG20(Riello)Asphalt pumpQGB950(Shanggui)
Generator(Converter)YT6800E

Other parameter:
Max. truck speed(km/h)90Max. Grade ability>23%
Spring films(Front/Rear)10/12Minimum turning diameter (m)23
Axis No.3(6*4)

1.Performance Feature

1.1. 6*4 chassis form makes the vehicle load more uniform. The passing ability is more reasonable. The driving is safer and more reliable;

1.2.TFT LCD touch screen man-machine interface;Man-machine communication are more friendly. It is easier to operate

1.3.Temperature control module always monitors temperature of heat conduction oil. Temperature contror module always monitors temperature of heat conduction oil,

1.4. PTO power take-off method is used. Zero distance spraying can be realized

1.5. Three overlapping spraying ensures more uniform spreading with higher precision..


Parameters of Semi-Automatic Asphalt Distributor.


Model

5251GLQ

5162GLQ

5161GLQ

5120GLQ

5111GLQ

5090GLQ

5081GLQ

Truck

Cab-over-engine 6*4

Cab-over-engine 4*2

Cab-over-engine 4*2

Cab-over-engine 4*2

Cab-over-engine 4*2

Cab-over-engine 4*2

Cab-over-engine 4*2

Chassis Model

ZZ1257M4647C

DFL1160BX

BJ5163ELFFD

BJ1123VJPEG-S

EQ1110TJ12D5

EQ1090T9ADJ3AC

HFC1081KT

Burner model

G20

G20

G20

G20

G20

G20

G20

Asphalt capacity

12000

8000

8000

6600

5400

4500

5000

Spray bar variable(m)

0-6M

0-6M

0-6M

0-6M

0-6M

0-6M

0-5.5M

Spray bar value(kg)

0.3-3.0

0.3-3.0

0.3-3.0

0.3-3.0

0.3-3.0

0.3-3.0

0.3-3.0

Dimension

10500*2496*3350

8995*2490*3200

8785*2455*3015

8990*2350*2855

7998*2260*2870

7445*2285*2560

7350*2010*2460
Configuration TypeDetails of Asphalt truck
Normal configuration Simple type1. Asphalt pump: ZP230 insulation type high viscosity asphalt pump;
2. Asphalt pump drive motor: GM05 series high-torque plunger motor;
3. Burner: G10 imported from Italy
4. Temperature control: AI-218 microcomputer temperature controller;
5. Spreading width: 1.2m ~ 4.5m, optional 6m
6. Spray  control: manual adjustment
7. Asphalt pipeline compressed air cleaning function
Ordinary configuration1. Asphalt pump: ZP230 insulation type high viscosity asphalt pump;
2. Asphalt pump drive motor: GM05 series high-torque plunger motor;
3. Hydraulic pump: F563 aluminum alloy gear pump;
4. Hydraulic system: manual flow control valve imported;
5. Burner: G10 imported from Italy
6. Temperature control: AI-218 microcomputer temperature controller;
7. Spreading width: 1.2m ~ 4.5m, optional 6m
8. Sprinkler control: manually adjust asphalt pipe
9. Asphalt pipeline compressed air cleaning function
Ordinary upgrade configuration
1. Asphalt pump: ZP230 insulation type high viscosity asphalt pump;
2. Asphalt pump drive motor: GM05 series high-torque plunger motor;
3. Hydraulic pump: F563 aluminum alloy gear pump;
4. Hydraulic system: imported proportional flow control valve;
5. Burner: G10 imported from Italy
6. Heating method: automatically heating by heat-conduction oil
7. Temperature control: AI microcomputer temperature controller;
8. Width of Spray : 1.2m ~ 4.5m, optional 6m precise triple overlappingSpray ,
9. Spraying quantity control: manually adjust asphalt nozzle;
10. Asphalt pipeline compressed air cleaning function
Semi-intelligent configuration

1. Asphalt pump: ZP230 insulation type high viscosity asphalt pump;
2. Asphalt pump drive motor: GM05 series high-torque plunger motor;
3. Hydraulic pump: F563 aluminum alloy gear pump;
4. Hydraulic system: imported proportional flow control valve;
5. Burner: G10 imported from Italy
6. Heating method:  automatically heating by heat-conduction oil
7. Temperature control: AI microcomputer temperature controller;
8. Maximum width of Spray : 4.5 meters, optional 6 meters, precise three overlapping Spray , fully electric controln ozzle,
9. Sprinkler control: front and background potentiometer adjustment, digital display;
10. Asphalt pipeline compressed air cleaning function
Full intelligent configuration

1. Asphalt pump: ZP230 insulation type high viscosity asphalt pump;
2. Asphalt pump drive motor: GM05 series high-torque plunger motor;
3. Hydraulic pump: F563 aluminum alloy gear pump;
4. Hydraulic system: imported proportional flow control valve;
5. Burner: G10 imported from Italy
6. Heating method:  automatically heating by heat-conduction oil with selective heating function
7.temperature control: Germany Siemens temperature control module, computer temperature control
8. Maximum width of Spray : 4.5 meters, optional 6 meters, precise three overlapping Spray , fully electric control nozzle,
9. Sprinkling width is precisely controlled by computer: sprinkling quantity control: Germany Siemens PLC, intelligent control, sprinkling quantity and speed precise linkage, front touch screen control system.
10. Asphalt pipeline compressed air cleaning function
Full intelligent configuration
imported Pump
  1. Asphalt pump:  European TGGP-86-100 heat preservation pump

2. Asphalt pump drive motor: GM05 series high-torque plunger motor;
3. Hydraulic pump: Germany leisler plunger variable pump;
4. Hydraulic system: imported proportional flow control valve;
5. Burner: G10 imported from Italy
6. Heating method:        automatically heating by heat-conduction oil   with selective heating function
7.      temperature control: Germany Siemens temperature control module, computer temperature control
8. Maximum width of Spray : 4.5 meters, optional 6 meters, precise three overlapping Spray ,      fully electric  control  nozzle,
9.      Sprinkling width is precisely controlled by computer: sprinkling quantity control: Germany Siemens PLC, intelligent control, sprinkling quantity and speed precise linkage, front touch screen control system.
10. Asphalt pipeline compressed air cleaning function
11.spray volume 0.2 ~ 3 kg / , 28 sets of full electric nozzle,


Our products enjoy a good reputation for the good quality!
The asphalt distributor is made up by chassis, asphalt tank, asphalt pump, optional conduction oil heating system, electronic control system and spraybar system, etc.
Major features:
1) Digital display meters and instruments to indicate speed of the vehicle and the asphalt pump rotation, as well as temperature of asphalt inside the tank.
2) Possesses heat preservation, conduction oil recycling heating, transportation, spray, pumping and discharge function, etc.
3) Nozzle controlled through pneumatic joint control operation of cylinder for opening and closing.
4) Cleaning system of compressed air

5) Hydraulic power take-off of chassis or auxiliary diesel engine for drive, heated with burner, optional conduction oil recycling system.
