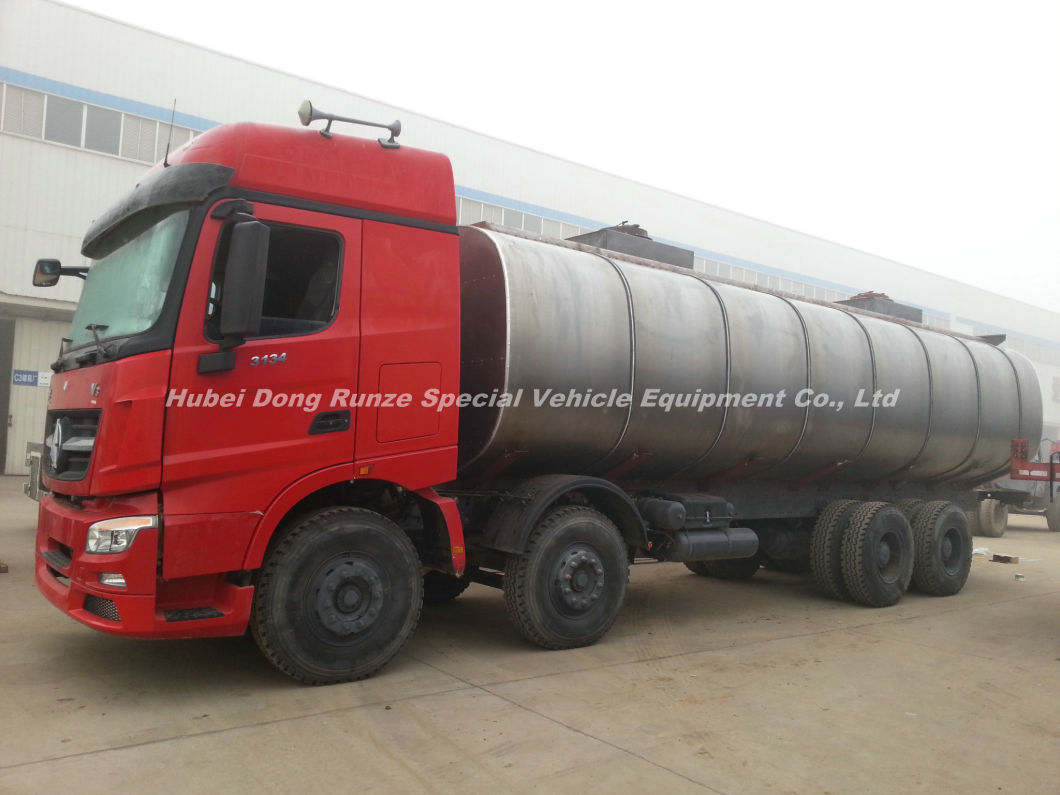

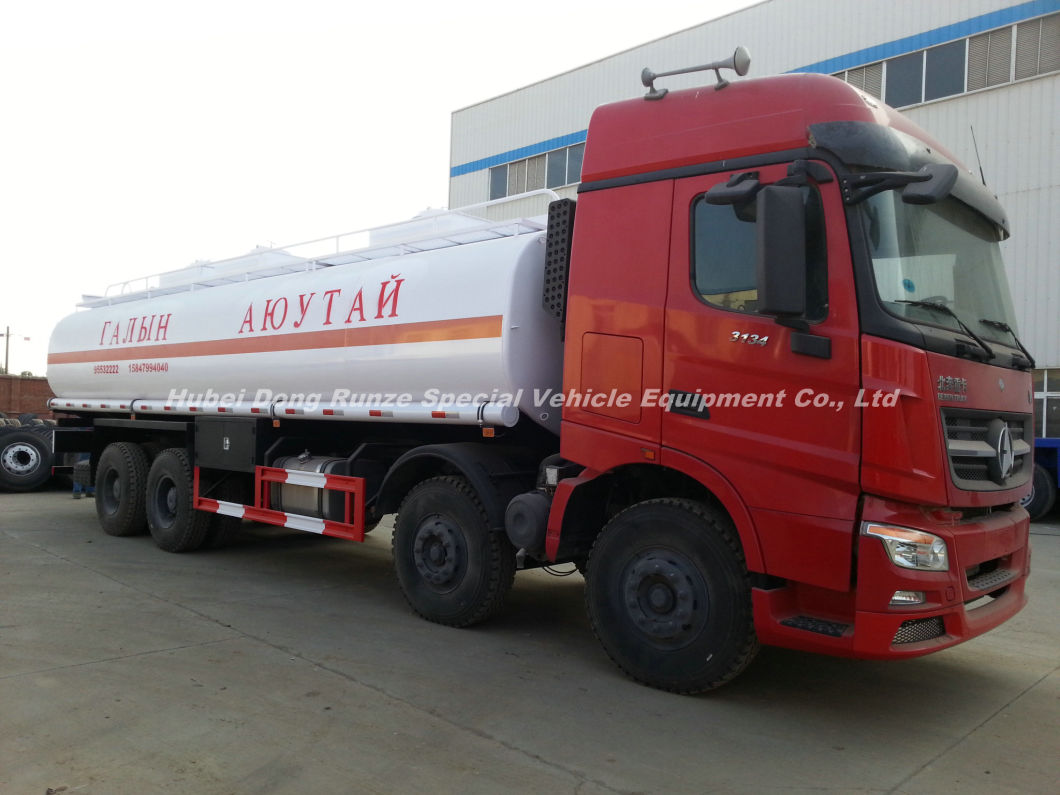

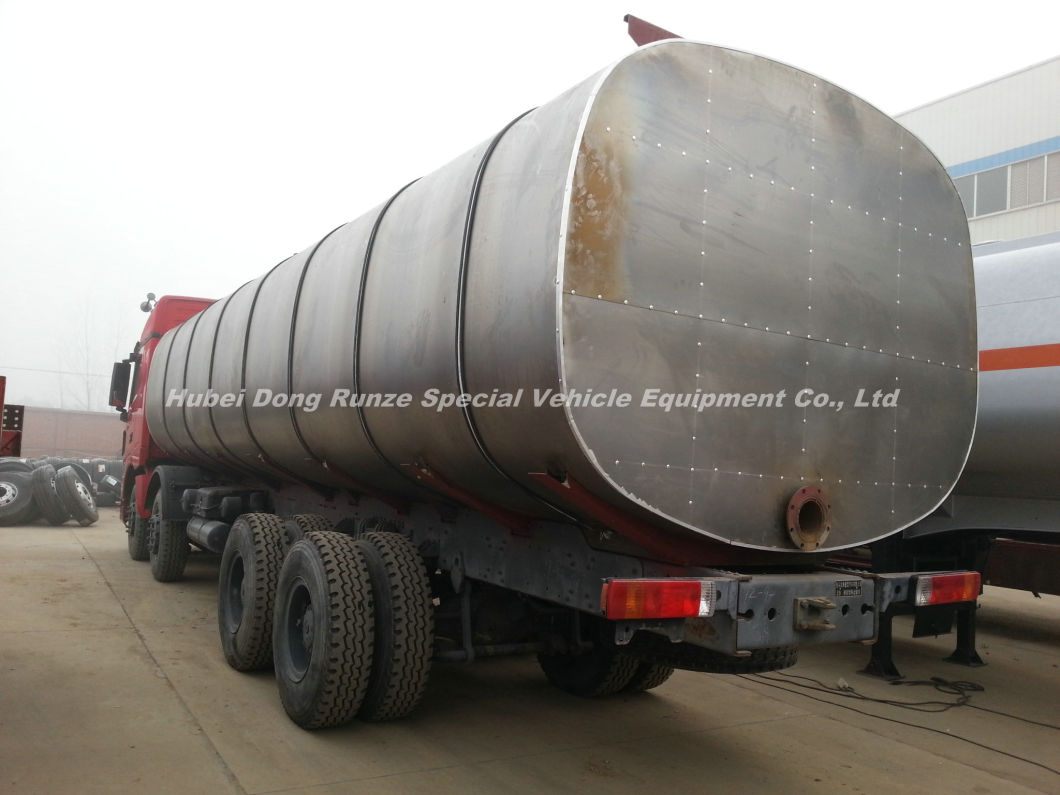

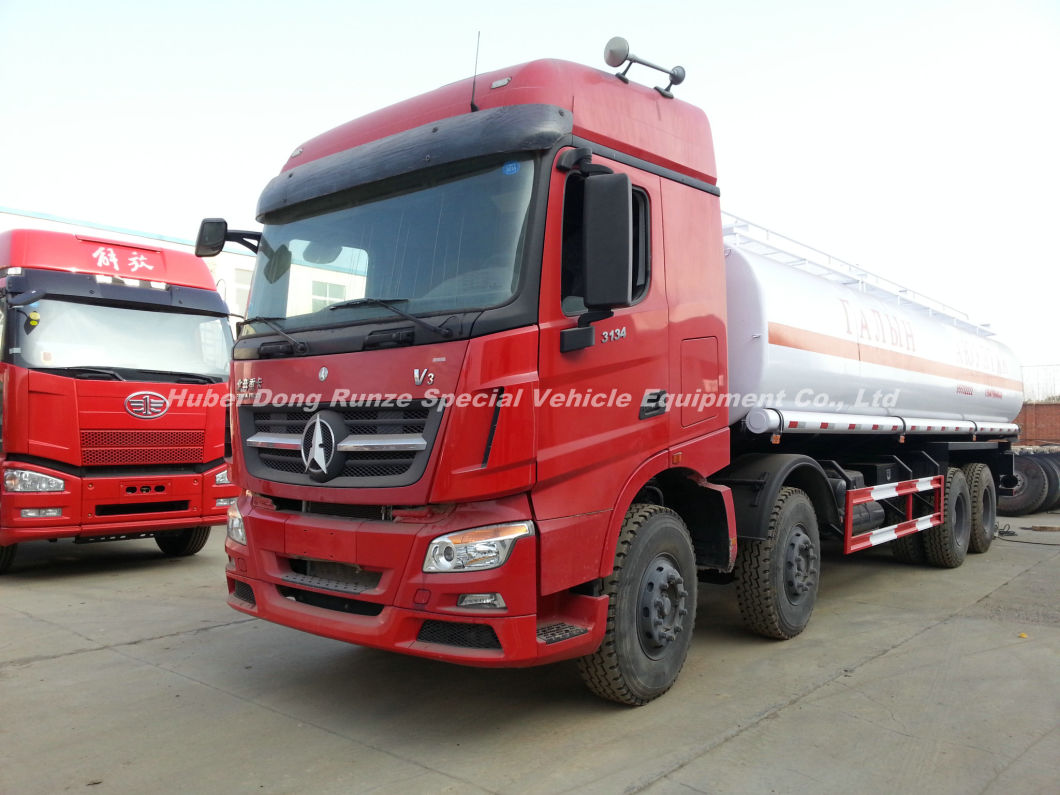

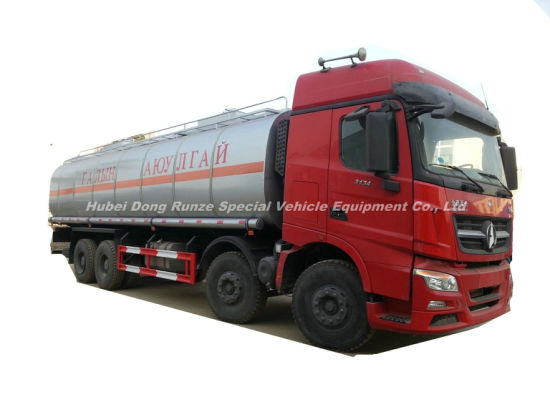

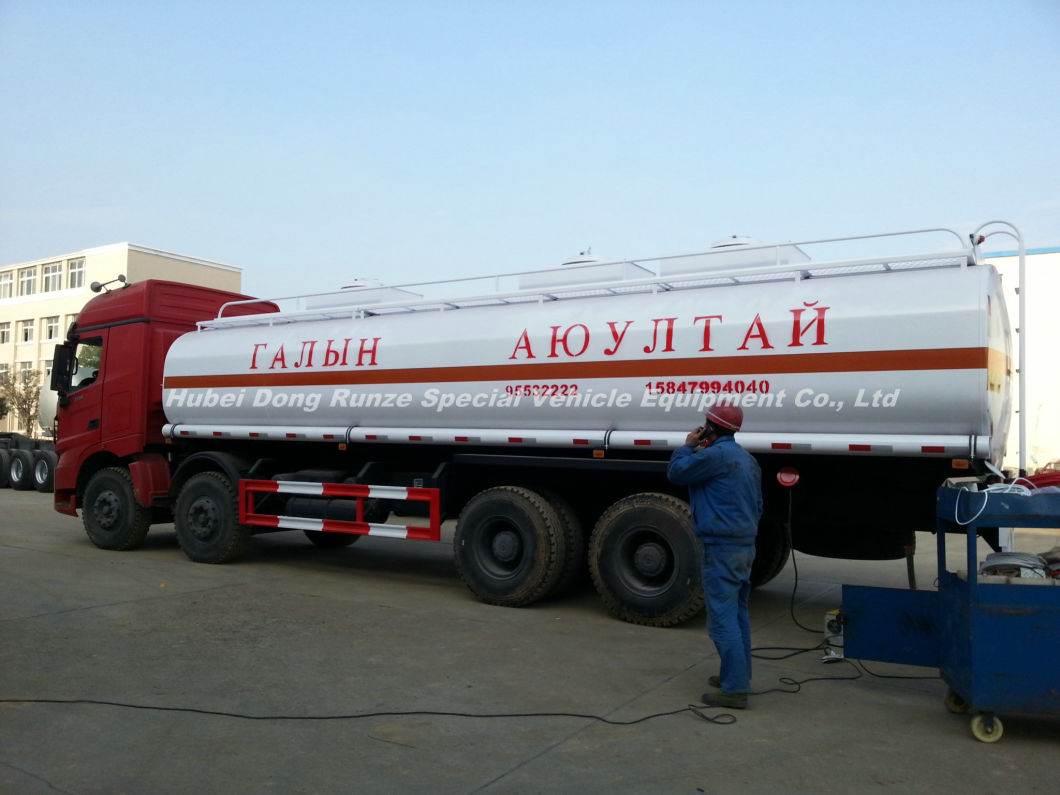

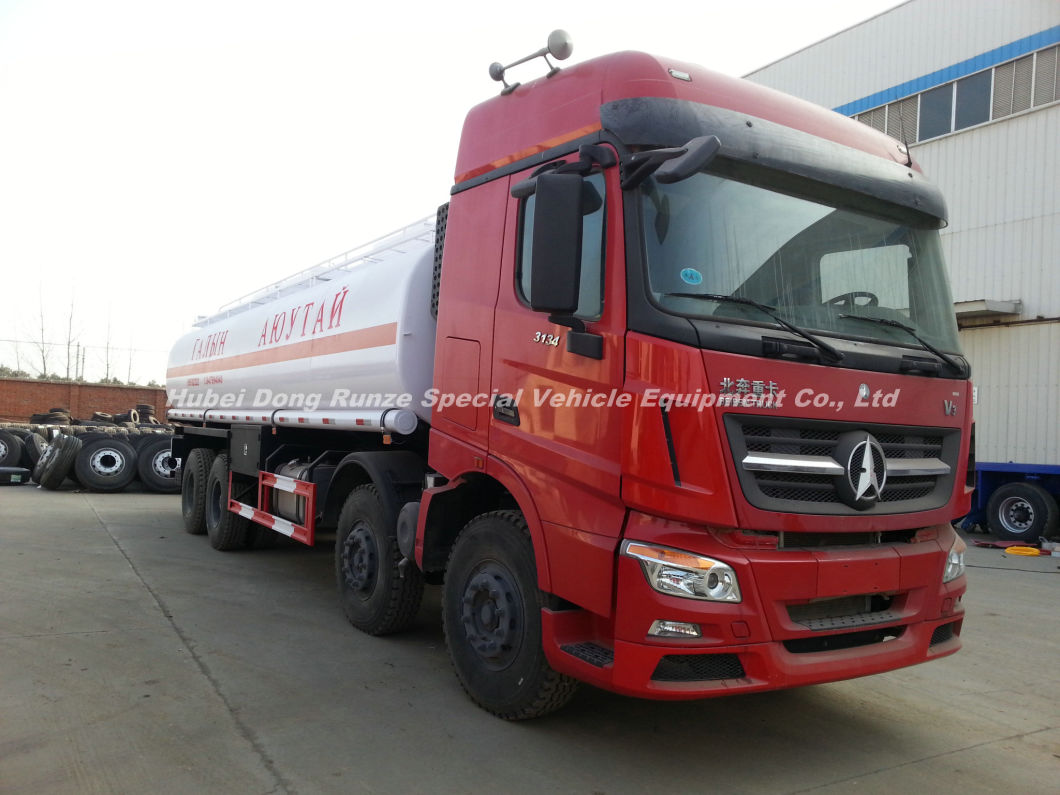

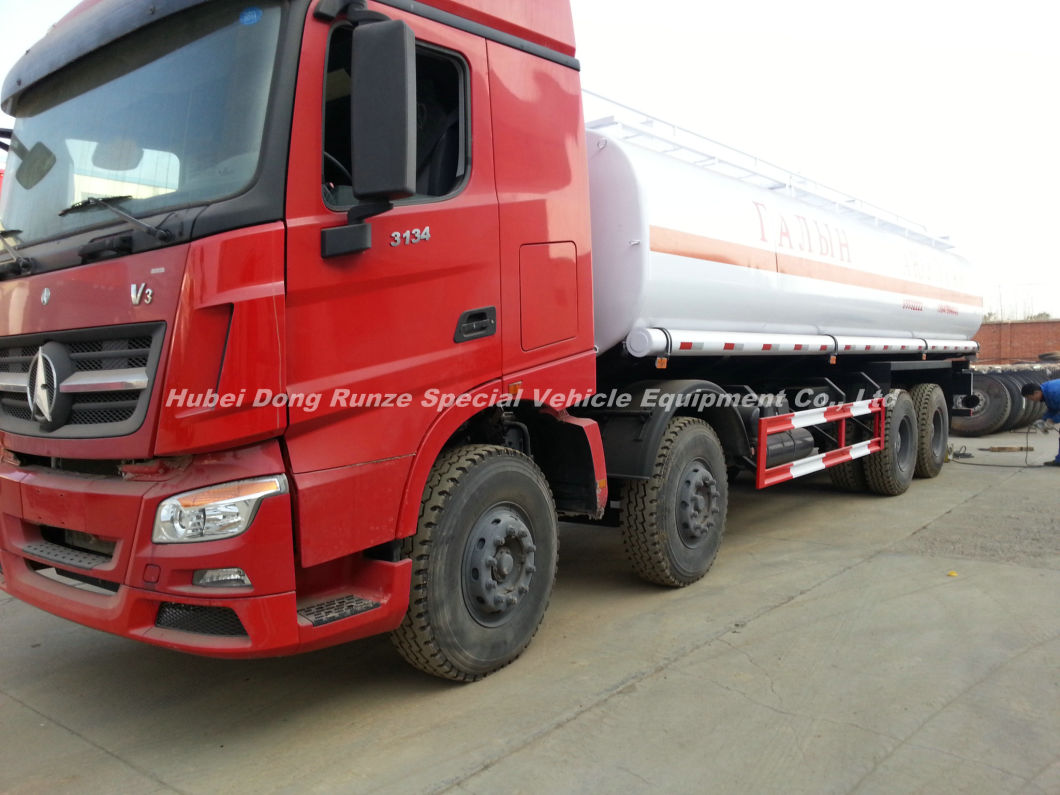

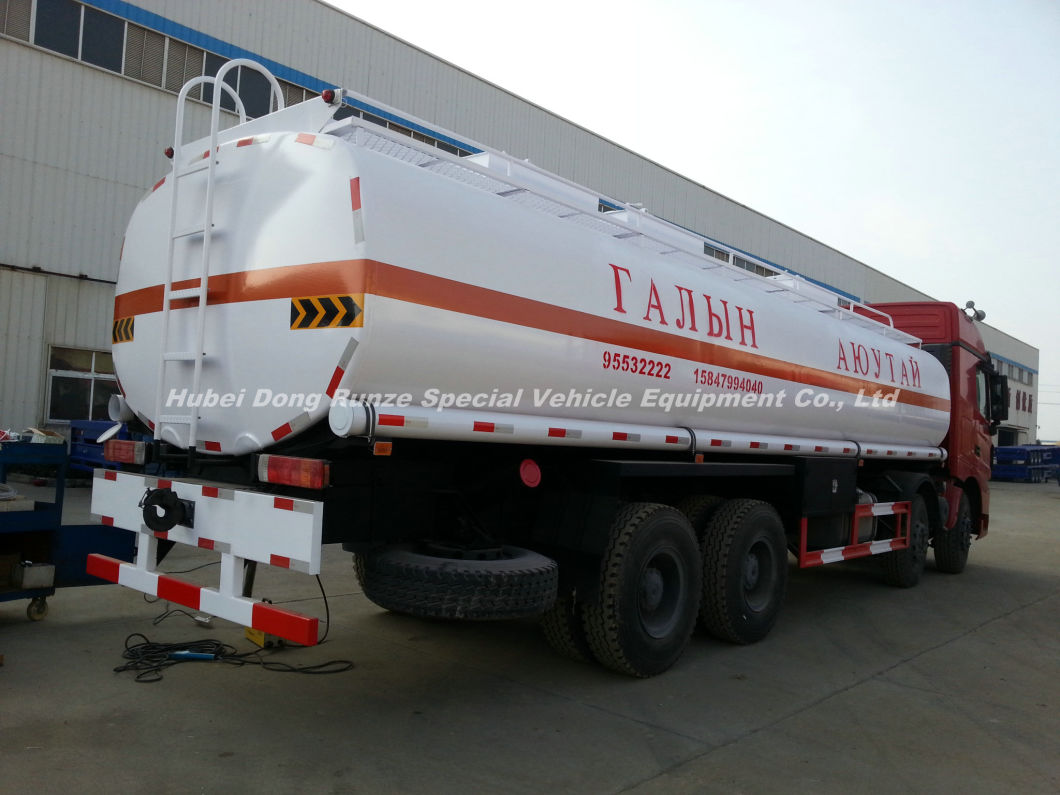

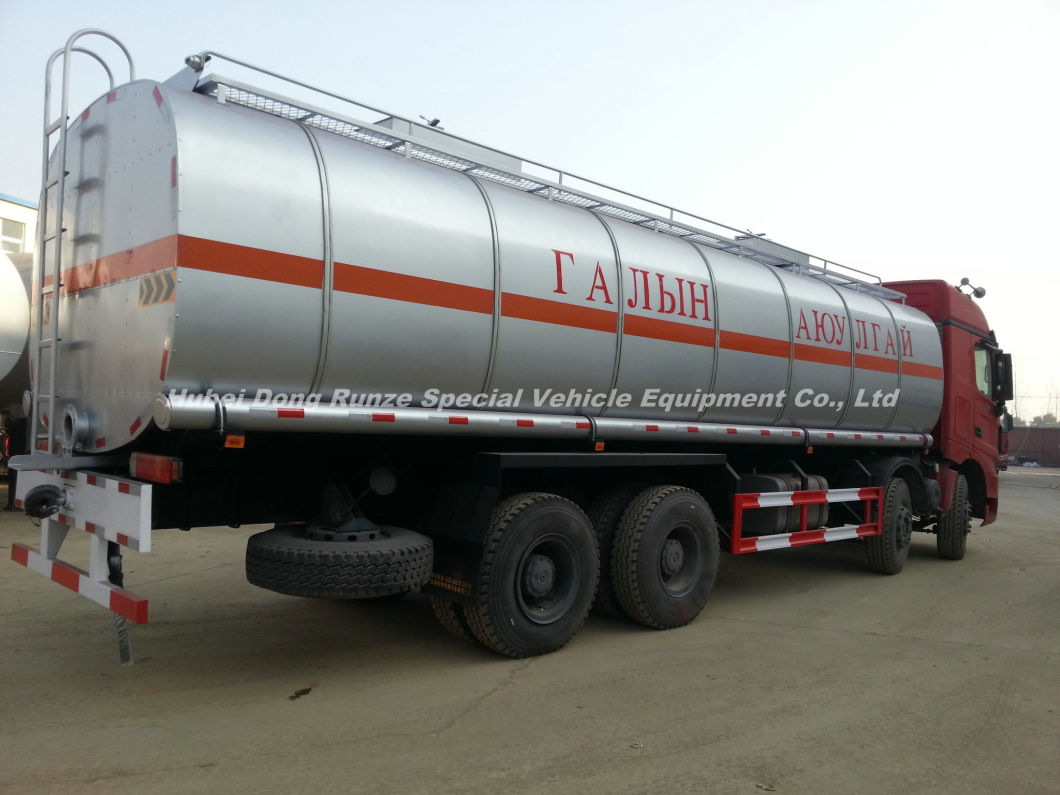

Beiben 3134 Tanker Truck with Insulation Layer for Heat Bitumen, Liquid Asphalt, Coal Tar Oil, Crude Oil Transport 26, 000L-33, 000liters
| Quantity: | |
|---|---|
- Shanghai, China
- 3000
- T/T
BEIBEN 3134 /3138 Tanker Truck With Insulation Layer for Heat Bitumen,Liquid Asphalt,Coal Tar Oil,Crude Oil Transport 26,000L-33,000Liters
Liquid Hot Bitumen Transport with Heating system Burners
Ask for better price
Cell +8615271357675
The pictures are for your reference only.
| NORTH BENZ 8X4 Lorry Truck | |
| Model | ND1255B50J |
| Driver's cab | Long cabin, one sleeper |
| Engine | Maker: North Benz |
| Diesel 4 stroke direct injection diesel engine, 6 cylinder in-line with water cooling,turbo-charging & inter cooling | |
| Engine model: WP10.336NE31 EURO II/EUROIII emission standard | |
| Maximum output:336hp@2200rpm | |
| Number of cylinder:6 | |
| Displacement: 9.726L | |
| Clutch | Single-plate dry coil-spring clutch,diameter 420mm,hydraulically operating with air assistance |
| Transmission | Fuller 9JS150A transmission. |
| Front Axle | Benz, drum brake |
| Rear Axle | Benz double reduction drive axle, ratio=5.2 |
| Steering | TAS85 |
| Wheel & Types | Rims:8.5-20 |
| Tyre:12.00R20 tube | |
| Optional: 12R22.5//315/80R22.5 | |
| Radial tire is optional | |
| Electrics | Operating voltage: 24V,negative grounded |
| Dimensions in mm | Wheel base : 1500+4750+1450 |
| Overall size: 10576x2500x3385 | |
| Weight in kg | Kerb. mass: 11300 kg |
| Total mass: 25000kg | |
| Performance | Maximum driving speed(km/h) 85 |
| Body in mm | 8000x2300x800 |
| The manufacture reserves the right of technical alteration/change for better improvement prior notice | |
Brief introduction of asphalt distributor truck
The asphalt distributor truck is also called asphalt paver truck, asphalt spray truck, bitumen sprayer truck, asphalt bitumen tank truck, road black tar sealing truck, etc.
The asphalt distributor truck for sale are consisted with truck chassis, insulated asphalt tank, heater, hydraulic system, conducting oil pipeline, asphalt pump, spray nozzle, etc. The tank volume is from 3m3 to 18m3. The spray nozzle quantity is from 30 to 48 nos.
The asphalt distributor truck is mainly used to transport asphalt and distribut it for sealing the road.
Our asphalt distributor truck adopt advanced technology and foreign imported parts. It has more advantages than other asphalt suppliers.
Advantages of our asphalt distributor truck
1.The temperature rising speed is 5% faster than the trucks manufacture by other factory.
2.High quality metal hose, won't broken, long service life.
3.The distribution width can be adjusted according to your demand from 4.5m to 6m.
4.Start quickly, though the truck stop, still can distribute.
Technical parameters of Dongfeng 5 to 6 tons asphalt distributor truck
Pictures of 4X2 dongfeng heating asphalt distributor truck
Detailed parameters, more photoes, latest price and other information needed pls contact us.
Parameters of Semi-Automatic Asphalt Distributor.
| Model | 5251GLQ | 5162GLQ | 5161GLQ | 5120GLQ | 5111GLQ | 5090GLQ | 5081GLQ |
| Truck | Cab-over-engine 6*4 | Cab-over-engine 4*2 | Cab-over-engine 4*2 | Cab-over-engine 4*2 | Cab-over-engine 4*2 | Cab-over-engine 4*2 | Cab-over-engine 4*2 |
| Chassis Model | ZZ1257M4647C | DFL1160BX | BJ5163ELFFD | BJ1123VJPEG-S | EQ1110TJ12D5 | EQ1090T9ADJ3AC | HFC1081KT |
| Burner model | G20 | G20 | G20 | G20 | G20 | G20 | G20 |
| Asphalt capacity | 12000 | 8000 | 8000 | 6600 | 5400 | 4500 | 5000 |
| Spray bar variable(m) | 0-6M | 0-6M | 0-6M | 0-6M | 0-6M | 0-6M | 0-5.5M |
| Spray bar value(kg) | 0.3-3.0 | 0.3-3.0 | 0.3-3.0 | 0.3-3.0 | 0.3-3.0 | 0.3-3.0 | 0.3-3.0 |
| Dimension | 10500*2496*3350 | 8995*2490*3200 | 8785*2455*3015 | 8990*2350*2855 | 7998*2260*2870 | 7445*2285*2560 | 7350*2010*2460 |
