Customizing Sinotruck Mobile Laundry Vehicles
with washing and drying equipment
Price for refer only. Final Price Offer Discount.
| FOB: | |
|---|---|
| Quantity: | |
|
| |
-
5180XBX6ABZ ,5180XBXZ6
-
DONG RUN ZE
-
87059099900

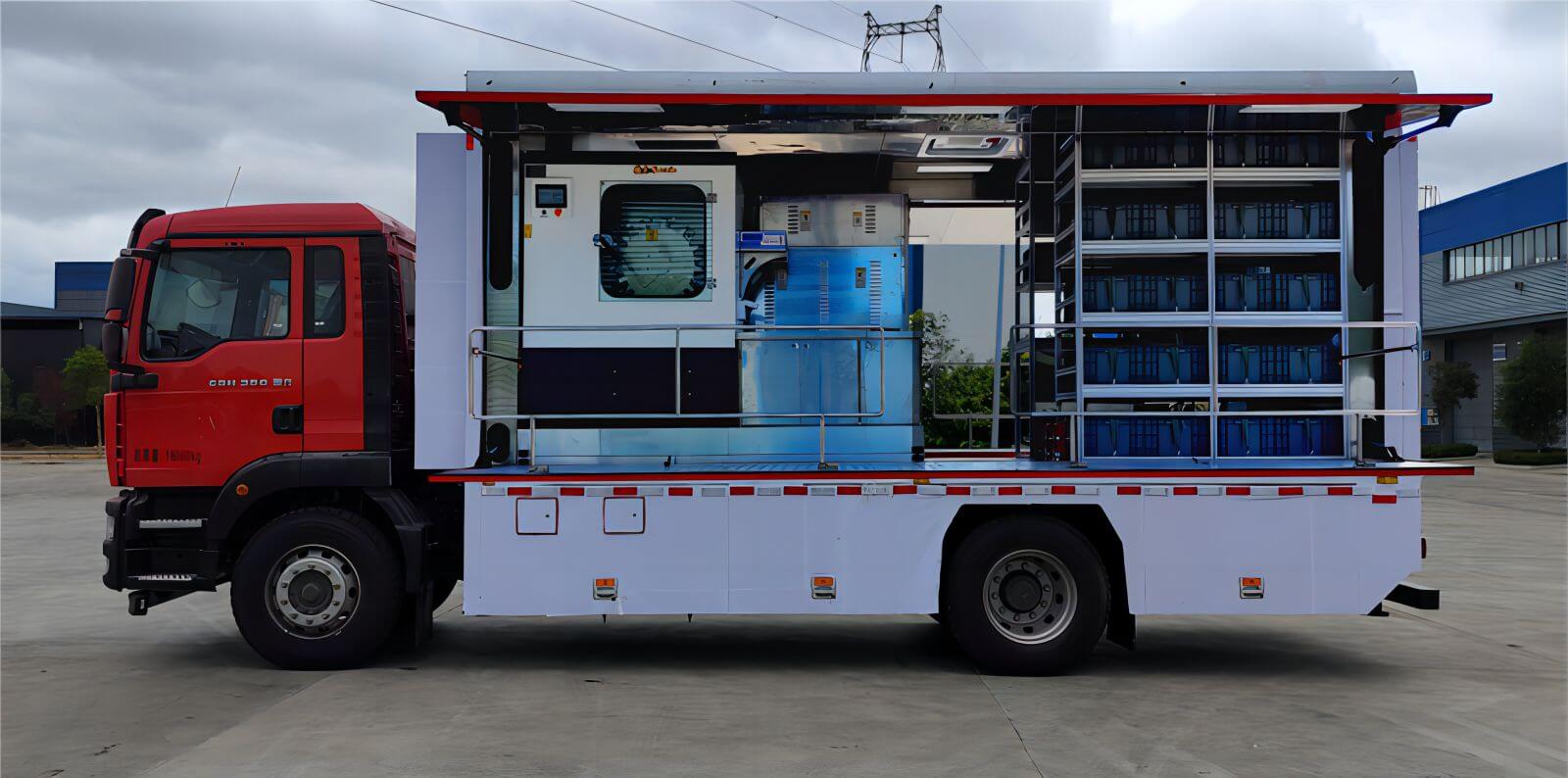

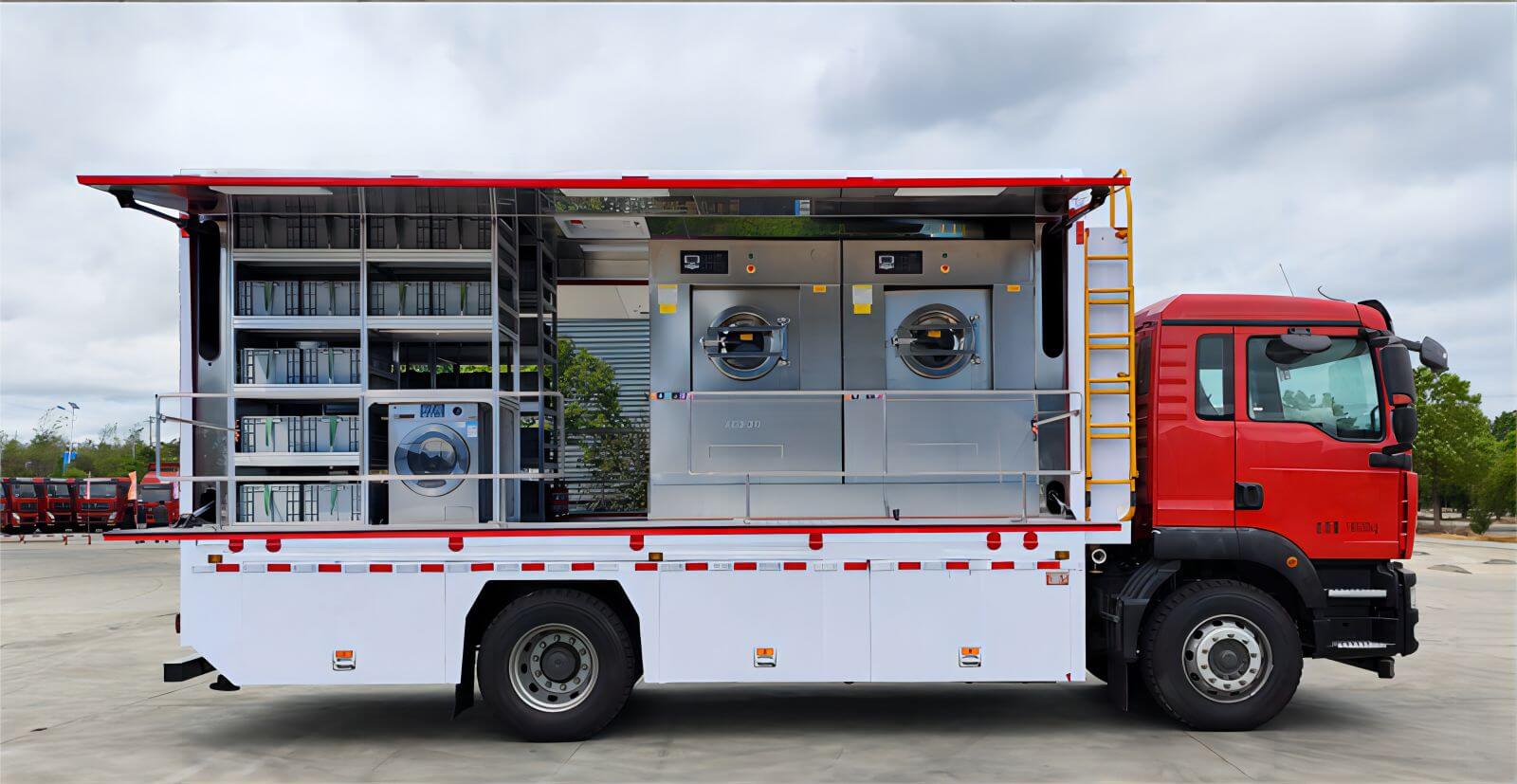

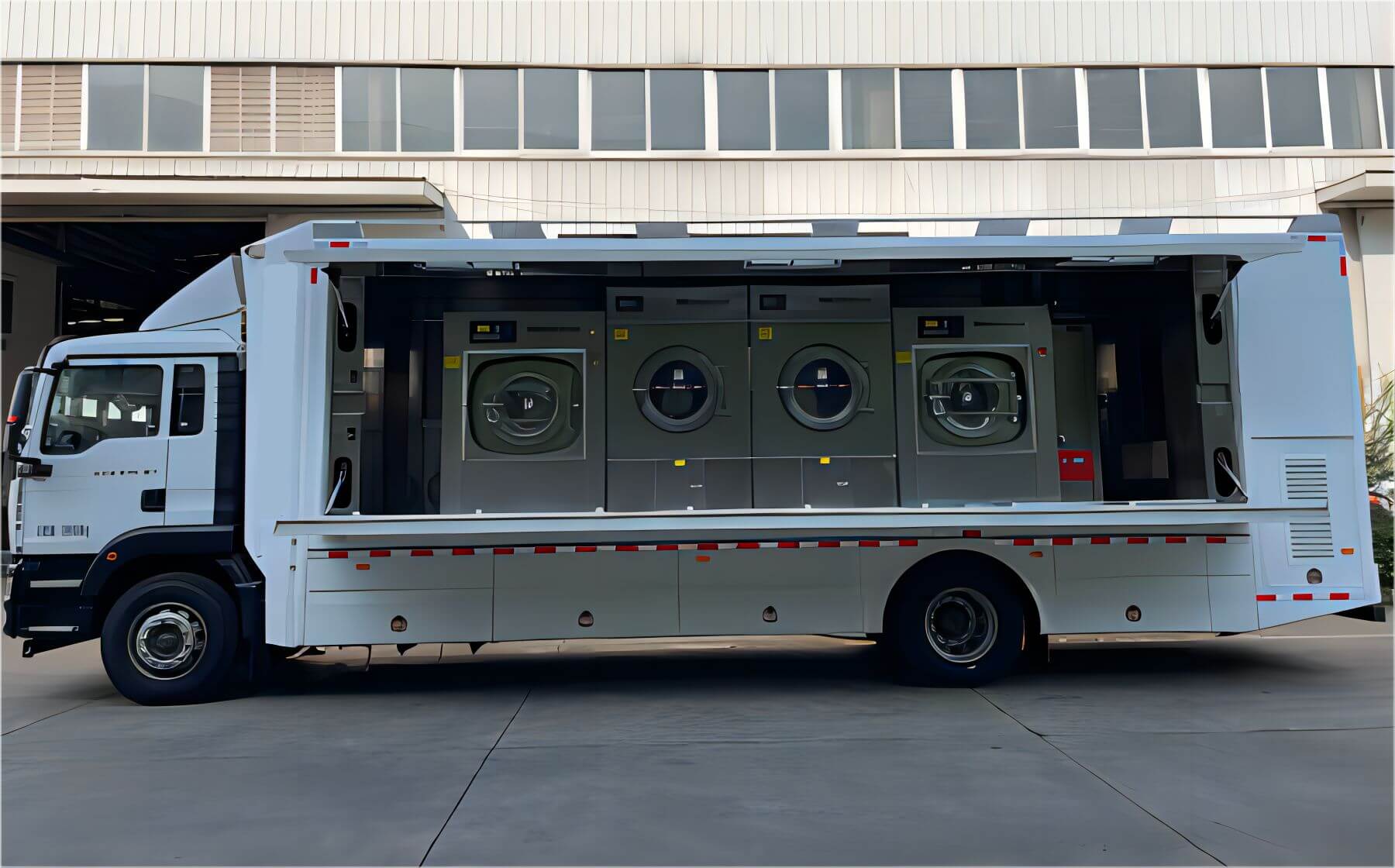

Customizing SITRAK Sinotruck Mobile Laundry Vehicles
Chassis model: ZZ5206N501GF1,ZZ5186XXYN561GF1 used for washing clothes and bedding, with specialized devices such as washing machines
Van | size | Customizing |
Side protection material | Aluminium alloy | |
Rear guard material | Q235 | |
Function | Equipped with dryer | |
Equipped with washing machine | ||
Equipped with storage rack | ||
Equipped with vehicle-mounted power generation system | ||
Equipped with electrical control system | ||
Equipped with drainage system | ||
5180XBXZ6 Main technical parameters
Equipped with washing machine, dryer and other equipment, for field clothing washing operations.
Overall dimensions: | 9980,10400,11030,11230×2550×3900,3950(mm) |
|
5180XBXZ6 |
Total mass: | 18000(Kg) | Net | 17870,17805(Kg) |
Approach Angle/Departure Angle: | 16/9,16/10(°) | Front/rear overhang: | 1450/2930,1450/3150,1450/3280,1450/3480(mm) |
Axle Load: | 6500/11500 | Wheelbase: | 4500,4700,5000,5200,5600,5800,6300,3600,3800,4200(mm) |
Number of shafts: | 2 | Maximum speed: | 89,110(km/h) |
Number of tires: | 6(PCS) | Tire Specifications: | 295/80R22.5 18PR,12R22.5 18PR,11.00R20 18PR,10.00R20 18PR,275/80R22.5 18PR,295/60R22.5 18PR,315/60R22.5 18PR,12.00R20 18PR |
Fuel consumption: | (L/100Km) | Number of spring pieces: | 3/4,2/3+2,3/3+2,3/9+8,3/7+3,3/7+6,7/7+3,7/7+6,11/9+8,3/-,3/2+-,2/2+-,2/- |
Front wheel base: | 1900,1950,1998,2015,2035(mm) | Rear wheel base: | 1850(mm) |
Engine parameter
Engine type | Engine manufacturer | Volume (ml) | Power (kw) |
MC07.29-60; MC07.31-60; MC07.33-60; MC07.25-60; WP7.270 E61. WP6H245E61; MC07H.35-60; MC07H.33-60; MC07.34-60; MC07.27-60; MC05H.25-60; WP8.350 E61. WP7.300 E61. WP6H270E61; MC07H.29-60; WP7H270E62; WP7H300E62; WP7H320E62 | China Heavy Duty Automobile Group Co., LTD.; Weichai Power Co., Ltd. | 6870; 6870; 6870; 6870; 7470; 6220; 7360; 7360; 6870; 6870; 4910; 7800; 7470; 6220; 7360; 6800; 6800; 6800 | 213; 228; 240; 188; 199; 180; 257; 240; 251; 202; 180; 257; 220; 199; 213; 199; 221; 235 |
ZZ5206N501GF1 4500mm wheelbase, main special devices are dryers, washing machines, etc.
5180XBX6ABZ Main technical parameters
Overall dimensions: | 8500×2500×3900(mm) | Fuel Type: | Diesel oil |
Total mass: | 18000(Kg) | Net | 15900(Kg) |
Approach Angle/Departure Angle: | 16/8 (°) | Front/rear overhang: | 1450/2550(mm) |
Axle Load: | 6500/11500 | Wheelbase: | 4500,4700,5000,5200,5600,6050,4200,3900,5800,6300(mm) |
Number of shafts: | 2 | Maximum speed: | 110(km/h) |
Number of tires: | 6(PCS) | Tire Specifications: | 315/80R22.5,295/80R22.5,12R22.5,12.00R20,11.00R20 |
Fuel consumption: | (L/100Km) | Number of spring pieces: | 2/3+2,3/3+2,3/9+8,11/9+8 |
Front wheel base: | 1998,2035(mm) | Rear wheel base: | 1850(mm) |
Engine parameter
Engine type | Engine manufacturer | Volume (ml) | Power (kw) |
MC07H.35-60; MC07H.33-60; MC07H.29-60; MC07.34-60; MC07.33-60; MC07.31-60; MC07.27-60; WP7.270 E61. WP8.350 E61. WP7.300 E61. WP7H320E62; MC07H.31-61; MC07H.35-61; WP8.350 E62 | China Heavy Duty Automobile Group Co., LTD.; Weichai Power Co., LTD. | 7360; 7360; 7360; 6870; 6870; 6870; 6870; 7470; 7800; 7470; 6800; 7360; 7360; 7800 | 257; 240; 213; 251; 240; 228; 202; 199; 257; 220; 235; 228; 254; 257 |
