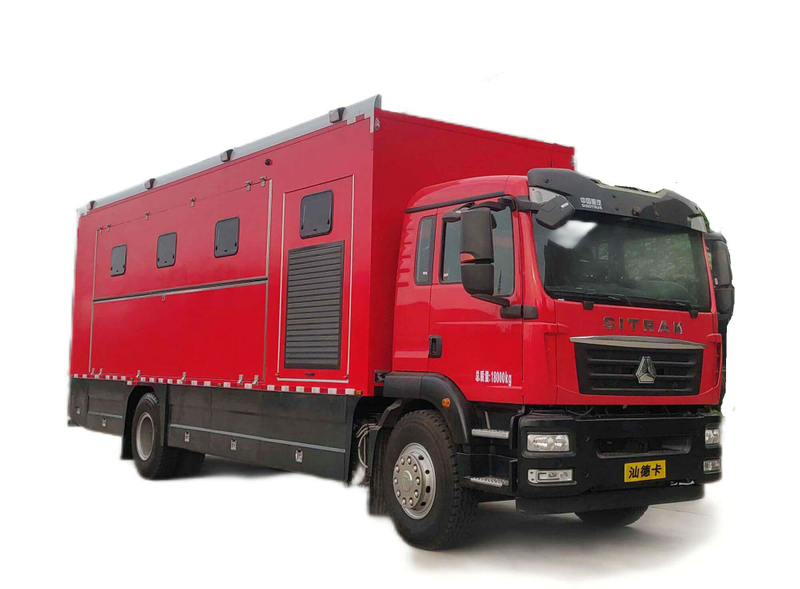

Customizing SITRAK Mobile Laundry Truck
with washing and drying equipment
Price for refer only. Final Price Offer Discount.
| FOB: | |
|---|---|
| Quantity: | |
|
| |
-
5160XBXZ6 ,5180XBXS6
-
DONG RUN ZE
-
87059099900
Customizing SITRAK Mobile Laundry Truck
Chassis model: ZZ5206N501GF1,ZZ5186XXYN561GF1 used for washing clothes and bedding, with specialized devices such as washing machines
Van | size | Customizing |
Side protection material | Aluminium alloy | |
Rear guard material | Q235 | |
Function | Equipped with dryer | |
Equipped with washing machine | ||
Equipped with storage rack | ||
Equipped with vehicle-mounted power generation system | ||
Equipped with electrical control system | ||
Equipped with drainage system | ||

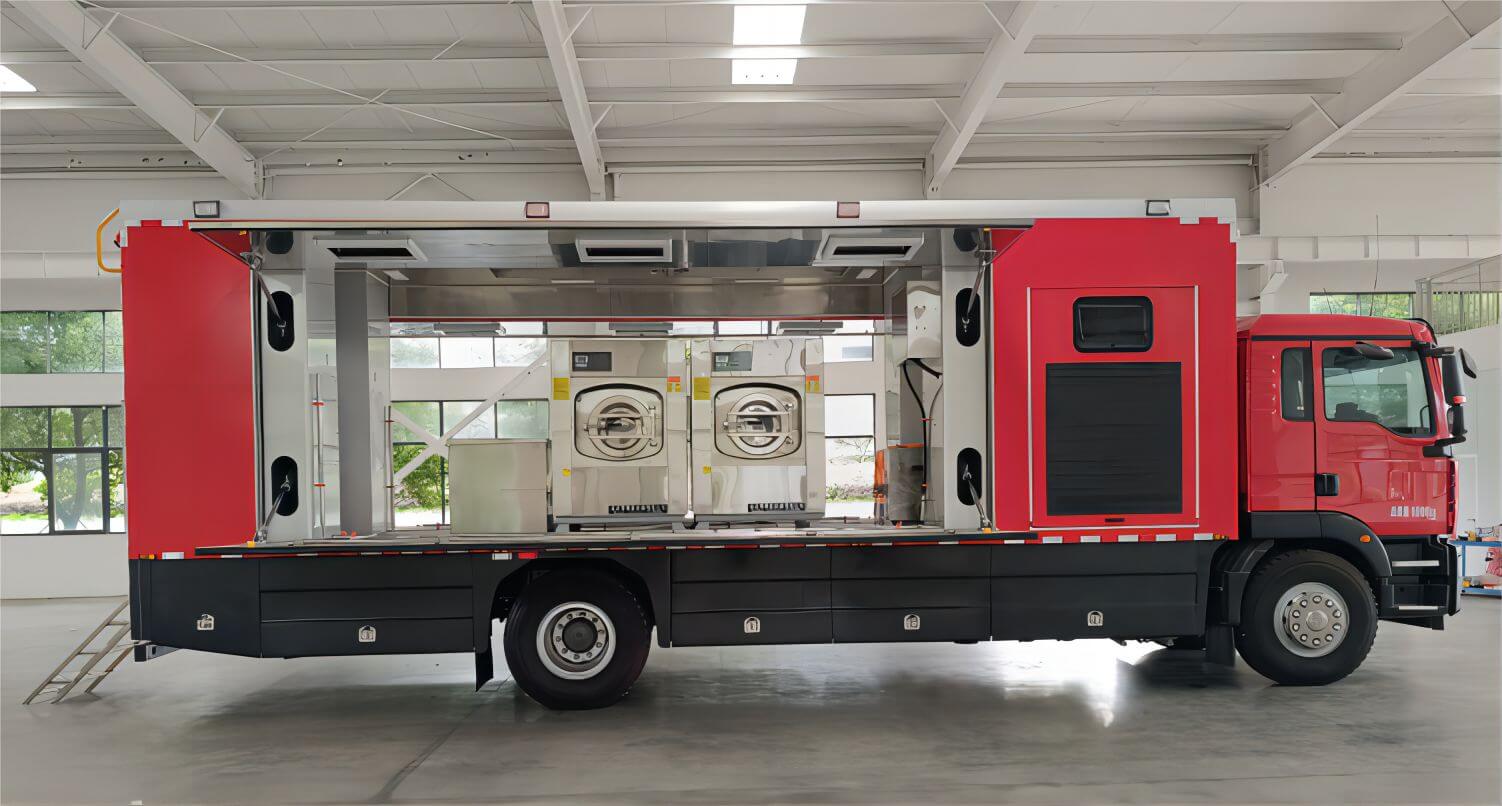

This vehicle is used for outdoor life and operation personnel, with specialized devices such as water storage tanks, drying equipment, washing machines, storage racks, and compartments. The corresponding relationship between vehicle length and wheelbase is (mm): 10360/560010560/580011060/6300.
Overall dimensions: | 10360,10560,11060×2550×3890,3990(mm) | ZZ5206N501GF1 | 5160XBXZ6 |
Total mass: | 16430(Kg) | Net | 14800(Kg) |
Approach Angle/Departure Angle: | 16/9(°) | Front/rear overhang: | 1450/3310(mm) |
Axle Load: | 6000/10430 | Wheelbase: | 4500,4700,5000,5200,5600,6050,4200,3900,5800,6300(mm) |
Number of shafts: | 2 | Maximum speed: | 110(km/h) |
Number of tires: | 6(pcs) | Tire Specifications: | 315/80R22.5,295/80R22.5,12R22.5,12.00R20,11.00R20 |
Fuel consumption: | (L/100Km) | Number of spring pieces: | 2/3+2,3/3+2,3/9+8,11/9+8 |
Front wheel base: | 1998,2035(mm) | Rear wheel base: | 1850(mm) |
Engine parameter
Engine type | Engine manufacturer | Volume (ml) | Power (kw) |
MC07H.35-60; MC07H.33-60; MC07H.29-60; MC07.34-60; MC07.33-60; MC07.31-60; MC07.27-60; WP7.270 E61. WP8.350 E61. WP7.300 E61. WP7H320E62; MC07H.31-61; MC07H.35-61; WP8.350 E62 | China Heavy Duty Automobile Group Co., LTD Weichai Power Co., LTD. | 7360; 7360; 7360; 6870; 6870; 6870; 6870; 7470; 7800; 7470; 6800; 7360; 7360; 7800 | 257; 240; 213; 251; 240; 228; 202; 199; 257; 220; 235; 228; 254; 257 |
ZZ5186XXYN561GF1 Main technical parameters 5180XBXS6
Overall dimensions: | 10500×2550×3880(mm) | Fuel Type: | Diesel oil |
Total mass: | 18000(Kg) | Net | 15350(Kg) |
Approach Angle/Departure Angle: | 16/11 (°) | Front/rear overhang: | 1450/3250(mm) |
Axle Load: | 6500/11500 | Wheelbase: | 4500,4700,5000,5200,5600,5800,6300,3600,3800,4200(mm) |
Number of shafts: | 2 | Maximum speed: | 110,89,80(km/h) |
Number of tires: | 6(PCS) | Tire Specifications: | 295/80R22.5 18PR,12R22.5 18PR,11.00R20 18PR,10.00R20 18PR,275/80R22.5 18PR,295/60R22.5 18PR,315/60R22.5 18PR,12.00R20 18PR |
Fuel consumption: | (L/100Km) | Number of spring pieces: | 3/4,2/3+2,3/3+2,3/9+8,3/7+3,3/7+6,7/7+3,7/7+6,11/9+8,3/-,3/2+-,2/2+-,2/- |
Front wheel base: | 1900,1950,1998,2015,2035(mm) | Rear wheel base: | 1850(mm) |
Engine parameter
Engine type | Engine manufacturer | Volume (ml) | Power (kw) |
MC07.29-60; MC07.31-60; MC07.33-60; MC07.25-60; WP7.270 E61. WP6H245E61; MC07H.35-60; MC07H.33-60; MC07.34-60; MC07.27-60; MC05H.25-60; WP8.350 E61. WP7.300 E61. WP6H270E61; MC07H.29-60; WP7H270E62; WP7H300E62; WP7H320E62; MC07.25-61; MC07.27-61; MC07.29-61; MC07H.31-61; MC07H.33 | China Heavy Duty Automobile Group Co., LTD.; Weichai Power Co., LTD. Weichai Power Co., LTD. | 6870; 6870; 6870; 6870; 7470; 6220; 7360; 7360; 6870; 6870; 4910; 7800; 7470; 6220; 7360; 6800; 6800; 6800; 6870; 6870; 6870; 7360; 7360; 7360 | 213; 228; 240; 188; 199; 180; 257; 240; 251; 202; 180; 257; 220; 199; 213; 199; 221; 235; 190; 202; 213; 228; 240; 254 |

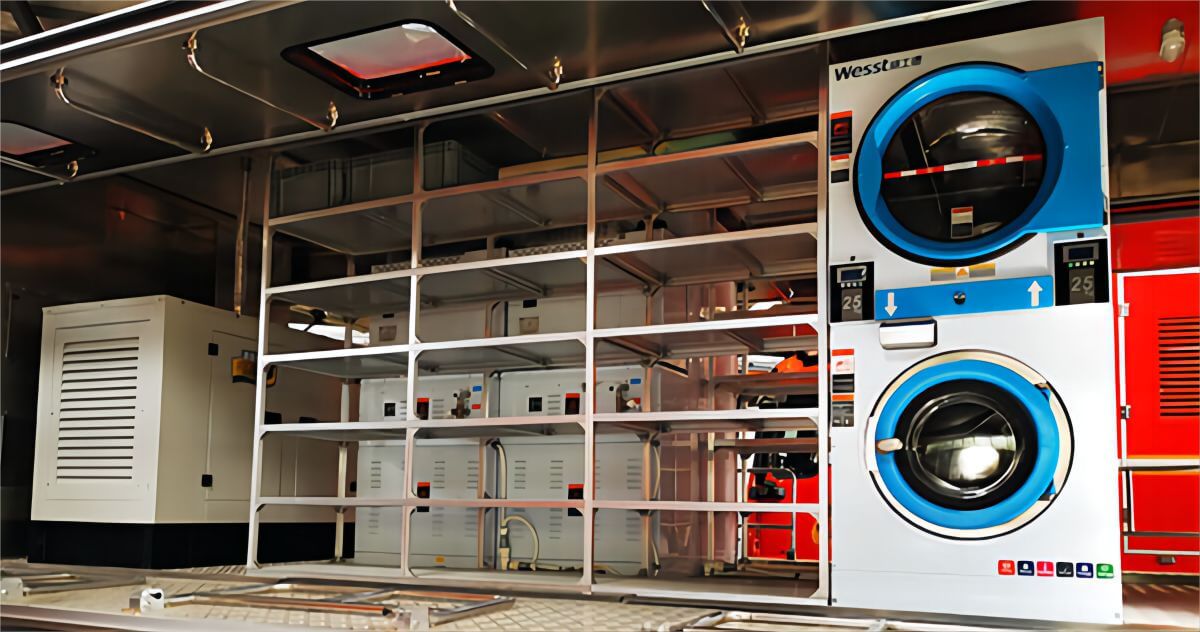

5800mm wheelbase . The vehicle is equipped with a special device with laundry function such as a washing and drying machine, which is mainly used to ensure the outdoor laundry needs. Working lights are installed on both sides of the roof and at the rear of the vehicle, which are only used for auxiliary lighting when the vehicle is parked.
