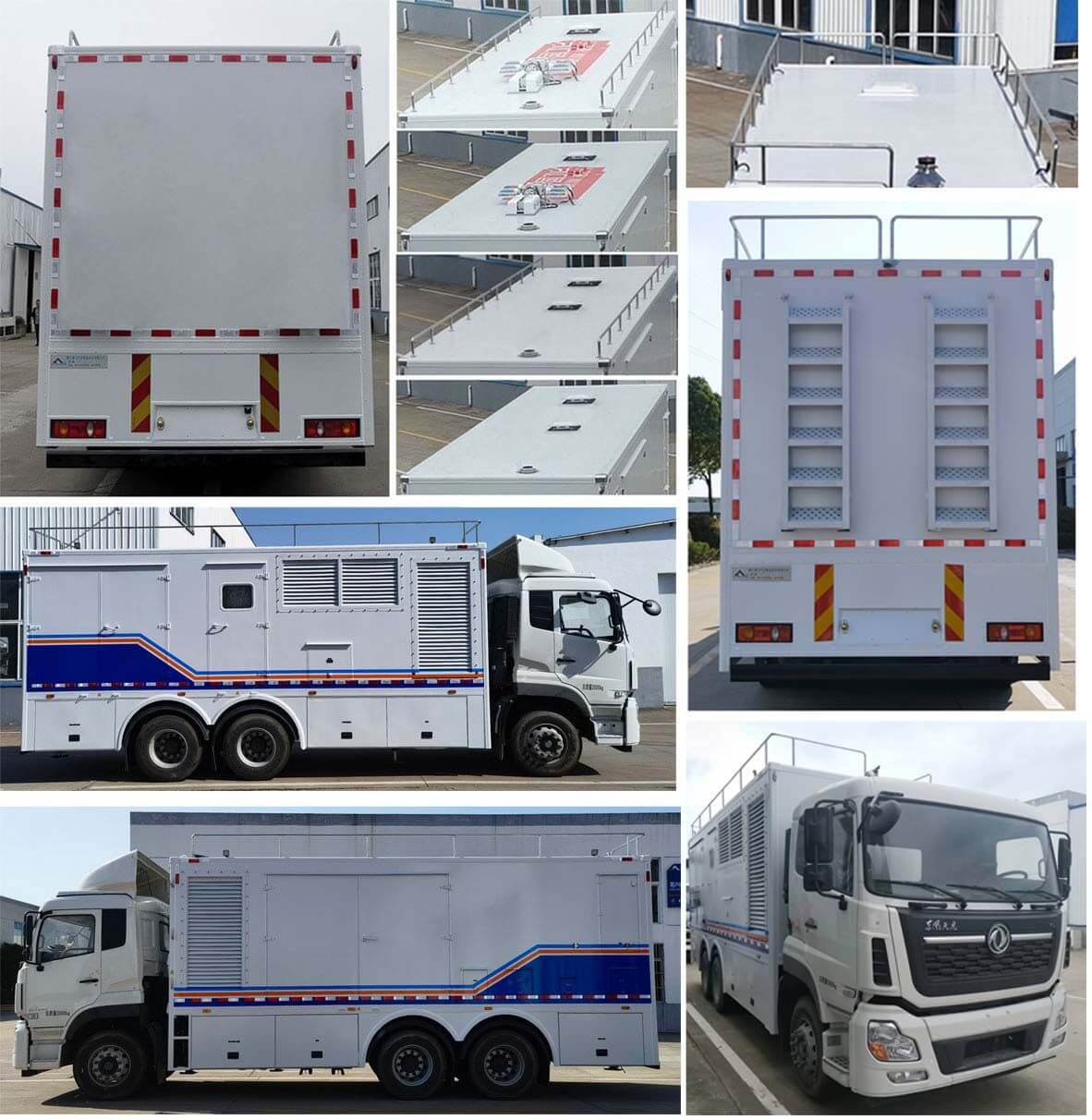

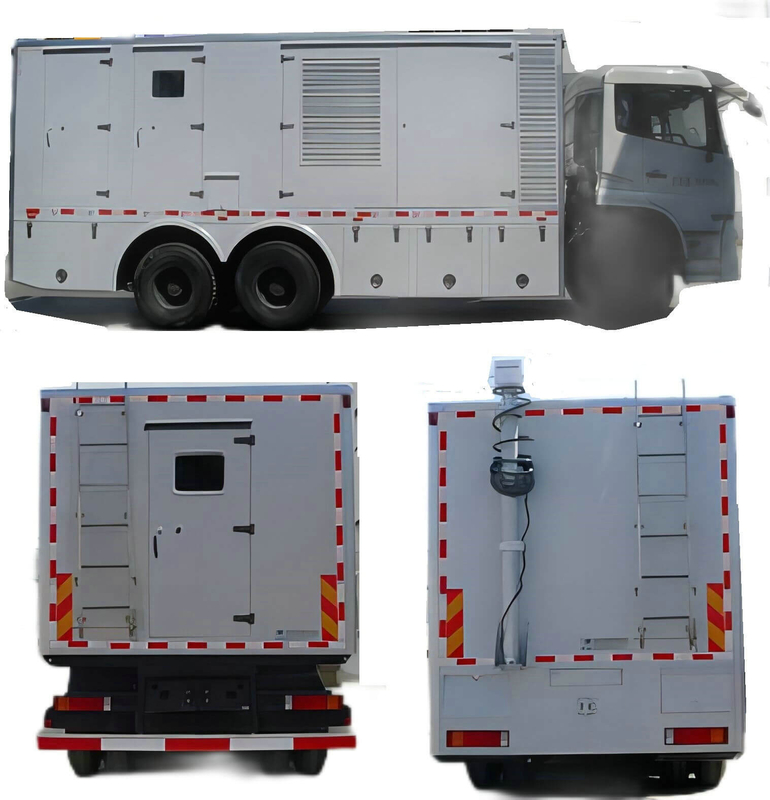

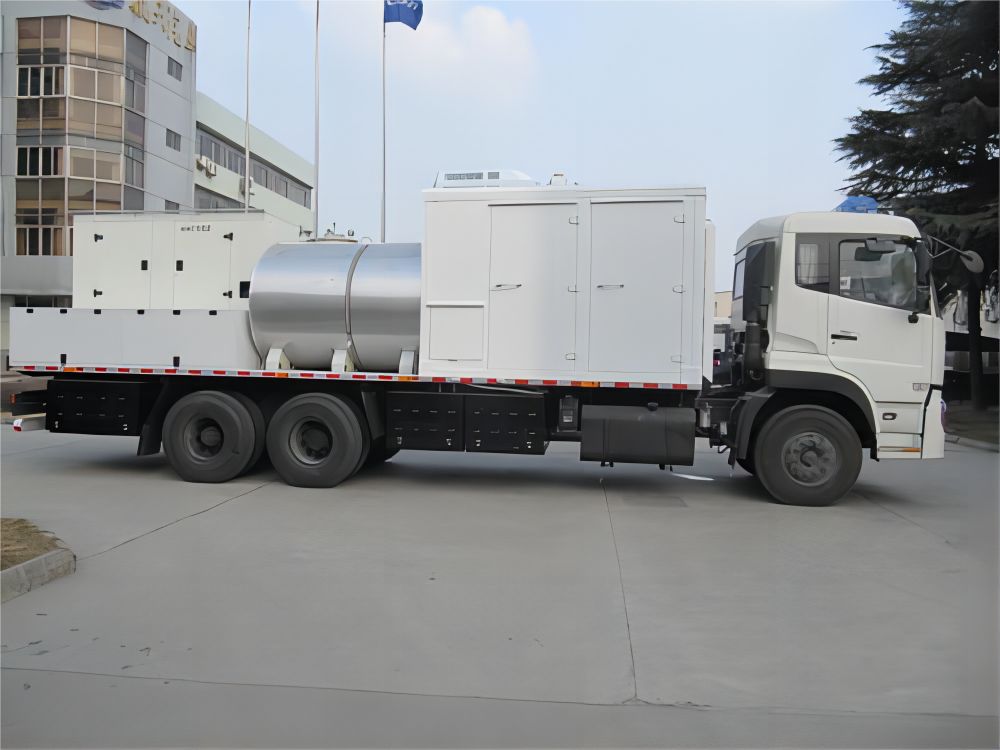

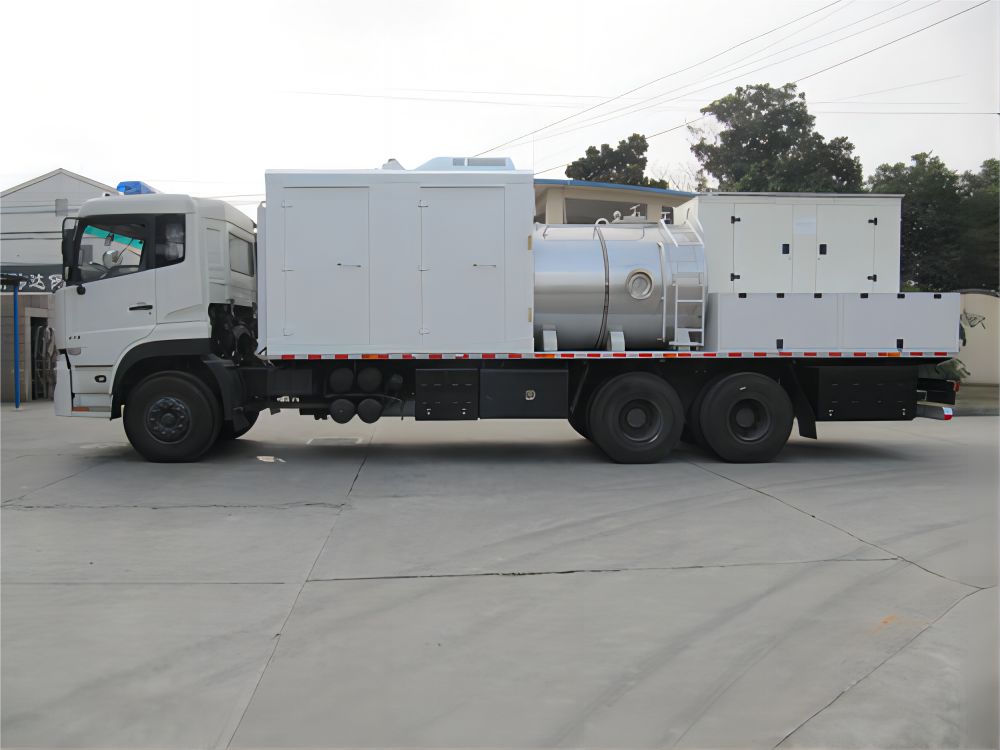

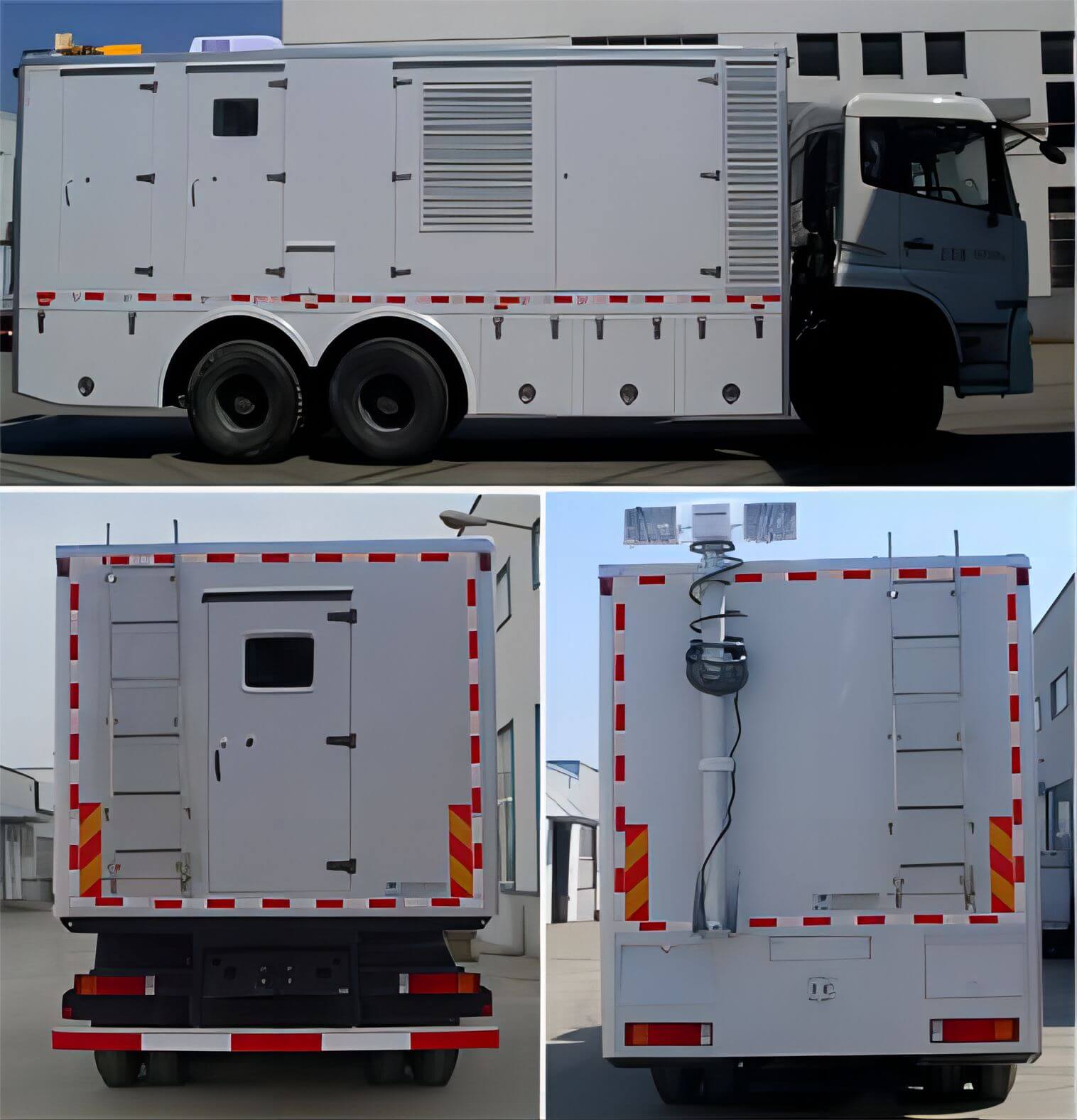

Customizing Kingrun Water Filtration Truck
Main technical parameters

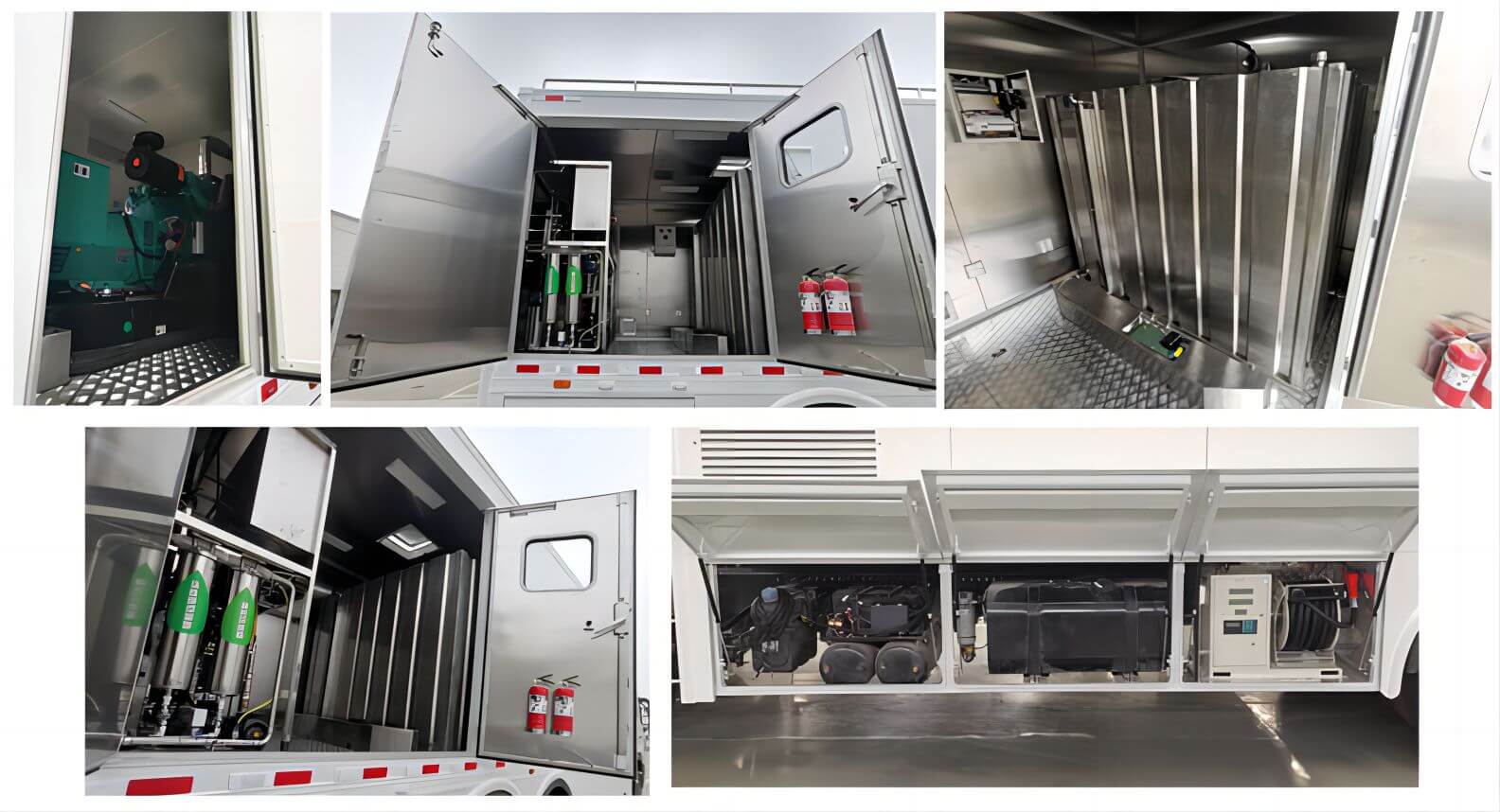

vehicle equipped with water purification equipment, water storage equipment, generators, lifting lighting and other operating equipment, and the motor provided in the car can provide power support for water purification equipment or other equipment, which is used to meet the special operation of field rescue water purification.
Overall dimensions: | 9885×2530×3940,3830(mm) 11050,10980,9560×2550,2500×3930,3850,3720(mm) | KFT5256XJS60,SJH5221XJS | |
Total mass: | 25000(Kg) | Net | 16800,15260(Kg) |
Approach Angle/Departure Angle: | 20/11(°) | Front/rear overhang: | 1500/2500,1500/2430,1500/2360(mm) |
Axle Load: | 7000/18000(kgs ) | Wheelbase: | 4350+1350,5350+1350,5700+1350,4600+1350,4800+1350(mm) |
Number of shafts: | 3 | Maximum speed: | 89,98(km/h) |
Number of tires: | 10(pcs) | Tire Specifications: | 295/80R22.5 18PR,11.00R20 18PR |
Fuel consumption: | (L/100Km) | Number of spring pieces: | 3/10,3/4,9/10 |
Front wheel base: | 2010,2040,2070(mm) | Rear wheel base: | 1860/1860,1880/1880(mm) |
Engine parameter
Engine type | Engine manufacturer | Volume (ml) | Power (kw) |
D6.7 NS6B290; DDi75E350-60; DDi75E300-60; DDi75E340-60; D6.7 NS6B320 | Dongfeng Cummins Engine Co., LTD. | 6700; 7500; 7500; 7500; 6700 | 213; 257; 220; 250; 231 |
Euro 3-4 Chassis
Water purifier truck Technical specifications Chassis DFL1250A12
# | Engine model | Engine displacement | Engine power | Engine manufacturer | |||
1 | ISDe245 40 | 6 700 cc | 6.7 L | 409 cu in | 180 kW | 245 hp | Dongfeng Cummins Engine Co., Ltd. |
2 | ISDe270 40 | 6 700 cc | 6.7 L | 409 cu in | 198 kW | 269 hp | Dongfeng Cummins Engine Co., Ltd. |
3 | ISC8.3-245E40A | 8 300 cc | 8.3 L | 506 cu in | 180 kW | 245 hp | Dongfeng Cummins Engine Co., Ltd. |
4 | ISC8.3-270E40A | 8 300 cc | 8.3 L | 506 cu in | 198 kW | 269 hp | Dongfeng Cummins Engine Co., Ltd. |
5 | ISC8.3-292E40A | 8 300 cc | 8.3 L | 506 cu in | 215 kW | 292 hp | Dongfeng Cummins Engine Co., Ltd. |
Performance | ||
Fuel | diesel fuel | |
Environmental standard | National IV / Euro 4 | |
Maximum speed | 86 km/h | 54 mph |
ABS | have | |
Capacity | |||
Rated load capacity | 4500 kg | 4.5 t | 9,900 lbs |
Weights and Ground pressure | |||
Curb weight | 15505 kg, | 15.5 t, | 34,183 lbs, |
Gross vehicle weight rating | 20200 kg | 20.2 t | 44,500 lbs |
Axle load distribution | 6000 kg / 14200 kg (tandem axle) 6 t / 14.2 t (tandem axle) 13,000 lbs / 31,300 lbs (tandem axle) | ||
Dimensions | ||
Overall length | 11200 mm / 11000 mm | 36′9″ / 36′2″ |
Overall width | 2500 mm | 8′3″ |
Overall height | 3700 mm / 3665 mm | 12′2″ / 12′1″ |
Undercarriage and Suspension | ||
Number of axles | 3 | |
Wheelbase | 5350+1300 mm, | 17′7″+4′4″, |
Front track | 1986 mm, | 6′7″, |
Rear track | 1860 mm / 1860 mm | 6′2″ / 6′2″ |
Front overhang | 1460 mm | 4′10″ |
Rear overhang | 3090 mm | 10′2″ |
Angle of approach | 20° | |
Angle of departure | 11° | |
Leaf springs | 8 / 9, 8 / 10, 9 / 10 | |
Tyres and Wheels | |
Number of tyres | 10 |
Tyres dimension | 10.00-20 18PR, 10.00R20 18PR, 11.00-20 18PR, 11.00R20 16PR, 295/80R22.5 16PR |
Miscellaneous | |
Seating capacity | 3, 2 |
Steering control | steering wheel |
