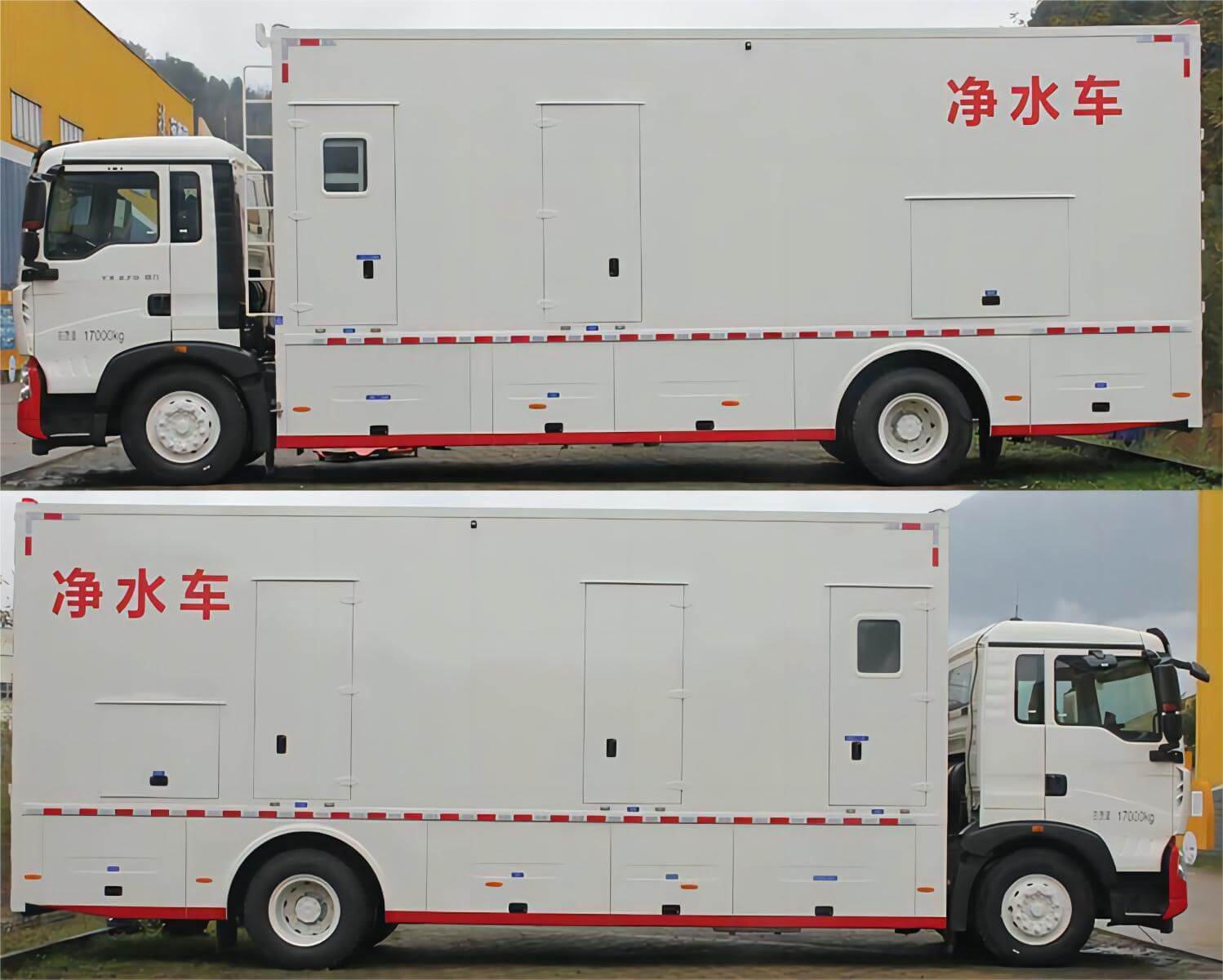

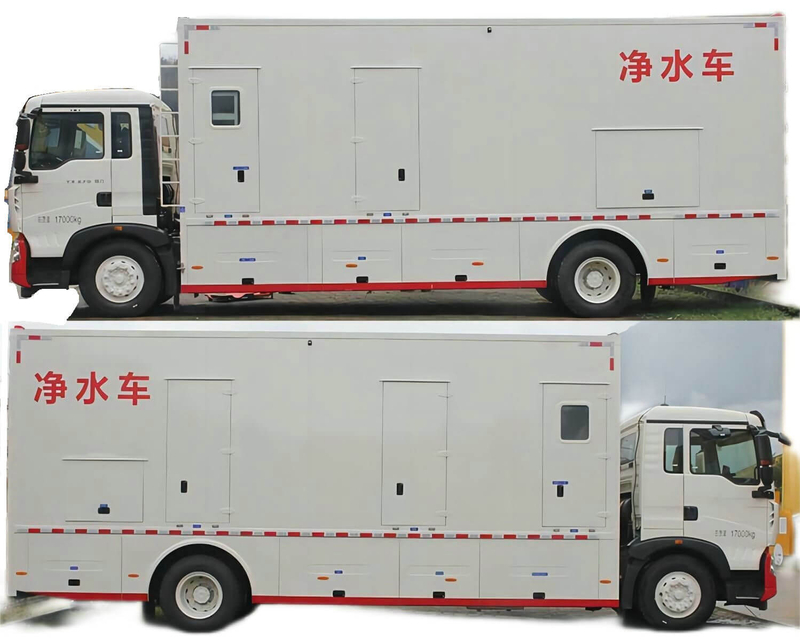

Customizing Sinotruck Mobile Purifying Water Truck
ZZ5187XXYN711GF1 Main technical parameters
Overall dimensions: | 10000×2550,2500×3960,3900,3860(mm) | ||
Total mass: | 17495,17000,16505(Kg) | Net | 17365,17300,16870,16805,16375,16310(Kg) |
Approach Angle/Departure Angle: | 19/11(°) | Front/rear overhang: | 1430/2470(mm) |
Axle Load: | 6195/11300,6000/11000,5805/10700 | Wheelbase: | 5800,6100,6300,6800,5600,7100(mm) |
Number of shafts: | 2 | Maximum speed: | 89,101(km/h) |
Number of tires: | 6(pcs) | Tire Specifications: | 275/80R22.5 18PR,11R22.5 18PR,295/80R22.5 18PR,12R22.5 18PR,11.00R20 18PR,10.00R20 18PR,295/60R22.5 18PR |
Fuel consumption: | (L/100Km) | Number of spring pieces: | 11/9+8,3/9+8,3/3+2,2/3+2,3/-,2/-,2/3,7/7+6,7/7+3,3/7+6,3/7+3,2/3 |
Front wheel base: | 1950,2035(mm) | Rear wheel base: | 1848,1860(mm) |
Engine parameter
Engine type | Engine manufacturer | Volume (ml) | Power (kw) |
WP8.350 E61. WP6H270E61; MC07.29-60; MC07H.35-60; MC07H.29-60; MC07.33-60; WP6H245E61; MC07.34-60; MC07.31-60; MC07.27-60; MC07.25-60; MC07H.33-60; WP7H245E62; WP7H270E62; WP7H300E62; MC07.25-61; MC07.27-61; MC07.29-61; MC07H.33-61; MC07H.35-61 | Weichai Power Co., LTD. China Heavy Duty Automobile Group Co., LTD.; | 7800; 6220; 6870; 7360; 7360; 6870; 6220; 6870; 6870; 6870; 6870; 7360; 6800; 6800; 6800; 6870; 6870; 6870; 7360; 7360 | 257; 199; 213; 257; 213; 240; 180; 251; 228; 202; 188; 240; 180; 199; 221; 190; 202; 213; 240; 254 |

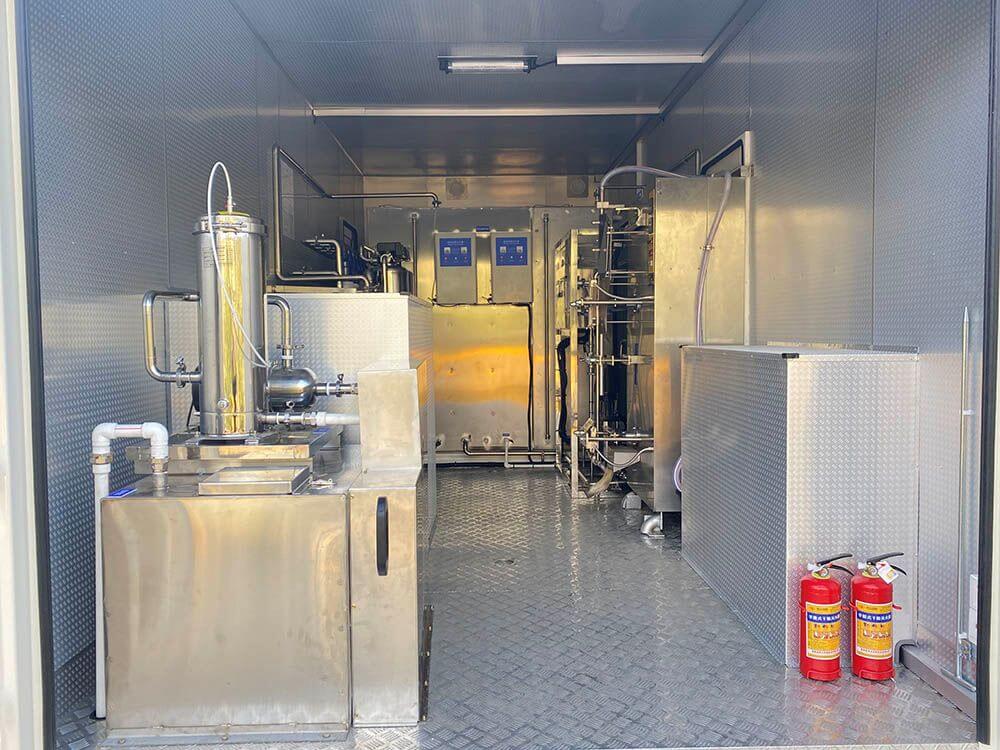

Vehicle fuel parameter special device is water purification equipment, which is mainly used to provide clean water for operators during field operations
