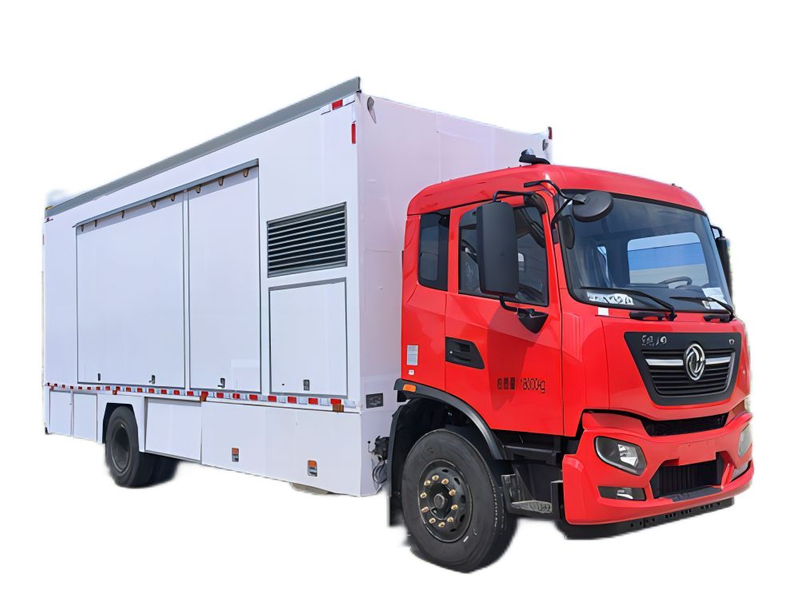

Customizing Kingrun Water Filtration Truck
Chassis : DFH1180EX8;DFH1180EX10;
Main technical parameters Van type special working vehicles equipped with water intake system, purification system and other equipment for providing domestic water and drinking water
Overall dimensions: | 10220×2480×3950(mm) | ||
Total mass: | 18000(Kg) | Quality of service: | 15000(Kg) |
Approach Angle/Departure Angle: | 16/9 (°) | Front/rear overhang: | 1430/2990(mm) |
Axle Load: | 6500/11500 | Wheelbase: | 4500,5000,5300,5800,3800,5600(mm) |
Number of shafts: | 2 | Maximum speed: | 89,98(km/h) |
Number of tires: | 6(PCS) | Tire Specifications: | 10.00R20 18PR,275/80R22.5 18PR |
Fuel consumption: | (L/100Km) | Number of spring pieces: | 8/10+8,8/9+6 |
Front wheel base: | 1920(mm) | Rear wheel base: | 1860,1880(mm) |
Engine parameter
Engine type | Engine manufacturer | Volume (ml) | Power (kw) |
D6.7 NS6B230 | Dongfeng Cummins Engine Co., LTD | 6700 | 169 |
Dongfeng Cummins D6.7NS6B230 230 HP 6.7L
Engine: | D6.7 NS6B230 | Engine brand: | Dongfeng Cummins | Series: | D6.7 Series |
Engine Manufacturer: | Dongfeng Cummins Engine Co., LTD | Number of cylinders: | 6 | Fuel Type: | Diesel oil |
Cylinder arrangement: | orthostitial | Displacement: | 6.7 L | Emission standard: | Kokuroku |
Maximum output power: | 169kW | Rated speed: | 2300rpm | Maximum horsepower: | 230 horsepower |
Maximum torque: | 900N.m | Maximum torque speed: | 900-1700rpm |
Dongfeng Cummins B6.2NS6B210 210 HP 6.2L
Engine: | B6.2 NS6B210 | Engine brand: | Dongfeng Cummins | Series: | B6.2 Series | |||||
Engine Manufacturer: | Dongfeng Cummins Engine Co., LTD | Number of cylinders: | 6 | Fuel Type: | Diesel oil | |||||
Cylinder arrangement: | orthostitial | Displacement: | 6.2 L | Emission standard: | Kokuroku | |||||
Maximum output power: | 154kW | Rated speed: | 2300rpm | Maximum horsepower: | 210 horsepower | |||||
Maximum torque: | 850N.m | Maximum torque speed: | 1100-1700rpm | Net engine weight: | 510kg | |||||

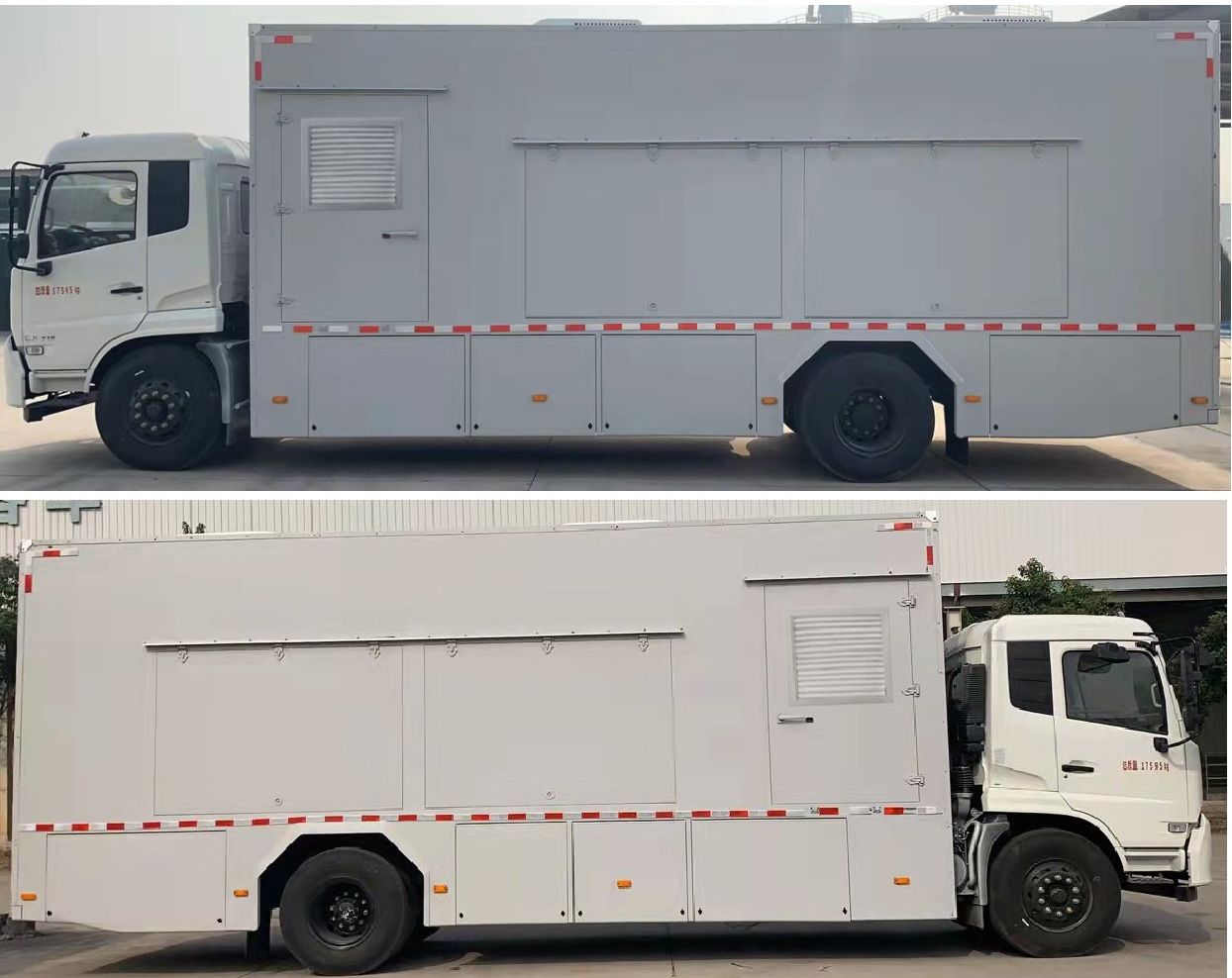

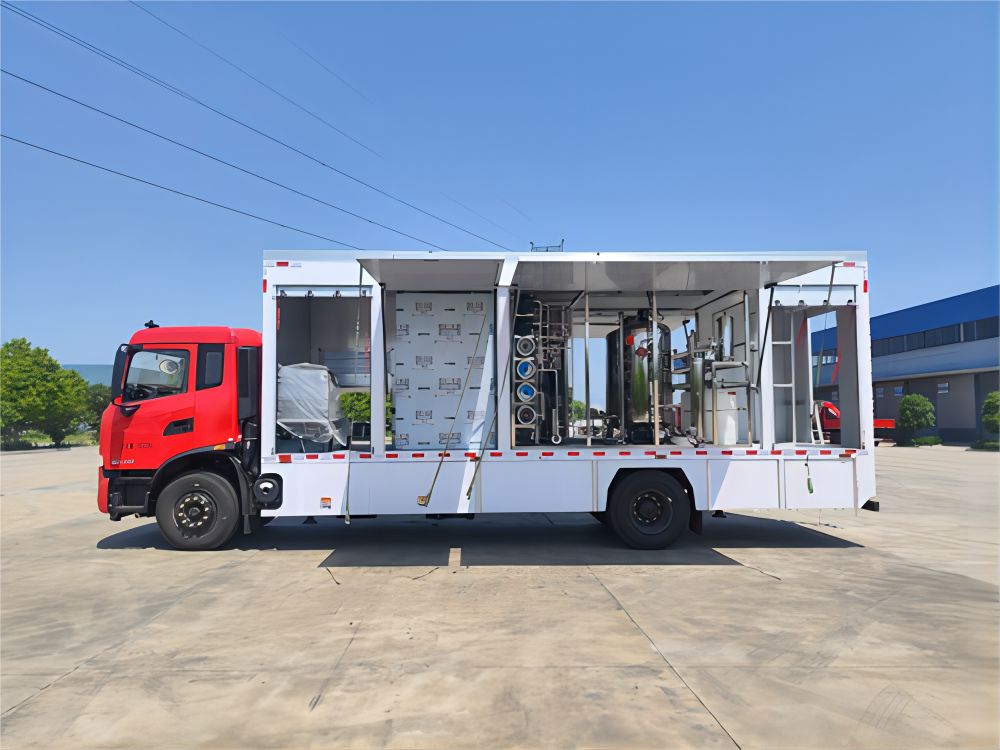

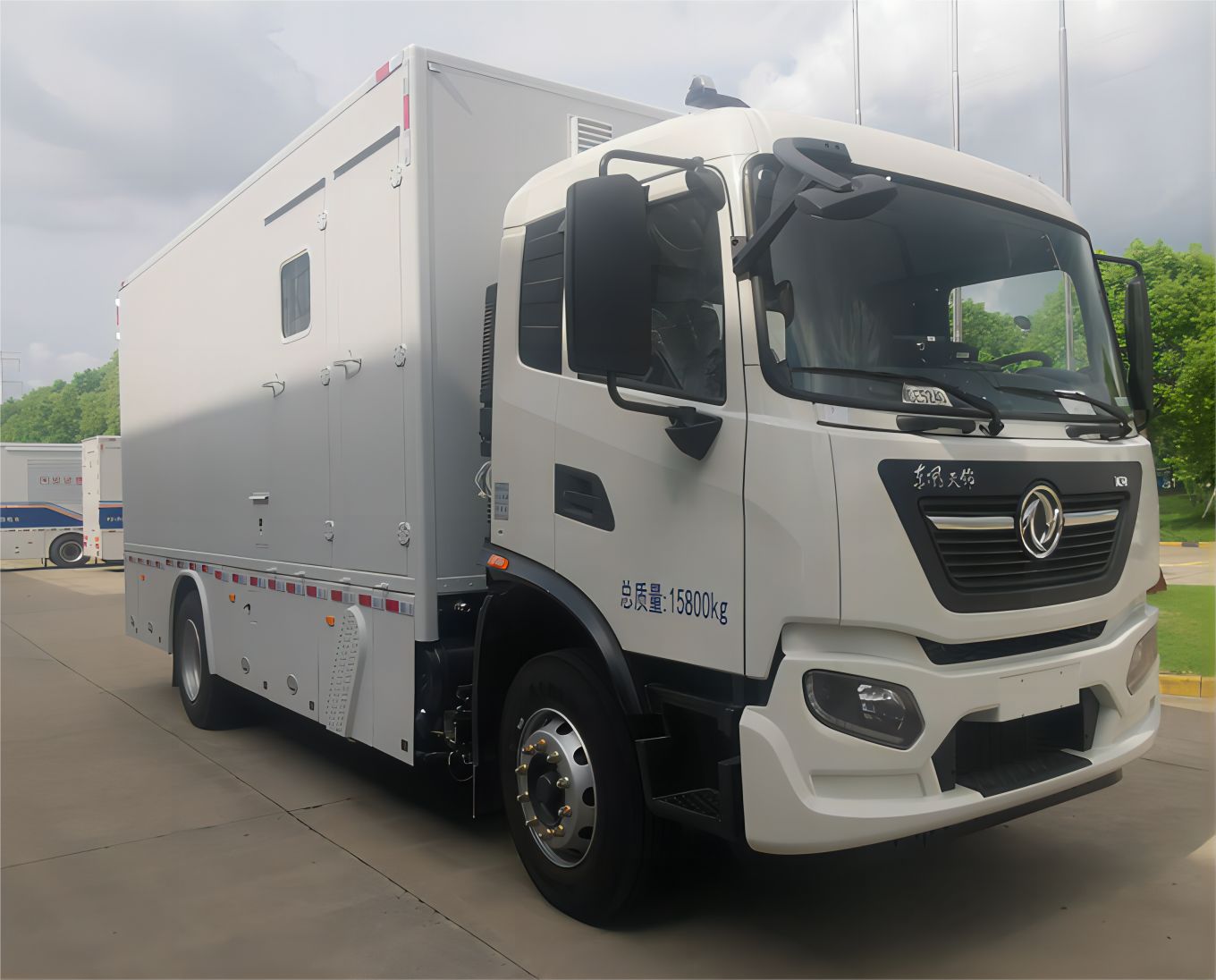

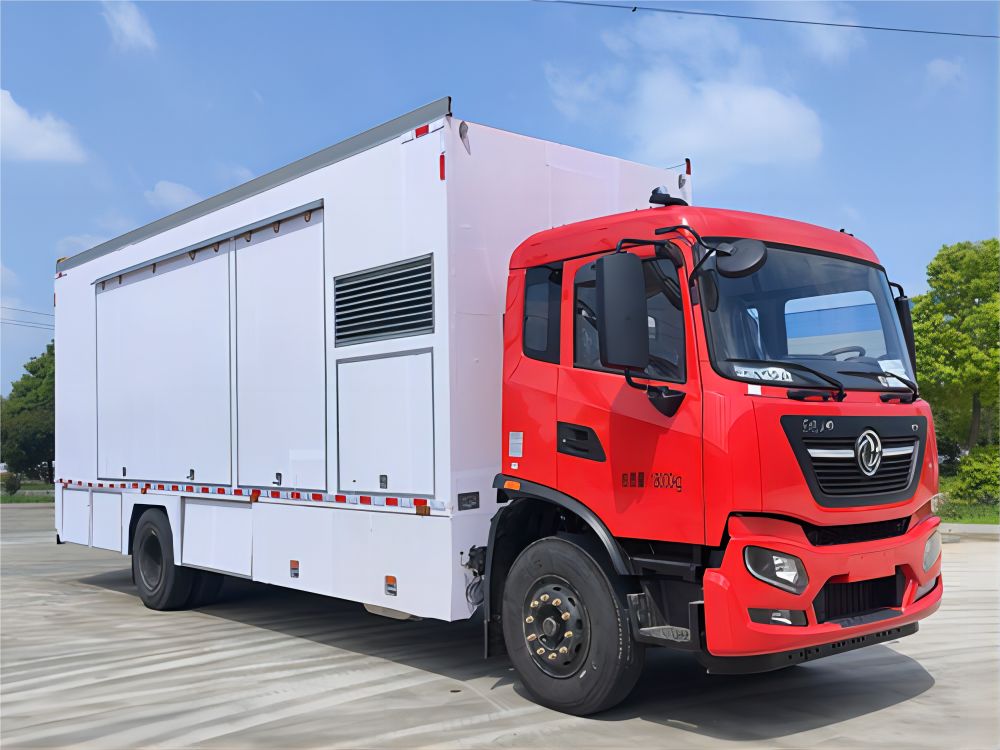

Water purification vehicle | Vehicle type: | Special vehicle | ||||||||
Main technical parameters
Overall dimensions: | 8915×2540×3630(mm) | ||
Total mass: | 15800(Kg) | Quality of service: | 10605(Kg) |
Approach Angle/Departure Angle: | 17/11(°) | Front/rear overhang: | 1430/2485(mm) |
Axle Load: | 6100/9700 | Wheelbase: | 3800,3950,4200,4500,4700,5000,5300,5800,5600,5100(mm) |
Number of shafts: | 2 | Maximum speed: | 89(km/h) |
Number of tires: | 6(pcs) | Tire Specifications: | 10.00R20 18PR,275/80R22.5 18PR |
Fuel consumption: | (L/100Km) | Number of spring pieces: | 7/9+6,8/10+8,8/9+6,11/10+8,3/10+8 |
Front wheel base: | 1876,1896,1920,1950,1914,1934,1980,2000,1815,1860(mm) | Rear wheel base: | 1820,1860,1800,1840(mm) |
Engine parameter
Engine type | Engine manufacturer | Volume (ml) | Power (kw) |
D4.5 NS6B190; D6.7 NS6B230; B6.2 NS6B210; D4.0 NS6B185; DDi50E220-60; B6.2 NS6B230; DDi50E190-60; D4.0 NS6B195; D6.7 NS6B260; D4.5 NS6B220; DDi47E210-60; B6.2 NS6B260 | Dongfeng Cummins Engine Co., LTD. | 4500; 6700; 6200; 4000; 5000; 6200; 5000; 4000; 6700; 4500; 4750; 6200 | 140; 169; 154; 136; 162; 169; 147; 143; 191; 162; 154; 191 |
