5180XJS, ZZ5317XJS
-
SITRAK
-
87059099900
-
Shanghai, China
-
3000
-
T/T

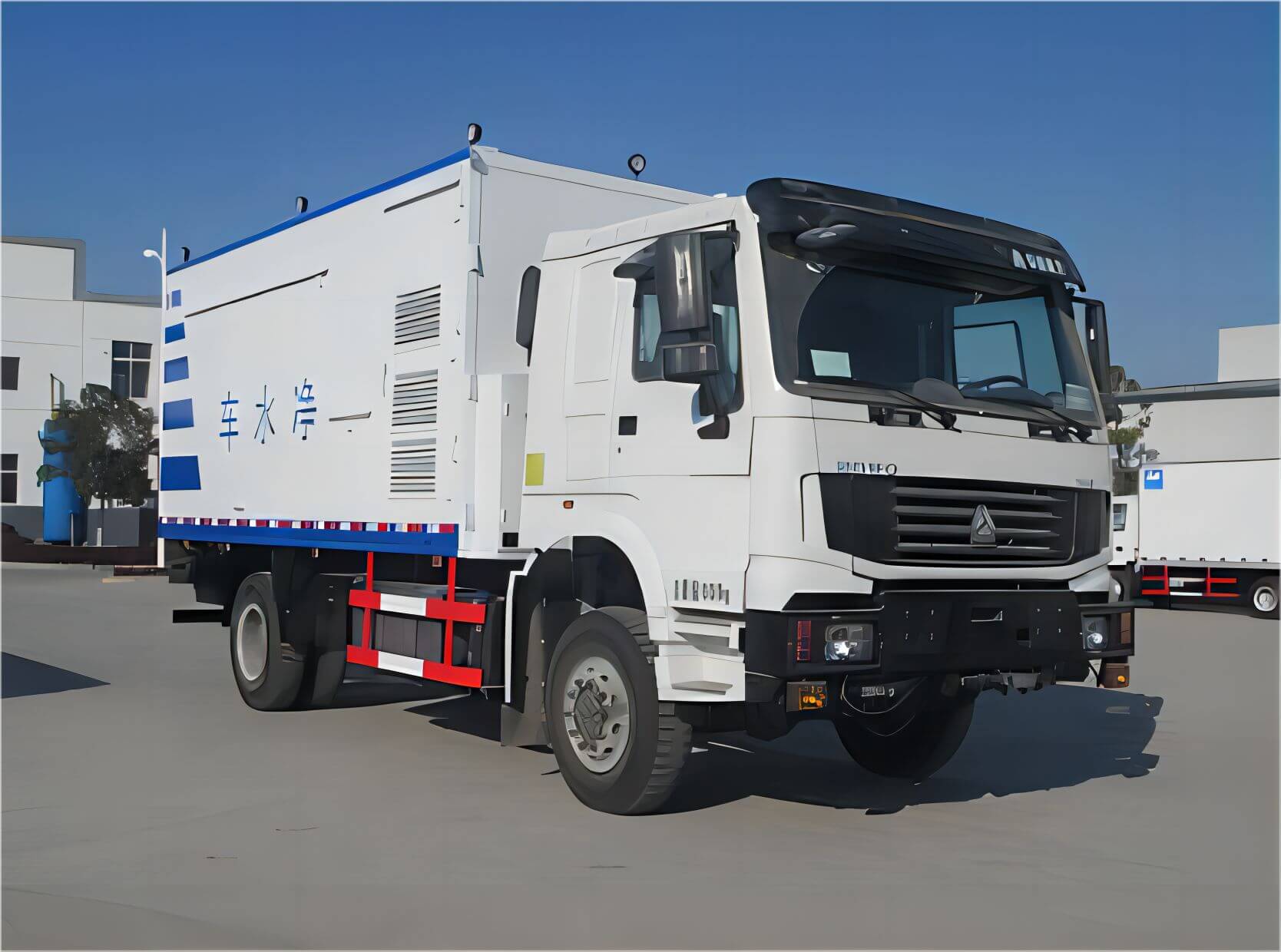

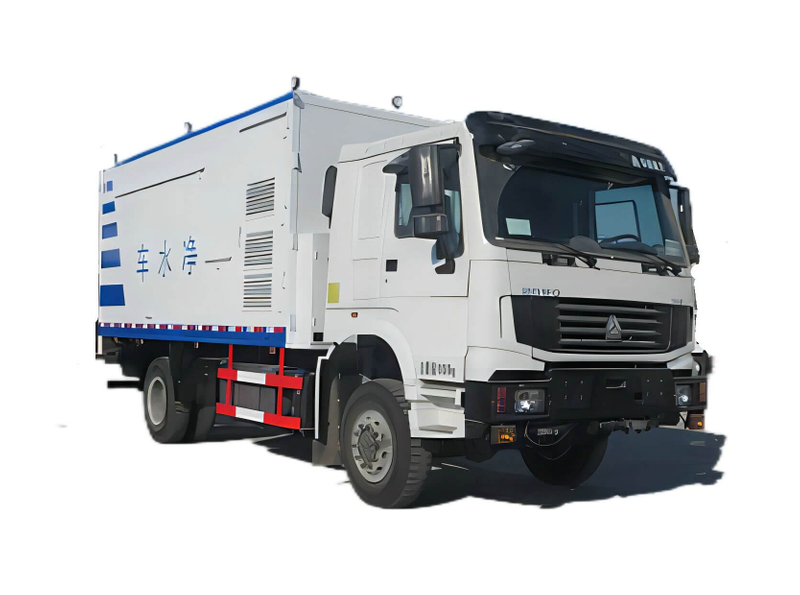

Customizing 4x4 HOWO Water Treatment Truck System for Purifying Water
HOWO Chassis 4x4 all wheel Drive offroad : ZZ2187N5227E1
Chassis: | ZZ2167M | Fuel type: | diesel fuel |
Engine: | WP10.290 | Rated capacity (kg): | 3550 |
Displacement (cc): | 9726; 9726 | Wheelbase (mm): | 3800, 4300, 4600, 5200 |
Power (kW): | 213; 250 | Dimensions (mm): | 8698 × 2500 × 3470 |

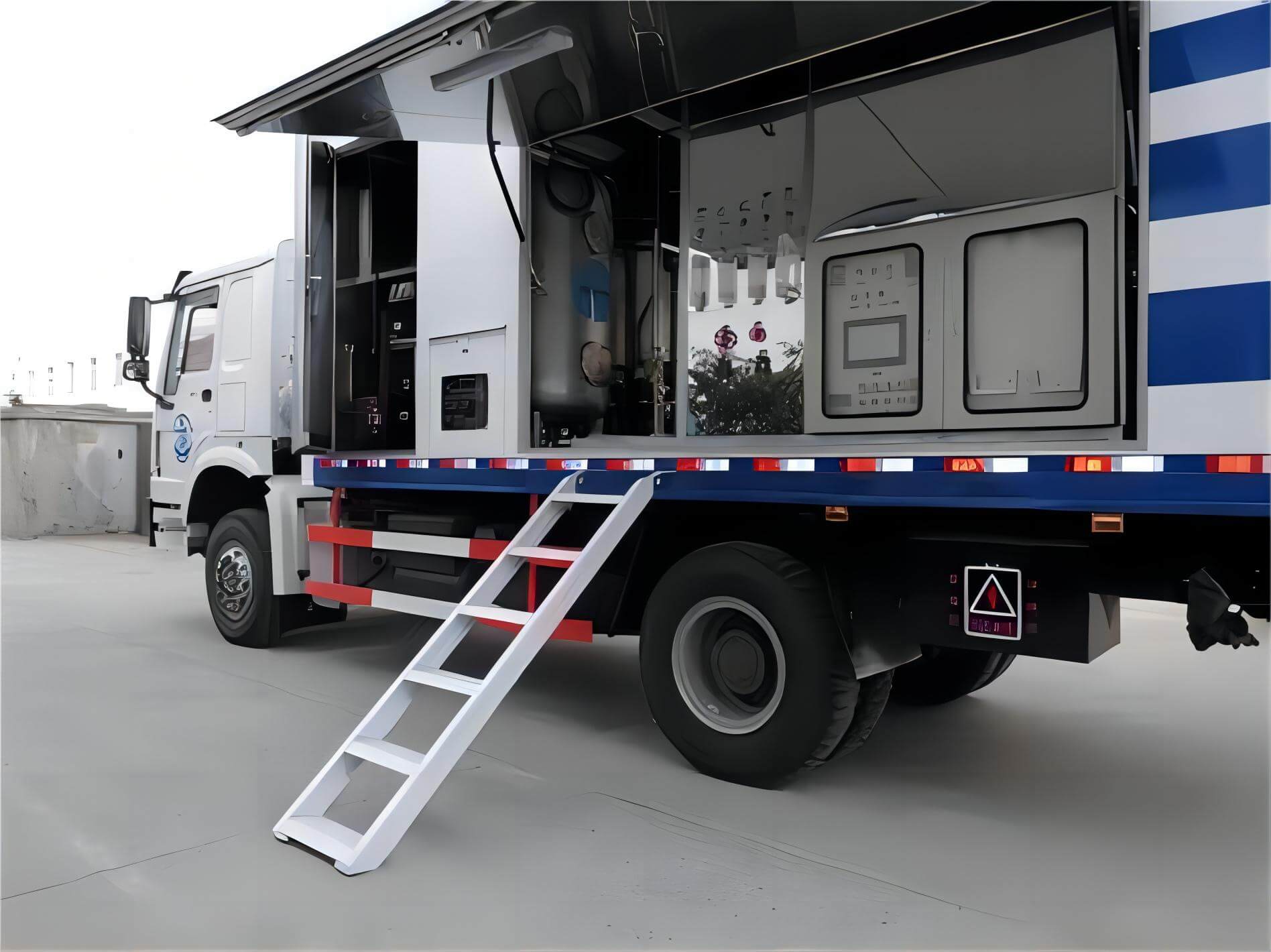

Main special equipment: water storage tank, water purification system, etc.
Main technical parameters
Overall dimensions: | 8490×2491×3540(mm) | ||
Total mass: | 18000(Kg) | Net | 12870(Kg) |
Approach Angle/Departure Angle: | 31/13(°) | Front/rear overhang: | 1602/2288(mm) |
Axle Load: | 7000/11000 | Wheelbase: | 3800,4300,4600,5200(mm) |
Number of shafts: | 2 | Maximum speed: | 90(km/h) |
Number of tires: | 6(pcs) | Tire Specifications: | 11.00-20 18PR,11.00R20 18PR,12.00-20 16PR,12.00-20 18PR,12.00-20 20PR,12.00R20 16PR,12.00R20 18PR,12.00R20 20PR |
Fuel consumption: | (L/100Km) | Number of spring pieces: | 4/9+6,9/9+6 |
Front wheel base: | 2041,2022(mm) | Rear wheel base: | 1850(mm) |
Engine type | Engine manufacturer | Volume (ml) | Power (kw) |
D10.28-50 | China Heavy Duty Automobile Group Co., LTD | 9726 | 206 |

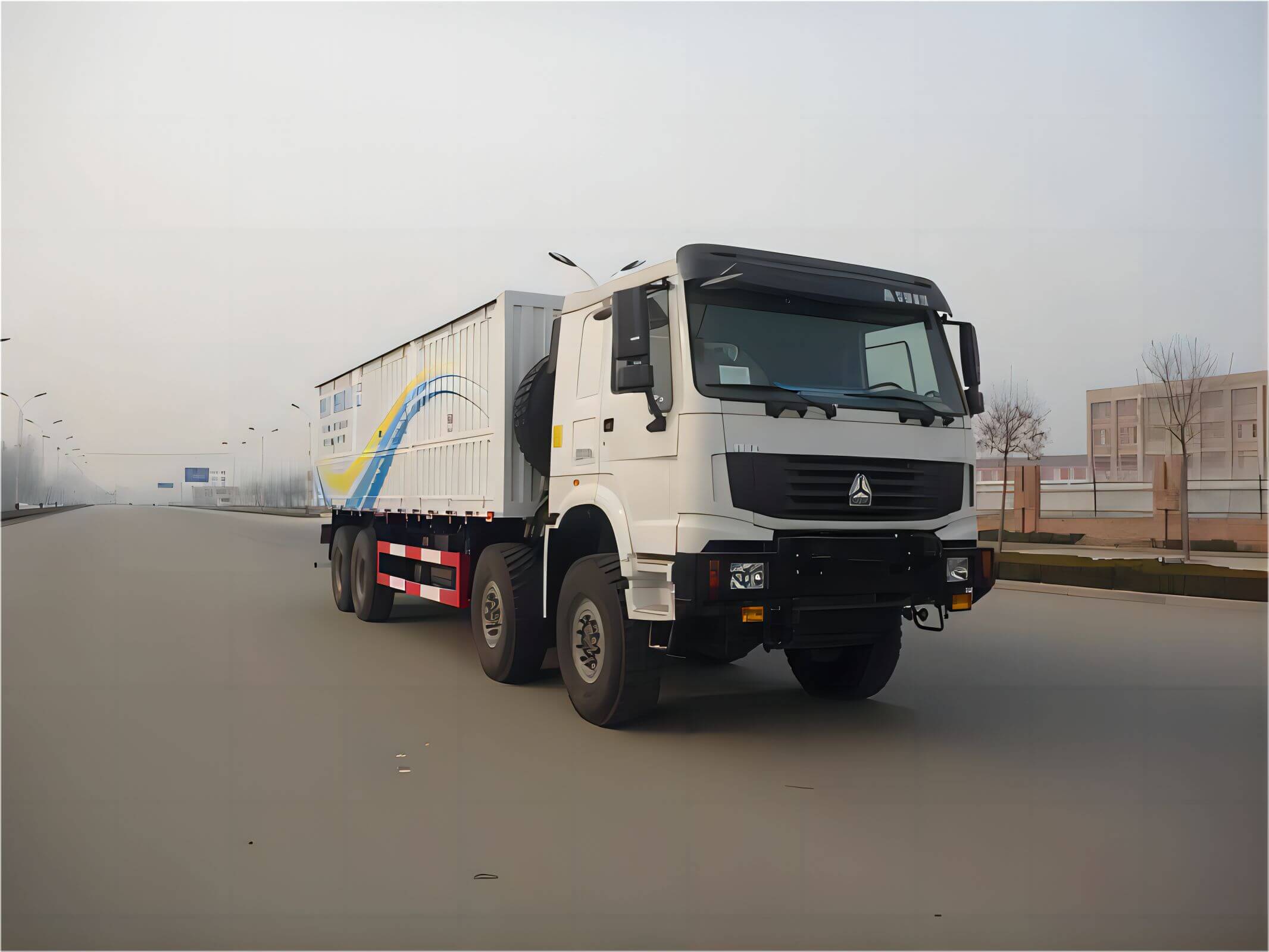

8x8 Chassis :ZZ2317N4977D1
Chassis: | ZZ2317N4977D1 | Fuel type: | diesel fuel |
Engine: | WP10.340 ; WP10.38 | Rated capacity (kg): | 4200 |
Displacement (cc): | 9726; 9726; 11596; 11596 | Wheelbase (mm): | 1950+4300+1400, 1950+4600+1400 |
Power (kW): | 249; 276; 249; 279 | Dimensions (mm): | 11778 × 2500 × 3410 |
Keystone Vessel Industrial Gas Cylinders| ISO Tank| Pressure Vessel| UN Portable Tanks- Dong Runze Special Vehicle
