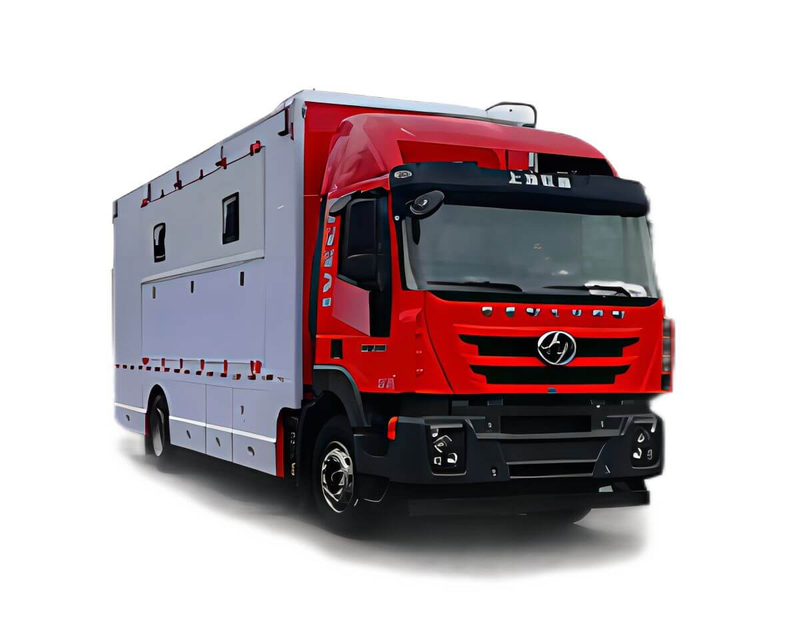

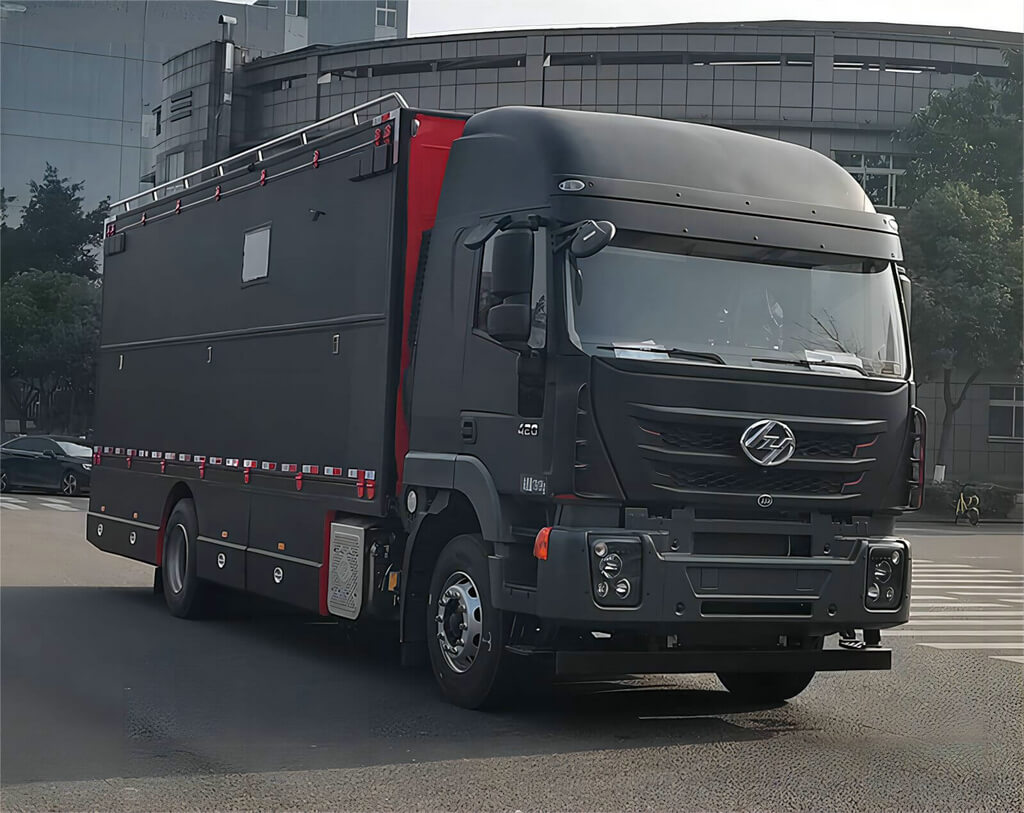

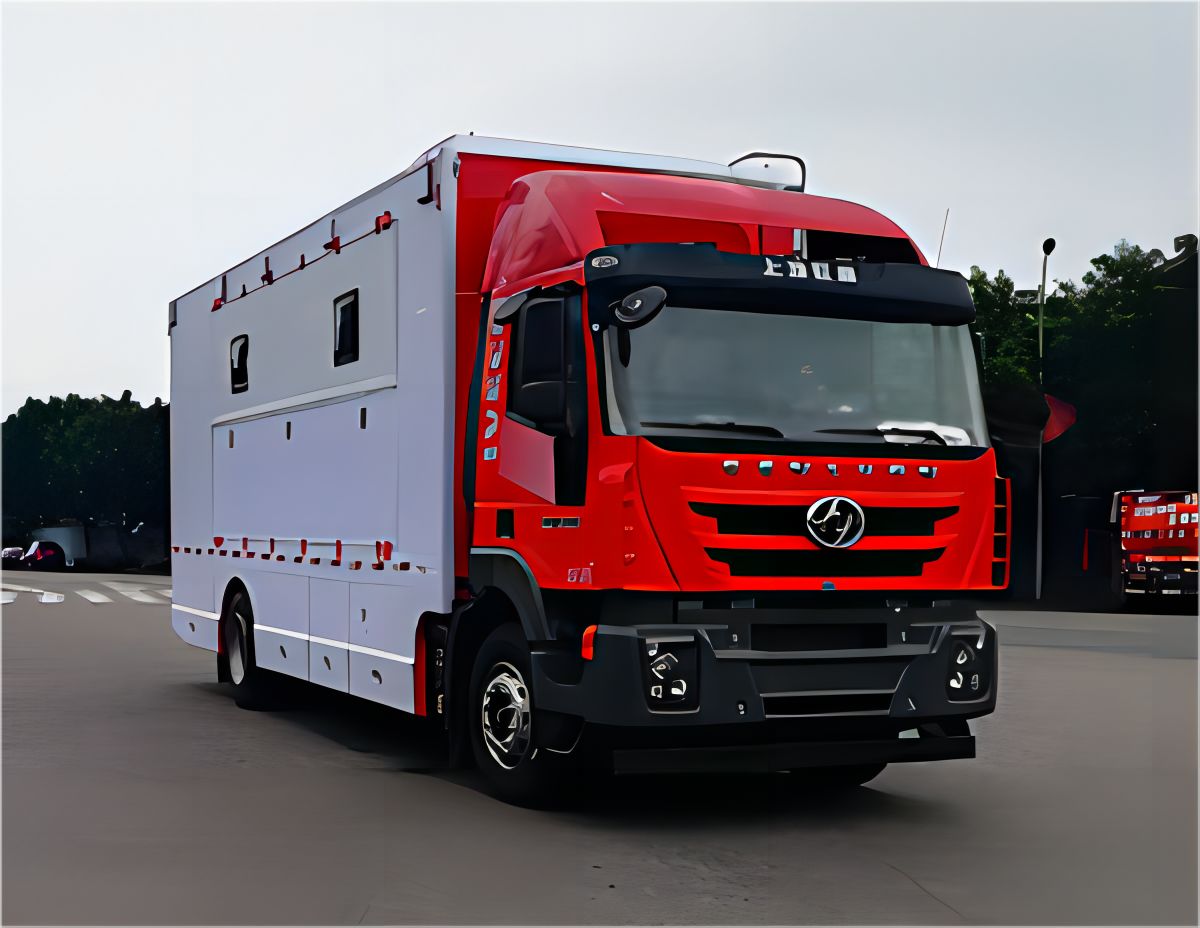

Customizing SAIC Hongyan GENLYON Mobile Laundry Trucks
Price for refer only. Final Price Offer Discount.
| FOB: | |
|---|---|
| Quantity: | |
|
| |
-
DRZ5
-
DONG RUN ZE
-
87059099900
Customizing SAIC Hongyan GENLYON Mobile Laundry Trucks
Van | size | Customizing |
Side protection material | Aluminium alloy | |
Rear guard material | Q235 | |
Function | Equipped with dryer | |
Equipped with washing machine | ||
Equipped with storage rack | ||
Equipped with vehicle-mounted power generation system | ||
Equipped with electrical control system | ||
Equipped with drainage system | ||
Euro 6 Engine Chassis model : CQ5207TXFHL1 Main technical parameters
Overall dimensions: | 10455×2526×3980(mm) | Fuel Type: | Diesel oil |
Total mass: | 17910(Kg) | Net | 17780(Kg) |
Approach Angle/Departure Angle: | 16/9 (°) | Front/rear overhang: | 1435/3420(mm) |
Axle Load: | 6410/11500 | Wheelbase: | 4600,5600,5800,6000(mm) |
Number of shafts: | 2 | Maximum speed: | 90,110(km/h) |
Number of tires: | 6(PCS) | Tire Specifications: | 11.00R20 18PR,12.00R20 18PR,295/80R22.5 18PR,12R22.5 18PR |
Fuel consumption: | (L/100Km) | Number of spring pieces: | 2/3+1,3/3+1,8/9+7,9/9+7 |
Front wheel base: | 2020(mm) | Rear wheel base: | 1858(mm) |
Engine parameter
Engine type | Engine manufacturer | Volume (ml) | Power (kw) |
SC10E370Q6; SC10E400Q6; SC10E420Q6; SC10E300Q6; SC10E330Q6; F2CCE611G*M; F2CCE611H*M; F2CCE611J*M; F2CCE611K*M | Shanghai Diesel Engine Co., LTD. SAIC Fiat Powertrain Co., Ltd. (SFH) | 10420; 10420; 10420; 10420; 10420; 8709; 8709; 8709; 8709 | 272; 294; 309; 221; 243; 287; 263; 243; 215 |

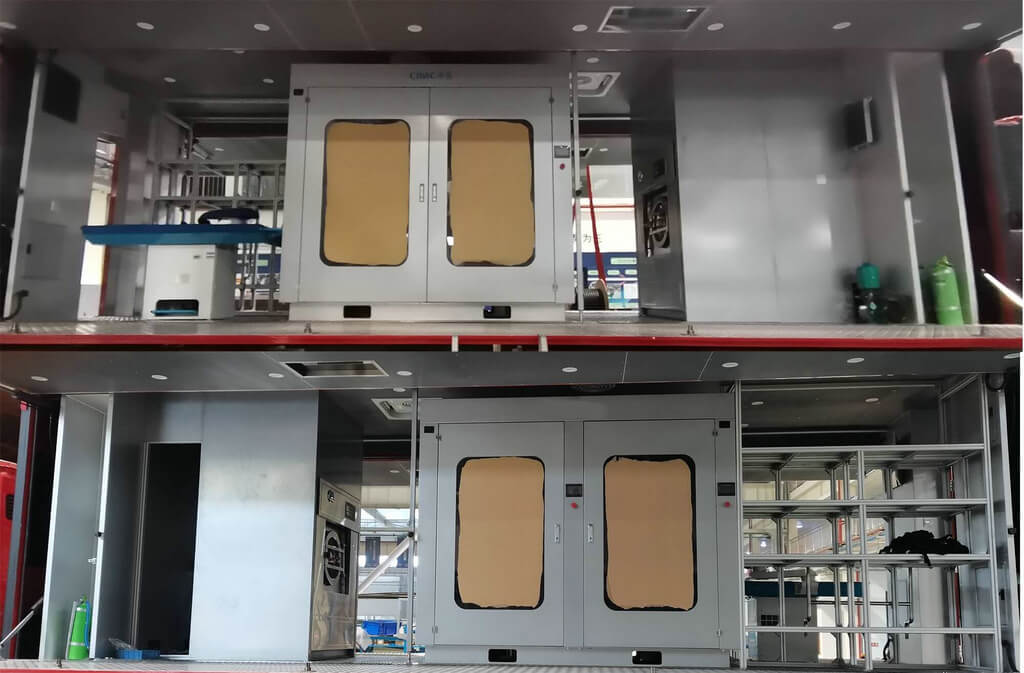

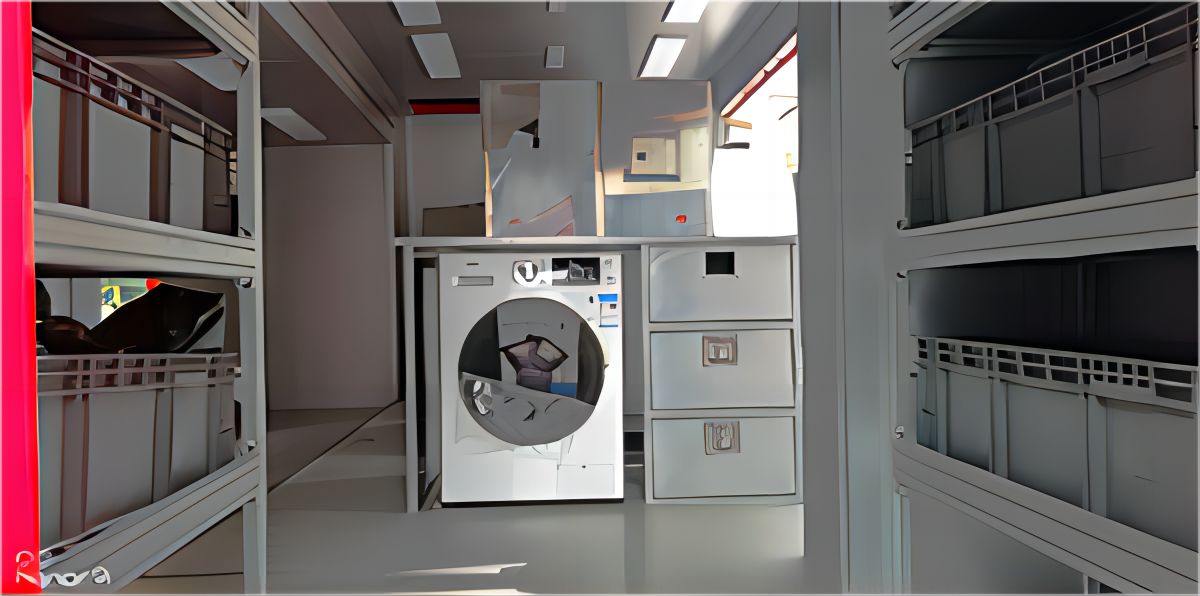

1, the vehicle completes the specific emergency situation of public security, police personnel in the field operations, bedding, clothes and other items washing operations. The main special equipment has the functions of large capacity washing machine, ironing machine, dryer, water and electricity supply system.
2, skirt structure side protection from the ground height of 430mm; The rear protection is made of Q235A material, the section size is 120×60 moment pipe, the rear protection and support are bolted to the frame, and the rear protection is 495mm high from the ground.
3, with the original car installed ABS:ABS model :ABS/ASR-24V-4S/4M, controller model :ABS/ASR-24V-4S/4M, manufacturer: East Knorr Commercial Vehicle Brake System (Shiyan) Co., LTD. ABS model :CM4XL-4S/4M, controller model :CM4XL-4S/4M, Manufacturer: Guangzhou Ruili COMi Automotive Electronics Co., LTD.,
4. optional EBS,EBS model :EBS
5, manufacturer: East Kirknol Commercial Vehicle Braking System (Shiyan) Co., LTD.
6, with the original car optional speed limit device, speed limit 90km/h.
Euro 5 Engine Chassis model CQ5196TXHTVG42-461 Main technical parameters
Overall dimensions: | 9530×2500×3950(mm) | Fuel Type: | Diesel oil |
Total mass: | 17600(Kg) | Quality of service: | 17405(Kg) |
Approach Angle/Departure Angle: | 19/11 (°) | Front/rear overhang: | 1435/2595(mm) |
Axle Load: | 6480/11120 | Wheelbase: | 4200,4400,4600,6000,5500(mm) |
Number of shafts: | 2 | Maximum speed: | 100(km/h) |
Number of tires: | 6(PCS) | Tire Specifications: | 11.00-20 18PR ,11.00R20 18PR ,12.00-20 18PR ,12.00R20 18PR ,315/80R22.5 18PR,295/80R22.5 18PR ,12R22.5 18PR |
Fuel consumption: | (L/100Km) | Number of spring pieces: | 9/9+7,3/3+2,1+-/- |
Front wheel base: | 2006,2020,2070(mm) | Rear wheel base: | 1850(mm) |
Engine parameter
Engine type | Engine manufacturer | Volume (ml) | Power (kw) |
F2CCE611B*L | SAIC Fiat Powertrain Co., Ltd. (SFH) | 8709 | 257 |
1. Main special devices: washing machine, drying rack, clothes storage box, etc.
2, the skirt structure side protection height from the ground 420mm; The rear protection is made of Q235A material, the rear protection section size is 120×60, the rear protection bracket is connected with the frame by bolts, and the height is 480mm from the ground.
3. The top is closed and cannot be opened.
4. ABS is installed with the original car,ABS model :ABS/ASR-24V-4S/4M, manufacturer : East Kirknoor Commercial Vehicle Brake System (Shiyan) Co., LTD. ABS Model :44600XXXX0, Manufacturer: WABCO Automotive Control Systems (China) Co., LTD.
