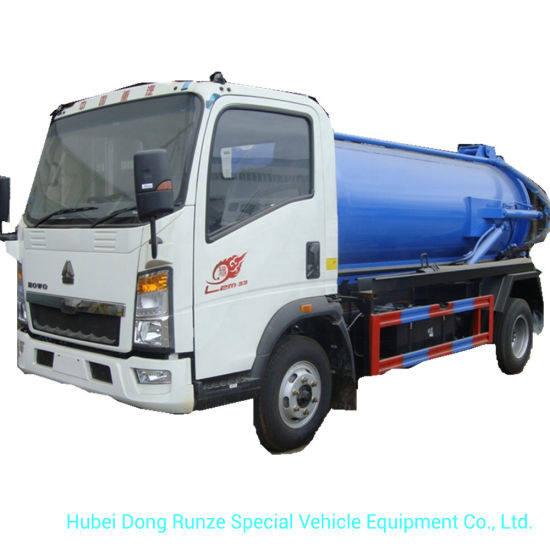

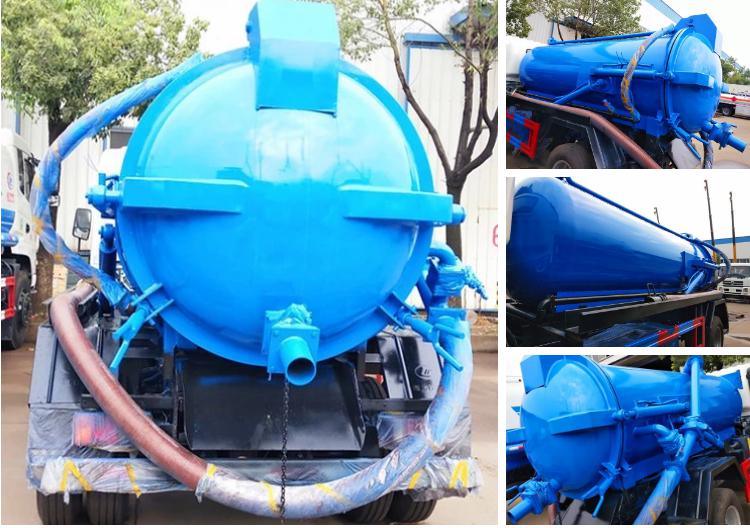

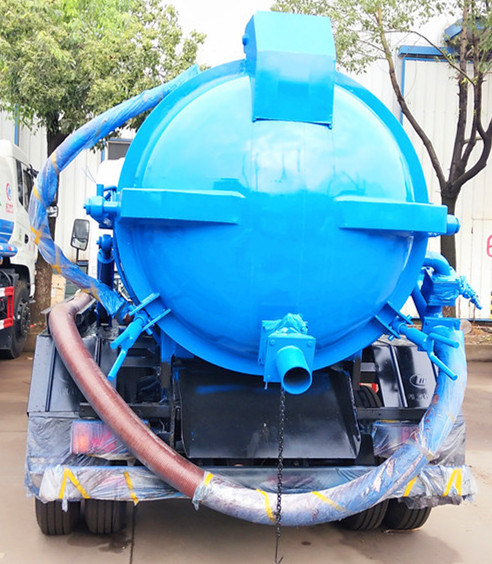

Small HOWO Septic Tank Truck 4000 Liters for Cesspool Emptier
| Quantity: | |
|---|---|
- Shanghai, China
- 80000
- T/T
carbon - stainless steel
RHD OR LHD 4x4 - 4x2
Clean water Tank Capacity Litres
Sewer water tank capacity 3000 litres
High pressure pump High pressure pump pressure 16mpa, flow rate 130L/min
Vacuum pump China famous brand water ring pump sk-6
RHD OR LHD Truck
The pictures are for your reference only.
Sewage suction truck capacity from 3000 litres to 20,000 litres
Fecal suction truck capacity from 3000 litres to 10,000 litres
septic tank truck, sewage suction truck, toilet truck, sewer truck, vacuum truck
Detailed Product Description
ems | Descriptions | Specifications and Types |
General | Truck Name | HOWO septic tank truck |
Drive Type | 4*2 | |
Gross Vehicle Weight(kg) | 7495 | |
Curb Weight (kg) | 3420 | |
Overall Dimensions L*W*H(mm) | 6990×2496×3400 | |
Engine Brand | Chao Chai | |
Fuel Type | Diesel | |
Power | 120HP | |
Emission Standard | Euro III | |
Displacement(ml) | 3856 | |
Engine Type | 4 cylinders in line,water cooling, turbo-charged diesel engine,inter-cooling | |
Chassis | Chassis Brand | HOWO |
Cab | Flat roof , single row cab | |
Tire No. | 6+1 | |
Tire Specification | 7.00R16 Steel tire | |
Wheelbase (mm) ; | 3360 | |
Axle No. | 2 | |
Steering Wheel | Right hand drive with power-assisted | |
Gear Box | 5 speed forward with 1 reverse, manual | |
Brake | Air brake | |
Tank | Tank capacity(m3) | 4 |
Tank material | Carbon steel |

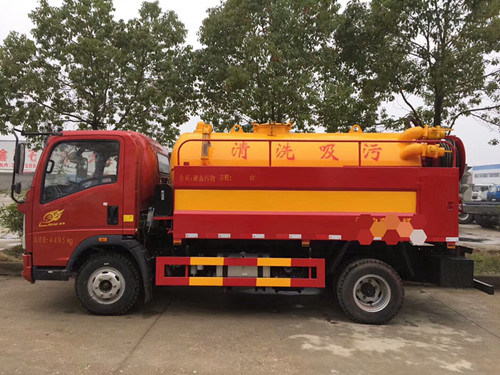

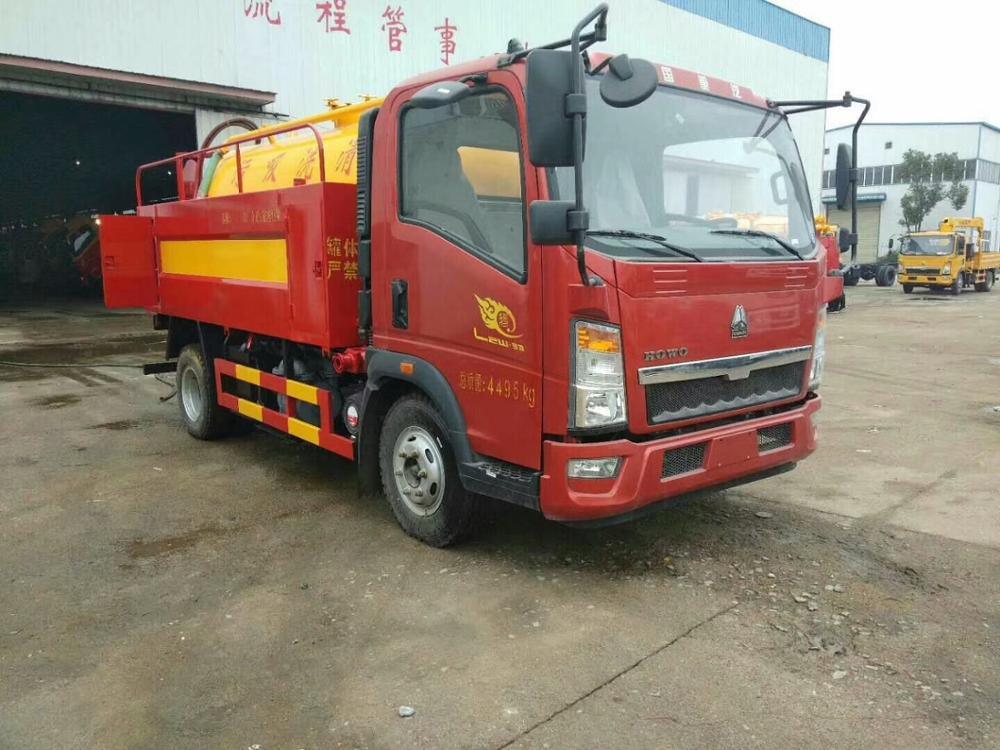

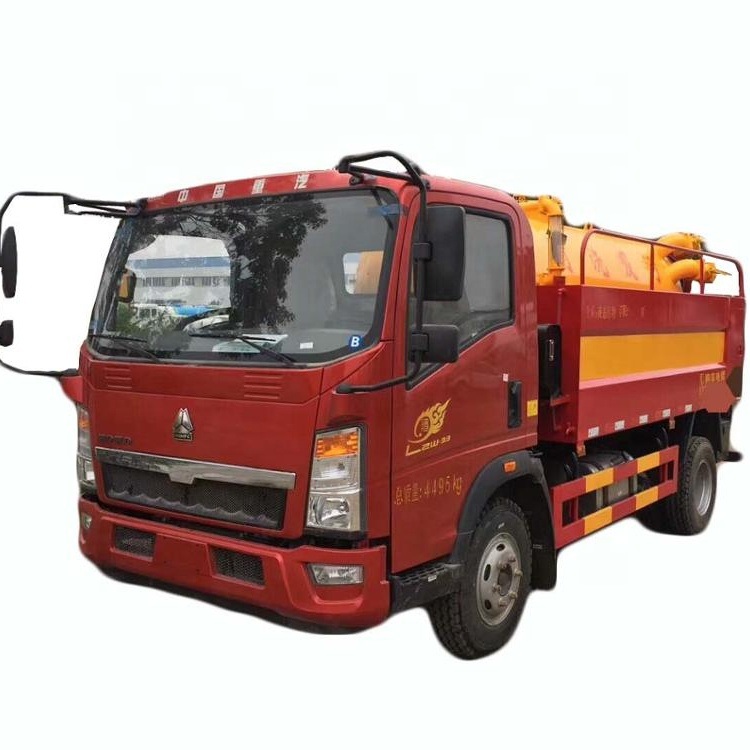

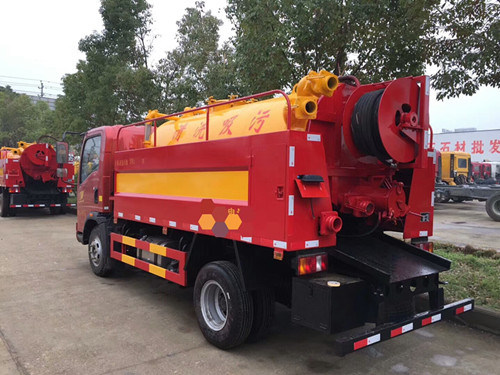

RHD mini vacuum sucker trucks SINOTRUK HOWO sewer cleaning truck specification
Vehicle | HOWO sewer cleaning truck | |
Overall dimensions | mm | 5995x1990x2650 |
Sewage suction tank | L | 3000-4000 |
Cleaning water tank | 1000-1500 | |
GVW | kg | Appro×7300 |
Curb weight | Appro×2860 | |
Loading weight | Appro×4305 | |
Wheelbase | mm | 3360 |
Front/Rear overhang | 1032/1663 | |
Approach/departure angle | ° | 19/10 |
Max speed | Km/h | 95 |
High pressure pump | Brand : Italy HPP Model : ESL122/130 Pressure : 16Mpa Flow : 130L/min | |
Vacuum sewage suction pump | Model : SK-6 Type : water circulation pump Vertical suction: 9m Flow : 1.5m3/min | |
Hydraulic system | Sewage suction tank can lifting through hydraulic cylinder | |
Standard configuration | 1. Sewage suction tank volume 3-4m, water jetting tank volume 1-1.5m3. 2. Sewage tank and water tank material are carbon steel. 3. 60m high pressure tube,diameter 19mm. 4. 10pcs different thrust cleaning nozzle, suitable for cleaning and dredging of different sewer. 5. Sewage tank has looking sewage window,self flow exit, and 1pcs fecal suction tube length 7m. | |
Special performance | 1. Sewage suction part is suitable for sucking, shipping and discharge of sediment in the sewer, especially sucking sewer mud, silt, gravel, bricks and other large objects. 2. Water cleaning jetting system is capable to clean an unclog sanitary drains. 3. The truck is capable to work on heavy roads (sand, dusty, mud). 4. Under the conditioner of high temperatures up to 40 celsius degrees, and high humidity environments, the suction pump is strong. | |
Basic equipment of sludge tank truck
Imported vacuum pump, power-take-off, hydraulic cylinders, control valves , pressure gauge,
water gas separator , oil water separator, level inspection window, suction hose,pipeline system,etc.
1.Tank can be lifted hydraulically to 40 to 45 degree.Rear door can be opened&closed
hydraulically. With full opening design, discharge can be very quick&complete.
2.Overfill system with music horn is equipped to prevent the vacuum pump damage from sewage water into vacuum pump when the tank is full.
3.Super power of vacuum pump, seamless die casted sheel cover, designing for container with high ability of pressure-resistance,double hydraulic jack system, morestrength then cesspit
emptier.
brand new high pressure vacuum suction truck
The above information is for reference only. We can produce according to your needs so, If you have any questions you can contact me at any time.
Looking forward to receiving your inquiry!
