LPG skid station 10m3 LPG tank Filling Station sale

Views: 1151     Author: Dong Runze Special Vehicle      Publish Time: 2017-11-09      Origin: Dong Runze Special Vehicle

LPG skid station 10m3 LPG tank Filling Station sale

LPG skid station 10m3 LPG tank Filling Station sale

Keywords:China LPG Skid Filling Station,Skid Station LPG Tank, LPG Tank Skid Station manufacturer,ASME Standard LPG Filling Station,LPG Filling Station for LPG Gas

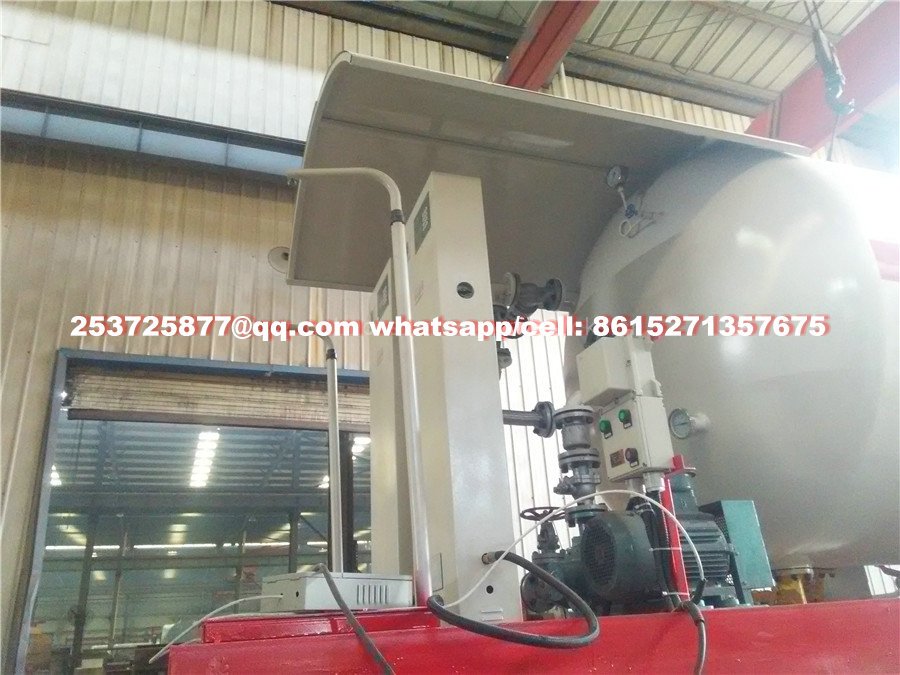

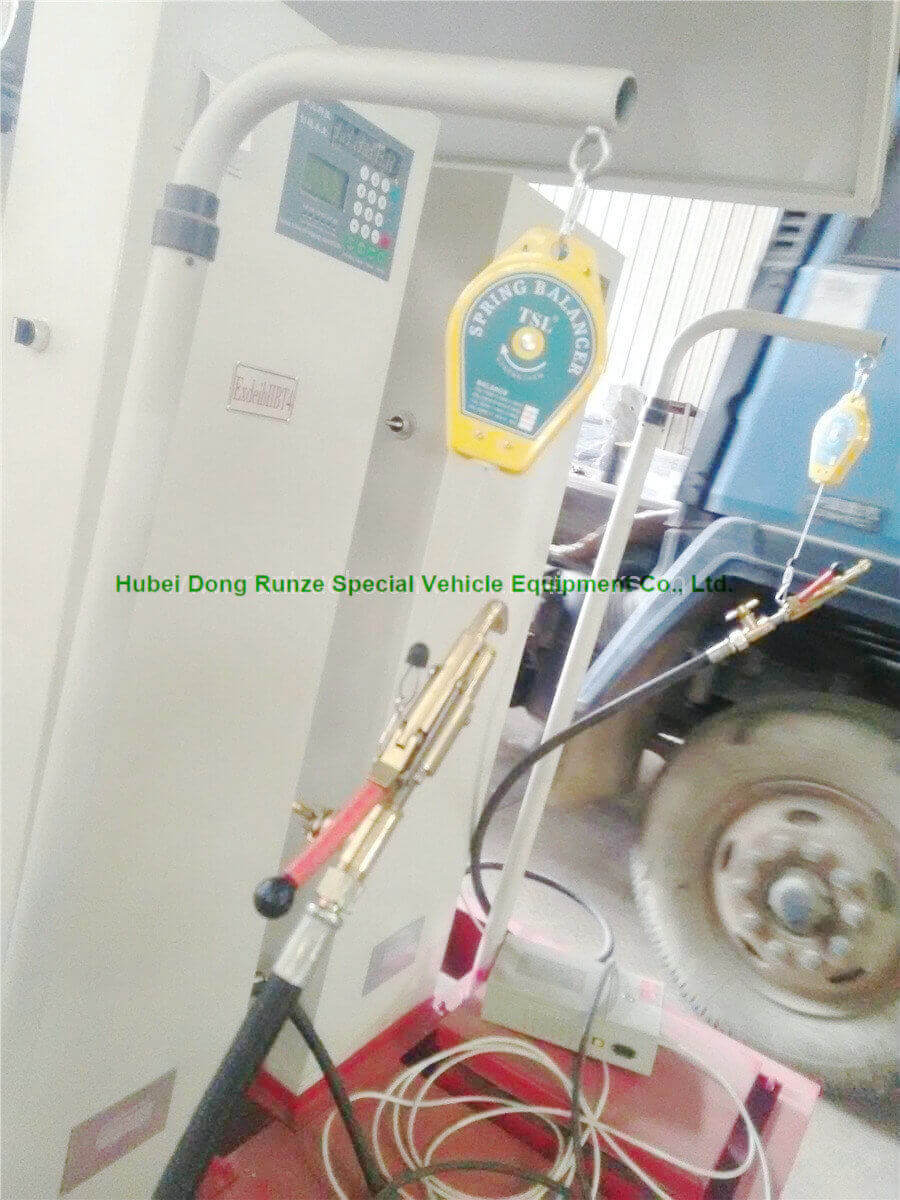

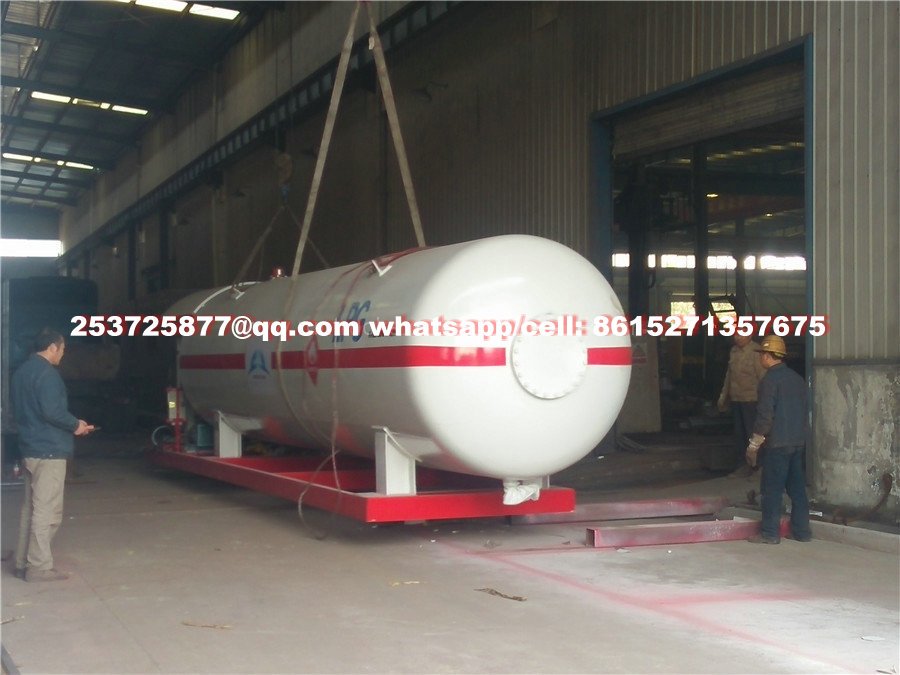

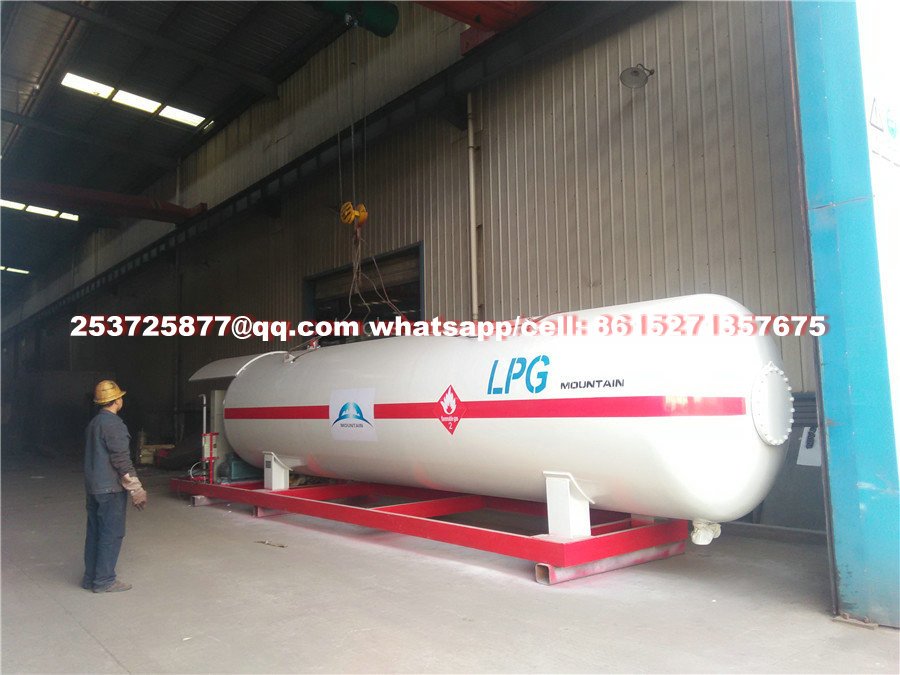

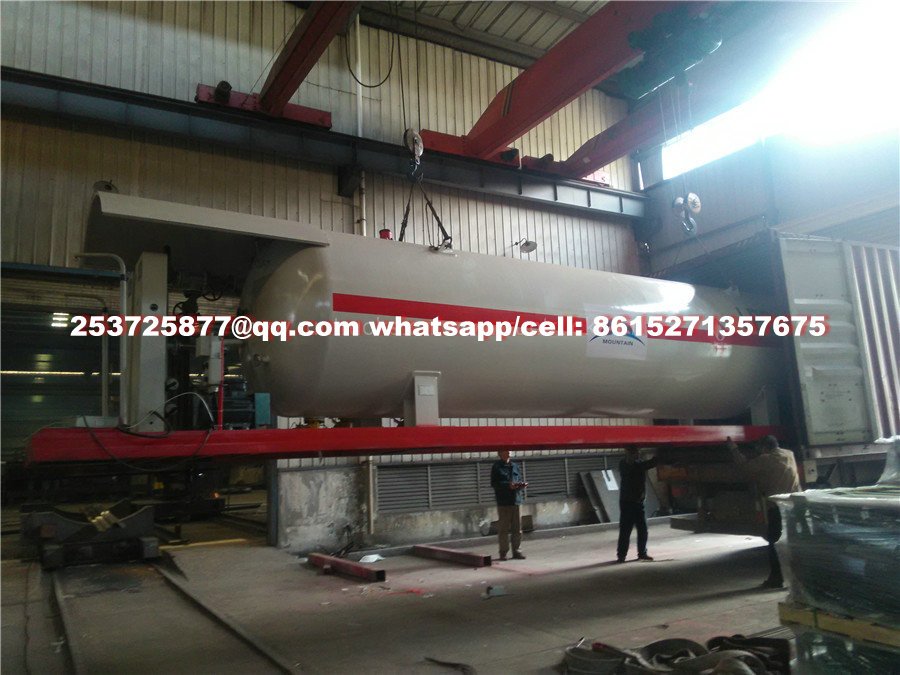

LPG Filling Station tank -10T LPG Skid Filling Station_1.jpgLPG Filling Station tank -12T LPG Skid Filling Station_1.jpgLPG Filling Station tank -14T LPG Skid Filling Station_1.jpgLPG Filling Station tank -11T LPG Skid Filling Station_1.jpgLPG Filling Station tank -15T LPG Skid Filling Station.jpg

Filling Station

60m3 propane gas tank mobile LPG filling station

 20MT Skid Mounted LPG Filling Stations 50000Liters 6Sets LPG Filling Weight Scales

Gas Cylinders Refilling Plant 20000Liters Mobile LPG Filling Stations 8Tons -10Tons

 LPG skid mounted station  Mobile Filling Station for LPG with 12000Liters


LPG Gas Skid station , Cooking Gas Plant for LPG Cylinder With LPG Refilling Scales 40000Liters

mobile lpg gas filling stations 3.jpg

10000LitersLPG skid-mounted filling station/lpg cylinder filling station/mobile filling station







LPG bobtail Road Tanker, LPG tanker truck ,LPG filling truck, LPG refilling truck,LPG GAS dispenser truck, WITH Corken pump and LC meter , pipe and gas dispenser for car , small tank , gas cylinder Portable Design Code ASME

LPG-SKID-Station 5000Liters-Mobile-LPG-.jpgall-welding-line-are-checked-by-X-photoelectricity-and-aultransoni.jpg

LPG Tank body is made by automatic bending machine and automatic welding machine.

all welding line is all welding line are checked by 100% X photoelectricity and aultransoni.

all tanks will be hot treatment by 10hours to get rid of the tress of tank body after weld.

Automatic-Bending-machine-for-LPG-Tank-body.jpgHot-treatment-for-LPG-Tankers.jpgLPG-Cylinder-Filling-Scales.jpg

Different type LPG Filling Scales for you Choice for your LPG Cylinder Refilling Plant:LPG-Refilling-Scales-644x1024.jpg

LPG Fuel Tank Skid Station and Filling Station made in China -  10m3 LPG tank

10m3 LPG tank

Technical specification

parameters

Subject

parameters

tank

Item Number

10M3 LPG tank

Liquid Indictor

Model

UHZ-518C14


Overall size(mm)

5260*1620*2210


Version

Magnetic


Net weight(Kg)

2950


Normal pressure

2.5Mpa


Vessel type

III


Scope of testing

50-2300mm


Designing pressure

1.77Mpa


Precision

2.5


Working pressure

1.61Mpa

Safety Valve

Model

A42F


Designing temperature

-19~50°C


Version

Built-in


Filling Medium

Propane


Normal pressure

2.5 Mpa


Corrosion margin

1.0mm


Normal diameter

DN50


Volume

10CBM(10000L)


Opening pressure

1.68-1.76 Mpa


Heat treatment

bulk


Re-seating pressure

≥80% of opening pressure


Filling factor

420-590kg/m3

Handling System

Normal Diameter

Feed pip

DN50


Material

Q345R



Drain pip

DN50


Hydraulic test pressure

2.22 Mpa



Admission port

DN50


Gas tight test pressure

1.77 Mpa



Sewage outfall port

DN50


Cylinder thickness

8.53mm



Vent nozzle port

DN50


Head thickness

8.51mm

stand

GB150-1998


Service time

15 years


Safety regulation of pressure vessels


Accessory

Safety valve, magnetic flap liquid level gauge, pressure gauge, thermometer, cut-off valves, etc.

Specification

Designed Pressure: 1.66Mpa
Filling Ratio: 0.42 -0.59kg/L
Working Temperature:-50ºC
Corrosion Allowance: 1mm

Payment term


30%T/T paid in advance, 70%T/T paid before delivery

Delivery time: 30 days after the payment.


5tons 10tons 20 tons 50tons LPG Filling Skid Station for Cooking Gas Cylinder for Nigeria Market
