HINO 700 Mixer Trucks 8~12m3 Transit Mixers Concrete Mixer Truck
HINO 700 Mixer trucks 8~12m3 Transit Mixers concrete mixer truck
| Quantity: | |
|---|---|
HINO 700 Mixer trucks
8~12m3 Transit Mixers concrete mixer truck
concrete mixer truck
HINO 700 Mixer trucks, HINO 700 Concrete Mixer Truck ,Cement Mixer Suppliers, Skype \ Yahoo:tomsongking
HINO 700 Mixer trucks 8~12m3 Transit Mixers concrete mixer truck

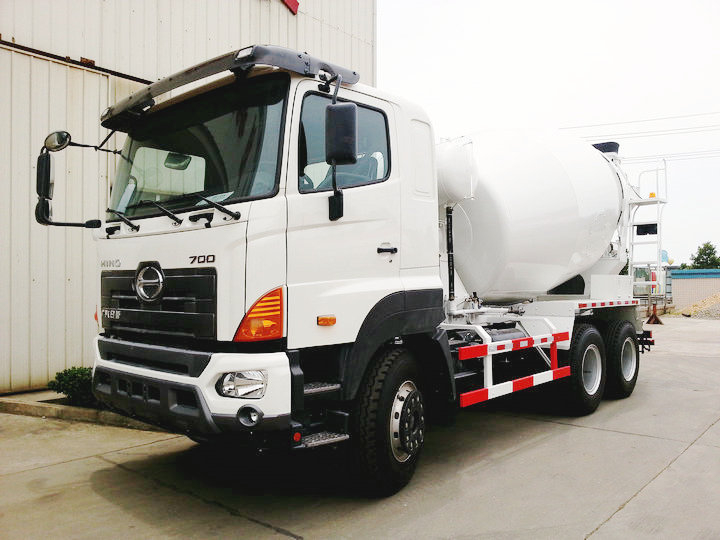

HINO 700 mixer Truck
Euro 3 standard
| Item | unit | parameter | ||
| Vehicle | mixer Truck | |||
| Chassis model | YC1250FS2PK | |||
| Overall dimensions | mm | 7850×2495×3270 | ||
| Factual loading | kg | 35000kg | ||
| Mass in working order | 1200 | |||
| Body internal dimensions | mm | 5200×2250×1300 | ||
| Wheel base | 3300+1410 | |||
| F/R track base | 1410/1730 | |||
| Approach/departure angle | 1860 | 20/30 | ||
| Exhaust/hp | ml/hp | 10520/350 | ||
| Max speed | km/h | 90 | ||
| Tire specification | 11.00R20 | Engine type | P11C-UJ | |
| Traction system | 6×4 | transmission | 11-speed with over drive | |
| Number of axles | 3 | Electric system | 24v | |
| Operation control system | Electrically hydraulic control | Allowable passengers in cab | 3 | |
| Equipment | Equipped with dustbin, hydraulic system and operating system Pressure is large, operation is convenient and security is dependable | |||
| Engine | diesel engine | |||
| Production cycle | 15days | |||
| Warranty | 12 month, from the date of supply | |||
| Chassis YC1250FS2PK | |||||||
| The drum can be selected from 3m3, 4m3, 5m3, 6m3, 7m3, 8m3, 9m3, 10m3, 11m3, 12m3. | |||||||
| Equipment | Material And Technology | ||||||
| Italy ARK motor | Excellent National standard 16 M steel 5mm boom 6mm. | ||||||
| Italy hydraulic pressure oil pump | Automatic submerged arc welding. | ||||||
| TOP68 Reducer | Cold Forming Technology. | ||||||
| German AKG radiator | Hyperboloid stirring blades. | ||||||
| Drum Technicle data | |||||||
| Drum Transmission Capacity | 3000 L | 4000 L | 5000 L | 6000 L | 7000 L | 8000 L | 9000 L |
| Drum Capacity | 4700 L | 6000 L | 8000 L | 9770 L | 10447 L | 13400 L | 14900 L |
| Charge Ratio | 0.67 | 0.67 | 0.64 | 0.63 | 0.67 | 0.615 | 0.6 |
| Charging Speed | ≥3M3/ min | ≥3M3/ min | ≥3M3/ min | ≥3M3/ min | ≥3M3/ min | ≥3M3/ min | ≥3M3/ min |
| Discharge Speed | ≥2M3/ min | ≥2M3/ min | ≥2M3/ min | ≥2M3/ min | ≥2M3/ min | ≥2M3/ min | ≥2M3/ min |
| Discharge Residual Rate | ≤0.8 % | ≤0.8 % | ≤0.8 % | ≤0.8 % | ≤0.8 % | ≤0.8 % | ≤0.8 % |
| Drum Rotation Speed | 0~16 r/min | 0~16 r/min | 0~16 r/min | 0~16 r/min | 0~16 r/min | 0~16 r/min | 0~16 r/min |
| Filling Height | 1.92 M | 2.2 M | 2.3 M | 2.4 M | 2.5 M | 2.55 M | 2.6 M |
| Discharging Minimum Height | 0.87 M | 1.13 M | 1.1 M | 1.13 M | 1.15 M | 1.2 M | 1.2 M |
| Axes Angel | 14±0.5 | 14±0.5 | 14±0.5 | 14±0.5 | 14±0.5 | 14±0.5 | 12±0.5 |
| Overall Dimension | 3.9*1.8*2 | 4*1.95*2.2 | 4.8*2.3*2.15 | 5.2*2.1*2.4 | 4.4*2.1*2.47 | 5.2*2.2*2.6 | 5.4*2.3*2.65 |
| Oil Tank Capacity | 180 L | 180 L | 220 L | 260 L | 280 L | 280 L | 300 L |
| Normal Working Temperature | 50°C~70°C | 50°C~70°C | 50°C~70°C | 50°C~70°C | 50°C~70°C | 50°C~70°C | 50°C~70°C |
TIC TRUCKS , www.truckinchina.com
