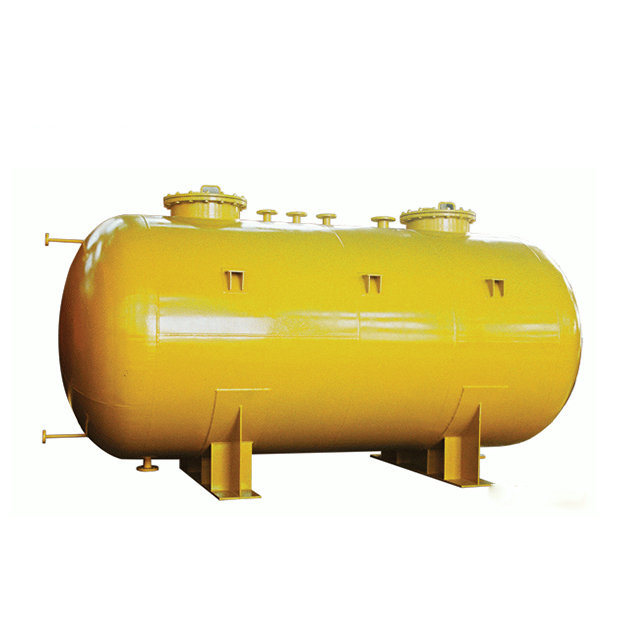

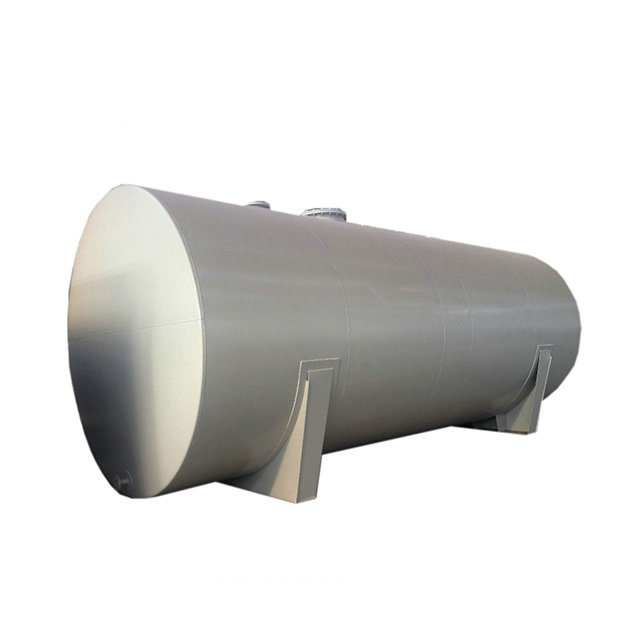

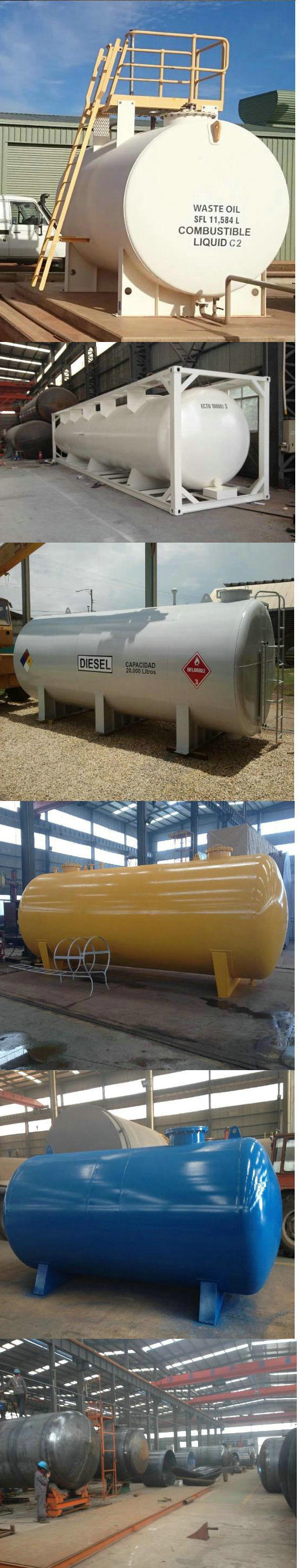

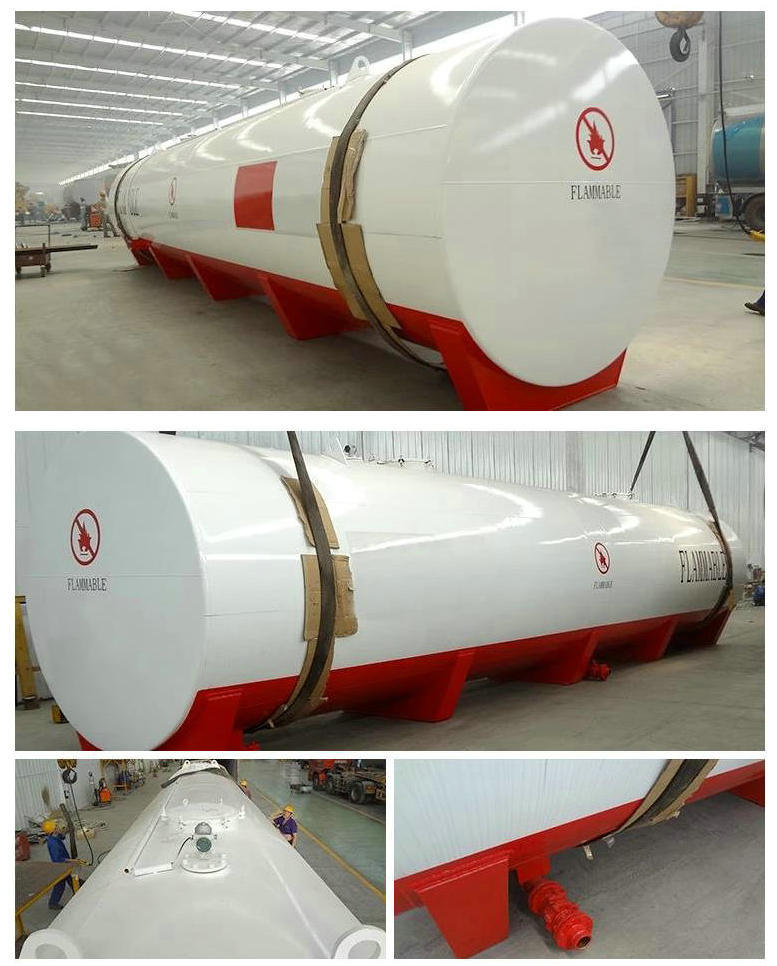

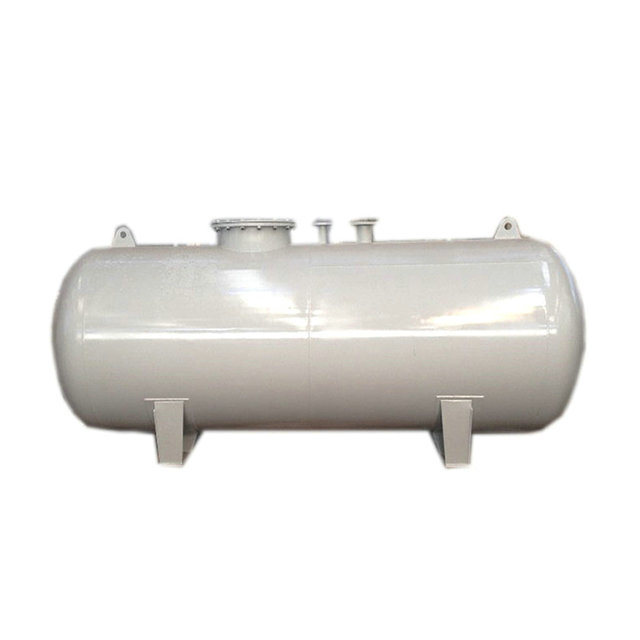

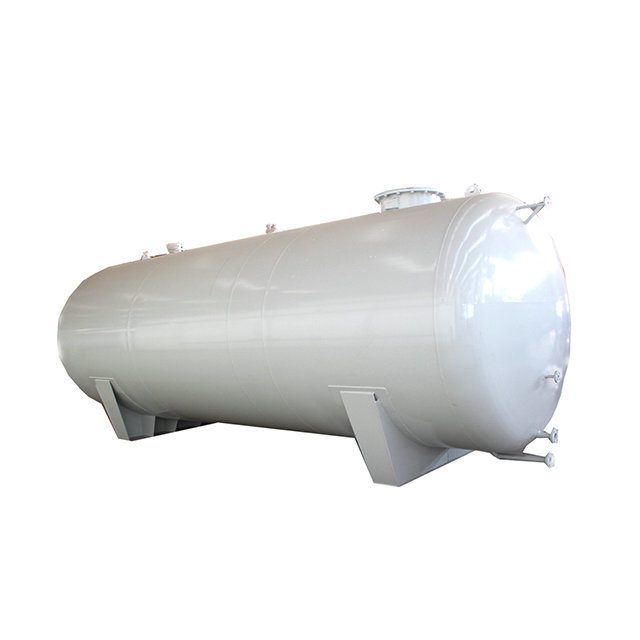

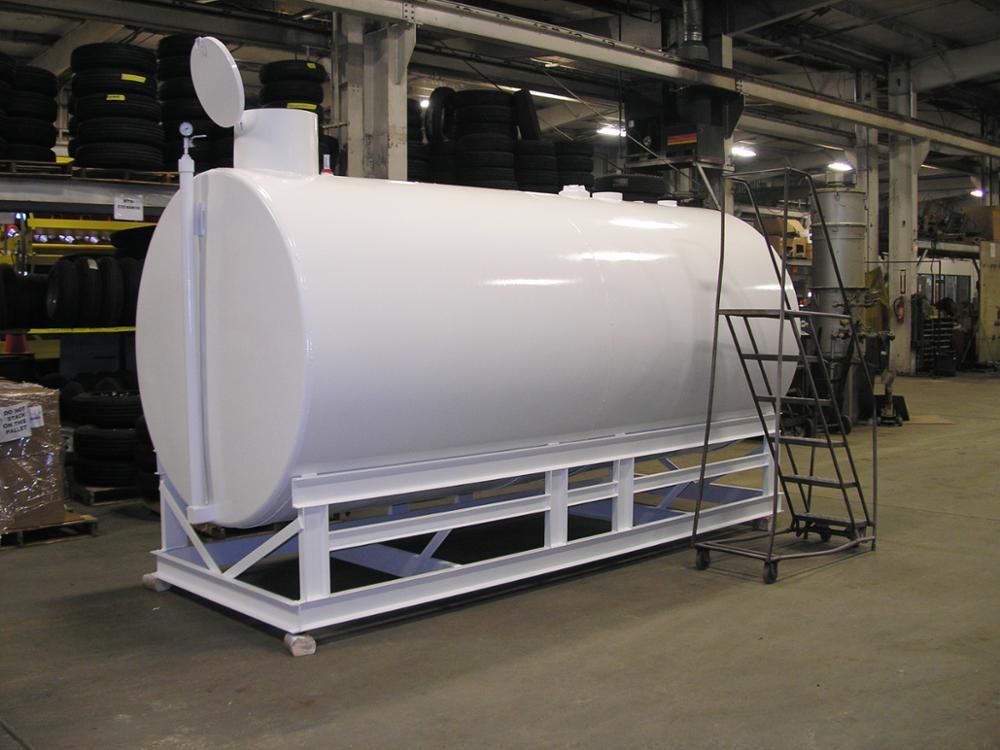

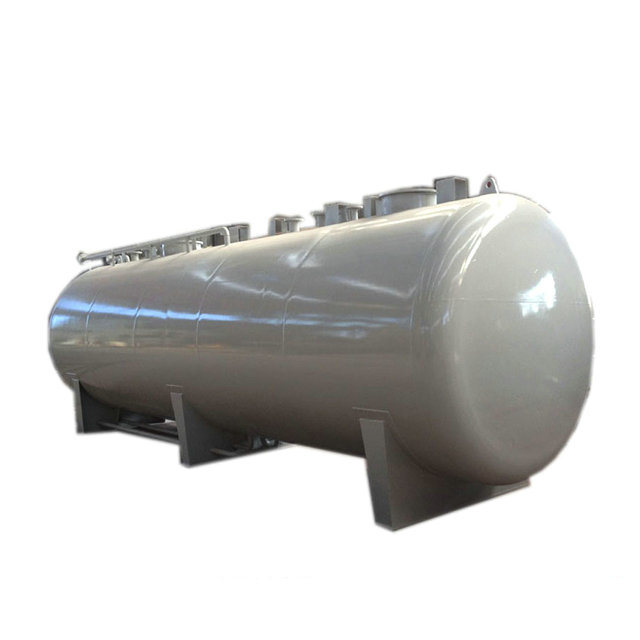

Customization 2t -100t Waste Oil Storage Tank Combustible Liquid Tank (Waste Oil, Water, Acid, Diesel Tank Stainless Steel Jet A1 Oil Tank, Steel lined LDPE)
| Quantity: | |
|---|---|
- Shanghai, China
- 8000
- T/T
Customization 2-100Ton Waste Oil Storage Tank combustible Liquid Tank (Waste Oil ,Water,Acid Tank Carbon Steel Diesel Tank Stainless Steel Jet A1 Oil Tank ,Steel lined LDPE)
1 - 100Ton Gasoline Underground Petrol Diesel Fuel Storage Tank Customize Vertical Horizontal ( Carbon Steel or Stainless Steel)
| No | Capacity L | Type aboveground | Dimension mm | H mm | Thickness mm | Material | Weight Kg | |
| 1 | 1000 | vertical | 1100x1300 | 1455 | 5x5 | Q235A | 340 | |
| 2 | 3000 | vertical | 1600x1600 | 1755 | 6x6 | Q235A | 605 | |
| 3 | 5000 | horizontal | 1200x5162 | 1564 | 6x6 | 20R | 1175 | |
| 4 | 10,000 | horizontal | 1600x5762 | 2016 | 6x6 | 20R | 1175 | |
| 5 | 15,000 | horizontal | 1800x6862 | 2216 | 6x6 | 20R | 2345 | |
| 6 | 20,000 | horizontal | 2000x7462 | 2420 | 6x6 | 20R | 2950 | |
| 7 | 25,000 | horizontal | 2200x7566 | 2616 | 8x8 | 20R | 4155 | |
| 8 | 30,000 | horizontal | 2400x7766 | 2818 | 8x8 | 20R | 4680 | |
| 9 | 40,000 | horizontal | 2600x8766 | 3021 | 8x8 | 20R | 5675 | |
| 10 | 50,000 | horizontal | 2800x9266 | 3223 | 8x8 | 20R | 6395 | |
| 11 | 80,000 | horizontal | 3000x13000 | 3427 | 10x10 | 20R | 11290 | |
| 12 | 10,0000 | horizontal | 3000x16200 | 3427 | 10x10 | 20R | 13685 |
Performance&Features
Stainless steel storage tanks are used as liquid storage tank, detergent storage tank, temporary storage tank and water storage tank etc; such sanitary storage tanks are widely used in fields like foods, dairy products, fruit juice beverages, pharmacy, chemical industry and biological engineering etc.
Usage&Application
According to storage capacity , the storage tanks are classified into tanks of 1-5000m3, For storage tanks with storage capacity of more than k20 m3, It is suggested to use outdoor starage tanks . The storage tank is made of SUS316L, SuS304 or Q235 and has good heat presevation perforamance . THe accessories are as follows:inlet and outlet , manhole , theromometer, liquid level indicator, high and low liquid level alarm, fly andinsect prevention spiracle, aseptic sampling vent, meter CIP cleaning spraying head..
1. Food pharmacy Stainless steel tanks:
Stainless steel ingredient storage tanks, stainless steel tanks with thick, dilute with stainless steel tanks, stainless steel extraction tanks, stainless steel reaction tank, stainless steel tank, stainless steel mixing tank, stainless steel seed tanks, stainless steel tanks nitric acid, acetic acid stainless steel storage tank, stainless steel tank barrels carbon disulfide, stainless steel water tower tank.
2. Wine Dairy class stainless steel tanks:
Stainless steel wine tanks, beer storage tanks,milk colling tanks,milk storage ,stainless steel wine tanks, stainless steel wine tanks, stainless steel milk (milk) tank, stainless steel beverage tank
3. Chemical oil stainless steel storage tanks:
Stainless steel motor oil storage tanks, stainless steel transport tanks, stainless steel cooling tanks, stainless steel insulated tanks, stainless steel tanks at all levels of the heat exchanger, stainless steel buffer tank, stainless steel tanks and chemical industries outdoor stainless steel pressure vessel.
Technical Parameter of Horizontal Stainless Steel Tank
| Nominal volume | Real Capacity | Nominal diameter | Mounting dimensions (L,L1,L2,L3) | Inletdiameter Dg | Spout diameter Dg | Manhole Dg | Number of stand | Remark | |
| 2m3 | 2.05m3 | 1000mm | L=2720mm L1=1500mm L3=200mm | 50mm | 50mm | 400mm | 2 | The design conditionsfor the normal temperature and pressure, accept custom. | |
| 3m3 | 3.05m3 | 1200mm | L=2850mm L1=1550mm L3=250mm | 50mm | 50mm | 400mm | 2 | ||
| 5m3 | 5.05m3 | 1400mm | L=3500mm L1=1920mm L3=300mm | 76mm | 76mm | 400mm | 2 | ||
| 10m3 | 10.5m3 | 1800mm | L=4230mm L1=2300mm L3=300mm | 76mm | 76mm | 500mm | 2 | ||
| 20m3 | 20.5m3 | 2200mm | L=5630mm L1=3080mm L3=400mm | 76mm | 76mm | 500mm | 2 | ||
| 30m3 | 30.5m3 | 2400mm | L=7200mm L1=3600mm L3=500mm | 89mm | 89mm | 500mm | 3 | ||
| 50m3 | 50.5m3 | 2800mm | L=8860mm L2=2660mm L3=500mm | 89mm | 89mm | 500mm | 3 | ||
| 80m3 | 80.5m3 | 3200mm | L=1085mm L2=3300mm L3=600mm | 89mm | 89mm | 500mm | 3 | ||
| 100m3 | 100.5m3 | 3200mm | L=1334mm L2=4140mm L3=600mm | 89mm | 89mm | 500mm | 3 | ||
Our services
We can provide you with high quality products. Quality service. And accept customer according to your request. If you have any questions. please tell me. I will fix it for you as soon as possible.Warm-hearting service to help you find suitable steel storage tank.
Booking hotel for our clients who wanna visit us
Choosing best shipping agent for arranging the shipping
Offering the product with factory price
Accept clients' consulting and offering professional suggestion.
Horizontal Storage HCL Acid Tanks Steel Lined LDPE 120000 Liters
For Storage Bleach, Hydrochloric Acid, Ferric Chloride, Oilfield Chemicals, Corrosive Wastes And Other Hazardous Cargoes.
Steel ( 6 mm -8mm ) Lined PE - Plastic 7042 (16mm - 20 mm ) storage tank
storage hydrochloride, hydrogen chlorate, sodium hydroxide,acrylic
acetic acid, glacial acetic acid, hydrogen peroxide
Propionic acid, ammonia,NH3·H2O
other tanks
| water tank | stainless steel tank /water pump/ High pressure squirt gun |
|---|---|
| steel option | Q235/Q345/ 16 manganese steel/SS201/SS304 /SS316 alummin alloy tanker |
| acids tanker | steel lined plastic for water/alcohol/ethanol acid, alkaline and salt HCL, NaOH ,NaCIO Sodium Hypochlorite NaCIO /hydrofluoric acid HF/CAUSTIC SODA alummin nitric acid |
| oil/petrol,Fuel diesel/LPG/LNG | steel tank with oil pump/ gun fuel truck nozzle |
| asphalt/bitumen/crude oil tanker/ AN ammonium methana Alcohol | burner/steam heating and insulation system ,pump option |
manufacturer, supplier and exporter of Acid Storage Tank in China. Storage Tanks are widely used for storing chemicals and acids and can be availed in various models such as horizontal and vertical. These tanks are equipped with best quality stainless steel material and mild steel, extensively used in various industries - such as pharmaceutical, sugar, food and dairy. This storage tank is widely in demand and accepted by our clients.
Being a quality centric organization, our product line includes Plastic Storage Tank, Chemical Storage Tank, Horizontal Storage tank, Bottom Conical Storage Tank and many more. The manufactured range of Acid Storage Tanks is available to the clients in different sizes using high quality design and welding standards. Storage tanks are mostly appropriate for over ground and underground installations and can be used to store acids in safe and secure way.
we cater to the bulk requirements of the clients and strive to offer the best quality products manufactured in compliance with international standards. We have been able to mark our strong foothold as one the leading Manufacturer of Acid Storage Tanks from China
