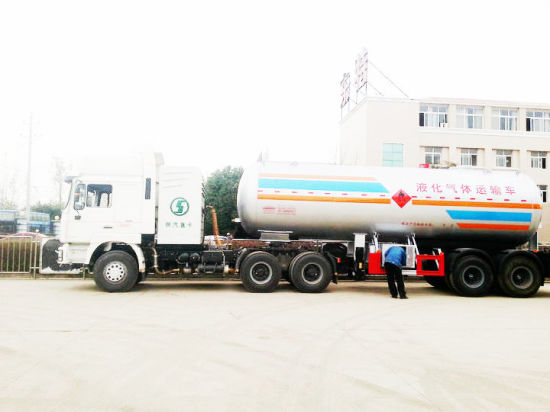

Asme Factory 40000liters 2 Axle LPG/Propane /Dme/ Isobutane Tank Semi Trailer for Sale

Asme Factory 40000liters 2 Axle LPG/Propane /Dme/ Isobutane Tank Semi Trailer for Sale
Availability:
Quantity:
  • 1000

  • T/T, Western Union

  • OTC / Frt / Roro Ship

 LPG  Tank Trailer Manufacturers

tanker semi trailer factory sale Call:86-15271357675
3-Axle-Tank-Semi-Trailer-for-LPG-Propane-Dme-Isobutane-59050liters3-Axle-Tank-Semi-Trailer-for-LPG-Propane-Dme-Isobutane-59050liters3-Axle-Tank-Semi-Trailer-for-LPG-Propane-Dme-Isobutane-59050liters3-Axle-Tank-Semi-Trailer-for-LPG-Propane-Dme-Isobutane-59050litersIsobutane-Tank-Horizontal-Storage-32m3-Pressure-Vessel-for-LPG-Gas-Propane-Liquid-Sulfur-Dioxide-Isobutane-Dimethyl-Ether


Item
Unit Parameter
Product name
2 axle semi-trailer
Practical capacity M3 40
Gross weight kg 30000
Curb weight 13500
rated loading capacity 17000
Overall dimension mm 11324*2500*3730
Axle 2
Wheelbase 5100+1320
Tread Front tread -
Rear tread 1840/1840/1840
Front/rear suspension mm -/1745
Leaf spring
-7/7/7
Fifth wheel max loading kg 16000
Tyre specification
12.00-20
Exclusive configuration Tank material Q345R
Standard configuration 12T BPW axle, safety valve,single fluid two valve box.hydraulic legs,traction pin,liquid Indicator,pressure gauge,temperature gauge,emergency cut-off valve,valve box,fire suppression bottle,spark hider cover,anti static grounding tape,protective guard,tyre protective shield.
Other Filling Medium:liquid ammonia:design pressure 1.77Mpa,design temperature 50°C,filling ratio:0.42t/m3,corrosion allowance:1mm:dimension of tank:2200*12*11044mm .
Standard configuration GB150-1998


wheelbase

Vehicle Dimensions
L * W * H(mm)

Tank Dimensions mm)

Tank volume
(m3)
Media
load mass(kg)

Curb Weight(kg)

Total  (kg)
Triaxial 6800+1310+1310 12740*2500*3950 12360*2320*10 52 Propylene 22400 17600 40000
Triaxial 7160+1310+1310 13000*2500*3990 12850*2496*12.5 58.8 Propane 24700 15300 40000
Triaxial 6060+1310+1310 12050*2490*3880 11734*2374*12 47.58 DME 27120 12880 40000
Triaxial 5000+1310+1310 11240*2490*3980 10920*2426*18 45.31 ammonia 23560 16440 40000
Triaxial 6880+1310+1310 12995*2500*3950 12796*2478*14 56.14 propane 23580 16420 40000
Triaxial 6890+1310+1310 12640*2490*3980 12311*2466*8 56 isobutane 27440 12560 40000
Triaxial 6800+1310+1310 12776*2490*3975 12526*2480*15 55 Propylene 23650 16350 40000
Triaxial 6800+1310+1310 12900*2500*3980 12515*2478*14 56 Propane 23520 16480 40000
Triaxial 7092+1310+1310 13000*2500*3977 12850*2495*12.5 58.5 Propane 24570 15430 40000
Two axle trailer 6720+1320 11324*2500*3730 11058*2228 40.5 Propane 17010 13990 31000
