Arc Gear Oil Pump(YHCB-1000/5C

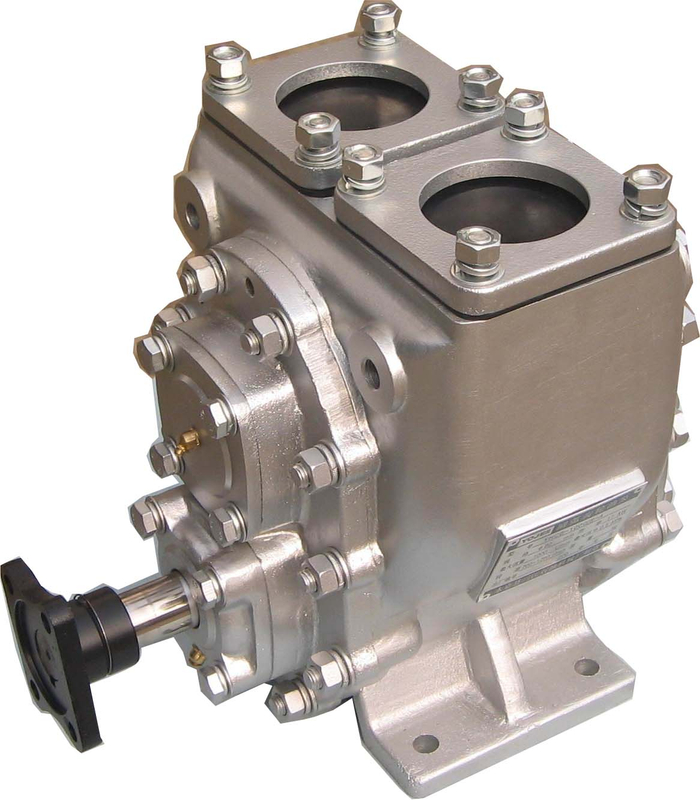

Arc Gear Oil Pump YHCB-1000/5-C
YOJE-YHCB-1000 5 -C aluminium circular arc gear oil pump
Price: $ 800
Discount Price: $ 680
Availability:
Quantity:

 YOJE YHCB-1000/5C is used to deliver oil mixture . It has the features of reasonable design, long service life,compact structure. Its shell and gear are made by AL alloy.



 YOJE-YHCB-1000 5 -C aluminium circular arc gear oil pump parameter





       size       flow       noise       lift       suction lift       rotation speed       working pressure
       3'       1000L/min       ≤90db       60m       7m       700-1250r/min       0-0.5MPA
 Materials
 Subject: aluminum
 Gear: aluminum
 Seal: seal



 Package: YOJE YHCB-1000/5 c
 Gross weight: 33kg
 Net weight: 28kg

 Size: 44X32X43cm



1. The diameter of the oil inlet pipe system of the pump shall not be less than φ 70mm, and the vertical height of suction shall not be greater than 7m.


2. When the pump is applied to the refueling truck, the speed shall be slowly accelerated from low to high and maintained at the corresponding speed. It shall not run at excessive speed, nor shall it be high or low.


3. The pump shall be installed on the pump frame fixedly connected to the longitudinal beam as far as possible in front, and horizontally close to the longitudinal beam of the vehicle as far as possible to avoid interference between the pump body and the transmission shaft of the vehicle.


4. The height of the pump depends on the output shaft of the power take-off, and its power source is obtained from the output shaft. The connection of the transmission shaft shall be coaxial as far as possible, and its inclination angle shall not be greater than 7 °.


5. Before starting the pump, check whether the inlet and outlet valves are open. Never use the pump when the pump outlet is not open.


Technical parameters:


Specification: 3 inches


Flow: 1000L / min


Noise: ≤ 90dB


Lift: 60m


Suction lift: 7M


Speed: 700 ~ 1250r / min


Working pressure: 0 ~ 0.5MPa



 Arc gear oil pump(YHCB-1000/5C
