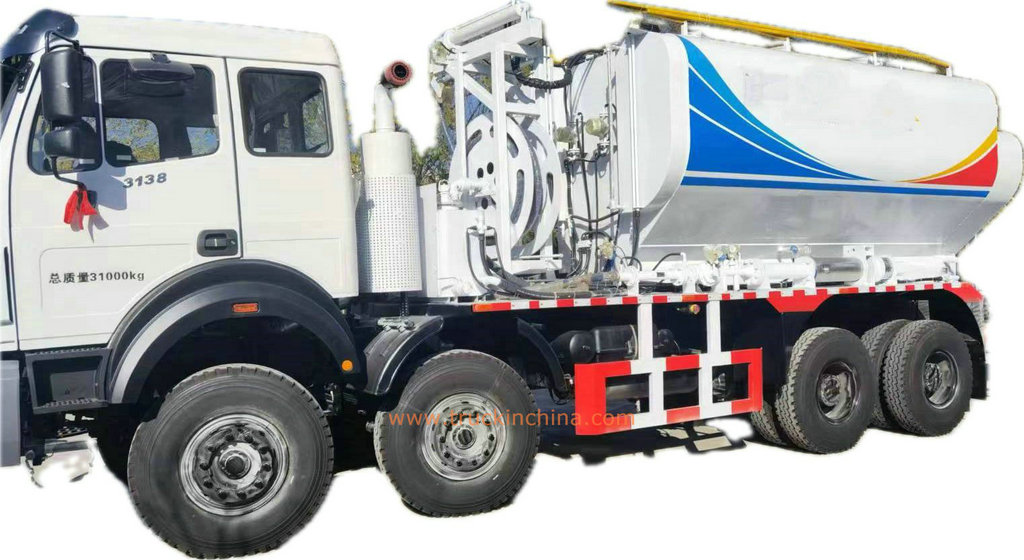

15 Ton Heavy ANFO Explosive Mixing And Charging Truck with Multiple Mix Units for Mining Blast

15 Ton Heavy ANFO Explosive Mixing And Charging Truck with Multiple Mix Units for  Mining Blast

   We supply a mobile manufacturing unit (MMU) which can be engineered for customers with small or large operations.  Our multiple mixing units  is capable of augering ANFO and Heavy ANFO and pumping blended product in blast holes at surface mining operations.  Not all mining operations are huge, and when the market demanded a cost effective solution for smaller operations, a mobile unit seemed an obvious choice.

   Field mixing and Charging heavy ANFO truck is also known as multi-functional  On-site mixed explosive loading truck, which is the combination of two kinds of vehicle functions: field mixing emulsion explosive truck and field mixing charging porous granular ANFO truck, and the functions are greatly increased after combination.   Pure emulsion explosive, porous granular ANFO explosive, heavy emulsion explosive and heavy ANFO explosive can be mixed on site.   And the ratio of emulsion explosive and porous granular ANFO explosive can be adjusted at will between 100:0 and 0:100.   The emulsion explosive is mainly (greater than or equal to 50%), and the porous granular ANFO explosive is supplemented (less than or equal to 50%).   This explosive is called heavy emulsion explosive, and the common ratio is 7:3, which is suitable for water cannon holes with hard rock hardness.   The porous granular ANFO explosive is mainly (greater than equal 50%), and the emulsified explosive is secondary (less than or equal to 50%), this explosive is called heavy ANFO explosive, and the common ratio is 5:5, this explosive is used for waterless cannon holes with hard rock hardness.   This kind of in-situ mixed explosive truck is suitable for both water hole and dry hole, and can meet various blasting projects

BCZH quad multi-functional Explosive Mixing And Charging truck utilizes load-sensing proportional hydraulics and a closed loop control system to efficiently and accurately control the mixing ratio of ANFO, emulsion, and chemical gassing agents. The quad vehicle is capable of pumping or augering a full range of bulk products: 100% bulk emulsion, various heavy ANFO blends and100% ANFO. The control system is fully automated and feature on-board data logging and diagnostics. The unit utilizes a configurable static mixer column and water ring lubrication system to reduce pumping pressure through the length of the hose.

to delivering explosives to an opencast surface mine, a mobile solution works best.  What the industry needed was a way to take different explosive products directly to the bench in an active mine and to be able to prepare the explosives compound on site.  The structure would be mounted on the rear chassis of a customised truck and therefore allow for full mobility.  Contact us for more information on our reliable and durable equipment.

Our multiple mixing units have the ability to manufacture ANFO and Heavy ANFO to auger or pump a blended product into blast holes.  Bins are generally permanently fixed to the chassis.  These units consist of an ammonium nitrate storage bin, emulsion storage tank, fuel oil tank, water tank, hose reel and optional product additions tanks.

The product is discharged using a side-mounted discharge auger, or pumped into a wet blast hole using a loading hose.  Emulsion is generally added to the ANFO in the discharge auger.  A helical rotor pump is used to transfer the product during the wet hole loading process.

Hose reels can be manufactured to suit the various discharge rates and hose diameters as required.  These reels are usually driven using a reduction gearbox.  These reels are driven using a reduction gearbox to give optimum control of the hose feed rate in the hole.

To achieve a waterproof product, at least 50% emulsion will need to be added.  However, to obtain a product that can be reliably pumped, you will need to use waterproof heavy ANFO with between 60-70% emulsion.  Heavy ANFO is pumped through a hose, with the hose retracting as loading proceeds.

BCRH-15 Emulsion truck utilizes load-sensing proportional hydraulics and a closed loop control system to efficiently and accurately control the ratio of the pumped emulsion and chemical gassing agents. Emulsion is pumped through a progressive cavity pump, while high pressure piston pumps supply gassing agent and water flow. Emulsion hauling capacity is 15MT, and the delivery rate can be varied from 100-300kg/min. The control system is fully automated and features on-board data logging and diagnostics. The emulsion re-pump truck utilizes a configurable static mixer column and water ring lubrication system to reduce pumping pressure through the length of the hose.

BCLH-15 ANFO truck utilizes load-sensing proportional hydraulics and a closed loop control system to efficiently and accurately control the mixing and loading of ANFO. The control system delivers automation, wireless remote control, on-board data logging and diagnostics. The body is available with either an overhead or side boom auger configuration. ANFO hauling capacity is 15MT, and the ANFO discharge rate can be varied from 100-1000kg/min. The ANFO unit utilizes proportional computer-control and well-designed diesel fuel injection to increase the wetted surface area of AN prill for maximum fuel distribution and absorption.
