King Run Logistics Bath Car, Large Mobile Shower Car Mobile Bath Car Shower Car Truck Customizing

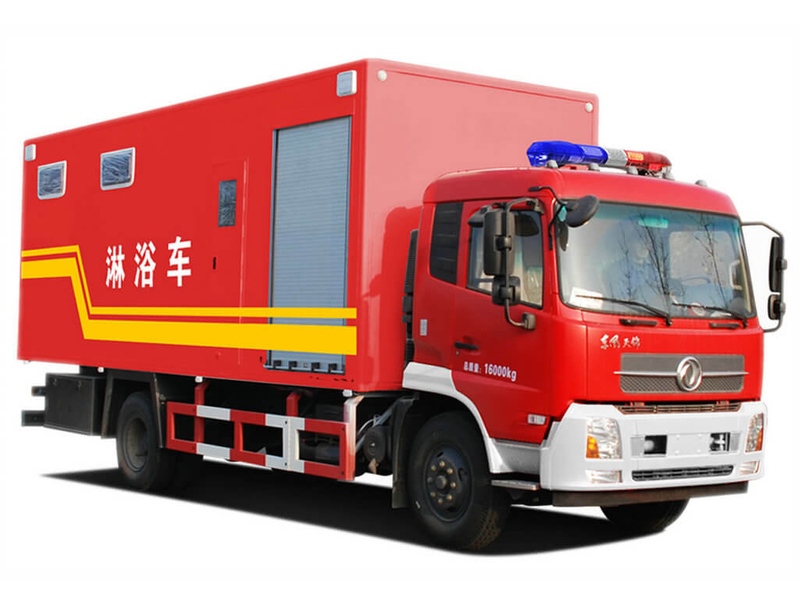

Isuzu Logistics Bath Car, Large Mobile Shower Car (Mobile Bath Shower Van)

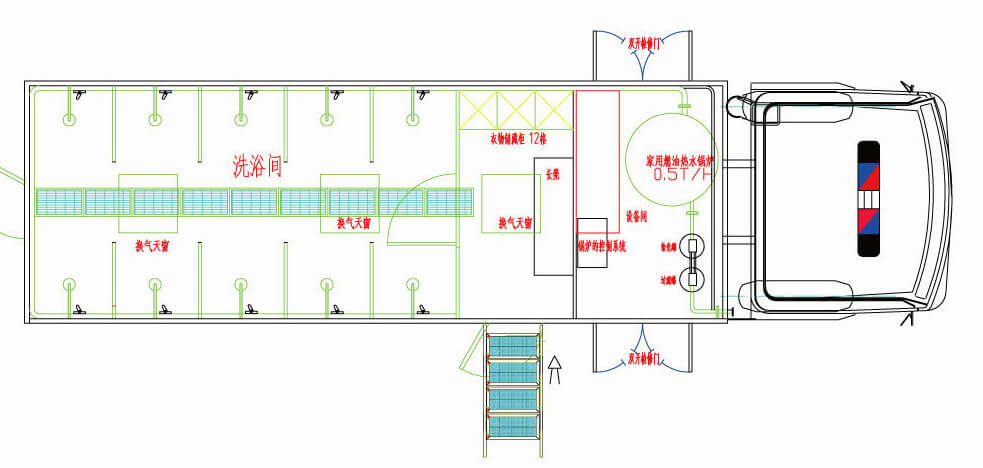

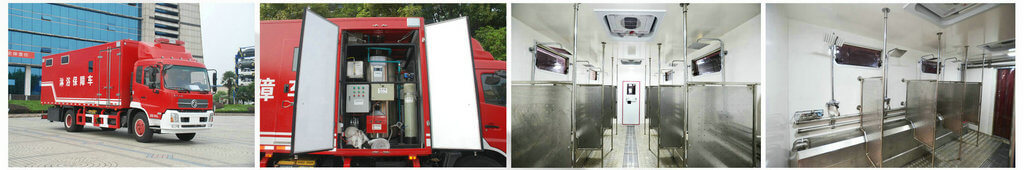

Special equipment: hot and cold water supply system, shower device
2. Optional shroud with chassis, front spoiler on the front of the cab, optional front fog lamp.
| Chassis: | DFH5160XXYBX2V | Fuel type: | diesel fuel |
| Engine: | ISD210 50; ISD245 50;... | Rated capacity (kg): | 7990 |
| Displacement (cc): | 6700; 6700; 6700 | Wheelbase (mm): | 5600 |
| Power (kW): | 155; 180; 198 | Dimensions (mm): | 9695/9995/10100/1030 |
Dimensions: 9990 × 2550 × 3900 (mm) Cargo size: × × (mm)
Total mass: 15800 (Kg) Mass utilization factor:
Curing quality: 15605 (Kg) Rated load mass: (Kg)
Trailer quality: (kg) Semi-trailer saddle:
Cab: Front passenger: 3 (person)
Rated passenger: (person) anti-lock system: Yes
Approach angle / departure angle: 20/10 (°) Front suspension / rear suspension: 1430/2960 (mm)
Axle load: 5600/10200 Wheelbase: 5600 (mm)
Number of axles: 2 Maximum speed: 110 (km / h)
Fuel consumption: Number of springs: 7/9+6, 8/10+8
Number of tires: 6 Tire specifications: 9.00R20 16PR, 10.00-20 16PR, 10.00-20 18PR, 10.00R20 14PR, 10.00R20 16PR, 10.00R20 18PR, 10R22.5 16PR, 275/80R22.5
Front track: 1880 Rear track: 1800, 1860, 1820
Before braking: After braking:
Before the exercise: After the exercise:
Steering form: Steering wheel Start mode:
Transmission type: fuel consumption (L/100Km):
