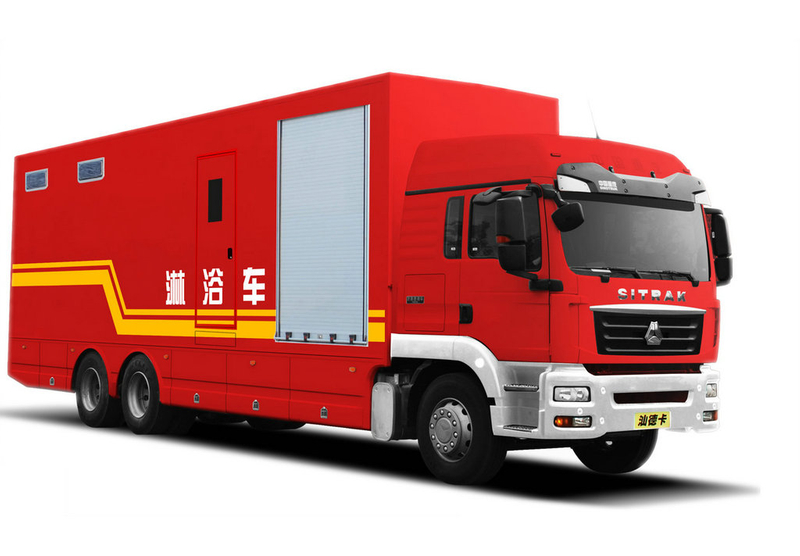

SITRAK Mobile Hot Showers Vehicle

SITRAK Shower Vehicle , Vehicle Mounted Showers ,Hot Camp Showers, Road Shower
Portable Shower Self-propelled Truck
Price: $ 139000
Discount Price: $ 137000
Availability:
Quantity:

  • DRZ5

  • DONG RUN ZE

  • 8705901000

SITRAK Shower Vehicle , Vehicle Mounted Showers ,Hot Camp Showers, Road Shower

6x6 / 6x4 Offorad Customizing Portable Shower, Vehicle Mounted Shower,

 Hot Water Shower | Vehicle Mounted

 Chassis: ZZ1266N504GE1

Engine: MC07.28-50; MC07.31-50; MC07.34-50

Displacement (cc): 6870; 6870; 6870

Power (kW): 206; 228; 248

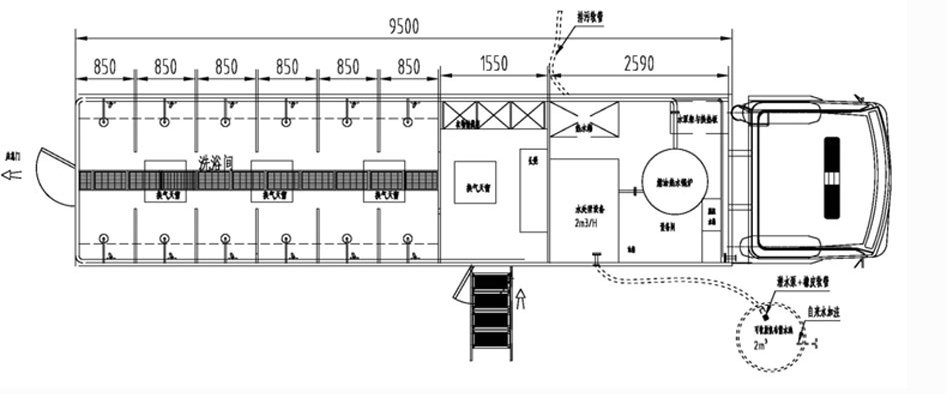

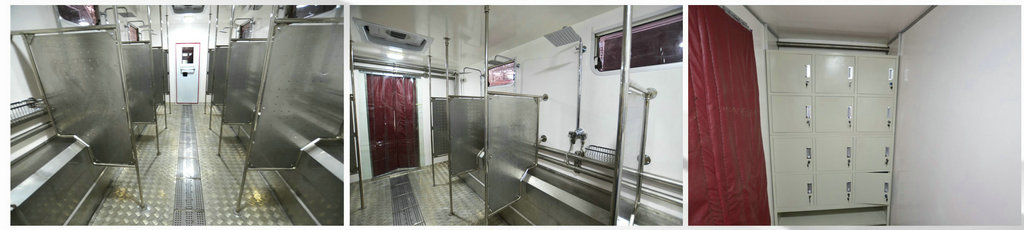

Sinotruk Mobile Shower -50T-HOWO_1Sinotruk Mobile Shower -51T-HOWO

Description:

To Provide Bath Protection During Field Operation, The Water From Rivers And Reservoirs That Meet The Requirements Of Use Can Be Absorbed Through The Water Purification Device.

Provide Shower Water, Or Use Municipal Pipe Network Or Other Water Supply Equipment For Water Supply.

Protect Ability: One Hour Can Satisfy 30 People To Shower.

Within The Car Equipped With: Shower Head; The Shower Pump; Automatic Oil-Burning Boiler; Diesel Generating Set; Fuel Air Heater;

Water Purification Equipment;   Water Tank; Electric Control Cabinet, Etc.

Performance
Fuel diesel fuel
Environmental standard GB17691-2005 National V / Euro 5, GB3847-2005
Maximum speed 101 km/h 63 mph
ABS have
Capacity
Rated load capacity 570 kg,
505 kg
0.6 t,
0.5 t
1,257 lbs,
1,113 lbs
Weights and Ground pressure
Curb weight 25300 kg 25.3 t 55,800 lbs
Gross vehicle weight rating 26000 kg 26 t 57,000 lbs
Axle load distribution 7000 kg / 19000 kg ( )
7 t / 19 t
15,000 lbs / 42,000 lbs ( )
Dimensions
Overall length 9720 mm / 9920 mm 31′11″ / 32′7″
Overall width 2500 mm / 2550 mm 8′3″ / 8′5″
Overall height 3740 mm / 3990 mm 12′4″ / 13′2″
Undercarriage and Suspension
Number of axles 3
Wheelbase 3875+1400 mm,
4275+1400 mm,
4575+1400 mm,
4975+1400 mm,
5775+1400 mm,
5175+1400 mm,
5975+1400 mm
12′9″+4′8″,
14′1″+4′8″,
15′1″+4′8″,
16′4″+4′8″,
19′0″+4′8″,
17′0″+4′8″,
19′8″+4′8″
Front track 1995 mm,
2014 mm
6′7″,
6′8″
Rear track 1844 mm / 1844 mm 6′1″ / 6′1″
Front/rear overhang 1430 mm / 1715 mm,
1430 mm / 1915 mm
4′9″ / 5′8″,
4′9″ / 6′4″
Angle of approach 16°
Angle of departure 22°
Leaf springs 3 / - / -
Tyres and Wheels
Number of tyres 10
Tyres dimension 10.00R20, 11.00R20, 295/80R22.5
Miscellaneous
Seating capacity 2, 3
Steering control steering wheel
