ISUZU FTR Outdoor Mobile Camping Truck

ISUZU FTR Outdoor Mobile Camping Truck
Truck Bed Camping | Outdoor Life Truck Camper

Price: $ 0
Discount Price: $ 144000
Quantity:

  • DRZ5
  • DRZ
  • 8705904000

ISUZU FTR Outdoor Mobile Camping Truck

 Truck Bed Camping | Outdoor Life

ISUZU Camping Car,

ISUZU Mobile CLinics truck,

 ISUZU Medical Vehicles,

 custom Mobile Medical Units for medical, business,education and government applications

Camping truck -ISUZU_ Camping Vehicle -00-ISUZU_1Camping Vehicle -00-ISUZU_0002_1Camping Vehicle -01-ISUZU_1SITRACK Outdoor Camping Vehicle 2 1_2

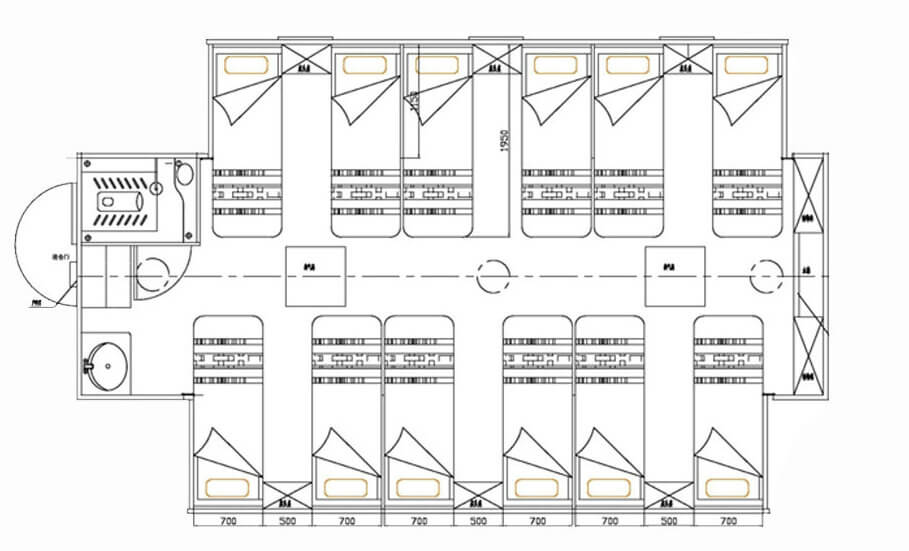

Camping car construction plan (vehicle)

In order to cope with various rescue and rescue missions such as rescue and disaster relief, handling emergencies, and quickly build a camping base after various accidents and natural disasters, reduce the unnecessary physical loss of emergency rescuers and ensure the emergency rest of emergency rescue personnel in the disaster area. The environment, adequate rest time and physical recovery will improve the efficiency of rescue and rescue.

(1) Construction content (see the camping car configuration table for details)

Construction 2 sets of advanced technology, flexible and flexible, full-featured, efficient and practical, comfortable and convenient, safe, stable and reliable. A camping car that can meet the needs of 24-30 emergency rescue personnel in the disaster area.

The vehicle is equipped with dual power supply (generator, mains) automatic switching power supply system, folding bed and mattress, mains inverter air conditioner, fuel independent plumbing heating equipment, high-power silent generator, hydraulic pump used for expansion of the cabinet, etc. .

(2) System function 1, vehicle function

The vehicle is maneuverable, flexible, fast and convenient to operate; the sealing effect is good, the use is quick and convenient, and the service life is long; the whole vehicle has good strength and high reliability; and the dual power supply configuration satisfies the power supply requirement. The top of the cab is equipped with long-row warning lights, and strobe lights on both sides and rear of the car to improve the safety of the vehicle.

Vehicle modifications do not alter key structures such as the engine, transmission, braking, travel and steering systems of the original chassis:

Chassis modification

A sub-frame is installed on the original frame, and a car body is mounted on the sub-frame;

A reversing camera is installed at the rear of the car body, and a reversing monitoring screen is installed in the cab;

A taillight is installed in the lower part of the rear panel of the car body, and a license plate frame is installed in the middle and a license plate lamp is installed;

Process requirements

The cab is all decorated with the original car to maintain the original car's aesthetics.

The interior wiring is hidden in the interior according to the body structure.

The parts and components used on the mechanical structural members are considered to have sufficient strength and rigidity to ensure that they will not move, fall, break and deform under normal use and fault conditions.


The power cord is connected to the in-vehicle equipment by a centralized outlet for waterproofing.

The pins and sockets of various cable plugs are coated with electric contact protector DJB-823 to ensure electrical contact stability.

Box design

The camping car uses the second type truck chassis, which integrates the main equipment such as car body, car air conditioner, generator, power supply and distribution system on the original car chassis; the whole vehicle is rationally arranged according to the operation and use conditions, and the one-side pull-in cabin expands to a depth of 1 meter. The important equipments are fixed and reliable, so as to ensure the firmness and reliability in the driving process; the portable devices are convenient and practical to be stored, and are firmly and reliably fixed in the vehicle; the interior and exterior of the vehicle are beautifully decorated; and the rapid maneuvering work during the attendance task is satisfied. At the same time, it has a good rest environment, which makes it have good operability in the layout and structure design of the whole vehicle.

The installation position of the external equipment of the vehicle is coordinated with the vehicle as a whole, and the painting of the appearance color and the body pattern text is strictly in accordance with the requirements of the user.

2, camping function

The layout of the bed is reasonable and the mattress is made of wear-resistant, dirt-resistant and comfortable. The paving speed is fast, the camping is comfortable, and the access is convenient; the camping environment of the rest area is warm and comfortable.

3, equipment features

Equipped with heating and cooling inverter air conditioner, fuel independent heating and heating equipment, high-power silent generator, hydraulic pump station, auxiliary fuel tank, vehicle-specific water dispenser, utility power and vehicle power generation dual-purpose power supply and socket;

4, communication function

The cab is equipped with a digital-mode car intercom and walkie-talkie, which is compatible with the provincial bureau and found to have intercom equipment. 5, life function

The centralized charging port can meet the charging requirements of communication, lighting and other equipment of the rated campers and other equipment needed for life.

(3) Camping car configuration table


Camper Truck Customizing




2

1Box


Iron horse


OEM


DONG RUN ZE

1
2Odor decomposer


Midea

KJ210G-C42


Midea Grou

1
3


Decoration


Iron horse


OEM


DONG RUN ZE


1



4

1Folding Bed (With Mattress)


Iron horse


OEM


DONG RUN ZE

24
2Bedding


Iron horse


OEM


DONG RUN ZE

24
3Bedside Table


Iron horse


OEM


DONG RUN ZE


6



5

1Locker


Iron horse


OEM


DONG RUN ZE

1
2Coat Hook


Iron horse


OEM


DONG RUN ZE

24
3


mirror


Iron horse


OEM


DONG RUN ZE


1



4Toilet seated toilet


Ted


CZBQ4--Z


Beijing Ted Lang Technology Co., Ltd.


1

5Sliding door


Iron horse


OEM


DONG RUN ZE

1
6Sliding door slide


Iron horse


OEM


DONG RUN ZE


1

7Water tank


Iron horse


OEM


DONG RUN ZE


1

8Sewage tankIron horseOEM,0.2 TonDONG RUN ZE1
9Piping system


Iron horse


OEM


DONG RUN ZE


1

10Shower cubicle


Iron horse


OEM


DONG RUN ZE


1






6

1generatorpandaP12000XGerman panda1
2Inverter integrated machineAncient top


SPR3000

Suzhou Guding Energy Technology Co., Ltd.


1

3UPS backup batteryDawn


12V38AH

Tang Fu City Paifike Power Equipment Co., Ltd.


10

4Service batteryMale12V100AHShenzhen Xiongyu Power Technology Co., Ltd.1
5Cable tray


Iron horse


OEM


DONG RUN ZE


1

6Distribution System


Iron horse


OEM


DONG RUN ZE


1

71Car air conditioner


GEE

KFR-72GW/

AaD3


Zhuhai Gree Electric Co., Ltd.

1



2Fuel Independent Plumbing Heating EquipmentJingwei


YJH-08-1A

Beijing Jingwei Auto Equipment Co., Ltd.


1

3Auxiliary TankIron horseOEM,0.2 TonDONG RUN ZE1
4Ventilation SunroofXinchao


DF700B

Jiangsu Xinchao Release Parts Co., Ltd.


2

5Co AlarmHayman


710cvc

Shenzhen Haiman Technology Co., Ltd.


1

6Tv SetSkyworth60V8ESkyworth Group1
7Satellite Tv Mobile Receiving AntennaXunyiweitong/CC25Chengdu Xunyi Weitong Technology Co., Ltd.


1

8Interior Lighting SysteminterstellarLTE515,Star Holdings Group Co., Ltd.


8

9Emergency LightingBaiyu

ZY-ZF-ZDE3

WA

Wuhan Baihao Fire Equipment Co., Ltd.1
10Drinking FountainMeiling


MY-C31

Changhong Meiling Co., Ltd.


1

11Beidou Satellite Navigation Vehicle TerminalStar


JZ-BDC-101

Chongqing Jiuzhou Xingyi Navigation Equipment Co., Ltd.


1

12Tiantong Satellite PhoneChina Electric PowerSc610China Electronics Technology Group Corporation No. 501
13Driving RecorderPhilips


ADR610s

Four institutes


1

14Socket


Iron horse


OEM


DONG RUN ZE


1

15Skirt Cabin


Iron horse


OEM


DONG RUN ZE

6



16Double door after the car


Iron horse


OEM


DONG RUN ZE


1

17Rear ladder


Iron horse


OEM


DONG RUN ZE

1
18Fire extinguisher


Iron horse


OEM


DONG RUN ZE


2



8

1Long row of police lightsinterstellar

TBD155191

G

Star Holdings Group Co., Ltd.


1

2Alarminterstellar200WStar Holdings Group Co., Ltd.1
3Strobe lightinterstellar


LTE515

Star Holdings Group Co., Ltd.


4





9

1Digital radioHainengda


MD780

Hainengda Communication Co., Ltd.


2

2Digital walkie-talkieHainengdaTD780Hainengda Communication Co., Ltd.4
3Hand-held stationHainengda


MCA08

Hainengda Communication Co., Ltd.


1

4Roof equipment installation


Iron horse


OEM


DONG RUN ZE


1

5Appearance paint and logo


Iron horse


OEM


DONG RUN ZE

1

Maximum speed: ≥100km/h

Fuel: diesel

#Box body damping method: airbag damping

Transmission and hydraulic retarder: (using world famous brands), integrated design, full synchronizer, braking efficiency ≥500KW

Displacement: 12 liters or more

Number of passengers on board: ≥2 people

System standard configuration: ABS, bumper, clutch, steering gear, brake system, tires, cold start system, etc. are the original vehicle configuration.

A shroud is installed on the top of the cab. The shroud is shaped like a roof, and a long row of warning lights is arranged above it. Two sets of warning lights are arranged on the left and right sides of the box.

#Provide the technical specification of the chassis with the official seal of the manufacturer (color screenshot, color scan, color copy invalid).

(2) The box body is equipped with an extension box at the rear of the cab.


2 1. Length ≥ 9000mm, width ≤ 2550mm, height ≤ 3400mm

2. Expansion box: length ≥ 7000; side pull depth ≥ 1000; high ≥ 1950m

3. ★ camping ability (person): ≥24 people

Box structure: steel skeleton, externally applied aluminum skin, heat insulation and noise reduction, six glass windows, one double door, one single door, aluminum alloy ladder, hidden drawing ladder, drawing platform, guardrail, quantity and shop Luggage box, electric rain curtain, electric extended backup manual operation; four-point electric folding hydraulic support, single point support force ≥16 tons, DC12V, automatic horizontal adjustment balance; no less than 8 lighting windows on the left and right sides of the car; The side is a skirt compartment for installing generators, hydraulic pumping stations, accessory batteries, cable trays, auxiliary fuel tanks, etc.; the top of the car is equipped with a satellite antenna, a ventilation fan sunroof, etc.; the front of the cabinet is higher than the top of the cab according to the vehicle. Air conditioning and stainless steel ladders, rear doors and stainless steel ladders are provided at the rear of the car, and a pull-out body is provided for access to the cabin.

All metal parts of the vehicle should be treated with anti-rust treatment. The car body strengthens the skeleton and the embedded plate for phosphating treatment. The exposed paint parts are treated with electrophoretic primer. The car body surface is made of automotive special paint. OEM exterior pattern is required according to requirements. Rust paint.

According to the requirements of the OEM exterior pattern, the chassis anti-rust paint.

Car body insulation layer: B1 grade rubber and plastic insulation material.

Skirt door: aluminum alloy structure

Choose the right space to install the garment cabinet and equipment cabinet.

Install appropriate emergency exit indicators and signs in accordance with relevant standards.

Odor decomposer (1 set): Working noise: ≤24dB; Efficacy: can effectively remove indoor smoke, mold and other odors

(3) Decoration (to meet fire safety standards)


3 four weeks, top: aluminum composite panel

Lighting and Ambient Lights: A certain number of lighting devices are placed on the top and sides of the cabinet.

Floor: wooden floor

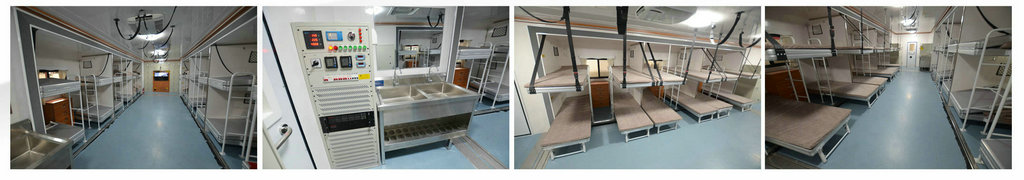

(4) Bed (meeting safety, fire, environmental protection and sanitary standards)


4 Folding bed: The bunk bed is foldable, made of aluminum alloy, the bed frame is integrated with the bed board, and the lower side is equipped with lockers. Each of the four beds is separated by a partition and the front has a curtain.

Mattress: Folding mat,

Quilt: Each bed is equipped with military medical quilts, cotton jackets, pillows, white quilt covers, sheets and pillows. The size of the rafters is the same as the bed.

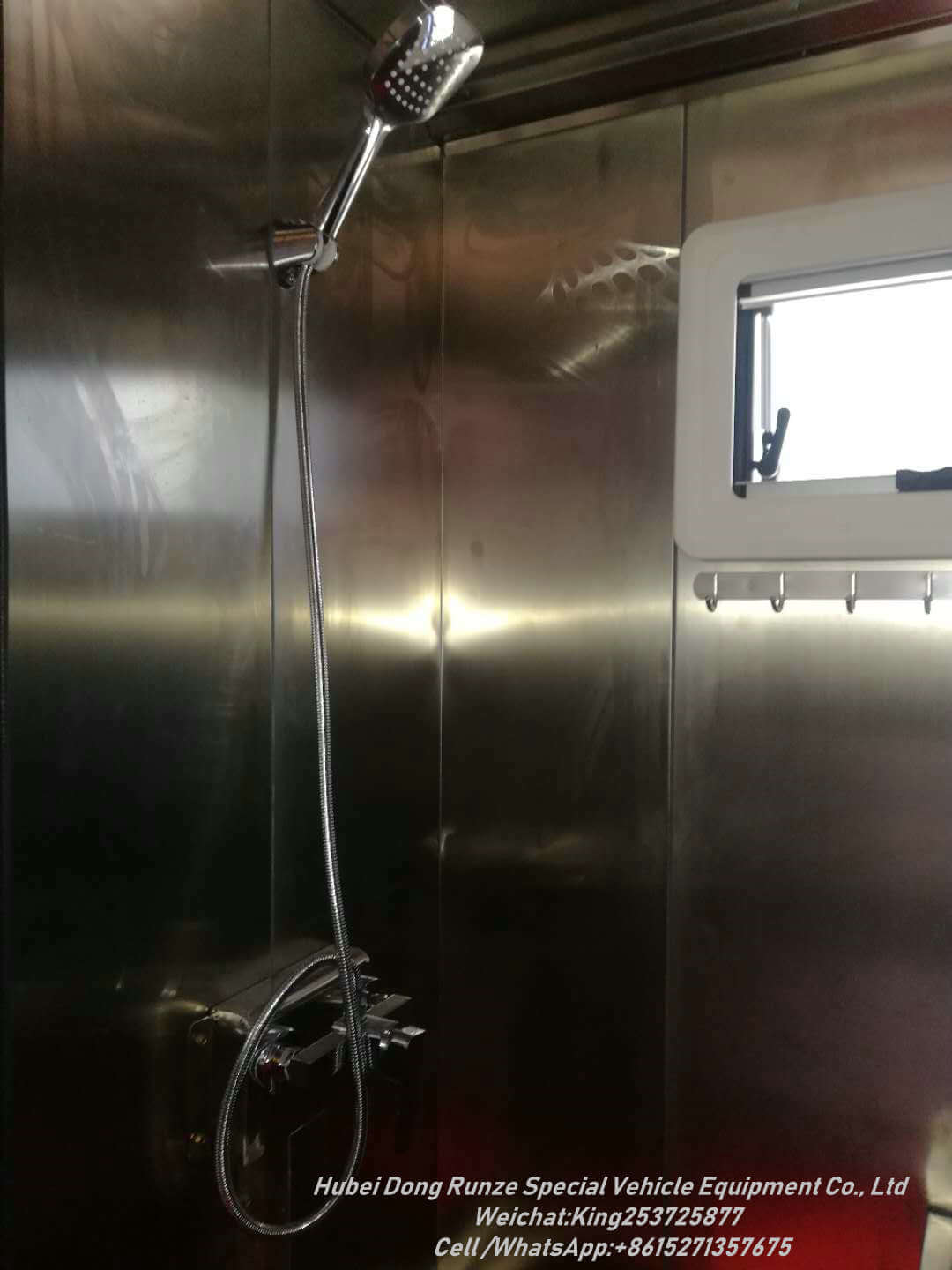

(5) Bathroom

5 Set according to the high-speed rail bathroom standard, equipped with stainless steel odor-free flush toilet, intelligent toilet cover and ventilation system, no water, no sewage, ensure easy cleaning, no odor for 24 hours.

With one-time intelligent thermostatic seat

Automatic packaging for storing feces, automatic replacement of plastic bags, automatic replacement of disposable covers

Inductive automatic control

Fully enclosed manure recovery

Replace the packaging bag and storage box ≥ 30 times in a row

It adopts all-metal movement and digital control circuit. The outer casing is made of FRP, the outer surface is painted with car, and the upper cover is made of ABS plastic with chrome hinge. It is beautiful, high-grade and durable.

Set the water tank and sink. Packed with disposable bags and disposable cushions and high quality toilet paper for more than 1000 times.

(6) Power supply system

6 ★ Generator: water-cooled ultra-quiet diesel generator, rated output power ≥10KW, output rated voltage (V): 230V HP1, output rated frequency (Hz): 50, VCS voltage regulation technology, output voltage AC220V±3V, noise : full load (dB) 7m / 3m / 1m ≤ 55 / 65 / 69,

UPS backup battery (10 pieces): DC 12V/38AH

Charging inverter machine: rated power 3KW; input: AC220V, DC12V; output: AC220V; charging: 12V/24V adaptive intelligent charging, maximum charging current 30A;

Service battery: DC12V lithium battery pack ≥100AH

Cable tray: manual cable reel, 45 m YC3*10mm2 rubber cable

Distribution system (1 set): The switchboard has voltage and current display with leakage protection switch, dual power switch, etc., external power supply waterproof plug and socket; switch controls air conditioner, equipment power, maintenance, lighting, etc.; switchboard panel is CNC machine tool processing, surface spray treatment.

(7) Equipment

7 Car air conditioner: wall-mounted air conditioner, cold and warm inverter air conditioner 2P

Fuel independent heating and heating equipment: Specifications: rated heat capacity (kW): ≥ 7.0, voltage (V): 24, power consumption (W): ≤ 60, fuel consumption (kg / h): ≤ 1, hot air displacement ( M3/h): ≥ 460, single machine mass (kg): ≤ 208,

Ventilation sunroof: ventilation system / escape sunroof with ventilation fan to meet ventilation requirements in the cabin

CO alarm: CO alarm installed in the car, accuracy 1ppm, alarm when the carbon monoxide content exceeds 24ppm

Satellite TV: The display size is not less than 60 inches, and it can quickly find stars to watch TV.

In-vehicle lighting system: LED lighting, integrated with the roof; one LED lighting for each bed position.

Emergency lighting: It can meet the requirements of lighting for personnel in emergency power outage, and the lighting time is not less than 1 hour.

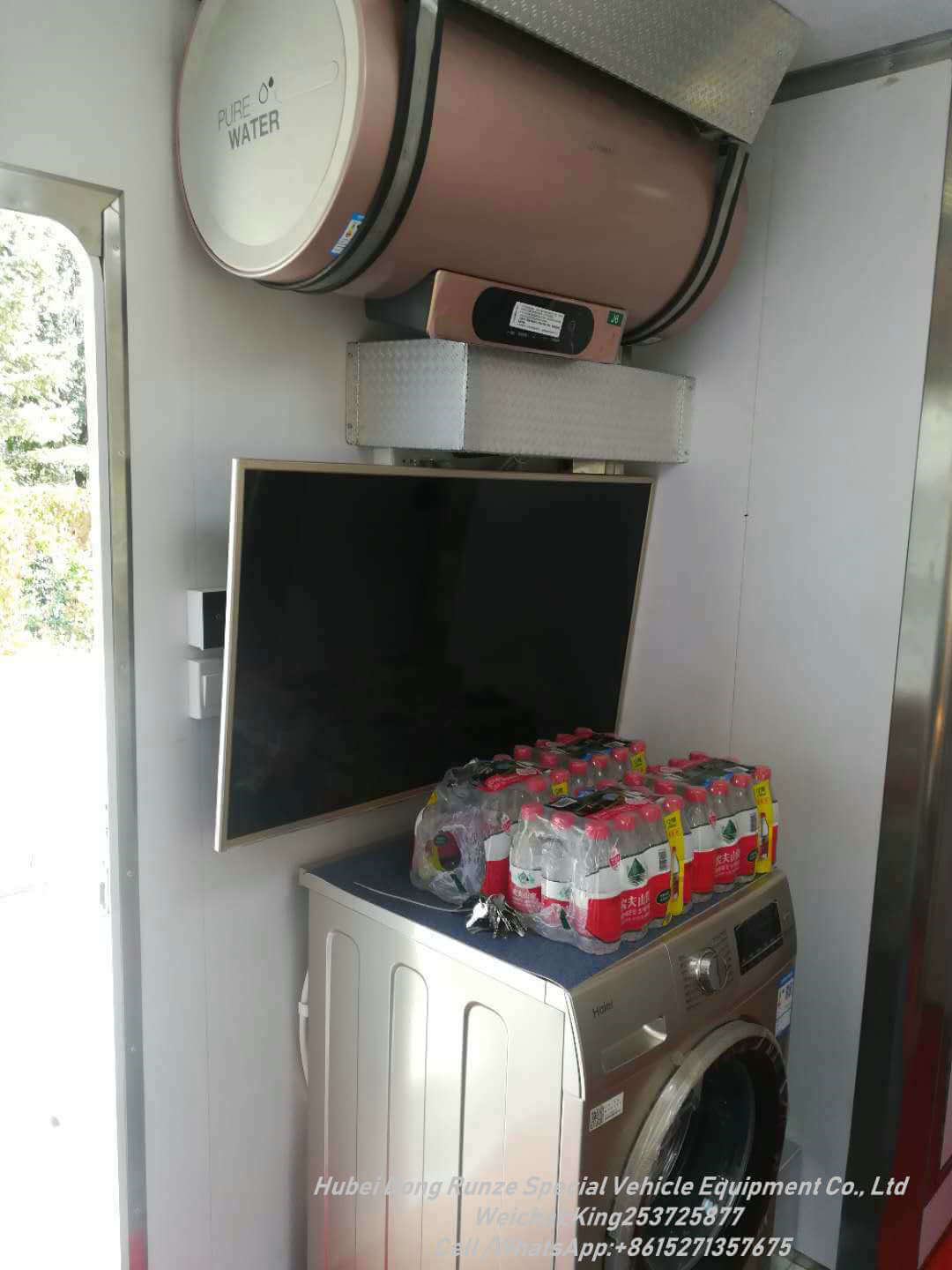

Drinking fountain: car-specific ice hot water dispenser, water bucket.

Beidou satellite navigation vehicle terminal (1 unit) has RDSS positioning function, positioning accuracy of 20 meters (1σ, marked school station area); with RDSS communication function, single communication capability up to 40 Chinese characters (determined by user card level); RNSS/GPS dual-mode positioning function; with Chinese characters, code and Chinese character code mixed transmission and other three text transmission methods; navigation map: Baidu, Gaode map navigation. Reversing the rear view image.

Tiantong satellite phone (1 set) has Tiantong satellite voice function; has two-line telephone interface, can be connected to ordinary telephone landline; satellite module and antenna integrated design; voice: 1.2kbps/2.4kbps/4kbps; power supply: DC9-36V power supply , can be connected to 220V/110V power adapter; protection grade: IP66; working temperature: -20 °C-55 °C; antenna size: diameter ≤ 130mm × height 120mm.

Driving recorder (1 set): 1080P full HD, full coverage of three lanes, fatigue driving reminder; screen size: ≥ 2.0 inches; shooting angle: 120°-149°; with 32G card, recordable and saved for >6 hours video at 1080P

Socket: Integrated socket, which can meet the charging of personnel communication equipment and lighting equipment, rated power is not less than 3KW; each bed position is set to 220v two-hole socket.

Skirt cabin: reserved cabin door at the lower part of the body for installation of generators and on-board equipment

Side wall side pull bin: including side pull bin, drive machine, transmission mechanism and drag chain assembly (hydraulic extended backup manual expansion)

Double door after the car: a double door after the car, aluminum profile

There is a single door on each side of the front of the car: aluminum profile

After the ladder: reinforced aluminum alloy material, bearing capacity ≥ 150Kg;

Fire Extinguisher: Two 2kg portable carbon dioxide fire extinguishers are available.

(8) Warning system

1. Long row of police lights: The color of the lights meets the requirements of the safety supervision system.

2, multi-function alarm and megaphone power ≥100W, handle type

3. Strobe light/four corners on both sides of the box, and one at the end of the box, the color of the lamp meets the requirements of the safety supervision system.

(9) Communication system

9 digital radio station 2 units (one for each front and rear warehouse)

1. Digital-to-analog integration, supporting analog to digital smooth transition.

2. Supported frequency bands: VHF: 136-174MHz; 350MHz: 350-400MHz; UHF: 403-520MHz

3. In the direct mode, two time slots are talking at the same time; prefabricated text information

4. Output power: high power: 25-45W (VHF), 25-40W (UHF); low power: 1-25w

5. The type approval certificate for radio transmission equipment issued by the Ministry of Industry and Information Technology and the Radio Administration of the People's Republic of China is equipped with a vehicle intercom

Digital walkie-talkie (4 sets):

1. Digital-to-analog integration, supporting analog to digital smooth transition.

2. Supported frequency bands: VHF: 136-174MHz; 350MHz: 350-400MHz; UHF: 403-520MHz

Output power: ≥4W at high power and ≥1w at low power

Channel capacity: 256

Radio transmitter equipment type approval certificate issued by the Ministry of Industry and Information Technology of the People's Republic of China and the Radio Authority (1 unit): can charge ≥ 4 digital walkie-talkies at the same time

10 Roof equipment installation (1 set): embedded steel plate, etc., installed satellite TV antenna, suction cup antenna, etc.
