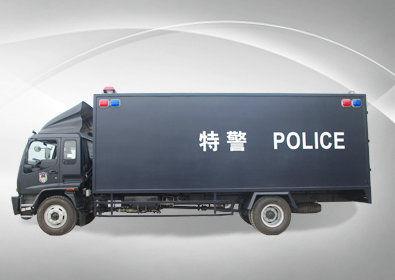

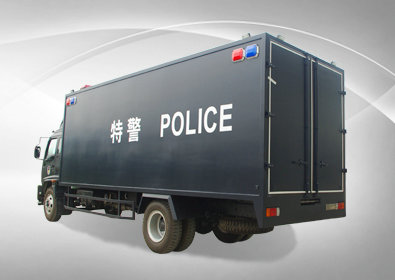

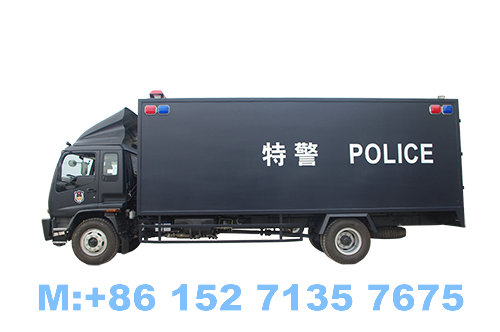

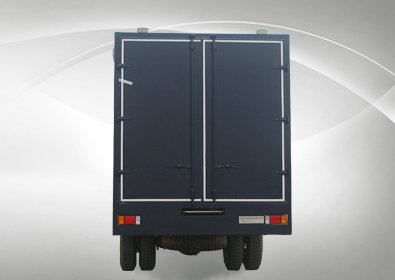

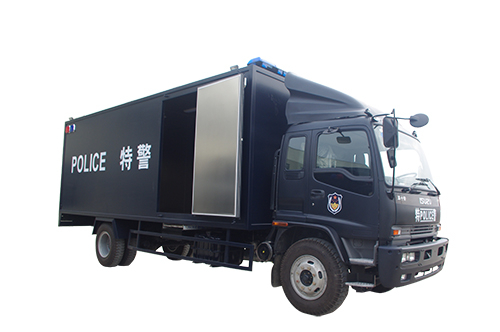

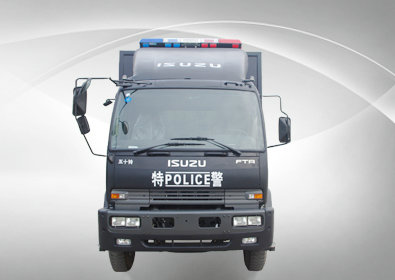

ISUZU Counter Terrorism Armoured Vehicle
Multifunctional police vehicle
Police Anti-Biochemical mobile vehicles
Chemical agent detector, nuclear radiation detector, gas analyzer, hand-held dangerous liquid detector, explosive search suit, explosion-proof tank, gas mask, explosive destructor
| FOB: | |
|---|---|
| Quantity: | |
|
| |
- DRZ5
- DRZ
- 87059
ISUZU Counter Terrorism Armoured Vehicle
Multifunctional police vehicle
Police Anti-Biochemical mobile vehicles
Chassis: QL5160XXY9QFRY
Engine: 4HK1-TCG40
Displacement (cc): 5193
Power (kW): 139
Rated capacity (kg): 5415
QL5160XXY9QFRY chassis refitted
In the design of the large cabin structure, advanced heating technology, thermal insulation technology, sealing technology, pipe laying technology, vehicle body renovation technology are adopted
He is the product of modern high-tech comprehensive application, forming a multi-linked, multi-dimensional, integrated organic
It is equipped with advanced detection equipment and functions as a small mobile laboratory. It can monitor and identify (air) chemical pollution on the road and detect nuclear radiation pollution
The biological and chemical contamination can be detected in the parking condition.
| Chassis | ISUZU | QL5160XXY9QFRY |
Car body | Uninterruptible power supply, lighting and monitoring jack, hard disk VCR, industrial computer | |
| Back-up radar, main LCD monitor, DVD player for broadcast, wireless mic | ||
| Mobile communications, 4G special network, maritime satellite telephone, Biochemical suits, uav | ||
| Chemical agent detector, nuclear radiation detector, gas analyzer, hand-held dangerous liquid detector, explosive search suit, explosion-proof tank, gas mask, explosive destructor | ||
| Antistatic system | Special electrostatic discharge chains for cars | |
| Vehicle paint appearance standard | Standard spraying; Use water-based environmental friendly paint. | |
| Interior decoration | Made of environmentally friendly materials | |
| warning system | Long line lights | |
| Octagon flashing light | ||
| Alarm master | ||
#Engine modelEngine displacementEngine powerEngine manufacturer
14HK1-TCG405193 cc5.2 L317 cu in139 kW189 hpIsuzu Qingling (Chongqing) Engine Co., Ltd.
Performance
Fueldiesel fuel
Environmental standard
Maximum speed95 km/h60 mph
ABShave
Capacity
Rated load capacity5415 kg5.4 t11,938 lbs
Weights and Ground pressure
Curb weight10390 kg10.4 t22,906 lbs
Gross vehicle weight rating16000 kg16 t35,000 lbs
Axle load distribution6000 kg / 10000 kg
6 t / 10 t
13,000 lbs / 22,000 lbs
Dimensions
Overall length9525 mm31′3″
Overall width2500 mm8′3″
Overall height3960 mm13′0″
Undercarriage and Suspension
Number of axles2
Wheelbase5550 mm18′3″
Front track1960 mm6′6″
Rear track1855 mm6′2″
Front overhang1335 mm4′5″
Rear overhang2640 mm8′8″
Angle of approach26°
Angle of departure15°
Leaf springs7 / 7+5
Tyres and Wheels
Number of tyres6
Tyres dimension10.00-20-16PR, 10.00R20-16PR
Miscellaneous
Seating capacity3
Steering controlsteering wheel
