ZZ1167M4611W
HOWO
87059099.90

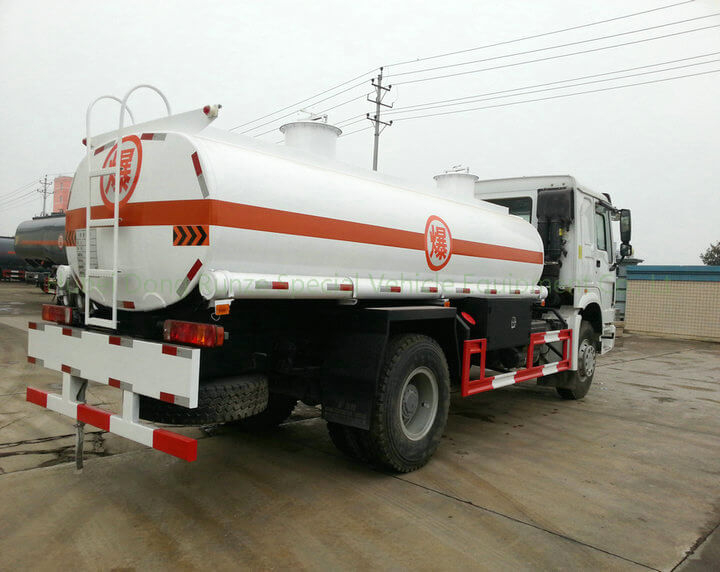

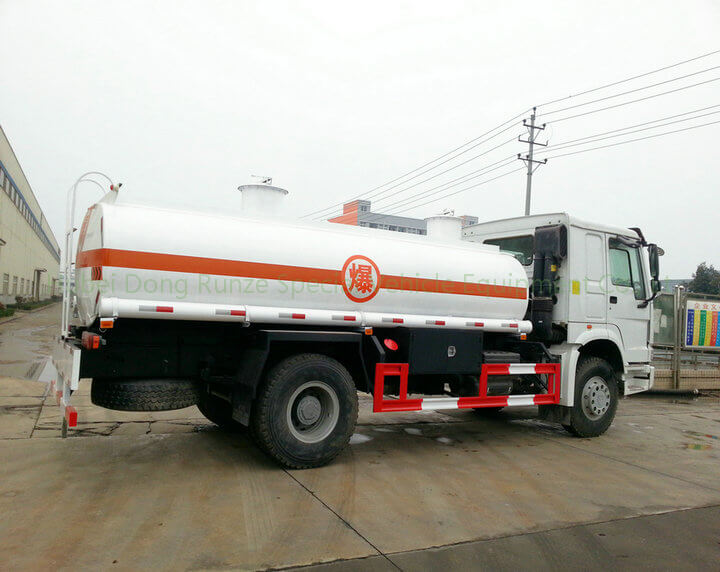

HOWO OIL TANK TRUCK
HOWO 4X2 OIL TANK TRUCK(8m3)
Model: ZZ1167M4611W
Engine Output: 266HP/290HP (EuroII)
Tank 8 m3/10m3/12m3
SINOTRUK HOWO 10CBM OIL TANKER TRUCK
Name | 10000L fuel tank truck |
Chassis model | ZZ1167M4611W |
Driving type | 4x2 |
Brand | SINOTRUK-HOWO |
Volume of tanker(m3) | 10(10000L) |
Overall dimension(Lx W xH) (mm) | About 7990x2496x2958 |
G.V.W (kg) | 16000 |
Approaching/Departure angle (°) | 16/23 |
Overhang(front/rear) (mm) | 1500/1890 |
Wheel base (mm) | 4600 |
Max speed (km/h) | 102 |
Engine | 290hp, EURO II |
Transmission | HW13710, 10 forwards and 2 reverse |
Steering system | ZF8098hydraulic steering with power assistance |
Front axle | HF7 |
Rear axle | ST13 |
Tire | 295/80R22.5, 11.00-20, 12.00-20 |
Cab | HOWO76 cab, one sleeper, air conditioner |
Customization, Cost and Control Built How You Want it, at a Price You Can Afford. for sale call:+86-152 -7135-7675 TIC TRUCKS , www.truckinchina.com
HOWO OIL TANK TRUCK
HOWO 4X2 OIL TANK TRUCK(8m3)
Model: ZZ1167M4611W
Engine Output: 266HP/290HP (EuroII)
Tank 8 m3/10m3/12m3
SINOTRUK HOWO 10CBM OIL TANKER TRUCK
Name | 10000L fuel tank truck |
Chassis model | ZZ1167M4611W |
Driving type | 4x2 |
Brand | SINOTRUK-HOWO |
Volume of tanker(m3) | 10(10000L) |
Overall dimension(Lx W xH) (mm) | About 7990x2496x2958 |
G.V.W (kg) | 16000 |
Approaching/Departure angle (°) | 16/23 |
Overhang(front/rear) (mm) | 1500/1890 |
Wheel base (mm) | 4600 |
Max speed (km/h) | 102 |
Engine | 290hp, EURO II |
Transmission | HW13710, 10 forwards and 2 reverse |
Steering system | ZF8098hydraulic steering with power assistance |
Front axle | HF7 |
Rear axle | ST13 |
Tire | 295/80R22.5, 11.00-20, 12.00-20 |
Cab | HOWO76 cab, one sleeper, air conditioner |
Customization, Cost and Control Built How You Want it, at a Price You Can Afford. for sale call:+86-152 -7135-7675 TIC TRUCKS , www.truckinchina.com
Packaging & Shipping
Packaging & Shipping
Optional
HOWO Oil tank truck configurations and main technical parameters(8M3-14M3,4*2,EURO ,extended cab) | ||||
Mixer tank effective volume,m3 | 8 | |||
Kerb weight(vehicle/chassis),kg | 5740 | |||
Gross mass(vehicle/chassis),kg | 16000 | |||
Rated load,kg | 8010 | |||
External dimensions(length×weight×height)mm | 7430*2480*2760 | |||
Tank paramenter | Thickness of the tank,mm | 4 | ||
Oil pump | YHCB80-60/YHCB50-8/YHCB50-20/YHCB60-30 | |||
wheelbase,mm | 4600 | |||
Front/rear overhang(vehicle/chassis),mm | 1250/1980 | |||
Wheel track(front/rear),mm | 2022/1860 | |||
Approach/departure angle(vehicle/chassis) | 18/14 | |||
Maximum speed,km/h | 95 | |||
Typical vehicle model | ZZ1167M4611W | |||
Cab | Model | HW76 | ||
Type | Extended cab ,single berth,up/down and front/back adjustable steering wheel,VDO instrument and control module,and safety belt with double locking mechanism,exterior sun visor | |||
Engine(optional) | Model | WD615.87 290hp | WD615.69 336hp | WD615.47 371hp |
Rated power,kw/rpm | 213/2200 | 247/2200 | 273/2200 | |
Maximum torque,Nm/rpm | 1160/1100-1600 | 1350/1100-1600 | 1460/1100-1600 | |
Displacement,L | 9.726 | |||
Type | Inline 6 cylinder,2 valves,supercharged intercooling,rear supercharger | |||
Clutch | Φ430Bdiaphragm spring clutch.Hydraulic control air power assisted.Standard 430A type for WD615.49 engine,Standard 430Btype for 615.69 engine,Standard 430C type for WD615.87 engine. | |||
Transmission | SINOTRUK HW series 10 speed transmission,main and auxiliary transmission struct,main transmission with double countershaft,auxiliary transmission with planetary reducer.Standard HW15710 type for WD615.87 engine,standard HW19710 type for WD615.69and WD615.47 engine. | |||
Front axle | HF9 drum-type,rated load of 9T | |||
Drive axle | HC16 double reduction(central reduction+wheel reduction),speed ratio:5.73,4.8 | |||
Suspension | Front and rear leaf spring suspension,front suspension with shock absorber and transverse stabilizer,rear suspension is disconnected type with transverse stabilizer | |||
Steering system | ZF8098 steering gear,ZF steering oil pump,system pressure of 18Mpa | |||
Brake system | Service brake:dual-circuit pneumatic brake;parking brake:energy storage spring air cutoff brake;auxiliary brake:engine exhaust brake.Standard engine EVB,and with ABS option automatic slack adjuster | |||
Electrical system | Voltage:24V;generator:2240W;Starter:24V,7.5kw;battery:12V/165AH,2pieces | |||
Tyre | 12.00R20;optional 12.00R24/12.00-24 | |||
Tank volume,L | 300 |
Optional
HOWO Oil tank truck configurations and main technical parameters(8M3-14M3,4*2,EURO ,extended cab) | ||||
Mixer tank effective volume,m3 | 8 | |||
Kerb weight(vehicle/chassis),kg | 5740 | |||
Gross mass(vehicle/chassis),kg | 16000 | |||
Rated load,kg | 8010 | |||
External dimensions(length×weight×height)mm | 7430*2480*2760 | |||
Tank paramenter | Thickness of the tank,mm | 4 | ||
Oil pump | YHCB80-60/YHCB50-8/YHCB50-20/YHCB60-30 | |||
wheelbase,mm | 4600 | |||
Front/rear overhang(vehicle/chassis),mm | 1250/1980 | |||
Wheel track(front/rear),mm | 2022/1860 | |||
Approach/departure angle(vehicle/chassis) | 18/14 | |||
Maximum speed,km/h | 95 | |||
Typical vehicle model | ZZ1167M4611W | |||
Cab | Model | HW76 | ||
Type | Extended cab ,single berth,up/down and front/back adjustable steering wheel,VDO instrument and control module,and safety belt with double locking mechanism,exterior sun visor | |||
Engine(optional) | Model | WD615.87 290hp | WD615.69 336hp | WD615.47 371hp |
Rated power,kw/rpm | 213/2200 | 247/2200 | 273/2200 | |
Maximum torque,Nm/rpm | 1160/1100-1600 | 1350/1100-1600 | 1460/1100-1600 | |
Displacement,L | 9.726 | |||
Type | Inline 6 cylinder,2 valves,supercharged intercooling,rear supercharger | |||
Clutch | Φ430Bdiaphragm spring clutch.Hydraulic control air power assisted.Standard 430A type for WD615.49 engine,Standard 430Btype for 615.69 engine,Standard 430C type for WD615.87 engine. | |||
Transmission | SINOTRUK HW series 10 speed transmission,main and auxiliary transmission struct,main transmission with double countershaft,auxiliary transmission with planetary reducer.Standard HW15710 type for WD615.87 engine,standard HW19710 type for WD615.69and WD615.47 engine. | |||
Front axle | HF9 drum-type,rated load of 9T | |||
Drive axle | HC16 double reduction(central reduction+wheel reduction),speed ratio:5.73,4.8 | |||
Suspension | Front and rear leaf spring suspension,front suspension with shock absorber and transverse stabilizer,rear suspension is disconnected type with transverse stabilizer | |||
Steering system | ZF8098 steering gear,ZF steering oil pump,system pressure of 18Mpa | |||
Brake system | Service brake:dual-circuit pneumatic brake;parking brake:energy storage spring air cutoff brake;auxiliary brake:engine exhaust brake.Standard engine EVB,and with ABS option automatic slack adjuster | |||
Electrical system | Voltage:24V;generator:2240W;Starter:24V,7.5kw;battery:12V/165AH,2pieces | |||
Tyre | 12.00R20;optional 12.00R24/12.00-24 | |||
Tank volume,L | 300 |
