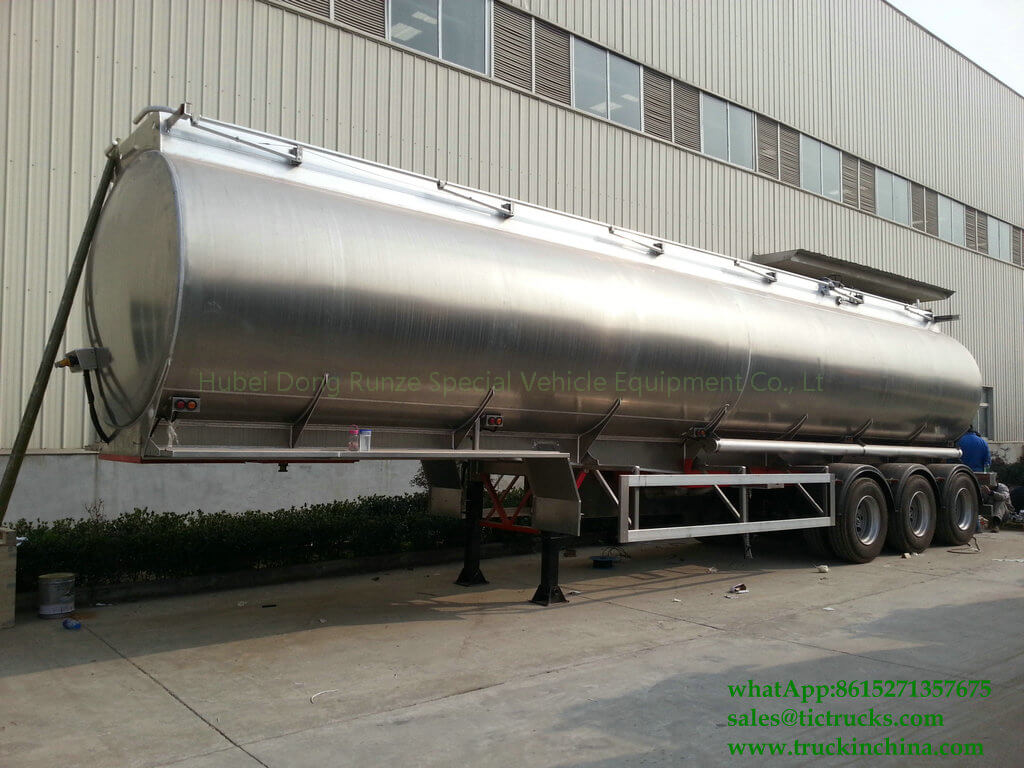

DRZ9400GYYL Aluminum Alloy Oil Tanker Semi-trailer
42000~50000Liters
aluminum raod tanks
Aluminium alloy tanker body building factory video
Aluminium alloy tanker body building factory video
Specifications:
Name | Aluminium alloy tanker trailer |
Trailer Chassis | Carbon Steel/Alloy |
Axles | 12T BPW axles, with ABS system , or 13 T FUWA / L1 ...optional |
Suspension System | spring or Air Suspension |
Kingpin | 90# or 50 |
Landing Leg | JOST |
Tyre | 11.00R22.5 Tubeless tyre(12pieces) |
Overall dimension (mm) | 12500×2500×3712 |
Rated Loading Mass (KG) | 40000kgs |
Rated Kerb Weight (KG) | 7500kgs |
Tank material | Aluminum Alloy 5083 |
Manhole Cover | Aluminium alloy, 20” self-latching manhole cover, with air-van. |
Outlet port | Pneumatic sea valve , fix all aluminum alloy connector. |
Pump System | Optional |
Others | Pipe box, ladder, walkway platform, toolbox, Fire Extinguisher, electrical system, lightening, mud guard, side fender, etc accordance by manufacture standard. |
The logistic vehicle series mainly included Pressured and Non-pressured Tank Transportation vehicles. Normally for transport the gasoline, light diesel oil, petroleum and other non-corresive fuel properties, rarely impact the damage for other components, widely used in various transportation units, gas stations and other logistic industries.
Material optional for Carbon-steel, Stainless steel, Aluminum alloy.
Applications:
Main frame is made of high strength low alloy steel, which can fully enhance its abilities of resistance to torsion, anti-seismic and anti-jolt, and meet the various loading requirements.
The tanker is produced with the special equipments such as automatic welding machine(8m) and CNC plasma cutting and automatic submerged arc welding forming which can realize welding by one side in shape by two sides, having the merits of stable quality, less cost, and good-looking
Sophisticated technique: Main parts of the trailer is processed with advanced equipment. The longitudinal beam is welded by a wholly automatic tracking submerged welding machine; Almost the steel spare parts are treated by shot blast before the assembling, which can greatly increase the adhesion of the paint.
Frame: The frame is manufacture by a structure, which are made of high strength steel. This design reasonably to get a balanced consideration of the intensity, rigidity and toughness, advantages of low tare weight, heavy loading mass, not easy to be distorted.
Axles: The axle can be selected in different famous brand of BPW and SAF, KIC, FUWA ect. domestic and overseas. Also, the ABS system can be optional with Haldex and WABCO etc., can be greatly increase the stability and safety.
Suspension system: Mechanical suspension and air suspension series optional.
a. Mechanical suspension series: It used tandem and balance construction, have high strength and strong impacting resistance, evenly distribute the axle load into each axles. High strength material keep the service life much longer and efficient buffering, simple maintenance, easy replacement for the wearing parts.
b. Air suspension system: Optional BPW & SAF. More shocking proof which combinated with lifting and steering axles.
Brake system: Much more safety and reliability on dual-loop air brake system.
Air compressor: Displacement can be choosen upto 12cbm/min
aluminum raod tanks Coal tar naphtha
Aluminum Fuel Tanker Semi-trailer 3 axles, 36000L to 52000L
Tanker
Material Aluminium
Thickness of shell 5- 7mm
Thickness of dish 5- 7mm
Inside baffles 5mm
Compartments 4 to 7 compartments
Volume 36000L to 42000L+ 6% expansion
Tank Top Accessories
Ladders fixed on the front and rear; foldable handrail
Walkway with anti-slip material in the front of reach the manholes
Not covering the complete length of the tank.
Tank Equipments (all API Standard)
Each compartment is equipped with :
Aluminum Manhole cover 16" or 20"
Aluminum Emergency Bottom valve 3" with Pneumatic switch in locker
Aluminum Spill Valve 3” or 4",
Discharging Nylon hose 6m
Discharge and loading
Gravity discharge,
Top loading. Option: Bottom loading
Running Gear
FUWA axle 13T*3 Option: BPW axle 13T
Heavy duty spring suspension 18*16*9mm
12+1 pcs tires 315/80R22.5 Tire (9.0*R22.5 steel rims) or 6 SUPER SINGLE 385/65/22.5 TIRES
3.5" Jost kingpin Option: 2"
JOST 2-geared mechanical operated landing legs
Braking System
Double line air brakes Mechanical parking brake, WABCO brake valve
The first axle and the third axle with ABS System.
Electric Installation
Complete 24V system in explosion proof installation
Rear lighting with rear, stop, parking, direction, fog, reverse lights, side lights
Painting
Exterior surface treatment by shot blasting
Painting by high solid primer directly on the surface
Painting inside special paint booth with the cargo cabin color or the color chosen by the customer
Accessories
Plastic Mudguards, Side protection, 2 Fire extinguisher, 1 Spare tire carrier.
1 Tool box with standard tools
Contact to get the detail and price
Aviation fuel
Coal tar naphtha
Diesel oil
Fuel oil
Jet fuel
Kerosene
Motor fuel anti-knock compounds
Oils most commercial
Paraffin wax
Petroleum
Petroleum ether
Petroleum naphtha
Transformer oil
Transmission oil
Turpentine
Vaseline
White spirit
| Concentration% | GB12268 | (UN) |
|
| | Gasoline/petrol | 1203
1257 |
＜100
100 | Acetone | 1090 |
| | Carbon disulfide | 1131 |
| | Petroleum crude oil (crude oil) | 1267 |
| | Naphtha(Solvent oil) | 1256
2553 |
| | Pure benzene | 1114 |
| | Crude benzene | |
| | Heavy benzene | |
| | Toluene | 1294 |
＜100
100 | Methanol | 1230 |
| | Ethanol | 1170 |
| | Isopropyl alcohol | 1219 |
| | Ethyl acetate | 1173 |
| | Butyl acetate | 1123 |
| | Dimethylamine solution | 1160 |
| | Kerosene | 1223 |
| | Paraffin wax (wax, light wax) | 1223 |
| | P-xylene | 1307 |
| | Styrene (vinyl benzene)
| 2055 |
| |
N-butanol
| 1220 |
| 20~60 |
Hydrogen peroxide
| 2014 |
| |
Acetone cyanohydrin (acetone and hydrogen cyanide)
| 1541 |
＜20
30 ~ 60
70 ~ 100 | Acetic acid (glacial acetic acid)
| 2789 |
＜30
40 | Ammonia water
Ammonium Hydroxide | 2672 |
＜40
50 | Formaldehyde solution | 1198 |
