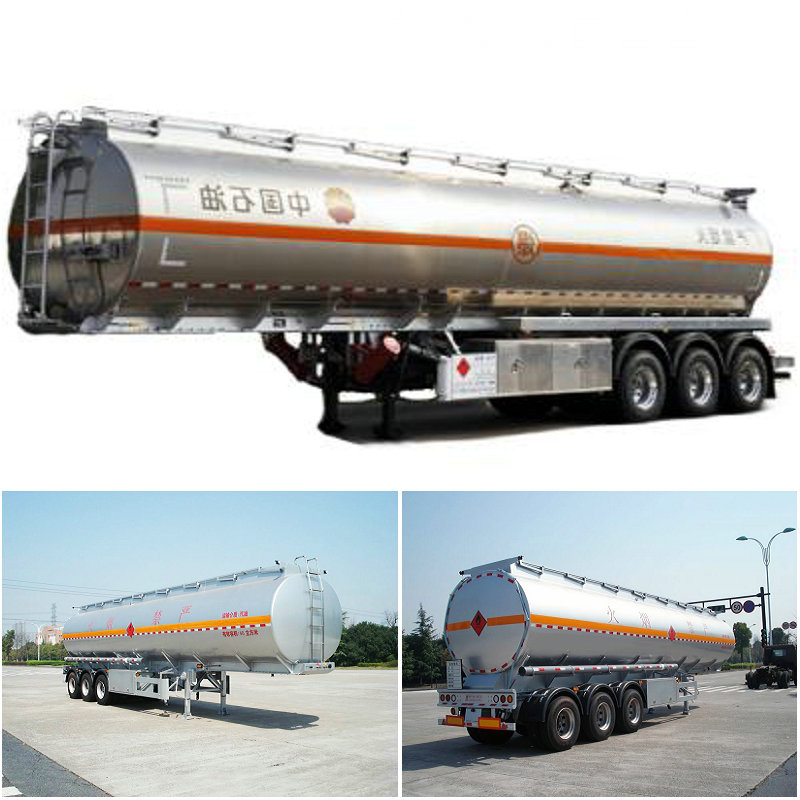

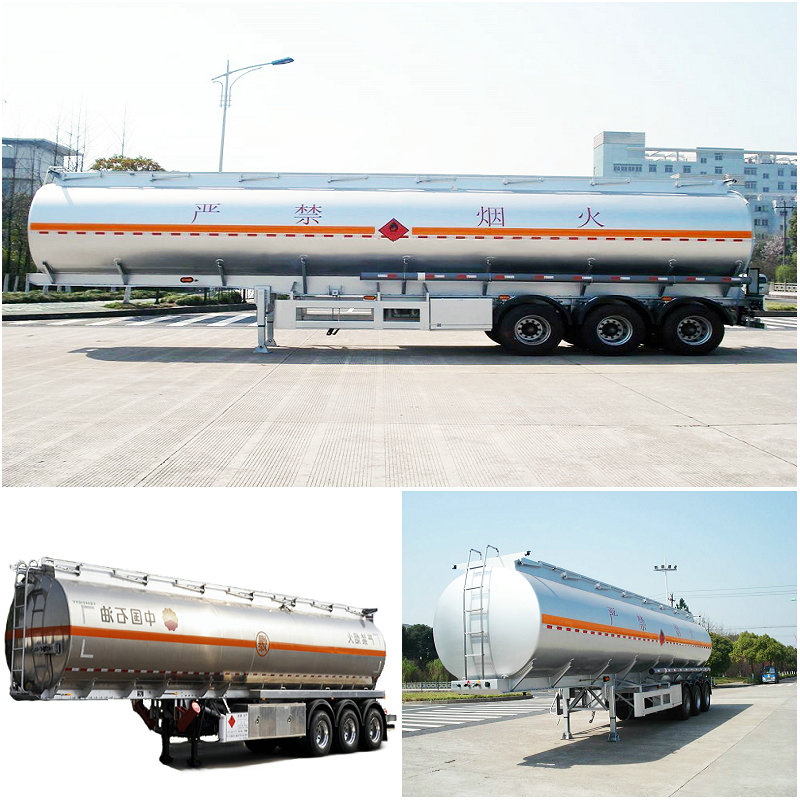

Aviation Fuel Aluminum Tanker Trailer- 45000L

Aviation Fuel Aluminum Tanker Trailer- 45000L
Availability:
Quantity:
aluminum raod tanks Coal tar naphtha
 Aluminum Fuel Tanker Semi-trailer 3 axles, 36000L to 52000L


   Tanker

   Material                  Aluminium

   Thickness of shell    5- 7mm

   Thickness of dish     5- 7mm

   Inside baffles            5mm

   Compartments          4 to 7 compartments

   Volume                   36000L to 42000L+ 6% expansion


   Tank Top Accessories
 Ladders fixed on the front and rear; foldable handrail
 Walkway with anti-slip material in the front of reach the manholes
 Not covering the complete length of the tank.

 Tank Equipments (all API Standard)
 Each compartment is equipped with :
 Aluminum Manhole cover 16" or 20"
 Aluminum Emergency Bottom valve 3" with Pneumatic switch in locker
 Aluminum Spill Valve 3” or 4",
 Discharging Nylon hose 6m

 Discharge and loading
 Gravity discharge,
 Top loading.            Option: Bottom loading

 Running Gear
 FUWA axle 13T*3                  Option: BPW axle 13T
 Heavy duty spring suspension 18*16*9mm
 12+1 pcs tires 315/80R22.5 Tire  (9.0*R22.5 steel rims) or 6 SUPER SINGLE 385/65/22.5 TIRES
 3.5" Jost kingpin                     Option: 2"
 JOST 2-geared mechanical operated landing legs

 Braking System
 Double line air brakes Mechanical parking brake, WABCO brake valve
 The first axle and the third axle with ABS System.

 Electric Installation
 Complete 24V system in explosion proof installation
 Rear lighting with rear, stop, parking, direction, fog, reverse lights, side lights

 Painting
 Exterior surface treatment by shot blasting
 Painting by high solid primer directly on the surface
 Painting inside special paint booth with the cargo cabin color or the color chosen by the customer

 Accessories
 Plastic Mudguards, Side protection, 2 Fire extinguisher, 1 Spare tire carrier.
 1 Tool box with standard tools

 Contact to get the detail and price

  Aviation fuel
   Coal tar naphtha
   Diesel oil
   Fuel oil
  Jet fuel
  Kerosene
  Motor fuel anti-knock compounds
   Oils most commercial
  Paraffin wax
   Petroleum
   Petroleum ether
   Petroleum naphtha
   Transformer oil
   Transmission oil
   Turpentine
   Vaseline
   White spirit

       Concentration%        GB12268         (UN)
               Gasoline/petrol        1203
       1257
       100
       100
       Acetone        1090
               Carbon disulfide        1131
               Petroleum crude oil (crude oil)        1267
               Naphtha(Solvent oil)        1256
       2553
               Pure benzene        1114
               Crude benzene
               Heavy benzene
               Toluene        1294
       100
       100
       Methanol        1230
               Ethanol        1170
               Isopropyl alcohol        1219
               Ethyl acetate        1173
                Butyl acetate        1123
               Dimethylamine solution        1160
               Kerosene        1223
               Paraffin wax (wax, light wax)        1223
               P-xylene        1307
               Styrene (vinyl benzene)

       2055

       N-butanol

       1220
       20~60
       Hydrogen peroxide

       2014

       Acetone cyanohydrin (acetone and hydrogen cyanide)

       1541

       <20
       30 ~ 60
       70 ~ 100
        Acetic acid (glacial acetic acid)

       2789
       <30
       40
       Ammonia water
       Ammonium Hydroxide
       2672
       <40
       50
       Formaldehyde solution        1198


ALUMINIUM ALLOY TANK TRAILER 42000~50000Liters
aluminum raod tanks

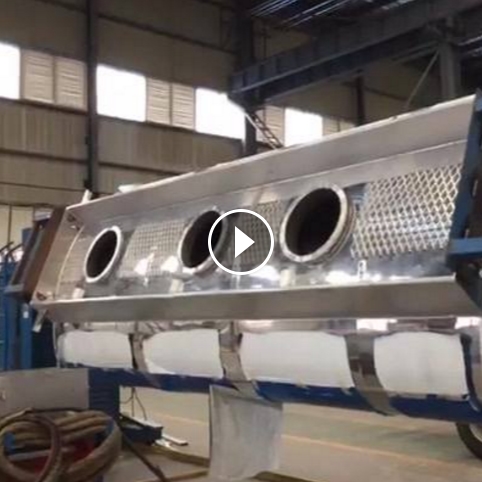

Aluminium alloy tanker body building factory video

Aluminium alloy tanker body building factory video
