CAMC Fuel Tanker Truck Capacity of 20000L-30000L
FOB: | |
---|---|
Quantity: | |
| |
4.8cbm-5.3cbm Diesel, Gasoline Fuel truck refueling truck
Customization, Cost Control, Built trucks How You Want it, at a Price You Can Afford !
The Refueling Tank Truck Series is normally transport the gasoline, diesel, kerosene etc. and some other liquid fuel materials which do not corrode the oil pump and fiscal ECR. As a transportation product, it register full of functions such as: oil transportation, fuel oil filling system, fixed-container refueling system, and also can be used as a mobile pump.
It takes more advantages from other similar special truck, and also using the advanced technology to take the production process strictly. The Refueling Tank Truck Series classified as general refueling vehicles (with fuel oil filling system) and fisal tank vehicles, widely usd in oil station and some transportation companies.
This model results the equipment with few positive points as: good performance, good structure, also operates simply.
4x2, 4x4, 6x4, 6x6, 8x4 Mobile Fuel Truck for your selection, LHD and RHD cabin are both available.
CAMC Fuel Tanker Truck Capacity of 30000L
Cellphone: (+86)15271357635
Website: www.truckinchina.com
Specialize Custom Commercial Vehicle body building - semi trailer, full trailer-Spare parts

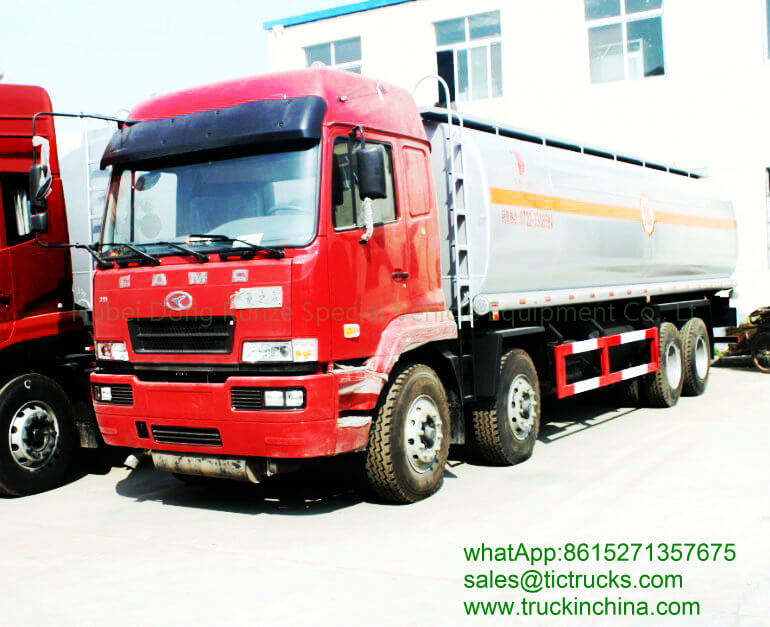

Product | CAMC 8x4 35000 liters fuel tank truck (35-40T) | |
Chassis type | HN1310P29D6M3J | |
Cubage(L) | 35,000-40,000 liters | |
Parameters | Overall dimension length/width/height (mm) | 11500×2495×3650 |
Total Mass(kg) | 31000 | |
Payload(kg) | 17015 | |
Kerb Mass(kg) | 13790 | |
Approach angle/ Departure angle(mm) | 24/11 | |
Front suspension/rear suspension(mm) | 1460/2985 | |
Fuel Type | Diesel | |
Fuel Consumption/100 km | ||
Max Speed | 90 | |
Engine | Type | |
Displacement/Power(kw) | 9726/ 310 ~380HP | |
Manufacturer | Weichai Power cooperation | |
Type | 6-cylinders,water-cooling,diesel engine | |
Chassis | Drive type | 8×4 |
Wheelbase(mm) | 1850+4605+1350 | |
Tread(front/rear) | 2065/2065,1860/1860 | |
Front axle | 5Tx2 | |
Rear axle | 13Tx2 | |
Steering gear | Hydraulic power assistance | |
Transmission | 9 forward gear, 1 reverse gear,mechanical trasmission | |
Clutch | monolithic dry type clutch | |
Braking system | Full air brake on all wheels, dual air line system | |
Cab | Long cab,single row cab,with two sleeper bed | |
Number of axle | 4 axle,rear axle are transmission axle | |
Tire Type | 12.00-20 | |
Air-condition | Factory installed Air-conditioner |
Tanker
Material Steel
Thickness of shell 4mm 5mm /6mm / 8mm
Thickness of dish 5mm /6mm / 8mm
Inside baffles 3mm /4mm / 5mm
Compartments 3 to 4 compartments
Volume 15000L to 35000L+ 5% expansion
Tank Top Accessories
Ladders fixed on the front and rear; foldable handrail
Walkway with anti-slip material in the front of reach the manholes,
Not covering the complete length of the tank.
Tank Equipments (all API Standard)
Each compartment is equipped with :
Aluminum Manhole cover 16" or 20"
Aluminum Emergency Bottom valve 3" with Pneumatic switch in locker
Aluminum Spill Valve 3" or 4",
Discharging Nylon hose 6m
Discharge and loading
Gravity discharge,
Top loading. Option: Bottom loading
Electric Installation
Complete 24V system in explosion proof installation
Rear lighting with rear, stop, parking, direction, fog, reverse lights, side lights
Painting
Exterior surface treatment by shot blasting
Painting by high solid primer directly on the surface
Painting inside special paint booth with the cargo cabin color or the color chosen by the customer
Accessories
Side protection, 2 Fire extinguisher, 1 Spare tire carrier.
1 Tool box with standard tools, Heavy duty tail bumper
Overall dimensions 10400×2500×3200mm Curb weight 11435kg
Tank dimensions 7400×2300×1550mm Tank volume 20000L
Chassis parameters
Chassis model HN1240P29E2M3J Chassis brand CAMC
Overall dimensions 10875x2452x2965mm Wheel base 5220+1350mm
Front/rear wheel track 2065/1860/1860m Front/rear suspension 1370/2935mm
Approach/departure angle 25/18° Maximum speed 90km/h
Chassis Manufacturer Anhui Hualing Automobile Co. Ltd
Cab Configuration A row and a half deluxe cab(with sleeping berth),air conditioner, electric glass, allowable 3 passengers
Color White,other color is optional
Engine Model WP10.270E32
Emission Euro 3
Type 6 cylinders,in-line,4-stroke,water-cooled,turbo inter-cooling, exhaust valve brake, direct injection diesel engine
Rated power 270hp,rated power speed 2200rpm
Displacement 9726ml
Max.torque 1100N·m
Bore x stroke 126x130mm
Manufacturer Weichai Power Co., Ltd
Tire Size 11.00R20 steel wire tire
Number 10+1 nos
Front axle 5.5T
Rear axle 13.0T,458 axle
Drive form 6X4
Rated voltage 24V,DC
Transmissions Gearbox 9JS119, 9 speed forward 1 reverse
Steering device Power assisted steering
Steering wheel Left hand drive
Selective configuration
If there is a slight change in the chassis parameters above,please take the actual product as the standard
Fuel tank structure
Tank dimensions 7400×2300×1550mm Tank volume 20000L
Tank material Carbon steel Tank thickness 5/6mm
Color and Logo Optional
Standard configuration Chassis, carbon steel fuel tank, sub frame,oil pump, two aluminum alloy flow valves, tool box, manhole,climbing ladder, fire extinguisher, oil hose.
Selective configuration Aluminum alloy fuel tank, flow meter, oiling machine, European standard manhole, pneumatic valve, AIP valve, anti overflow sensor plug, oil and gas recovery system,divided into several bins.

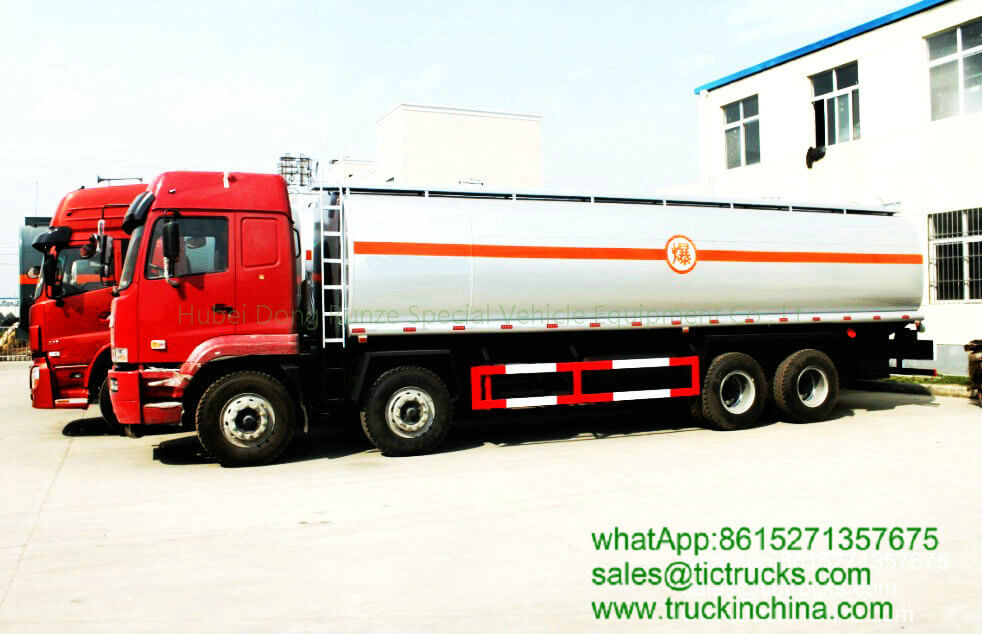

CAMC brand 23000 Litres fuel dispensing tanker | ||
General | Vehicle Brand | DRZ |
Chassis Brand | CAMC | |
Overall Dimension | 11040 x 2500 x 3200 mm | |
GVW / Kerb Weight | 24,000 kg / 11,805 kg | |
Cab | Cab Capacity | 3 persons allowed |
Air Conditioner | Air conditioner is optional | |
Engine | Fuel Type | Diesel |
Engine Brand | Cummins engine | |
Power | 270 Ps (199 KW) | |
Displacement | 9726 ml | |
Emission Standard | Euro III | |
Chassis | Drive Type | 6X4, left or right hand drive |
Transmission | 9-speed front, 1 reverse | |
Wheelbase/No. of axle | 5220+1350 mm / 3 | |
Tyre Specification | 11.00-20 | |
Tyre Number | 10 tyres and 1 spare tyre | |
Max Speed | 78 km/h | |
Paint | Metallic paint | |
Superstructure | Tank Capacity | 23,000 Litres ( About 6,100 gallons) |
Tank Material | Carbon steel | |
Pump | Equipped for overhead delivery, 1000 litres / min | |
Suction Head | 6 m | |
Hose | High quality, wire strengthened hose, with cooper wire, anti-static | |
All standard accessories: manhole, ladder, anti-static belt, anti-slip walkway, handrail, fire extinguisher, inlet, discharge, reflective stickers…….. | ||
Optional | Tank material could be carbon steel, stainless steel, aluminum (aluminum tanker)…… |
CLASSIFICATION: FUEL TRANSPORT TRUCK, REFUELING TRUCK , FUEL TRANSPORT TRAILER
COMPREHENSIVE FUEL TRUCK CONSTRUCTION VIEW :
1.MANHOLE COVER SYSTEM
2.OIL AND GAS RECOVERY SYSTEM
3.DISCHARGE OVERFLOW CROSS BEAM,OIL MEASURING HOLE
4.OIL AND GAS RECOVERY CONNECTION
5.OIL DISPLAY DEVICE
6.OIL DISCHARGE VALVE
7.DISCHARGE OVERFLOW SOCKET
8.PNEUMATIC VALVE
Basic configuration | |||
Vehicle name | refueling truck | Transport medium | hydraulic oil |
Tank volume | 5.3m³ | Overall dimension | 5990*2050*2500mm |
Total mass | 7350kg | Ratings | 3535,3600kg |
Curb weight | 3620kg | Highest speed | 80km/h |
Fuel type | Diesel | Emission standard | Euro IV |
Wheelbase | 3300mm | Tire size | 7.50-16 14PR |
Chassis model | DFA1070SJ20D5 | Engine Model | D28D11-4DA |
Power/horsepower | 85kw/116ps | Displacement | 2771ml |
Driving type | 4*2 | Braking mode | Air brake |
Tank mode | Ellipse | Front axle | 1.8 |
Rear axle | 3.5 | Truck frame | 188 |
Upper truck configuration | |||
Standard configuration | Tank , man hole , gear oil pump ,out put oil connection ,Oil hose package, emergency cut-off device | ||
Optional configuration | 15meter refueling hose, refuel gun,liquid indicator , Vehicle mounted computer refueling machine, personalized sub warehouse |
Oil pump equipped, with pump in pump out function.
provide the high quality and reasonable price fuel tanker truck.
Advantages
◆ We are MANUFACTURER more than 10years experience, Professional, well design!
◆ Standard Tank ensure tanker durability and safety
◆ Germany Siemens AUTO welding process technology, quality guarantee
◆ Unique Optional Tank material: Stainless, carbon steel, Aluminum alloy, High strength plastic steel
◆ Capacity including: 3,000L, 5,000L, 6,000L, 8000L, 10,000L, 12,000L, 16,000L, 20,000L.
The Refueling Tank Truck Series is normally transport the gasoline, diesel, kerosene etc. and some other liquid fuel materials which do not corrode the oil pump and fiscal ECR. As a transportation product, it register full of functions such as: oil transportation, fuel oil filling system, fixed-container refueling system, and also can be used as a mobile pump.
It takes more advantages from other similar special truck, and also using the advanced technology to take the production process strictly. The Refueling Tank Truck Series classified as general refueling vehicles (with fuel oil filling system) and fisal tank vehicles, widely usd in oil station and some transportation companies.
This model results the equipment with few positive points as: good performance, good structure, also operates simply.
A.15500 L tanker
road tanker
250-5000 gallon Capacities Available
Mild/stainless steel Aluminum Alloy Oil Tank
Rollover protection, standard
Full length belly plate with weep holes, standard
Full length internal longitudinal baffle, standard
Betts sealed manway, standard
Custom storage cabinets available
Multiple work lights
Fire Extinguishers
Emergency Shut-Offs, standard
Diesel tanker ,oil tanker, Petrol Tanker ,fuel tankers, oil bowser,Fuel bowser,Diesel tanker truck ,oil tanker truck, Petrol Tanker truck ,fuel tankers truck, Diesel tank truck ,oil tank truck, Petrol Tank truck ,fuel tank truck, refueling oil truck ,refueling tank truck ,truck refuel tanker truck,oil tank lorry,fuel tank lorry ,refueling truck,fuel transport truck,oil transport truck, Diesel transport truck, Road tanker,Diesel delivery truck,oil delivery truck,fuel delivery truck, fuel dispensing tanker,mobile Refueling Truck
Oil tanker truck refers to the vehicle that loading and transporting of gasoline, diesel, kerosene, lubricating oil, and other liquid fuel, etc. It is mainly composed of oil tank, oil pump, flow meter, refueling gun, filling mouth, fuel release valve, manhole covers, oil hose, chain etc.
According to the different transport medium, oil tanker truck can be called, oil tanker, tank truck, tanker, fuel trucks, oil delivery tanker, flow oil truck, refueling vehicle, computer refueling truck, diesel delivery vehicles, gasoline delivery vehicles, oil transport vehicle, edible oil transport vehicle, crude oil transport vehicle, heavy oil truck, oil truck.
According to the brand oil tanker truck can be divided into, Yuejin tank truck, Dongfeng tanker truck, FAW tanker truck, Foton tank truck, Sinotruk tanker truck,Auman tanker truck, North-Benz tanker truck, JAC transport tanker truck, tanker truck, Shacman oil tanker truck, CAMC oil transport tanker truck, Isuzu tanker truck, JMC tanker truck, etc.
