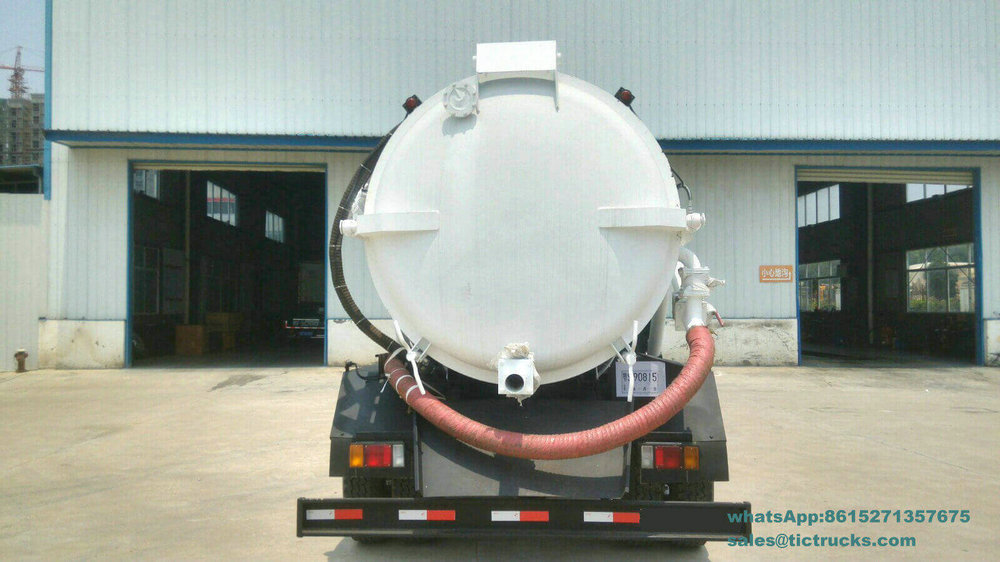

FTR 12000L Isuzu Vacuum Tanker Truck Sales
fitted vaccum pump ,Drain separator ,Fully opening rear door
Sight glasses at top and bottom of tank , PTO, transmission shaft, vacuum pump, tanker, hydraulic system and pipe system.
◆ Standard Q235A high strength carbon steel ensure tanker durability and safety
◆ Germany Siemens AUTO welding process technology, quality guarantee
◆Unique Optional Tank material:Stainless, carbon steel,carbon steel lined PE plastic, Aluminum alloy, High strength plastic steel
◆ Capacity including: 3,000L, 5,000L, 6,000L, 8000L, 10,000L, 12,000L, 16,000L, 20,000L.
Overall dimensions 7555x2465x2780mm Wheel base 4500mm
Front/rear wheel track 1960/1855mm Front/rear suspension 1335/1720mm
Approach/departure angle 26/16° Maximum speed 95km/h
Chassis Manufacturer QingLing ISUZU
Cab Configuration FTR, double rows cab, allowable 3+3 passengers, air conditioner, central lock, electric windows, USB audio, cab capacious and reversible
Color White, other color is optional
Engine Model 4HK1-TCG40
Emission Euro 4
Type 4 cylinders,4 valve,4-stroke,in-line,common rail, precision electronic control, multistage injection, optimal combustion, exhaust gas recirculation, diesel engine.
Rated power 190hp
Displacement 5193ml
Manufacturer Isuzu (ChongQing) Engine Co., Ltd.
Tire Size 10.00-20 16PR nylon tire
Number 6+1 nos
Frame 258X85(10+4)mm
Front axle 4.0 tons
Rear axle 7.0 tons
Drive form 4X2
Suspension Multi leaf springs
Rated voltage 24V,DC
Transmissions Isuzu MLD six speed transmission,6 speed forward 1 reverse.
Steering device Power assisted steering
Steering wheel Left hand drive
Selective configuration Tire options of small tonnage:900R20 and big tonnage 1000R20
If there is a slight change in the chassis parameters above, please take the actual product as the standard
Isuzu QL1160VQFRY
Isuzu truck chassis manufactured in China |
Manufacturer: | Dong Runze Special Vehicle |
Engine: | 4HK1-TC50 | Wheelbase (mm): | 5550 |
Displacement (cc): | 5193 | Dimensions (mm): | 8835 × 2490 × 2750 |
Power (kW): | 151 | Gross weight (kg): | 16000 |
Fuel type: | diesel fuel | Curb weight (kg): | 5225 |
Isuzu QL1160VKFRY
Isuzu truck chassis manufactured in China |
Manufacturer: | Dong Runze Special Vehicle |
Engine: | 4HK1-TC50 | Wheelbase (mm): | 3900 |
Displacement (cc): | 5193 | Dimensions (mm): | 6435 × 2490 × 2750 |
Power (kW): | 151 | Gross weight (kg): | 16000 |
Fuel type: | diesel fuel | Curb weight (kg): | 4990 |
Isuzu QL1100A8PAY
Isuzu truck chassis manufactured in China |
Manufacturer: | Dong Runze Special Vehicle |
Engine: | 4HK1-TC51 | Wheelbase (mm): | 5200 |
Displacement (cc): | 5193 | Dimensions (mm): | 8912 × 2170 × 2330 |
Power (kW): | 141 | Gross weight (kg): | 10000 |
Fuel type: | diesel fuel | Curb weight (kg): | 3310 |
Isuzu QL1100A8KAY
Isuzu truck chassis manufactured in China |
Manufacturer: | Dong Runze Special Vehicle |
Engine: | 4HK1-TC51 | Wheelbase (mm): | 3815 |
Displacement (cc): | 5193 | Dimensions (mm): | 6980 × 2170 × 2330 |
Power (kW): | 141 | Gross weight (kg): | 10000 |
Fuel type: | diesel fuel | Curb weight (kg): | 3180 |
Isuzu QL1180XMFRY
Isuzu truck chassis manufactured in China |
Manufacturer: | Dong Runze Special Vehicle |
Engine: | 6HK1-TCL | Wheelbase (mm): | 4500 |
Displacement (cc): | 7790 | Dimensions (mm): | 7570 × 2490 × 2810 |
Power (kW): | 177 | Gross weight (kg): | 18000 |
Fuel type: | diesel fuel | Curb weight (kg): | 5500 |
Isuzu QL1180XQFRY
Isuzu truck chassis manufactured in China |
Manufacturer: | Dong Runze Special Vehicle |
Engine: | 6HK1-TCL | Wheelbase (mm): | 5550 |
Displacement (cc): | 7790 | Dimensions (mm): | 8855 × 2490 × 2810 |
Power (kW): | 177 | Gross weight (kg): | 18000 |
Fuel type: | diesel fuel | Curb weight (kg): | 5730 |
Isuzu QL1160VMFRY
Isuzu truck chassis manufactured in China |
Manufacturer: | Dong Runze Special Vehicle |
Engine: | 4HK1-TC50 | Wheelbase (mm): | 4500 |
Displacement (cc): | 5193 | Dimensions (mm): | 7570 × 2490 × 2750 |
Power (kW): | 151 | Gross weight (kg): | 16000 |
Fuel type: | diesel fuel | Curb weight (kg): | 5090 |
Isuzu QL1100A8LAY
Isuzu truck chassis manufactured in China |
Manufacturer: | Dong Runze Special Vehicle |
Engine: | 4HK1-TC51 | Wheelbase (mm): | 4175 |
Displacement (cc): | 5193 | Dimensions (mm): | 7430 × 2170 × 2330 |
Power (kW): | 141 | Gross weight (kg): | 10055 |
Fuel type: | diesel fuel | Curb weight (kg): | 3200 |
Isuzu QL1160VNFRY
Isuzu truck chassis manufactured in China |
Manufacturer: | Dong Runze Special Vehicle |
Engine: | 4HK1-TC50 | Wheelbase (mm): | 5000 |
Displacement (cc): | 5193 | Dimensions (mm): | 8835 × 2490 × 2750 |
Power (kW): | 151 | Gross weight (kg): | 16000 |
Fuel type: | diesel fuel | Curb weight (kg): | 5210 |
