liquid ring Vacuum pump sewage suction tanker semi-trailer 30,000 Liters

Views: 2141     Author: Dong Runze Special Vehicle      Publish Time: 2017-05-02      Origin: Dong Runze Special Vehicle

liquid ring Vacuum pump sewage suction tanker semi-trailer 30,000 Liters

liquid ring Vacuum pump sewage suction tanker semi-trailer 30,000 Liters

Name: Vacuum pump sewage suction tanker semi-trailer

Sewage tank capacity: 30,000 Liters

Sewage tank material: Carbon steel-Q235A or PE lined steel tanker

No.of axle: 3 axle BPW

Tire specification: 11.00R20,Total 12 tires

Suspension type: Leaf spring

Corrosion Protection Sewage Truck Semi Trailer Basic Parameters


Item

parameter

Vehicle model

Corrosion Protection Sewage Truck Semi Trailer

Overall dimensions(L*W*H)

12000x2500x3850 mm

Tank capacity

25000 Liters -30000L

Rated Load

No less than 25000 liters / 38000 kg

GVW

Approx 55000 kg

Mass in working order

Approx 15000 kg

Wheel base

7500+1310+1310 mm

F/R track base

-/1820/1820 mm

Suspended before / after hanging

-/2450 mm

Approach/departure angle

-/10°

Tire specification

11.00R20  /  12 units

Axle

3 units 13 tons axles

Number of axles

 3

Spring few films

-/10/10/10

Axle Brand

BPW

Production cycle

30-35 working days

Corrosion Protection Sewage Truck Semi Trailer

Remark

On this trailer.

there will be 1 unit 44KW diesel engine to drive the pump to work independently.

1 unit Water ring vacuum pump.

Corrosion Protection Sewage Truck Semi Trailer is transportion industrial wastewater sewage. Corrosion Protection Sewage Truck Semi Trailer is installation trailer Vacuum pump (imported one available), ball valve, pressure meter, window for showing liquid level,lock system for rear cap, four-way valve, moisture separator, sprinkler (optional), alarm for full suction (optional) .

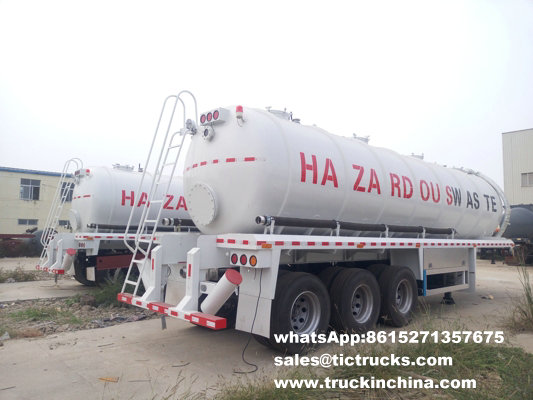

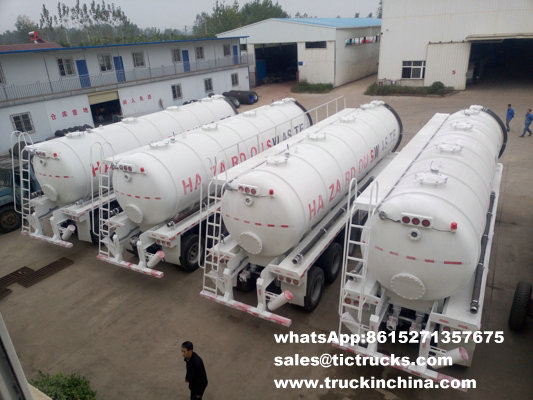

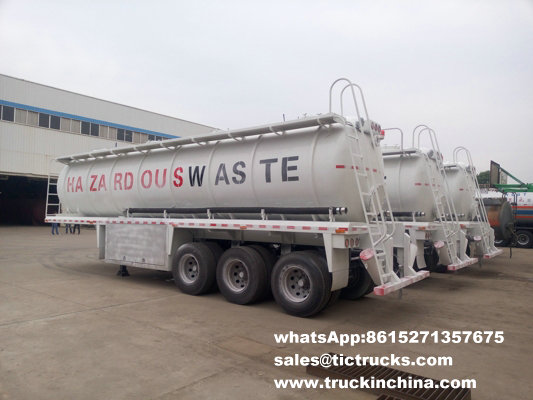

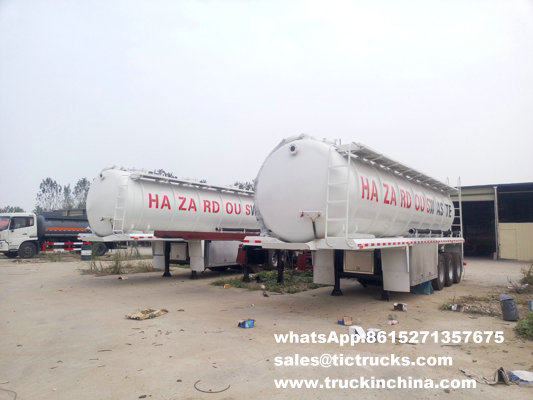

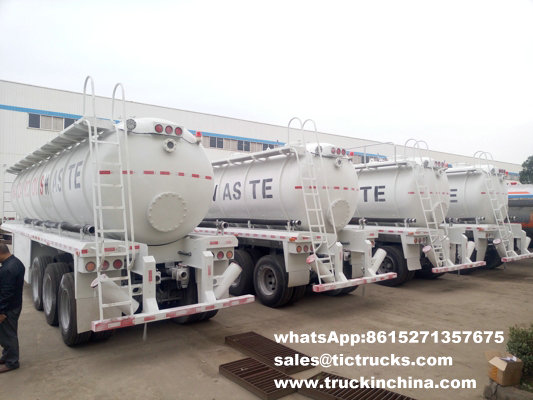

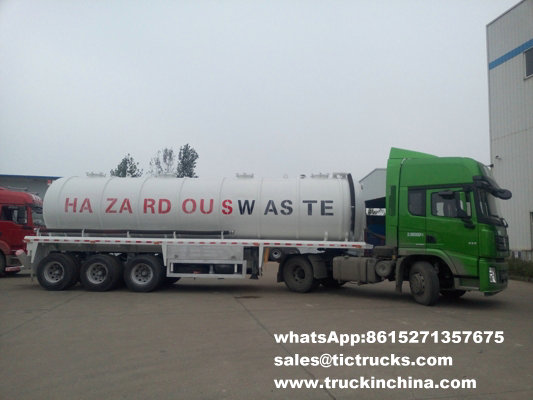

Vacuum suction sewage tanker trailer 35,000 liters 2_1.jpgVacuum suction sewage tanker trailer 35,000 liters 4_1.jpgtri axles Cesspit tanker trailers Vacuum Tank trailer 25m3Vacuum tanker trailer 25,000 liters Vacuum suction sewage tanker trailer 35,000 liters 77_1.jpg

Corrosion Protection Sewage Truck Semi Trailer Equipment

 Waste water or oil suction semi trailer manure overflow devices to prevent the feces, sewage intrusion due to the vacuum system to suck. Turtle tank design, no permanent deformation. Installation of the first quality rating big powerful fecal imported vacuum pump.
