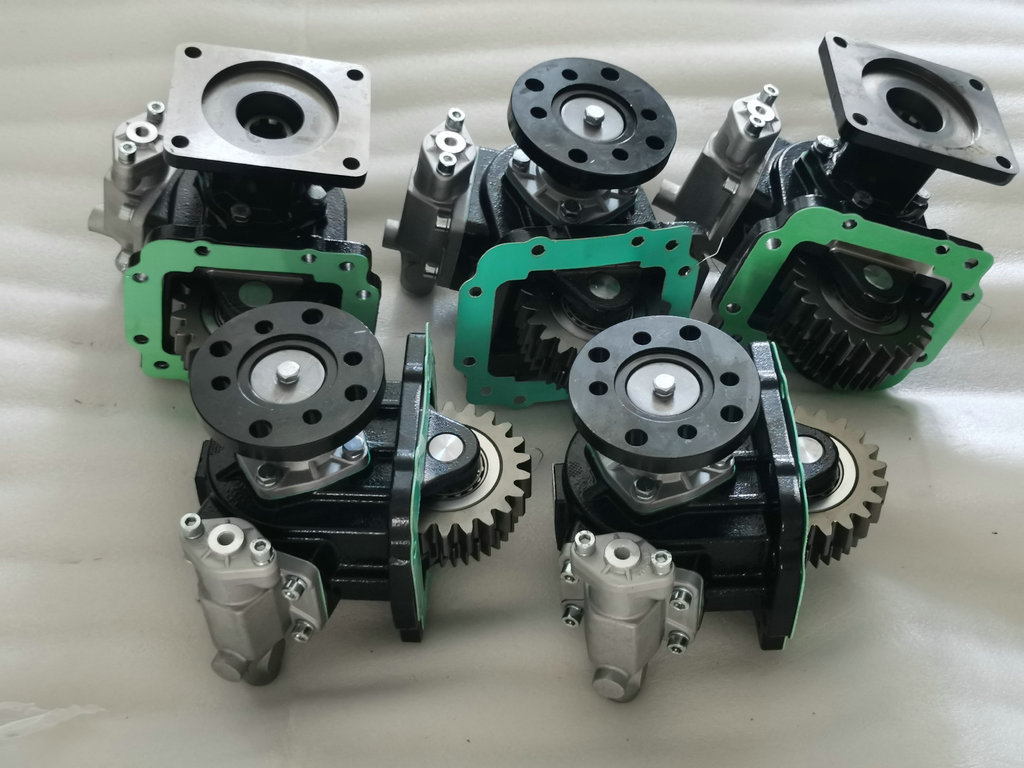

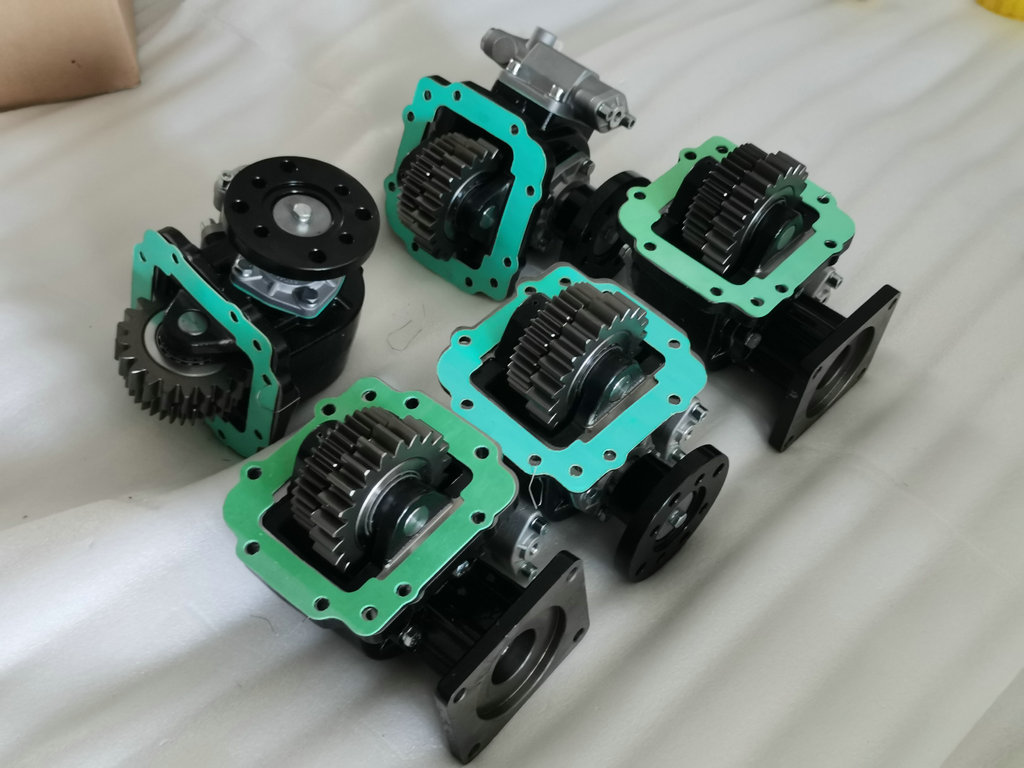

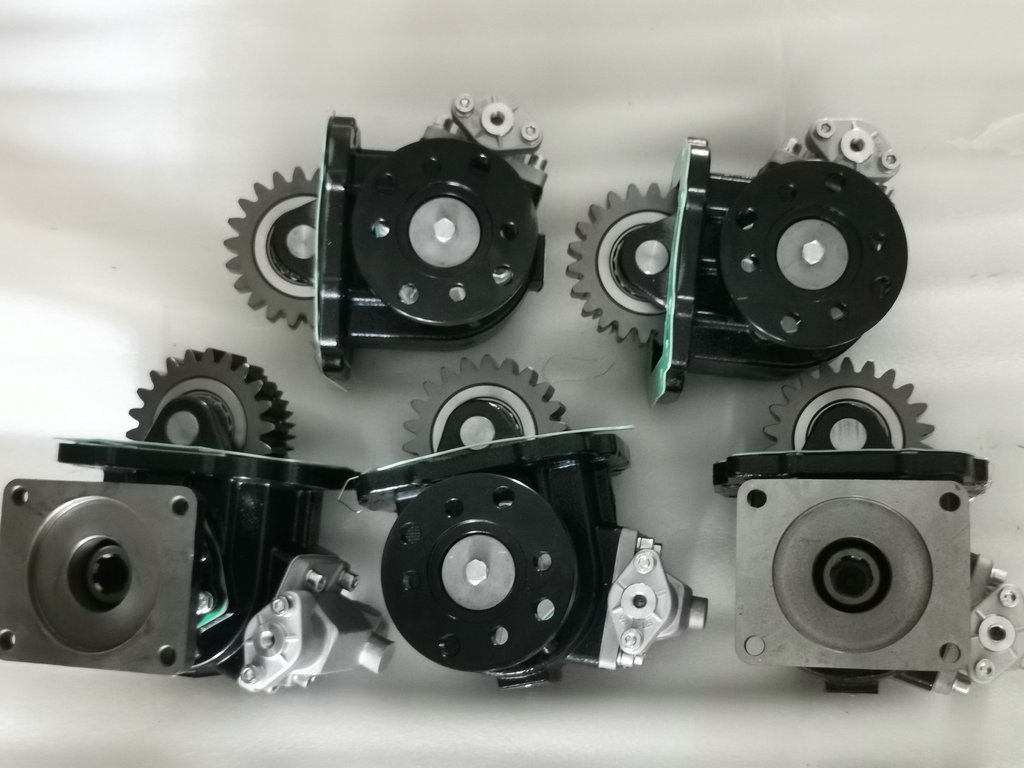

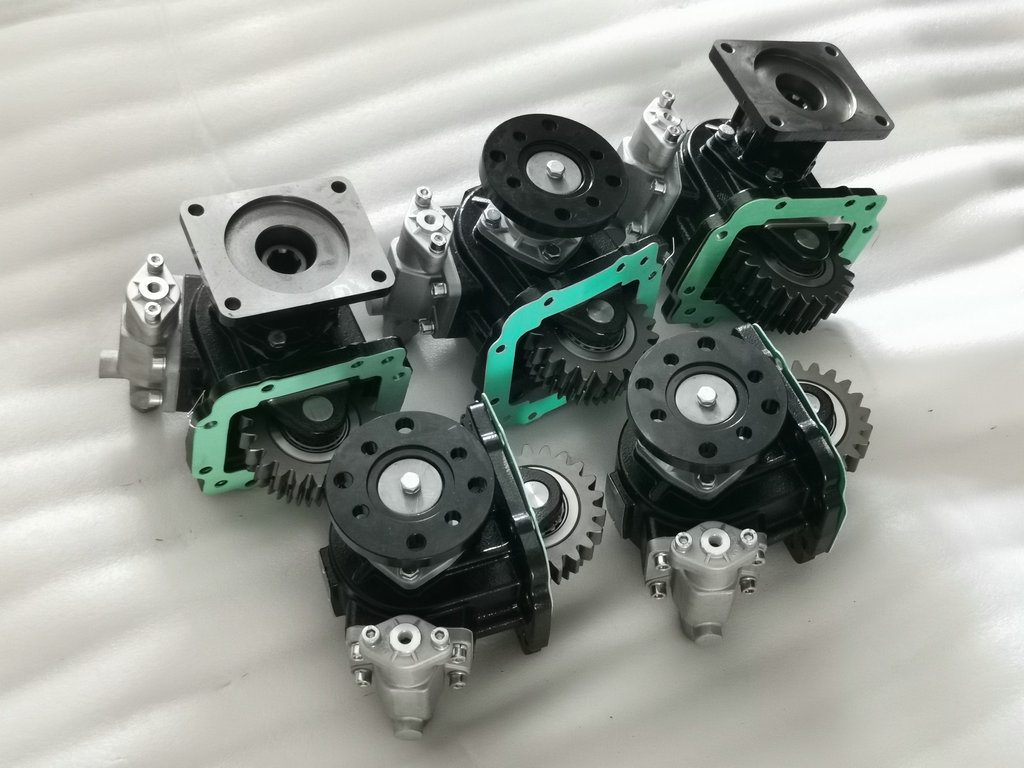

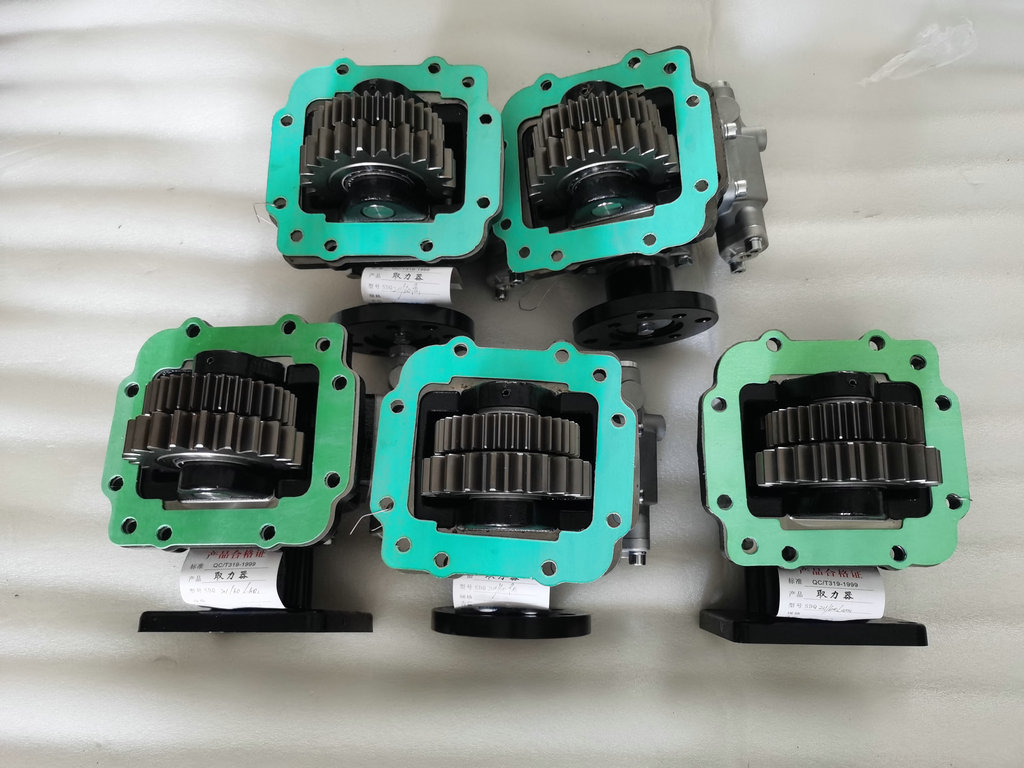

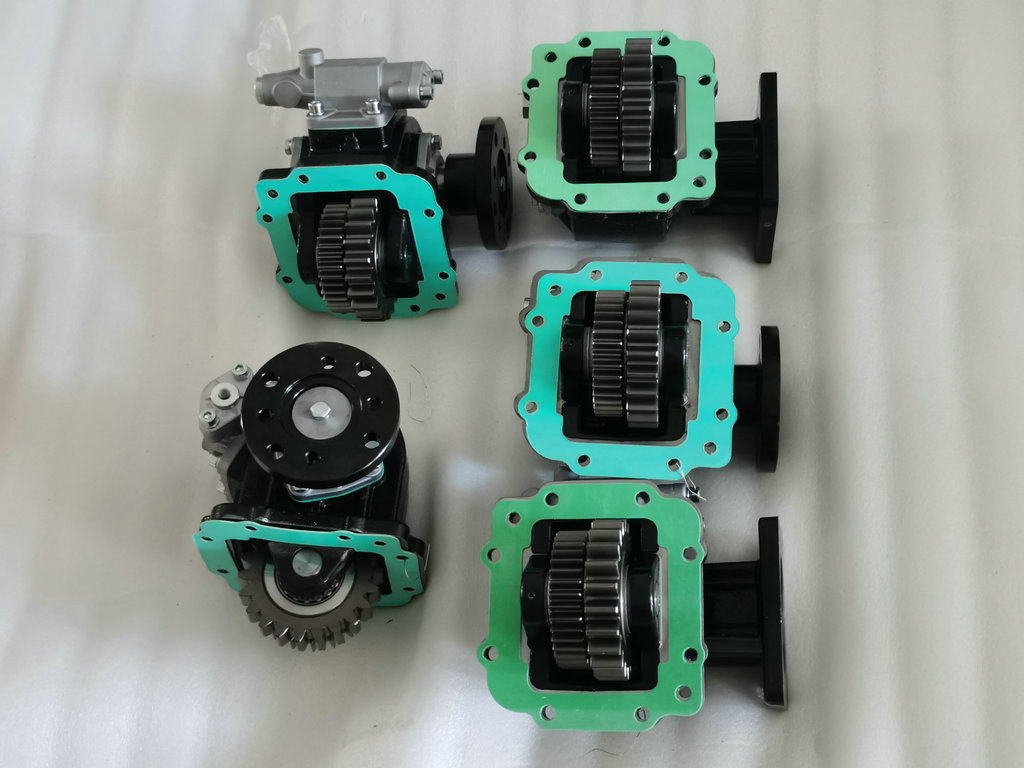

Power TakeOff PTO SDQ-FS211-60LGQ1 ,SDQ211-60PQ1 PTO for 6DS (6DS40-50-60)Fast Eaton Transmission to Chile

Views: 760 Author: Tom Publish Time: 2022-07-12 Origin: DRZE

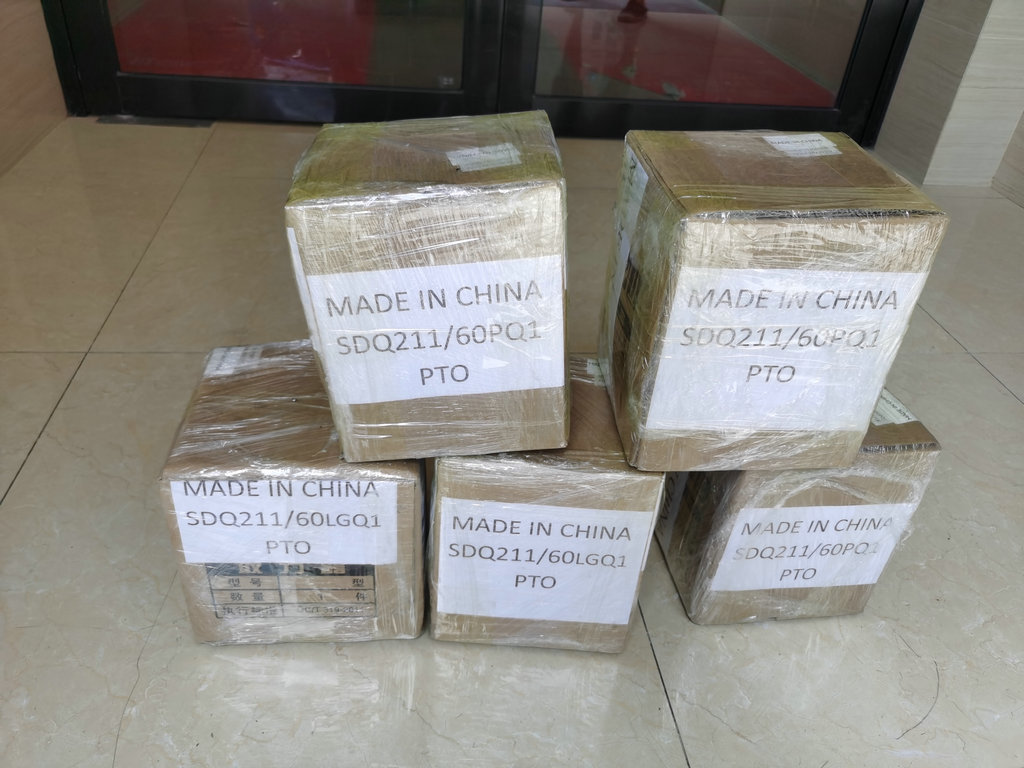

SDQ-FS211-60LGQ1 SDQ211-60PQ1 PTO for 6DS (6DS40-50-60) (20) PTO SDQ211-70PQ1 For 8J5118TA-B，ISO Flange (8)

Fast Eaton Transmission Power Take-Off Spline PTO SDQ211/60LGQ1 for 6DS60T-B/60T-D

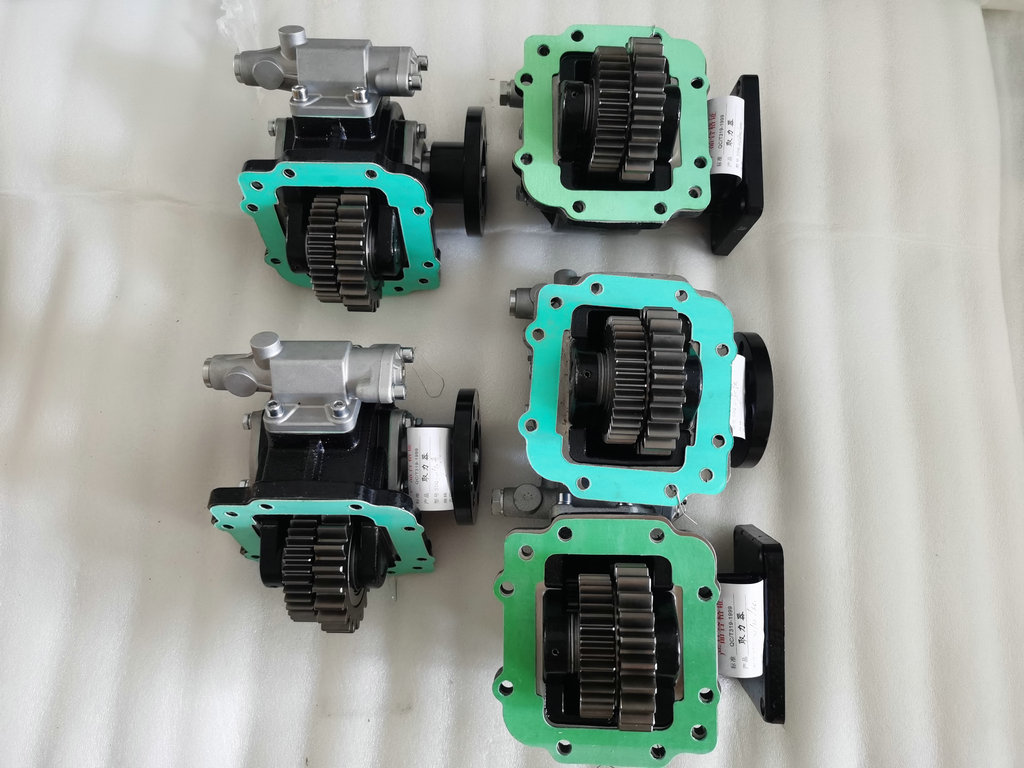

SDQ-FS211-60LGQ1 SDQ211-60PQ1 PTO for 6DS (6DS40-50-60) (12)

Power TakeOff PTO SDQ-FS211/60LGQ1 ,SDQ211/60PQ1 PTO

for 6DS (6DS40-50-60)Fast Eaton Transmission to Chile

Fast Group-Joint venture of Eaton clutch power take off

Serial number	Model of Power take-off	speed ratio	Output torque (N.m)	Matching gearbox	Output mode	control mode
1	SDQ-FS212/70	0.94	600	12JSD160TA Power take-off	Internal spline / flange	Pneumatics
2	SDQ-FS212/70-A	0.78	600	12JSD160TA Power take-off	Internal spline / flange	Pneumatics
3	SDQ-FS19/31 （QD40A）	1.09	400	8JS75 Power take-off	Internal spline	Pneumatics
4	SDQ-FS24/37 （ QCZ70A）	0.93	600	6J80T Power take-off	Internal spline / flange	Pneumatics
5	SDQ-FS211/60	1.1	350	6DS40TB-D/6DS60TB-D 6DS60TA-D Power take-off	Internal spline / flange	Pneumatics
6	SDQ-FS211/70	0.94	600	Fuller / fast / rt-11509c 8JS100S/17G0A9-22 Power take-off	Internal spline / flange	Pneumatics
7	SDQ-FS211/70-A	0.78	600	Fuller / fast / rt-11509c 8JS100S/17G0A9-22 Power take-off	Internal spline / flange	Pneumatics
8	SDQ-FS34/29 QD40J		400	8JS75 Power take-off 8js75tc Power take-off	Internal spline / flange	Pneumatics

6DS60T-B/60T-D Twin-Countershaft Transmission

Transmission Speed Ratios

	1F	2F	3F	4F	5F	6F	1R
6DS40T/50T	6.67	4.01	2.42	1.52	1.00	0.78	6.13
6DS40TA/50TA	6.67	4.01	2.57	1.78	1.31	1.00	6.13
6DS40TB-D/50TB-D	5.32	2.90	1.81	1.34	1	0.76	4.89
6DS60TA	5.90	3.55	2.14	1.35	1.00	0.78	5.43
6DS60TA-D	5.94	3.58	2.15	1.36	1.00	0.77	5.47
60DS60T-B/60T-D	6.64	4.00	2.41	1.52	1	0.78	6.13
6DS80T	6.62	3.73	2.30	1.51	1.00	0.75	6.05
6DS80TA	7.81	4.39	2.72	1.79	1.32	1.00	7.13
6DS80TB	5.92	3.33	2.06	1.36	1.00	0.76	5.41
6DS80TC	6.40	3.71	2.22	1.37	1.00	0.73	5.84

Using self-made high performance fast shift synchronizer, flexible and portable operation.

The side force taking window can be matched with the force taking device.

Designed with light weight and high strength,adopting single box and single axle structure.

Simple structure,Full helical gear and full grinding gear design, low noise and high reliability.

Has become the standard speed variator of Yutong high end business car and Futian high Rui light car.

Transmission Model	Input Torque	Input Power	Rated Input Rotation	Length	Oil Capacity	Weight
6DS40T/50T	400-500N•m	85-100kw	2600rpm	629mm	6L	144kg
6DS40TA/50TA	400-500N•m	85-100kw	2600rpm	629mm	6L	144kg
6DS40TB-D/50TB-D	400-500N•m	85-100kw	2600rpm	629mm	6L	144kg
6DS60TA/6DS60TA-D	600N•m	130kw	2600rpm	629mm	6L	144kg
6DS60T-B/6DS60T-D	600N•m	130kw	2600rpm	629mm	6L	144kg
6DS80T/TA/TB/TC	800N•m	147kw	2600rpm	723mm	10L	200kg
