ISUZU Sweeper Trucks For Sale

Views: 1870 Author: Dong Runze Special Vehicle Publish Time: 2017-06-15 Origin: Dong Runze Special Vehicle

QL1100 street sweeper truck with cleaning brushes and water spraying fuction

US $60,000-65,000 / Unit |

Dimension(L*W*H): 6600*2260*2530mm

Weight:6460kg

Warranty:one year

ISUZU QL1100TKARY

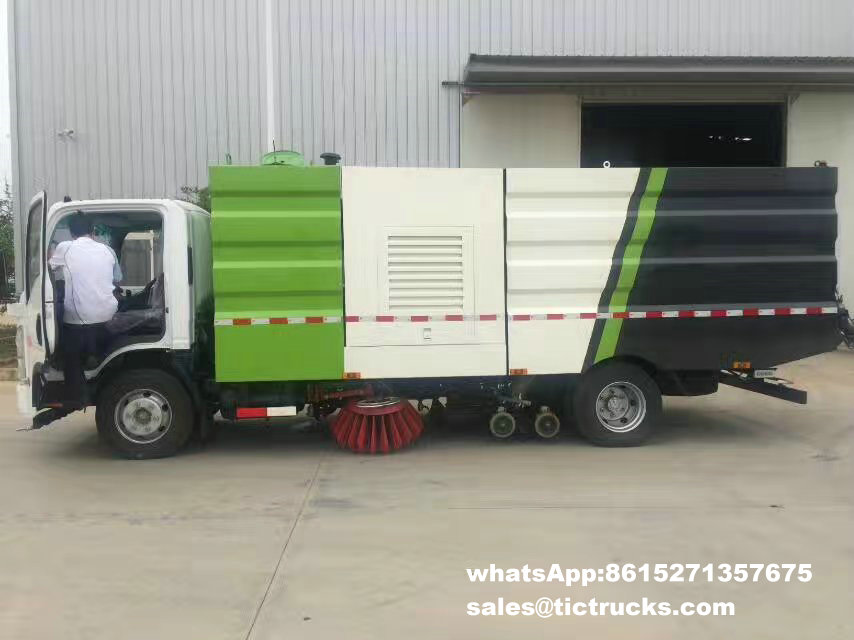

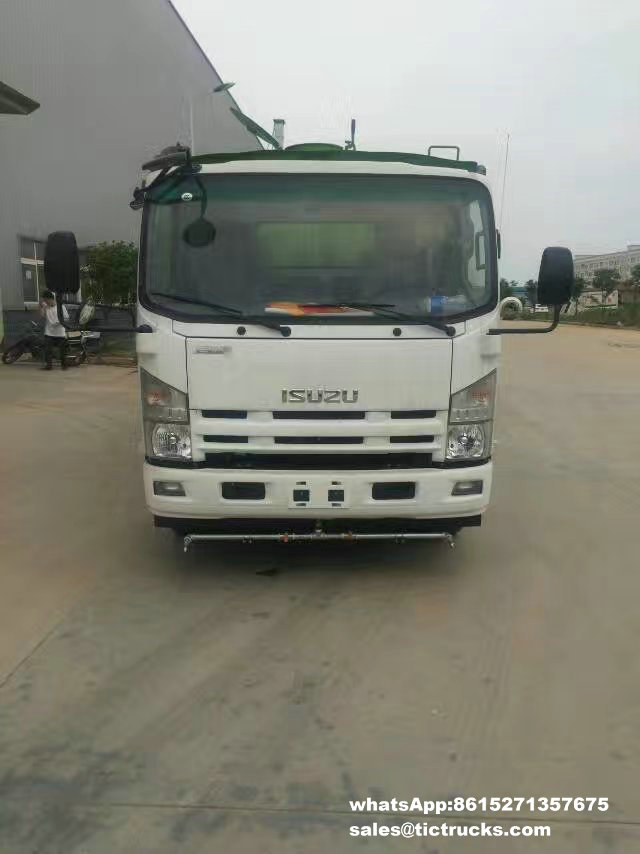

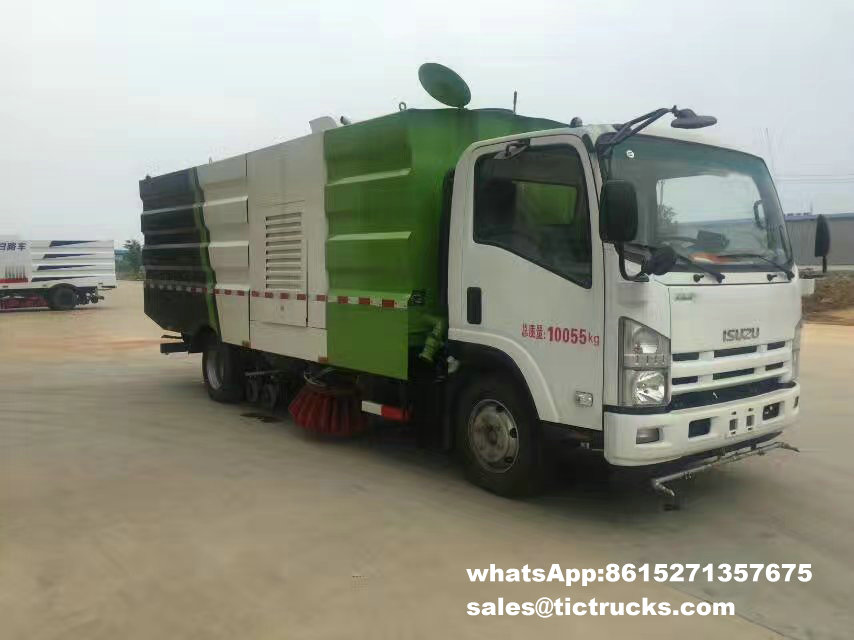

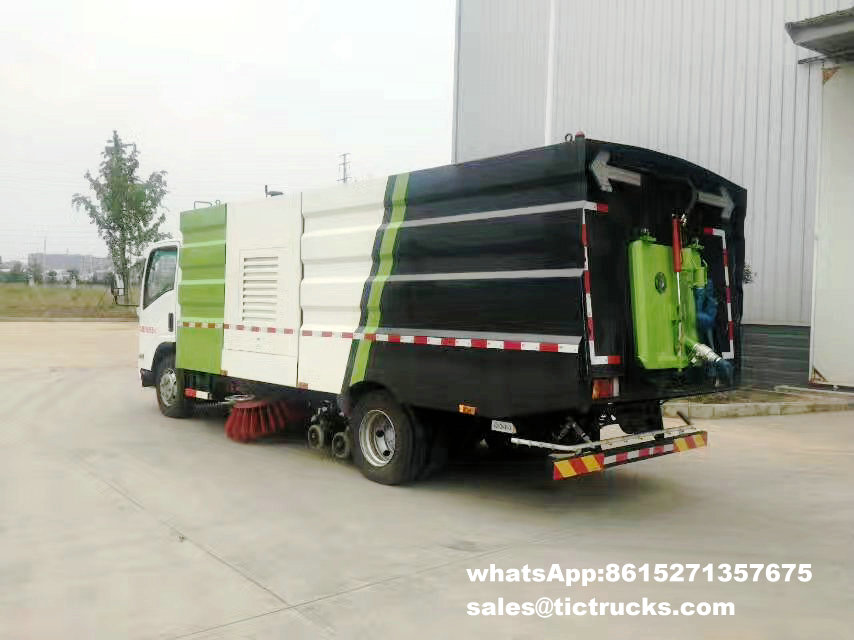

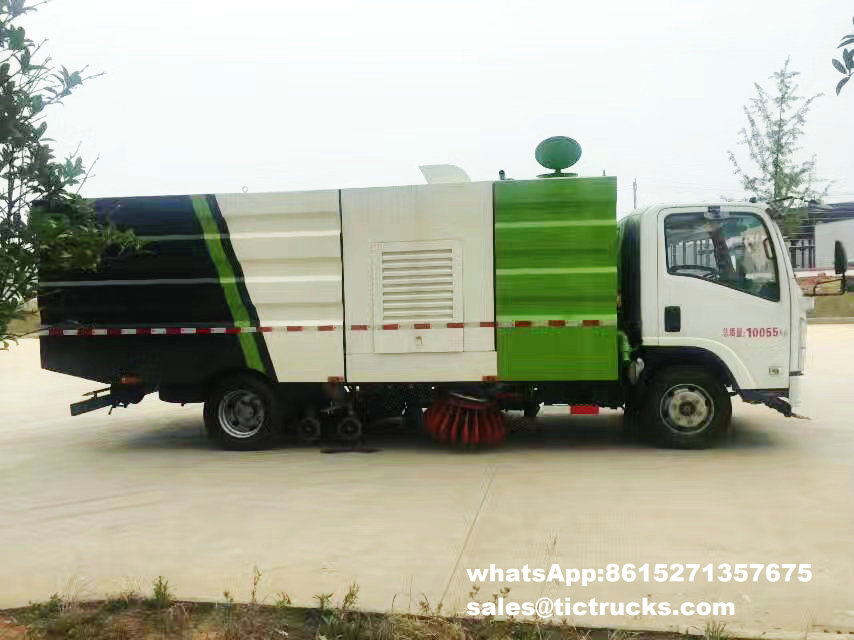

ISUZU road sweeper-002-water-cleaning_1.jpg ISUZU road sweeper-004-water-cleaning_1.jpg ISUZU road sweeper-005-water-cleaning_1.jpg ISUZU road sweeper-006-water-cleaning_1.jpg ISUZU road sweeper-007-water-cleaning_1.jpg

1. Maximun Sweeping Width:3.5m

2. Sweeping Speed:96% Dustbin Volume :8m3 Tank Volume :3.5m3

3. We accept OEM&ODM

road sweeper truck for sale,dust cleaner road sweeper with low price

Item	configure
Chassis model	ISUZU QL1100TKARY
Engine model	4KH1-TC
Rated power (kw)	129
Overall dimensions (LxWxH) (mm)	6600×2260×2530
Total weight(kg)	10000
Curb weight(kg)	6460
Rated weight(kg)	3410
Max. speed (km/h)	110
Sweeping width (m)	3. 3.2
Maximum sweeping capacity(m2/h)	80000
Sweeping speed km/h)	3 3~25
Sweeping efficiency(%)	≥96
Max suction granularity(mm)	110
Stainless steel trash volume(m3)	5. 5.3
Stainless steel main water tank capacity volume(L)	1700
Stainless steel deputy water tank capacity volume(L)	≥800
Maximum lift angle of trash(°)	≥45
Cab	With A/C

The main performance description

1. Cleaning device Type: Center four sweep and rear nozzle, scan disk can automatically avoid obstacles; sweep plate has three modes of operation: full sweep, sweep left front, right front sweep, to achieve road sweeping and vacuuming.

2. Nozzle: The roll-broom enhanced nozzle, built-in roll sweep, eliminate waste omission; rolling tire three o'clock floating support, road profiling powerful; (national initiative)

3. Pneumatic tube with a net antifreeze device, can effectively ensure sprinkler parts are not due to structural damage caused by freezing; (national patent technology)

4. With a leakproof drainage device, effectively prevent dirt build-up, to prevent fouling and clogging junk falls back to the ground straw causing secondary pollution; (national patent technology)

5. All fasteners are made of galvanized, scan disk, nozzles and other structural parts are made of acid phosphate electrostatic spraying, strong adhesion, coating corrosion resistance, weather resistance

6. Trash the whole entire layer of SUS304 stainless steel, structural strength, does not rust

7. Trash shape with side large surface modeling, arc transition, in proportion to the whole car, nice.

8. In the state of emergency, it can be manipulated by setting the manual pump trash, and sweep the nozzle plate movements and other movements, special circumstances can work directly into the engine compartment to detect vice and maintenance

9. Functional device with enhanced pressure dust, the dust can be adapted to the cleaning surface thicker.

10. With a variety of security alarm devices: water tank low water level, job tips, deputy engine temperature, oil pressure, parking tips, hydraulic oil leak alarm, trash tipping, reset, and the back door open and close security alarm devices.

ISUZU road sweeper 5M3 street sweeper truck for sale

ISUZU road sweeper 5M3 street sweeper truck for sale Chassis Information
Chassis brand		ISUZU QL600P
Chassis model		QL1070A1HAY
Drive type		4×2
Dimension Parameter
Overall dimension (LWH) (mm)		620020102530
Wheel base (mm)		3360
Wheel No.		2
Front / Rear track (mm)		1504/1425
Weight Parameter
GVW (kg)		7300
Payload weight (kg)		2120
Kerb weight (kg)		5050
Front / Rear axle (T)		2.5T / 4.8T
Engine Parameter
Model		4KH1-TCG40
Manufacturer		Qingling
Horsepower (hp)		120
Displacement / power (ml/kw)		2999/88
Engine type		4 cylinder in-line, inter-cooling
Emission Standard		Euro IV
Transmission
Control type		manual
Gear Shift		5 forward and 1 reverse speeds
Tyre
Type		7.00-16
Tyre No.		6+1 spare tyre
Cab
Type		flat roof cab with A/C, power steering
Up-load Parameter
Volume of clean water tank		1500L
Volume of garbage bin		3500L
Material of the inner tank		Stainless steel for garbage bin
Auxiliary Motor	Type	JX493G/JE493G3 Jiangxi ISUZU
	Power	57kw
	Rotation speed	3600r/min
Fan	Type	Dedicated centrifugal fan
	Transmission type	Auxiliary engine drive via shaft, auto clutch, narrow V-belt
Hydraulic system	Type	Open type, electro-hydraulic control centralized manipulation
	Main components	Gear pump, gerotor motor, hydraulic cylinder, solenoid valve, manifold, manal pump, etc.
Water spraying system	Components	Pump, nozzle, water filter, water tank
Electrical system	Components	Chassis and engine circuit and auxiliary motor special equipment operation control circuit
	Battery	12V-80A.h
Sweeping system	type	4pcs vertical sweep brush, 2 pcs mounted on each side of the frame, sweeping disk rotation is driven by the hydraulic motor, speed is adjustable.
	Sweeping brush diameter	Φ800mm
	Sweeping disk speed	110r/min high-grade, 80r/min medium, 60r/min low-grade
	Sweeping disk dip angle adjust	forward 4 ° ~ 6 ° camber 2 ° ~ 4 ° 6 ° ~ 10 °
Sweeping Technical	Max sweeping width (mm)	2.8-3.2m
	Max. sweeping capacity	45000-90000m2/h
	Sweeping speed	3-15km/h
	Cleaning efficiency	≥95%
	Max. particle inhalation	100mm
	Garbage tank max. discharge angle	55°

Road sweeper truck

Here the price is for standard configuration.Selective configuration and any change according to the buyer’s requirements please confirm the price with our company.

Standard configuration Chassis,sub frame,body,4 sweeping brushes, stainless steel vacuum tank, water tank,5T fan, auxiliary engine, electromagnetic control valve, suction cup, sprinkler system,hydraulic system and electrical system.

Selective configuration surveillance system,rolling brush.

DRZ5060TSLE 4x2, 4x4 Sweeping Truck with various specification to meet your needs, please contact us for more details of Sweeping Trucks.

Parts	Technical Parameter
Overall	Chassis Model	EQ1060TJ20D3
	Curb Weight	5300kg
	Rated Loading Weight	2000kg
	Overall Size (LWH)	5995×2050×2400mm
Engine	Type of Fuel	Diesel
	Brand/Model	YC/YC4F90-30
	Horse Power	90HP
Chassis	Brand	Dongfeng
Chassis	Wheelbase	3300mm
Cabin	Left-hand driving, Air conditioner, Flat headed, One sleeping berth
Transmission	Dongfeng 6-speed
Brake System	Pneumatic brake
Tyre	Specification	7.00-16
Tyre	Number of Tyre	6+1 Spare tire
Function	Sweeping width	》2.8-3m
	Water Tank Volume	0.8m3
	Dust Tank Volume	3.5m3
	Working Speed	3-15KM/H
Note	Some components are optional according to your requirements.

Customization, Cost and Control Built How You Want it, at a Price You Can Afford. for sale call:+86-152 -7135-7675

Our factory products line:
Fire truck; Road wrecker/recovery tow truck/ Car carrier/; Aerial work platform ; Road sweeper; Garbage truck; Watering cart ; Oil/Fuel tanker truck; Truck mounted crane; Concrete mixer truck ; Bulk powder transport truck ; Dumper ; Sewage suction truck etc.

Sweeper Truck Euro 4 -5

4.3m3 90HP Sweeping Truck 4_2 DongFeng for sale

DongFeng 5.5m3 Cleaning Truck RHD /LHD

DongFeng 10m3 Sweeper Truck Euro 4 -5

4.3m3 98HP Road Cleaner Truck ISUZU for sale

10m3 190HP Road Cleaning Truck ISUZU for sale

8m3 Street Sweeper for sale

Vehicle model	Chassis brand	Chassis model	Load (L)		Overall dimensions	Wheel base	Engine model	hp/standard	Tire	FOB Price
			Dust	Water	mm	mm					USD
DRZ5160TSLD	DONGFENG	DFL1160BX	6000	4000	8090X2470X3050	4700	B190 33	190/Euro 3	9.00-20		45560
DRZ5060TSLE	DONGFENG	EQ1060TJ20D3	3500	800	5970X2000X2400	3300	CY4102-C3F	95/Euro 3	11.00R20		23450
DRZ5090TSLE	DONGFENG	EQ1090T9ADJ3AC	4500	1000	6700X2290X2500	3800	CY4102-E3C	120/Euro 3	7.50R16		29490
DRZ5108TSLE	DONGFENG	EQ1108KJ	5000	3000	7000X2480X3000	3950	B170 33	170/Euro 3	9.00-20		37900
DRZ5126TSLE	DONGFENG	EQ1126KJ1	6000	4000	8090X2470X3050	4700	B190 33	190/Euro 3	9.00-20		41150
DRZ5141TSLE	DONGFENG	EQ1141KJ	6000	4000	7650X2480X3000	4500	B190 33	190/Euro 3	10.00-20		40110
DRZ5073TSLB	FOTON	BJ1073VEJEA-A	3500	800	5995X1900X2680	3360	4DW91-63NG2	98/Euro 2	6.50-16		21980
DRZ5163TSLB	FOTON	BJ1163VKPGG-1	6000	4000	7810X2495X3160	5000	Phaser160Ti-33	160/Euro 3	9.00R20		44090
DRZ5070TSLQ	ISUZU	QL1070A1KAY	4500	1000	6465X1980X2435	3815	4KH1-TCG40	120/Euro 4	7.00-15		37610
DRZ511009TSLQ	ISUZU	QL11009LARY	5000	3000	6910X2200X2640	4175	4HK1-TCG40	190/Euro 4	8.25-20		48740
DRZ51609TSLQ	ISUZU	QL11609MFRY	6000	4000	7705X2500X3060	4500	4HK1-TCG40	190/Euro 4	10.00-20		59280
DRZ5161TSLH	JAC	HFC1161P3K2A47F	6000	4000	8155X2495X3070	4700	YC4E160-42	160/Euro 4	11.00R20		49700
DRZ5165TSLS	SHACMAN	SX1165UN461	6000	4000	8040X2490X3270	4600	WP10.270E32	270/Euro 3	12.00R20		53240

keywords: vacuum pavement cleaning truck , RHD Road Clean Truck , RHD Road Sweeper Machine , RHD Road Sweeping Machine , RHD Road Cleaning Truck , Road Clean Truck , Road Cleaning Truck , RHD Road Sweeping Truck , Road Clean Machine Truck,Sweeping Machine Truck,HOWO RHD Vacuum Road Sweeper Truck , SINOTRUK RHD Airport Runway Sweeper Truck , HOWO RHD Truck Mounted Sweeper , HOWO RHD Vacuum Sweeper Truck , HOWO Vacuum Sweeper Truck , HOWO Road Sweeper Truck , HOWO Multifunctional Vacuum Road Sweeper Truck , HOWO RHD Pavement Sweeper Truck,airport sweeper truck,Multifunctional Vacuum Sweeper Truck , Multifunctional Pavement Sweeper Truck , Multifunctional Street Sweeper Truck , Multifunctional Vacuum Road Sweeper Truck , Multifunctional Sweeper Truck , HOWO Multifunctional Vacuum Road Sweeper Truck , Multifunctional Airport Sweeper Truck , JAC Multifunctional Street Sweeper Truck

- See more at: http://www.truckinchina.com/Yuchai-140HP-road-Sweeping-Truck-Dust-4500L-1000L-Water-pd6185225.html#sthash.GwmbzwrM.dpuf

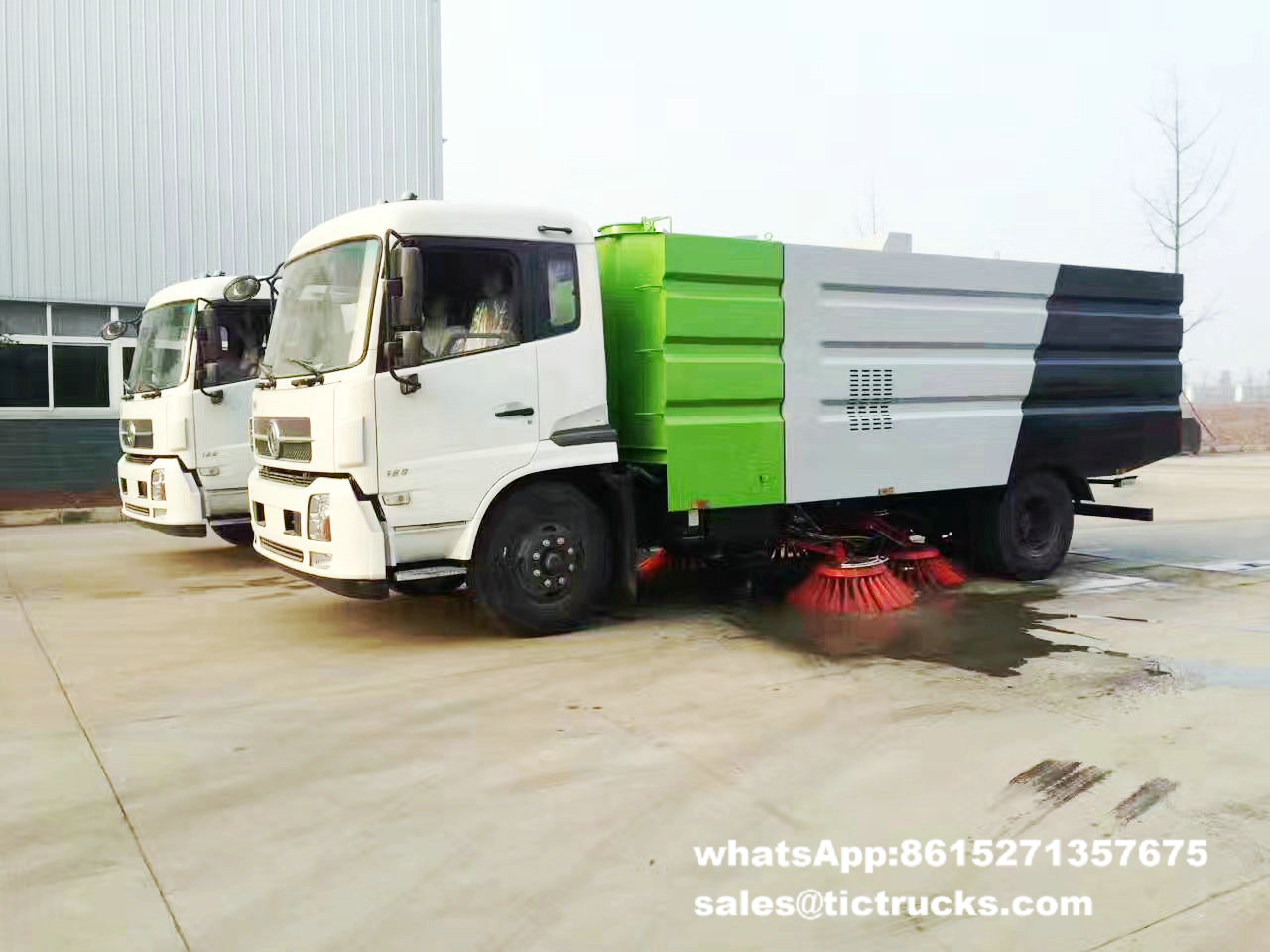

road sweeper-079-water-cleaning_1.jpg
