Dongfeng street cleaning truck vacuum street sweeper
Views: 1665 Author: Dong Runze Special Vehicle Publish Time: 2017-06-15 Origin: Dong Runze Special Vehicle
Dongfeng street cleaning truck vacuum street sweeper
China 5m3 road sweeper,Dongfeng street cleaning truck Dimension(L*W*H):
6210X2050X2540 Weight:7300kg
Price:$31800.00/Unit

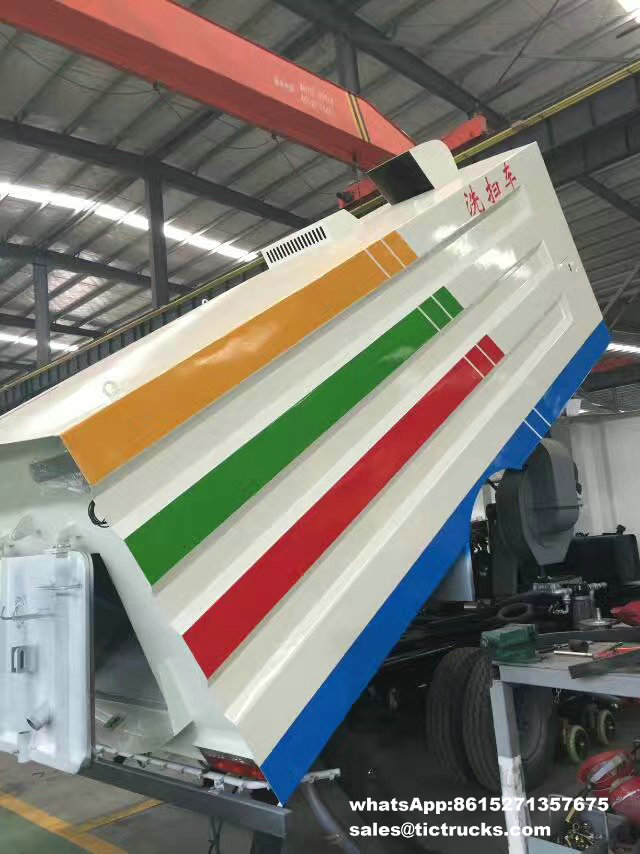

---It adopts the way of suction and sweeping combination, wet dust removal, electro-hydraulic control and hydraulic dumping unloading to clean the road. Road Sweeper
---Use the vice-engine to drive the fan and other device.

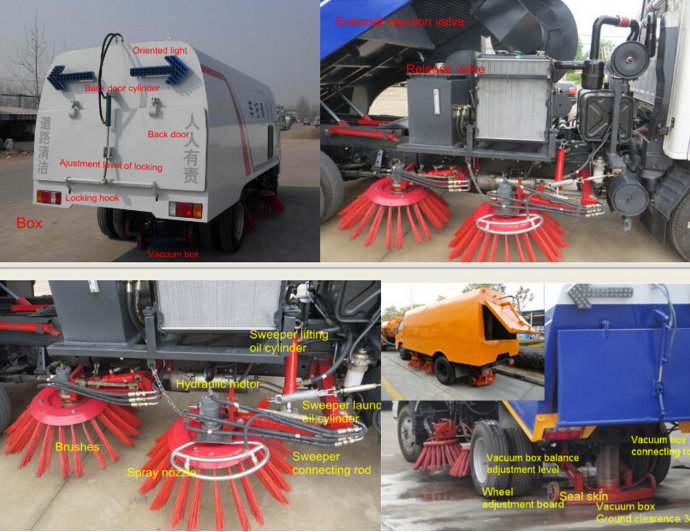

---With the structure of four MID-mounted disk brushes and one rear-mounted suction nozzle, which provide a large sweeping width, high sweeping efficiency and good traffic ability. Also convenient for adjustment and maintenance of sweeper device and nozzle
---An automatic clutch is set up on the transmission between the vice-engine and the fan, which can ensure the automatic separation of the vice-engine from the fan when the vice-engine startup or shutdown. Also simplified the operation, reduced the impact on vice-engine and improved the reliability and service life of vice-engine.
---The sweeping disk has the protection function and automatic reset function, which can avoid obstacles automatically and return automatically
---Three positions of disk brush rotation speed (I. E. HIGH, MID and LOW) are provided for various road conditions to ensure the optimal cleaning effect.
China 5m3 road sweeper manufacturer | ||
General | Vehicle brand | Dong run ze |
Chassis brand | Dongfeng | |
Overall dimension | 6210 x 2050 x 2540 mm | |
GVW / Kerb Weight | 7300 kg / 4990 kg | |
Cab | Cab capacity | 2 persons allowed |
Air conditioner | Can be equipped as required | |
Engine | Fuel type | diesel |
Engine brand | Chaochai | |
Power | 100Ps (75kw) | |
Displacement | 3707ml | |
Emission standard | Euro 3 | |
chassis | Drive type | 4x2, left hand drive or right hand drive |
Transmission | 5 forward gears and 1 reverse | |
Wheelbase /No. of axle | 3300mm / 2 | |
Tyre number | 6 tyres and 1 spare tyre | |
Max speed | 99 km/h | |
Paint | metallic paint | |
Upper structure | Dustbin cpacity | 4000 liters (about 1056 gallons) |
Dustbin material | Stainless steel | |
Water tank capacity | 1500 liters (about 396 gallons) | |
Sweeping speed | 3-15 km/h | |
Max sweeping width | 3200mm | |
Brooms | 2 sets at each side, at diameter 900 mm | |
Auxiliary engine | JMC engine,77HP(57KW) | |
All standard accessories: warning lights, music alarm, basic toll kit, english manual | ||
Optional | Backup alarm can be equipped. Camera can be equipped. Air blower can be stainless steel | |
Dongfeng street cleaning truck vacuum street sweeper | ||
General | Vehicle brand | Dong run ze |
Chassis brand | Dongfeng | |
Overall dimension | 6210 x 2050 x 2540 mm | |
GVW / Kerb Weight | 7300 kg / 4990 kg | |
Cab | Cab capacity | 2 persons allowed |
Air conditioner | Can be equipped as required | |
Engine | Fuel type | diesel |
Engine brand | Chaochai | |
Power | 108Ps (80kw) | |
Displacement | 3707ml | |
Emission standard | Euro 3 | |
chassis | Drive type | 4x2, left hand drive or right hand drive |
Transmission | 5 forward gears and 1 reverse | |
Wheelbase /No. of axle | 3800mm / 2 | |
Tyre number | 6 tyres and 1 spare tyre | |
Max speed | 99 km/h | |
Paint | metallic paint | |
Upper structure | Dustbin cpacity | 4000 liters (about 1056 gallons) |
Dustbin material | Stainless steel | |
Water tank capacity | 1500 liters (about 396 gallons) | |
Sweeping speed | 3-15 km/h | |
Max sweeping width | 3200mm | |
Brooms | 2 sets at each side, at diameter 900 mm | |
Auxiliary engine | JMC engine,77HP(57KW) | |
All standard accessories: warning lights, music alarm, basic toll kit, english manual | ||
Optional | Backup alarm can be equipped. Camera can be equipped. Air blower can be stainless steel | |

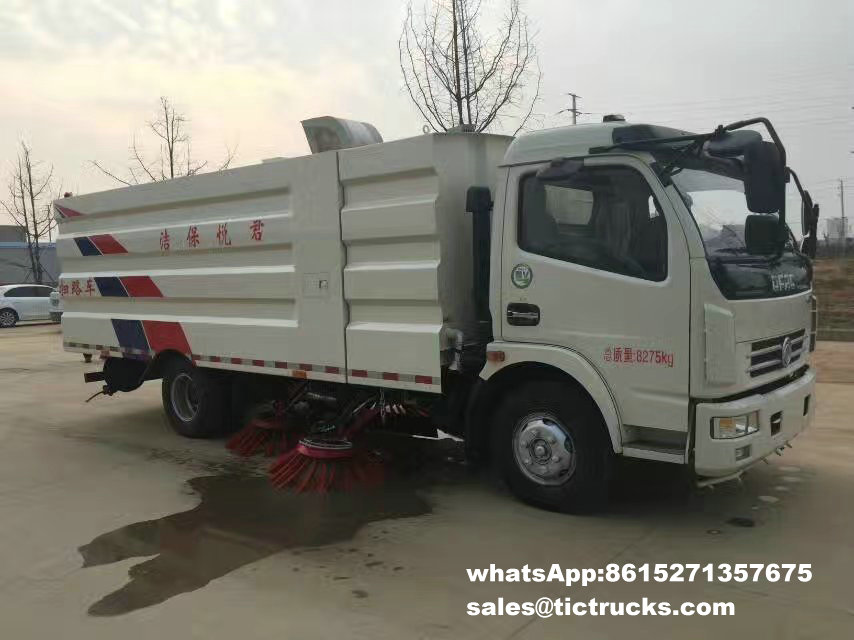

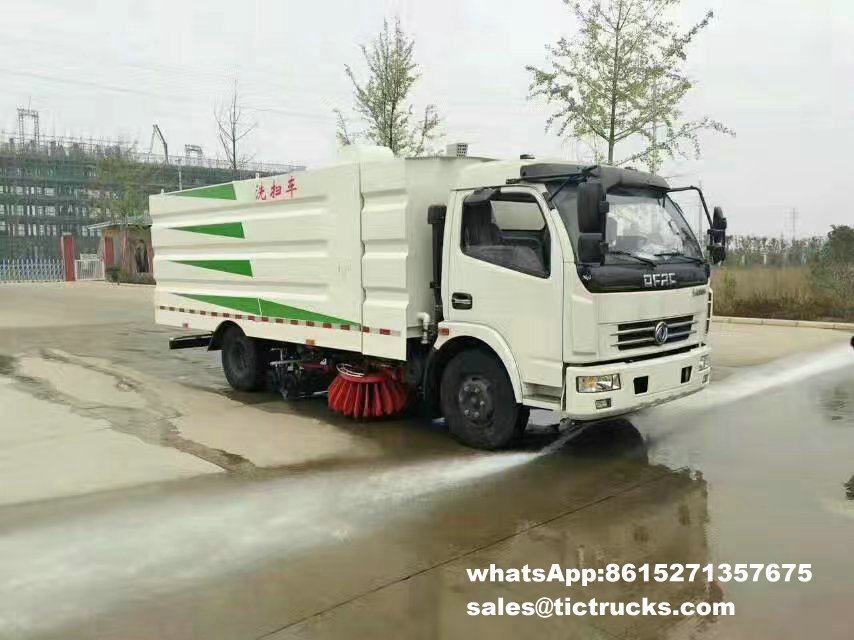

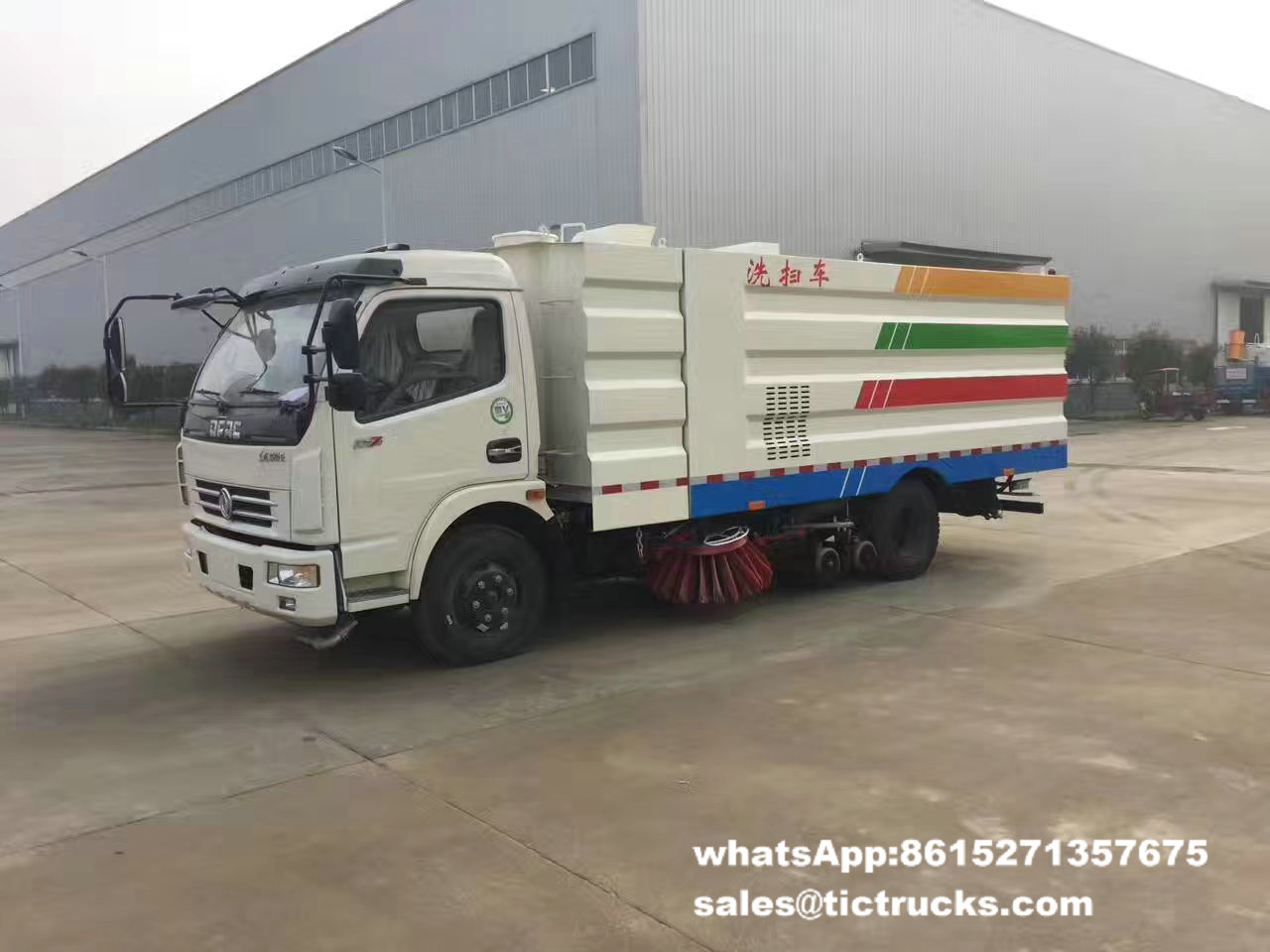

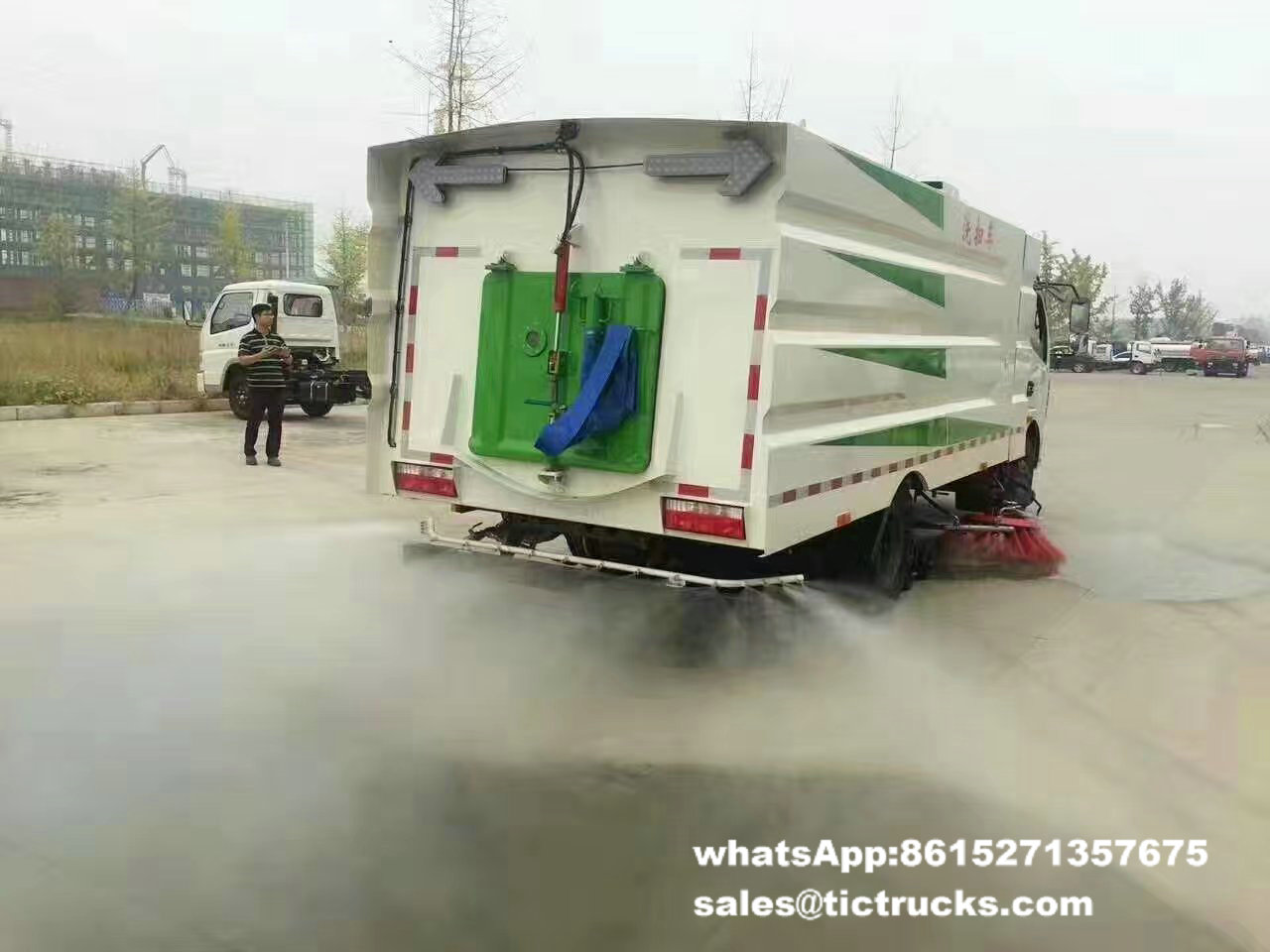

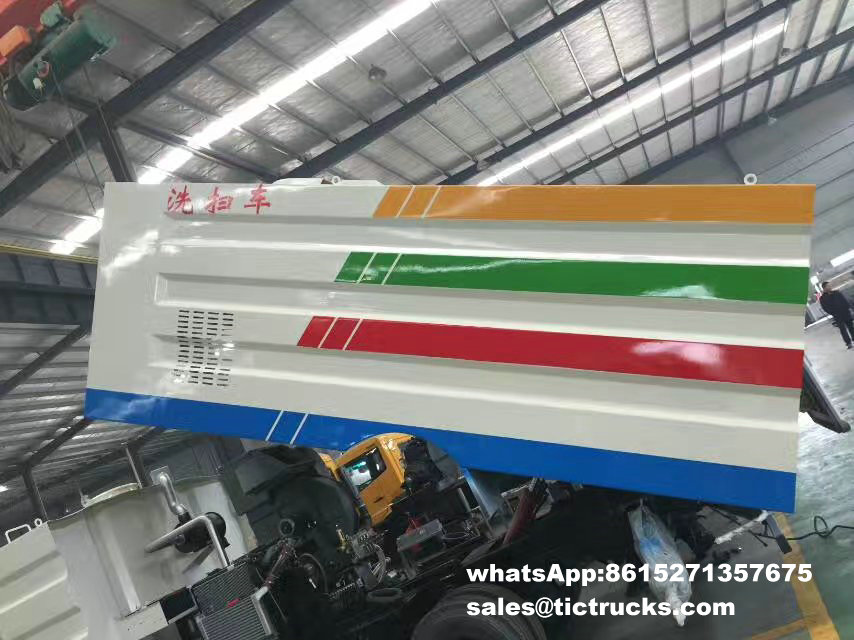

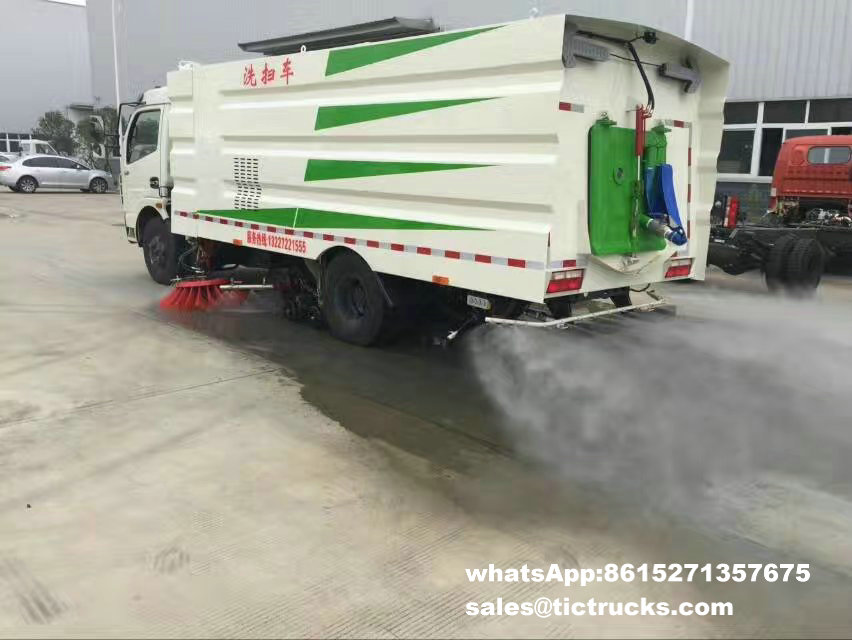

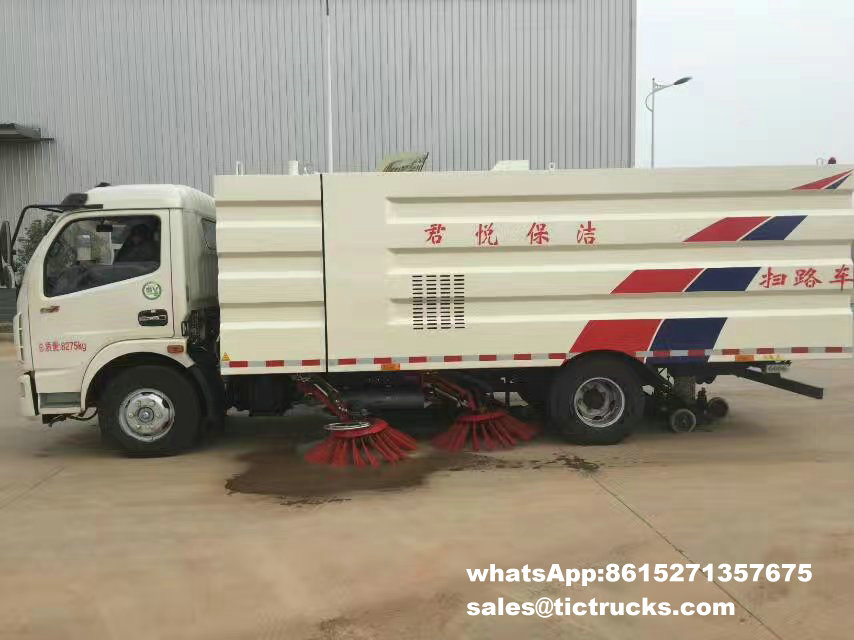

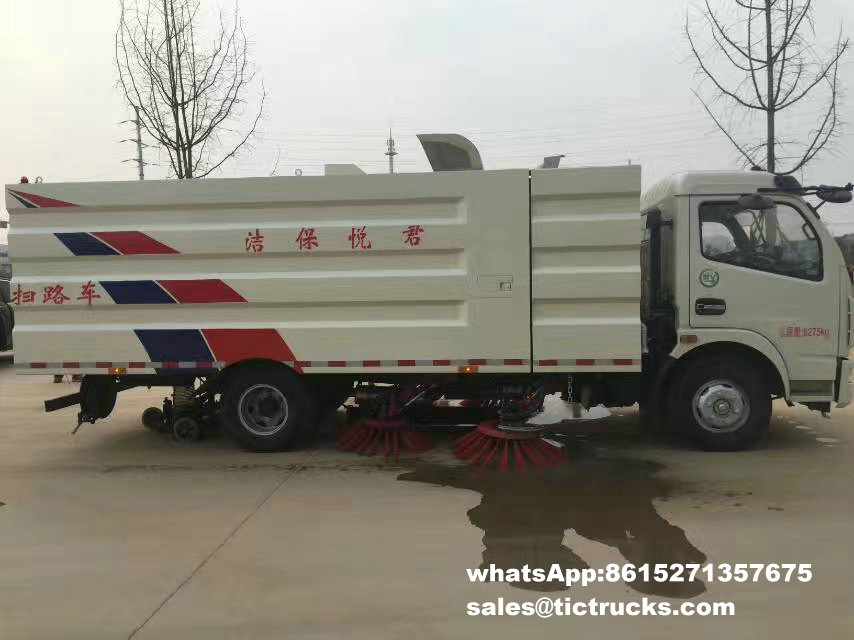

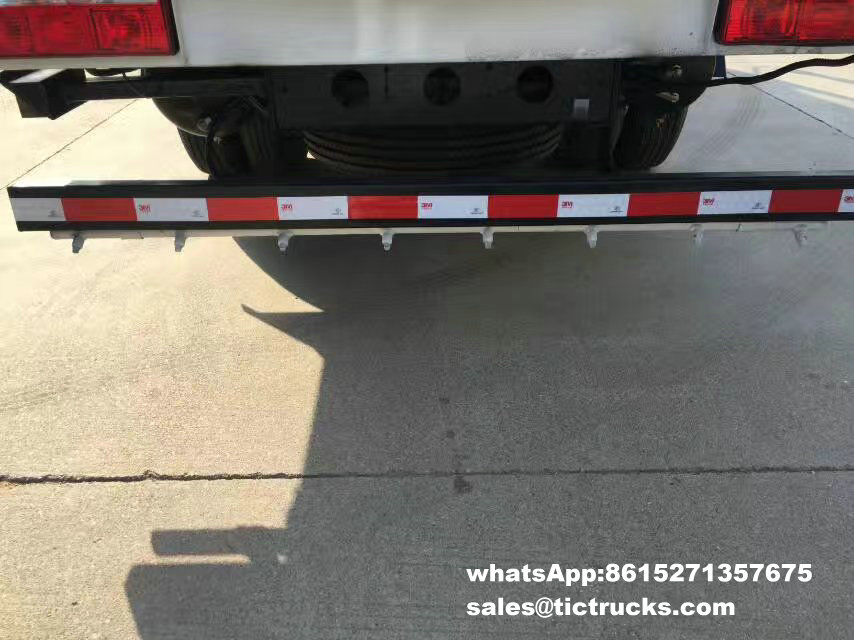

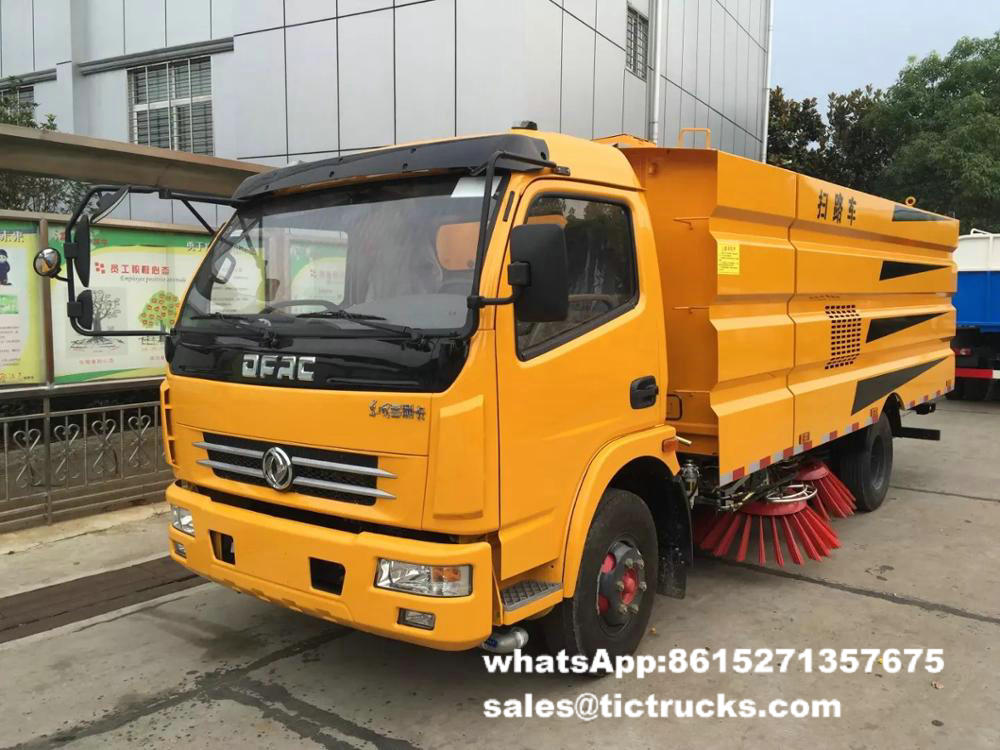

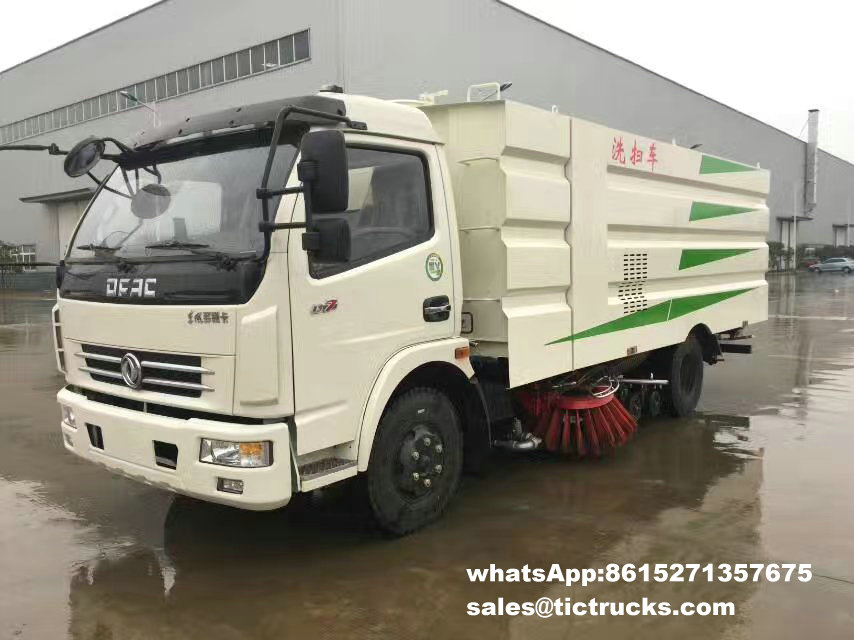

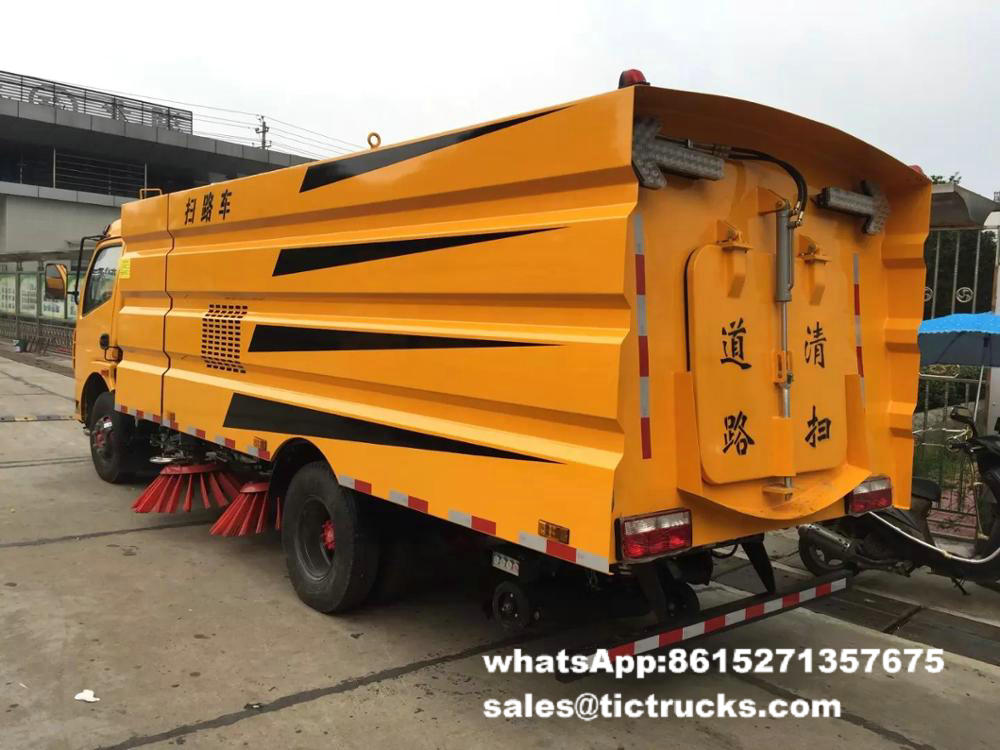

Dongfeng street cleaning truck pictures
