Dongfeng road sweeper truck 6x4 deavy duty

Views: 1848     Author: Dong Runze Special Vehicle     Publish Time: 2017-08-17      Origin: Dongfeng road sweeper truck

Dongfeng road sweeper truck 6x4 deavy duty


6x4 Kinland 12cbm dust tank and 10cbm water tank heavy vacuum road sweeper

US $77,000-82,000 / Set

Whole Sweeping Process can be finished by one Driver inside the Cab through the Control Panel.



Centrifugal Fan is the Key Part of the Whole Truck, Driven by the Engine to Revolve in High Speed to Suck the Air inside the Dust Tank. Negative Pressure is formed to suck the Garbage through the Suction Panel.

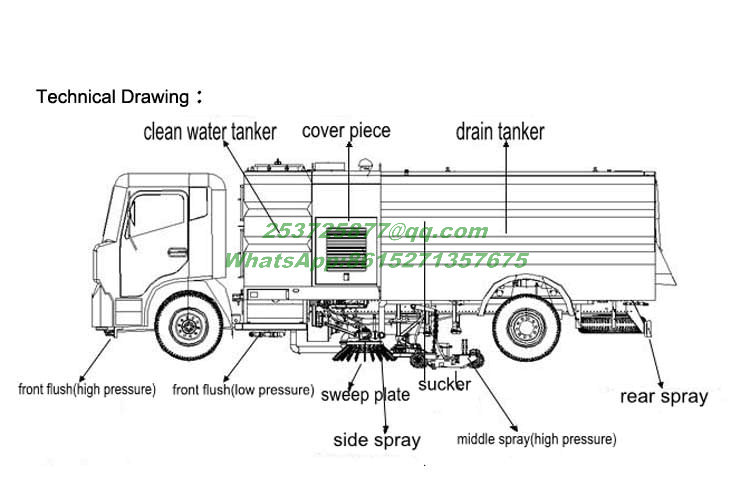

dongfeng road sweeper -15200liter_1.jpg

6x4 Road Sweeper, Wholesale Various High Quality 6x4 Road Sweeper Products from Global 6x4Road Sweeper Suppliers and 6x4 Road Sweeper Factory

The Sweeping Brushes Has the Automatic Obstacle Evasion and Restoration Functions. The Brushes will automatically Draw Back when Encounter Obstacles and Return to Working Status after Crossing the Obstacles. The Revolving Speed of Brushes Can be Adjusted. The Sweeping Width is 3.5M

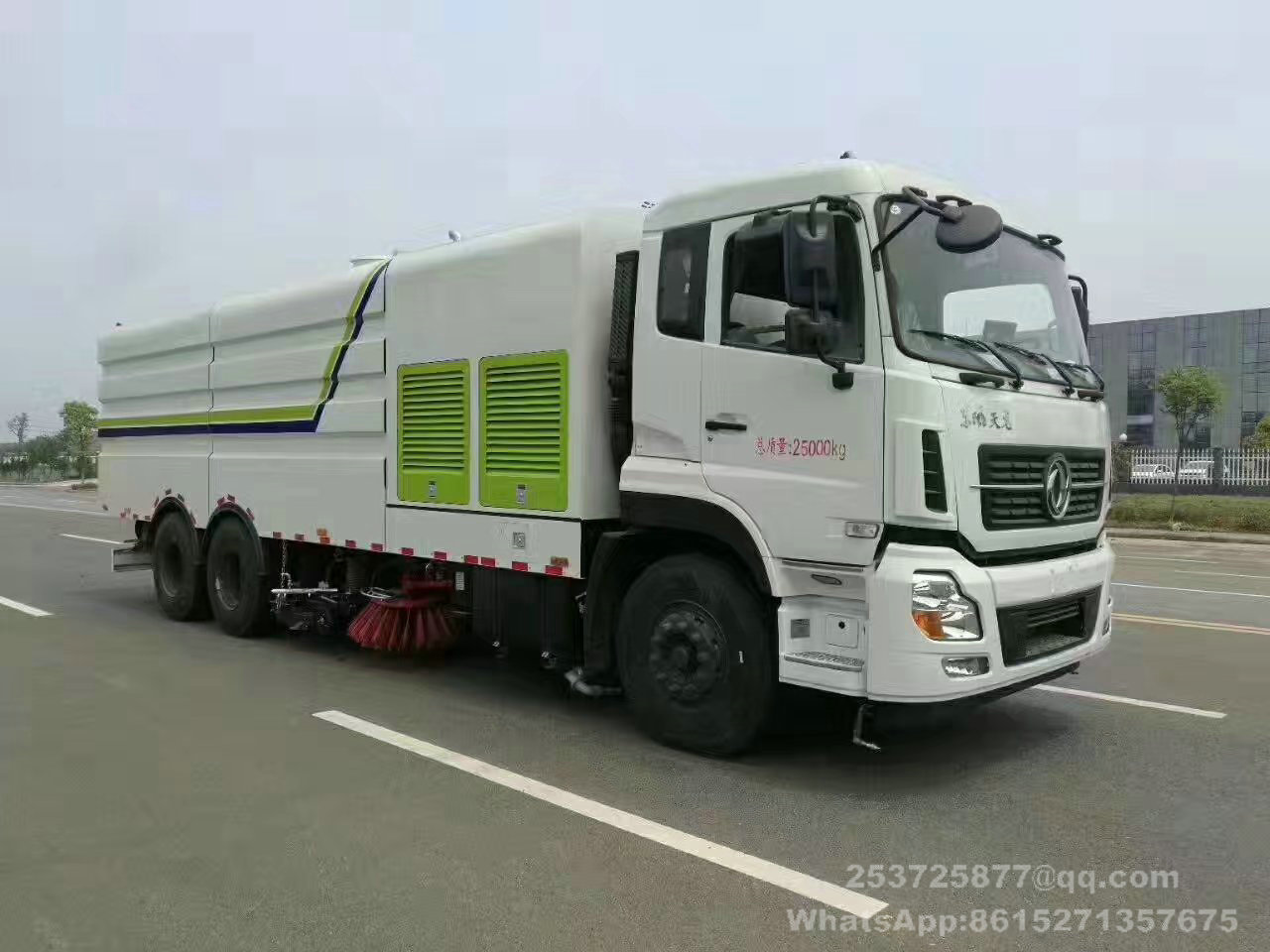

 dongfeng road sweeper-15700liter_1.jpg


6x4 Kinland 12cbm dust tank and 10cbm water tank heavy vacuum road sweeper

Assistant Cummins Engine is used to drive the Fan and Hydraulic System for the Continuity of Cleaning during Driving. Transmission between the Assistant Engine and the Fan is of Automatic Clutch for the Operational Reliability and Longer Service Life of the Engine.

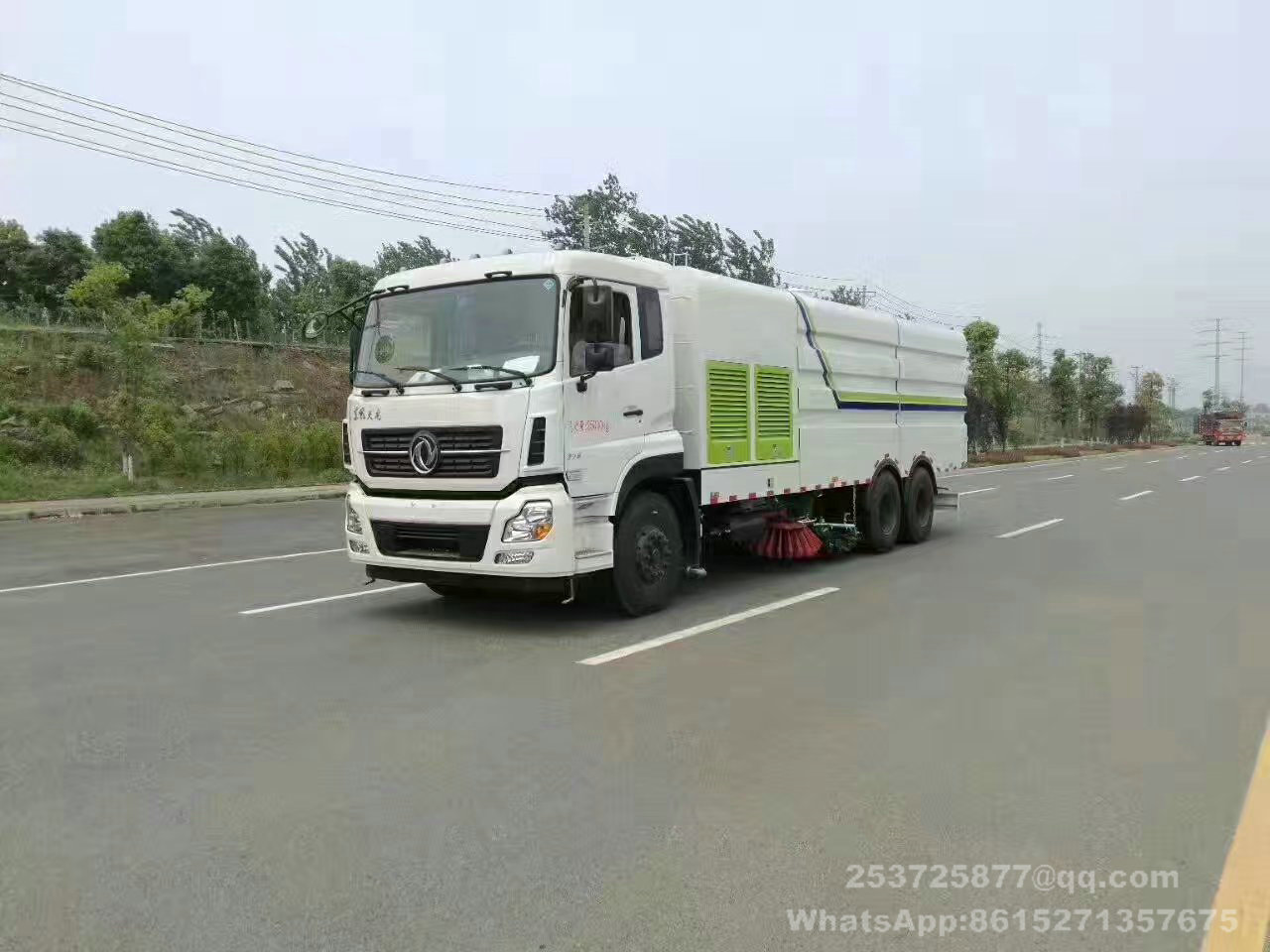

 dongfeng road sweeper-15800liter_1.jpg

The Dedusting System includes Three Parts: Sprinkler Devices above the Round Brush, Spraying Nozzle inside the Suction Plate, and the Round Misting Device inside the Dust Tank.

DFAC 6x4 245hp 16cbm street cleaning road sweeper truck for sale

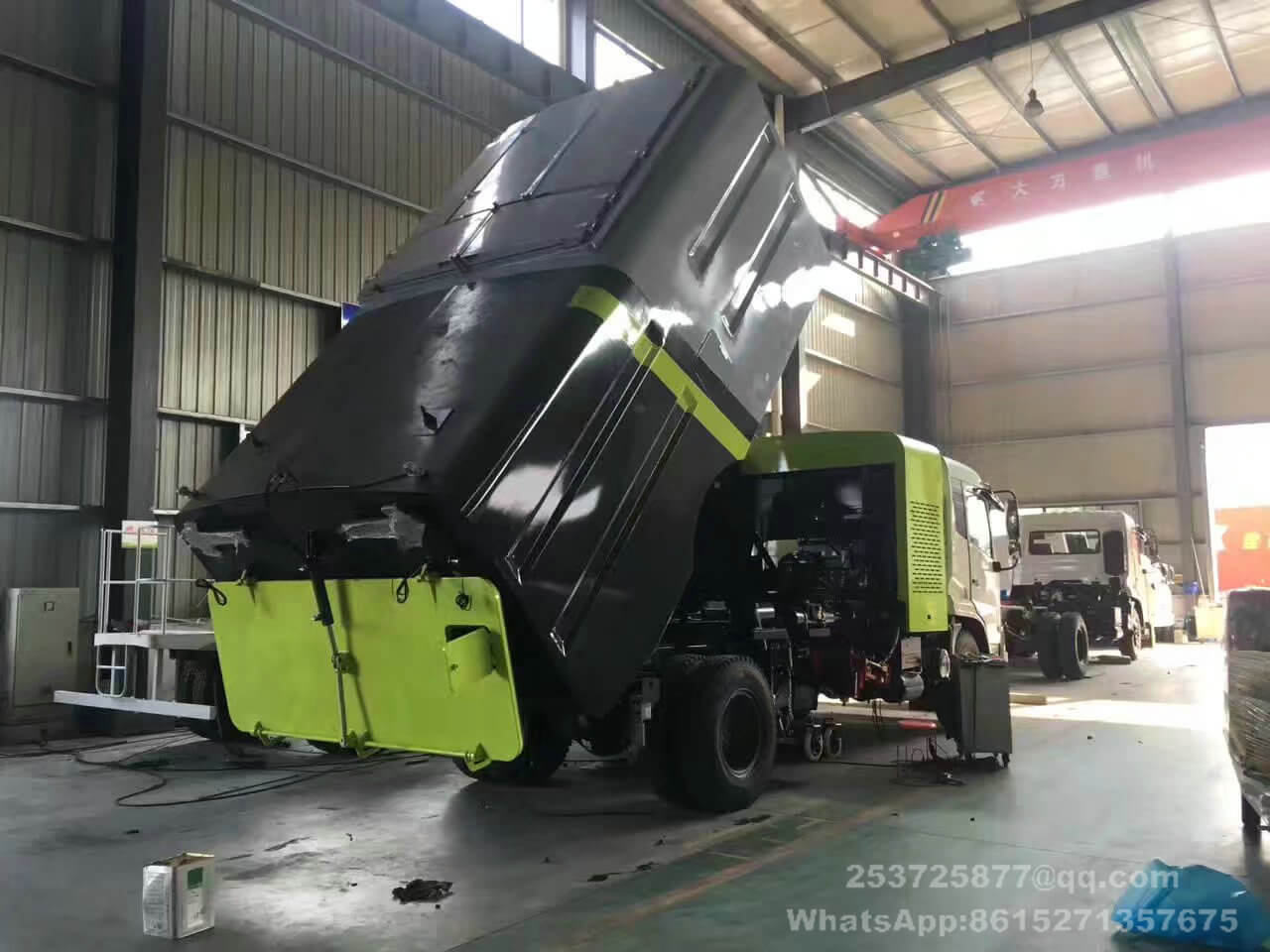

dongfeng road sweeper-16100liter_1.jpeg

The Hydraulic System is for Dumping the Dusts and Garbage, including hydraulic pump, hydro cylinder, overflow valve, throttle valve, hydraulic control one-way valve, balance valve, pressure retaining valve, reversing valve, handlance, hydraulic oil tank, oil hose, etc.

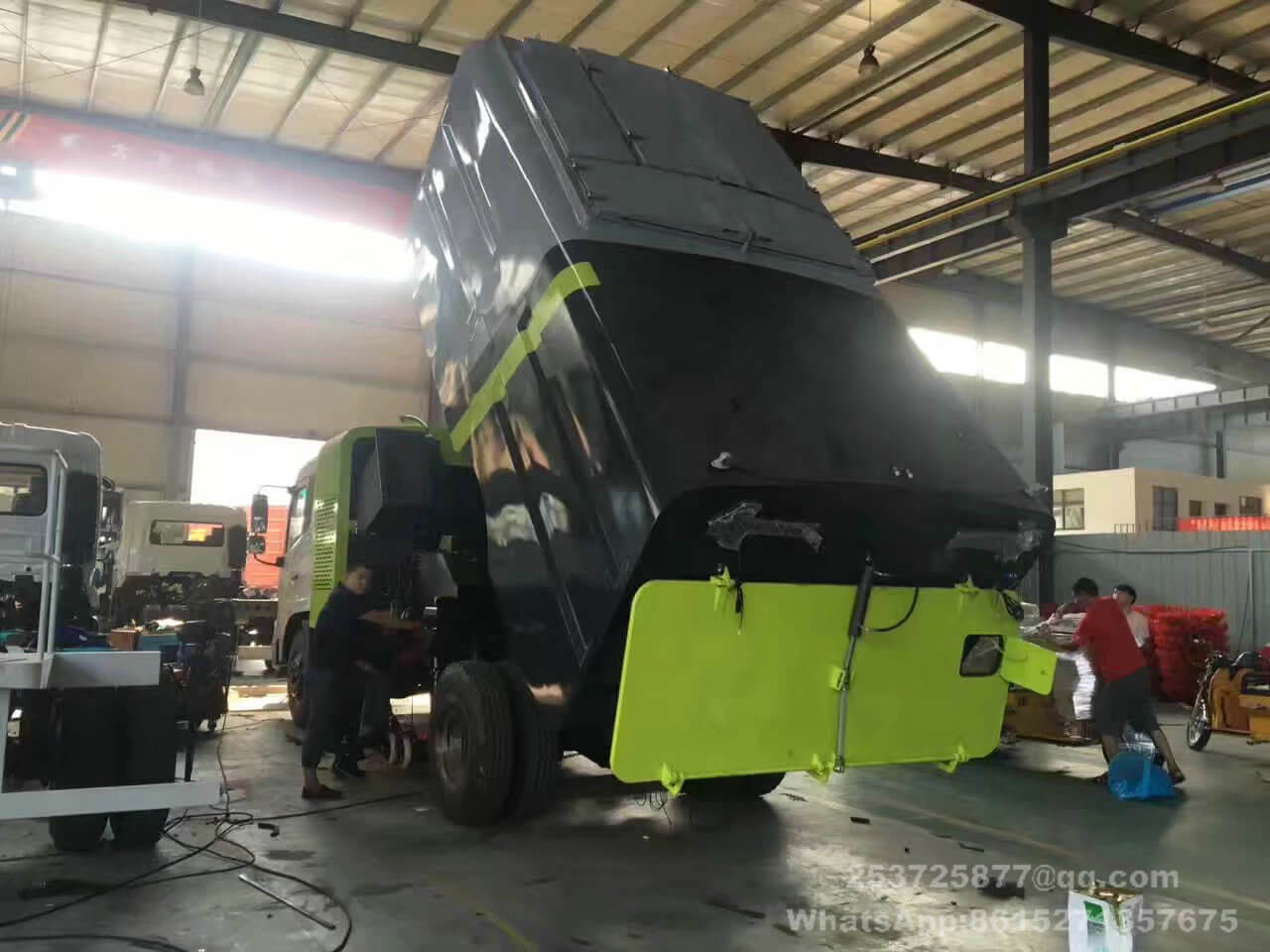

 dongfeng road sweeper-16000liter_1.jpeg

The Volume of the Hydraulic Oil Tank is 60L and the Oil Return and Filter Function is available.

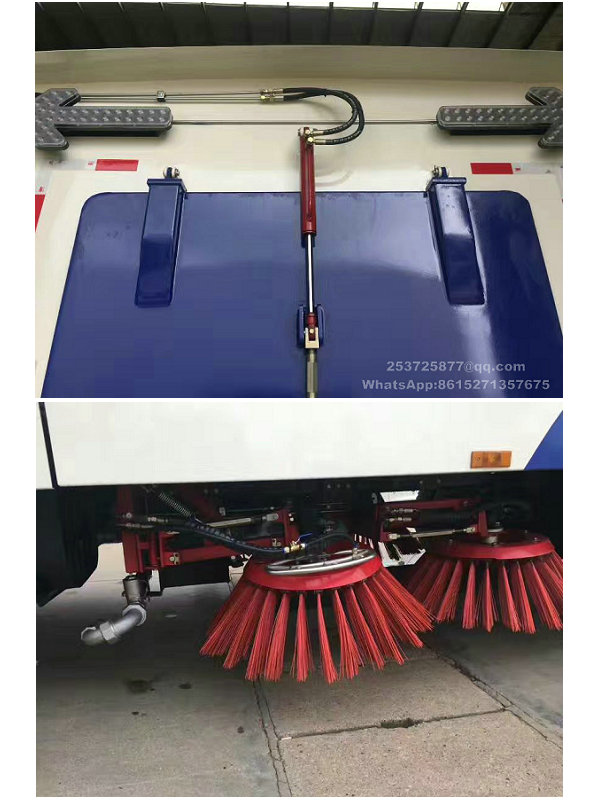

 dongfeng road sweeper- 15200liter.jpg

The main parts of the sweeper truck are of engine, draught fan, suction nozzle, sweeper brushes, control panel, hydraulic system, etc.

For the road cleaning equipment, we could provide the sweeper truck, pressure washer truck, vacuum truck, washer and sweeper truck, etc.
