Dongfeng kingrun vacuum road sweeper
Views: 1721 Author: Dong Runze Special Vehicle Publish Time: 2017-06-15 Origin: Dong Runze Special Vehicle
Dongfeng Kingrun 4x2 180hp brush sweeper street cleaning vehicle
4x2 Kingrun 10700 liter broom sweepers truck
Whole Sweeping Process can be finished by one Driver inside the Cab through the Control Panel.
Centrifugal Fan is the Key Part of the Whole Truck, Driven by the Engine to Revolve in High Speed to Suck the Air inside the Dust Tank. Negative Pressure is formed to suck the Garbage through the Suction Panel.

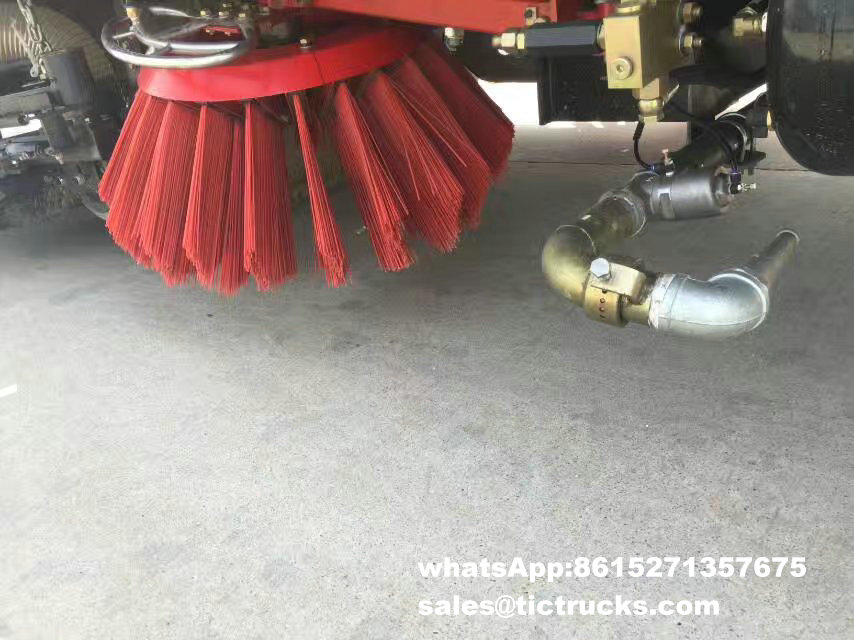

The Sweeping Brushes Has the Automatic Obstacle Evasion and Restoration Functions. The Brushes will automatically Draw Back when Encounter Obstacles and Return to Working Status after Crossing the Obstacles. The Revolving Speed of Brushes Can be Adjusted. The Sweeping Width is 3.5M
Assistant Cummins Engine is used to drive the Fan and Hydraulic System for the Continuity of Cleaning during Driving. Transmission between the Assistant Engine and the Fan is of Automatic Clutch for the Operational Reliability and Longer Service Life of the Engine.

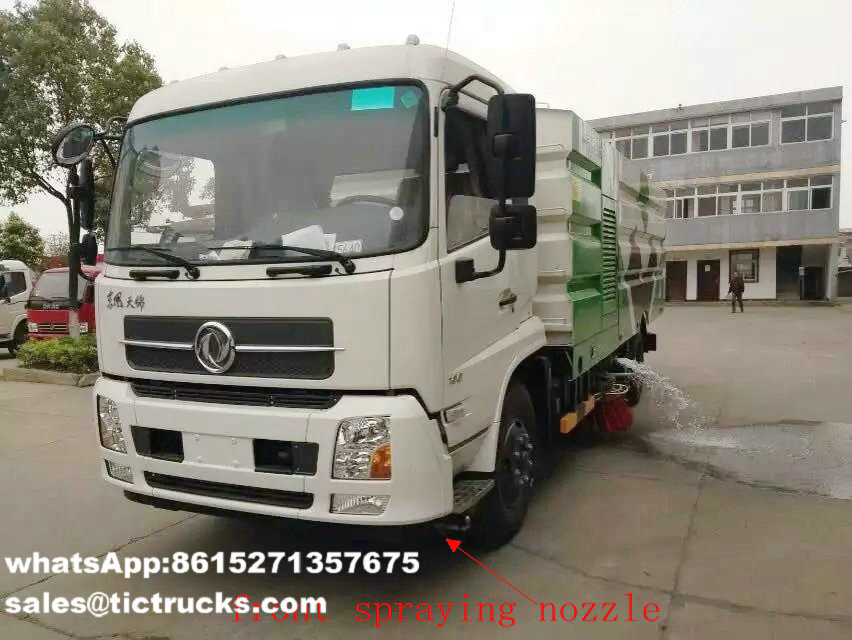

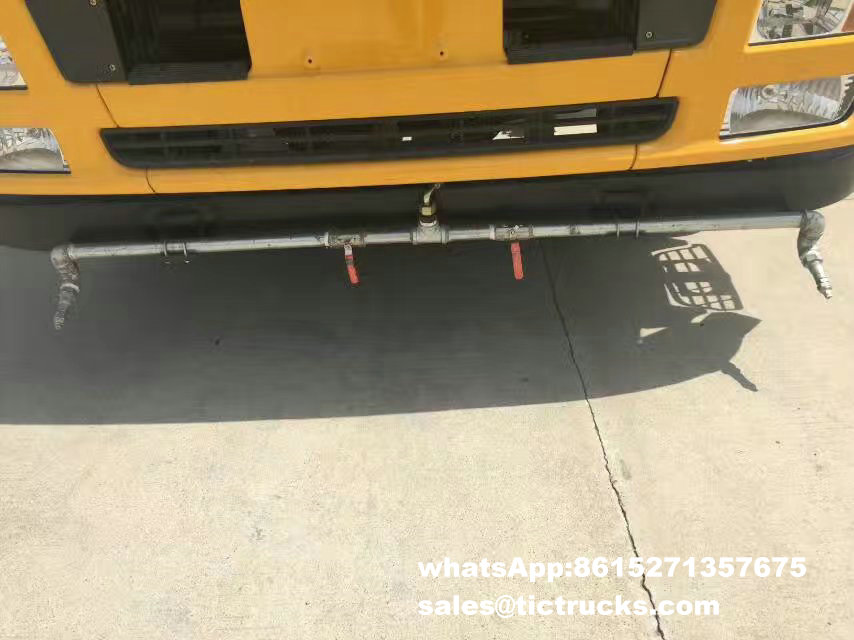

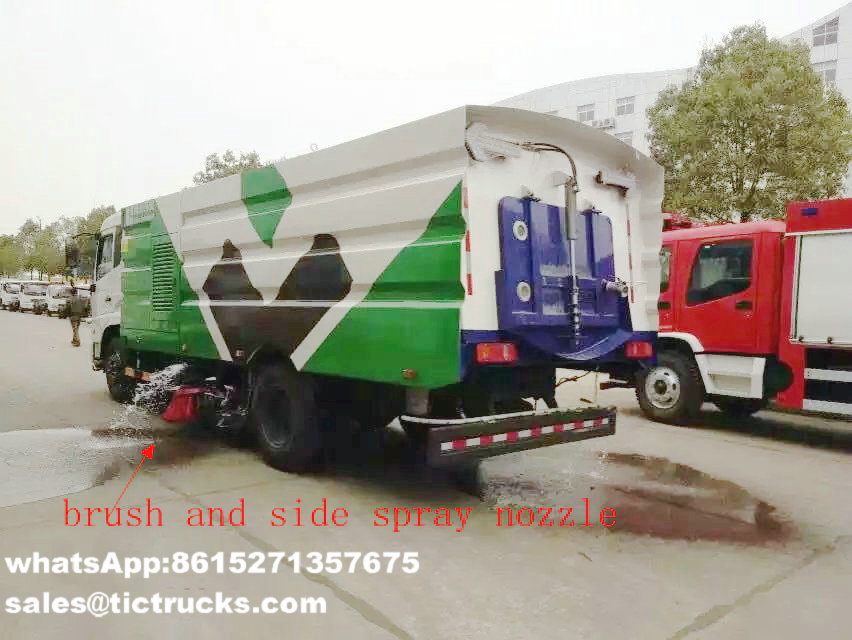

The Dedusting System includes Three Parts: Sprinkler Devices above the Round Brush, Spraying Nozzle inside the Suction Plate, and the Round Misting Device inside the Dust Tank.

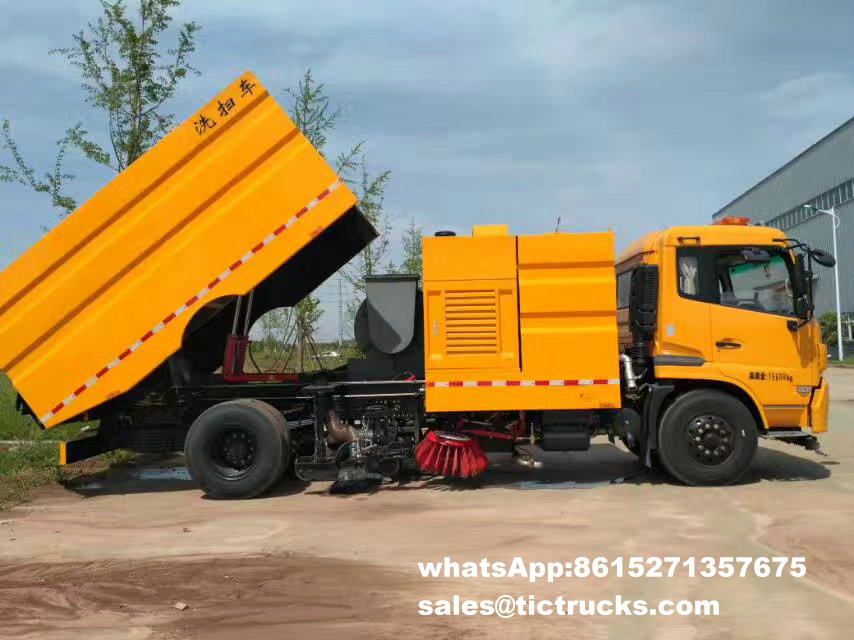

The Hydraulic System is for Dumping the Dusts and Garbage, including hydraulic pump, hydro cylinder, overflow valve, throttle valve, hydraulic control one-way valve, balance valve, pressure retaining valve, reversing valve, handlance, hydraulic oil tank, oil hose, etc.

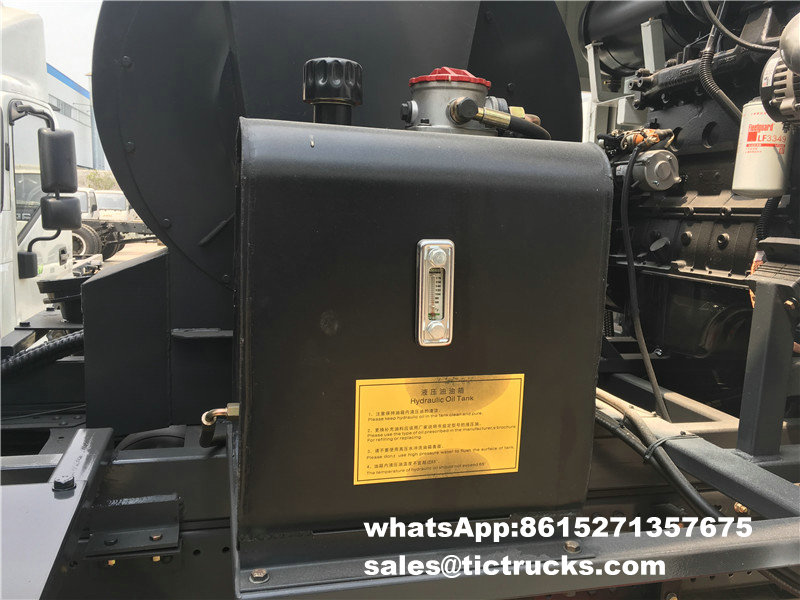

The Volume of the Hydraulic Oil Tank is 60L and the Oil Return and Filter Function is available.
The main parts of the sweeper truck are of engine, draught fan, suction nozzle, sweeper brushes, control panel, hydraulic system, etc.
Dongfeng Kingrun vacuum road sweeper
Dongfeng Kingrun vacuum road sweeper | ||
General | Vehicle brand | DRZ |
Chassis brand | Dongfeng | |
Overall dimension | 8210 x 2500 x 2940 mm | |
GVW / Kerb Weight | 16000 kg / 10990 kg | |
Cab | Cab capacity | 3 persons allowed |
Air conditioner | Can be equipped as required | |
Engine | Fuel type | diesel |
Engine brand | Chaochai | |
Power | 170Ps (125kw) | |
Displacement | 5900ml | |
Emission standard | Euro 3 | |
chassis | Drive type | 4x2, left hand drive or right hand drive |
Transmission | 5 forward gears and 1 reverse | |
Wheelbase /No. of axle | 4200mm / 2 | |
Tyre number | 6 tyres and 1 spare tyre | |
Max speed | 99 km/h | |
Paint | Metallic paint | |
Upper structure | Dustbin cpacity | 6000 liters (about 1056 gallons) |
Dustbin material | Stainless steel | |
Water tank capacity | 2000 liters | |
Sweeping speed | 3-15 km/h | |
Max sweeping width | 3200mm | |
Brooms | 2 sets at each side, at diameter 900 mm | |
Auxiliary engine | JMC engine,77HP(57KW) | |
All standard accessories: warning lights, music alarm, basic toll kit, english manual | ||
Optional | Backup alarm can be equipped. Camera can be equipped. Air blower can be stainless steel | |
Features:
---It adopts the way of suction and sweeping combination, wet dust removal, electro-hydraulic control and hydraulic dumping unloading to clean the road. Road Sweeper
---Use the vice-engine to drive the fan and other device.
---With the structure of four MID-mounted disk brushes and one rear-mounted suction nozzle, which provide a large sweeping width, high sweeping efficiency and good traffic ability. Also convenient for adjustment and maintenance of sweeper device and nozzle
---An automatic clutch is set up on the transmission between the vice-engine and the fan, which can ensure the automatic separation of the vice-engine from the fan when the vice-engine startup or shutdown. Also simplified the operation, reduced the impact on vice-engine and improved the reliability and service life of vice-engine.
---The sweeping disk has the protection function and automatic reset function, which can avoid obstacles automatically and return automatically
---Three positions of disk brush rotation speed (I. E. HIGH, MID and LOW) are provided for various road conditions to ensure the optimal cleaning effect.
Sweeepr truck have these type: Road sweeping, road flushing, multi-angle slush flushing, separation zone cleaning, freeway guard rail flushing,spraying, moistening and dust containing, high pressure water gun for car cleaning/low flat flushing with strong water flow, road sprinkling and flower watering from both sides and so on.
DONGFENG Kingrun 6m3 Road Sweeper 210HP for Sale
| |||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| |||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| |||
|
|
|
|
|
|
|
|
|
|
|
|
| |||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| ||
2.sweeper truck special functions:
1).Sweeper truck Main function is sweeping and cleaning the road and façade cleaning. Low pressure cleaning can be used together with spray dust truck.
2).One-click intelligent electricity control system: all operation are controlled only by one same button. It is convenient to operate so it decreases the possibility of wrong operation.
3).sweeper truck system have 6 operation style: total sweep and clean, left sweep and clean, right sweep and clean, total sweep, left sweep, right sweep.
4). Sweeper truck Several settings for automatic protection: ensure the truck out of damage under the special circumstance such as no water or full water or wrong operation.
3.sweeper truck specification: street cleaning vehicle
Sweeper truck specification | |
truck name and model | Sweeper truck with brush |
chassis model | Dongfeng kingrun |
Drive type | Right hand drive or Left hand drive |
Overall dimension(mm) | 8570*2500*2400 |
vice-fan engine model | JX493Q1-200 (34KW 46HP) |
max. Speed | 95KM/H |
Min . speed | 2.20KM/H |
technical parameters | |
Max cleaning width (mm) | 2800 |
Max cleaning capacity (m2/h) | 42000 |
(PM 10)Cleaning efficiency | 95% |
Max cleaning speed (km/h) | 15 |
Max tipping angle (°) | 45° |
Max suction granularity (mm) | 50 |
Water tank capacity (L) | 5000 |
Garbage tank capacity (L) | 9000 |
Equipment | vehicle-specific set feature of sweeping, cleaning, watering in one, and the operation is simple. Sweep width: 2000 mm, cleaning capacity: 40000m2 / h, cleaning speed: 3-20km/h,Cleaning Efficiency: 90%; maximum inhalation size: 120mm; nozzle minimum ground clearance: 200mm Sweeping vehicle with brush 4, bellows |
Work principle | Install four rotating brushes, when the vehicle forward the rubbish and sand will be brought by rotating brushes to the in the middle of the vehicle, with the use of the vacuum suction head ,the rubbish and sand pumping into the waste collection tank in the box.
Installed a rubbish bin (containing water tank), install an engine as a power source, equipped with twin hydraulic pumps, hydraulic control systems, hydraulic actuator, respectively, to make the driven fans, sweeping brushes, suction cups, pumps, bins and so on to work |

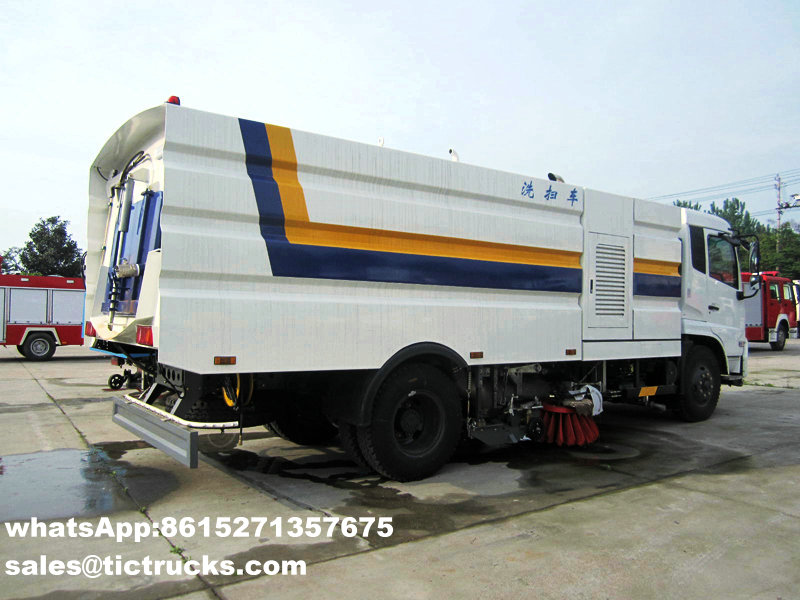

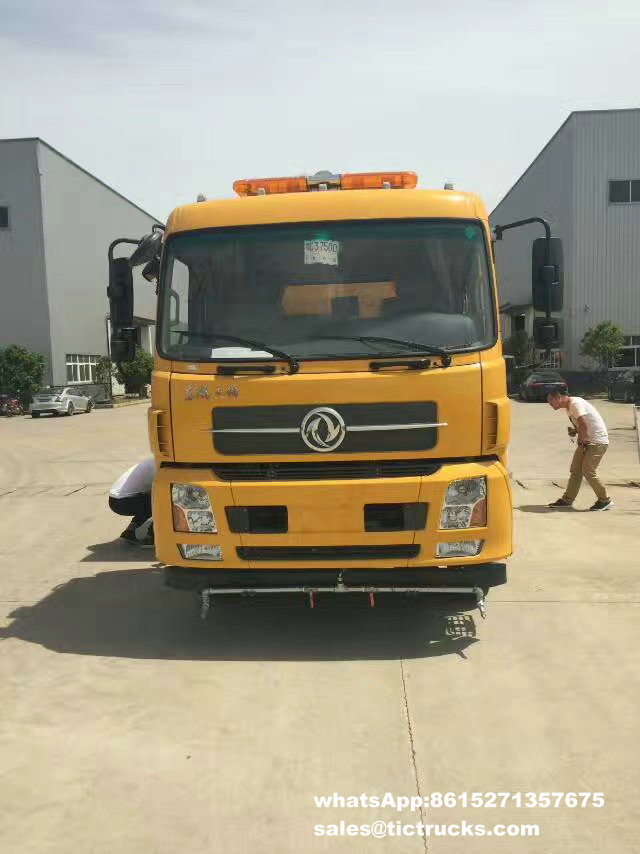

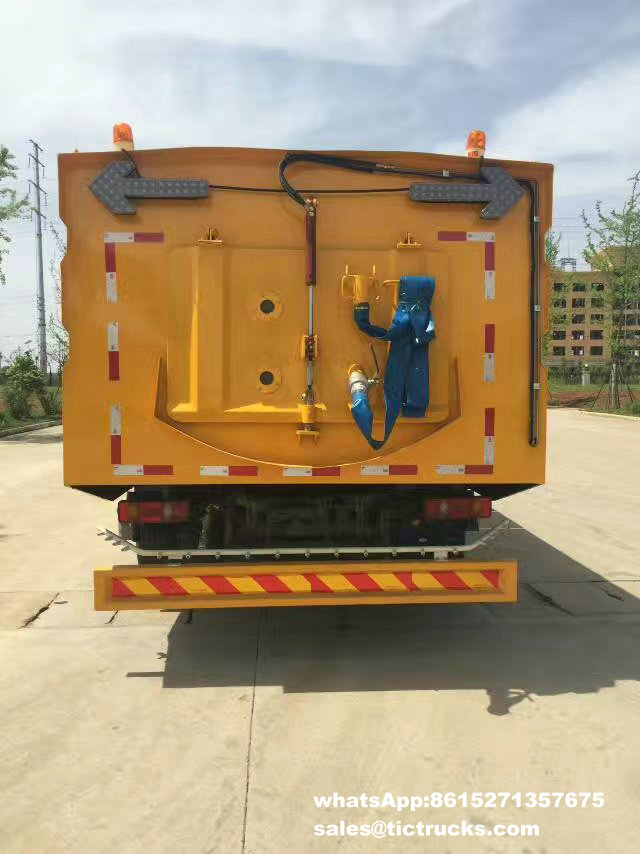

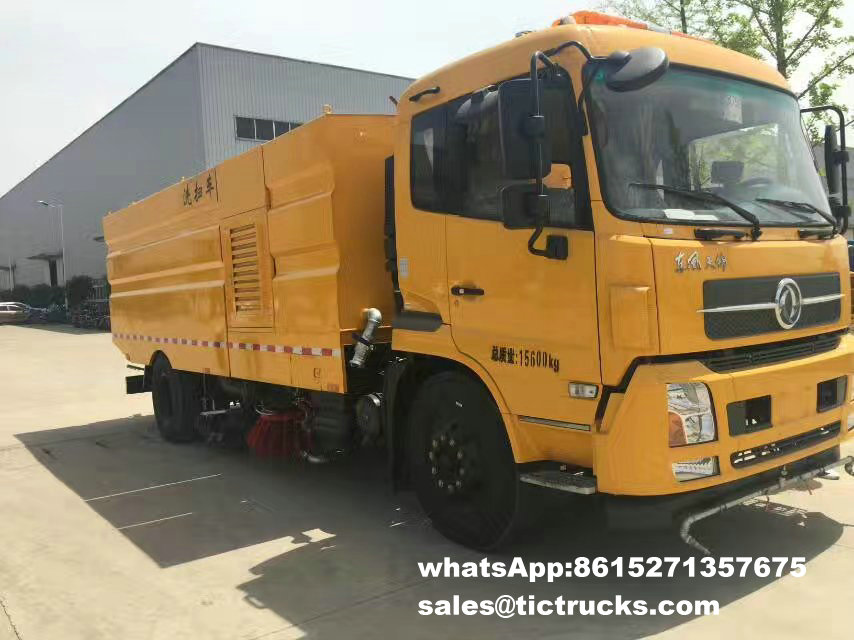

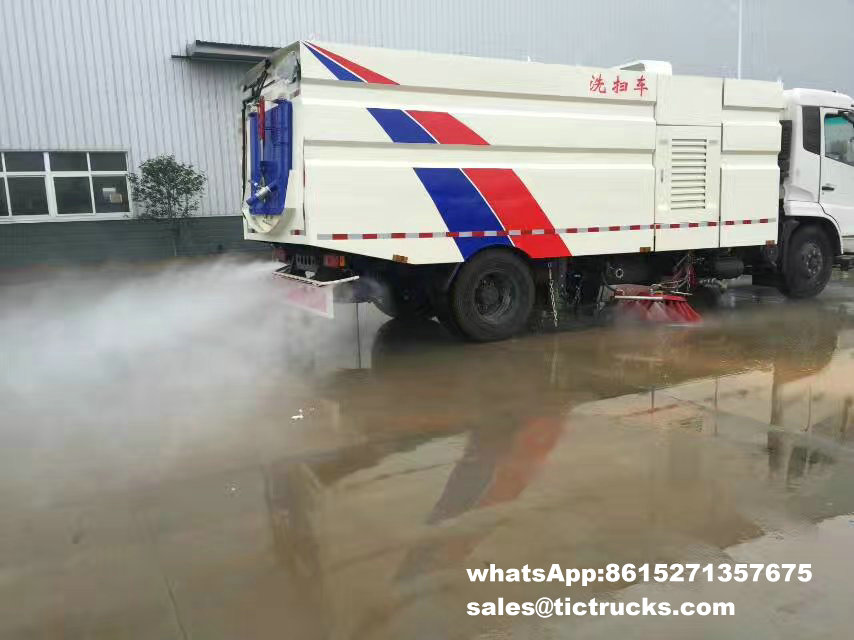

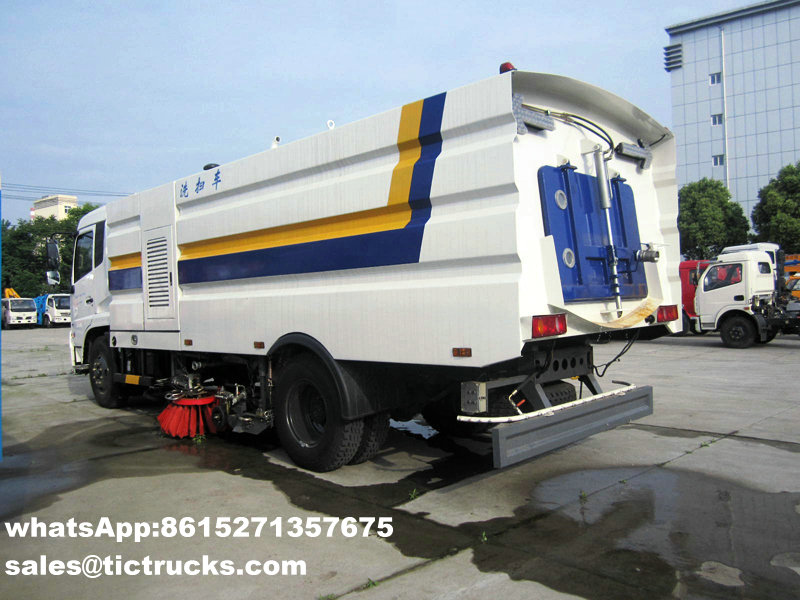

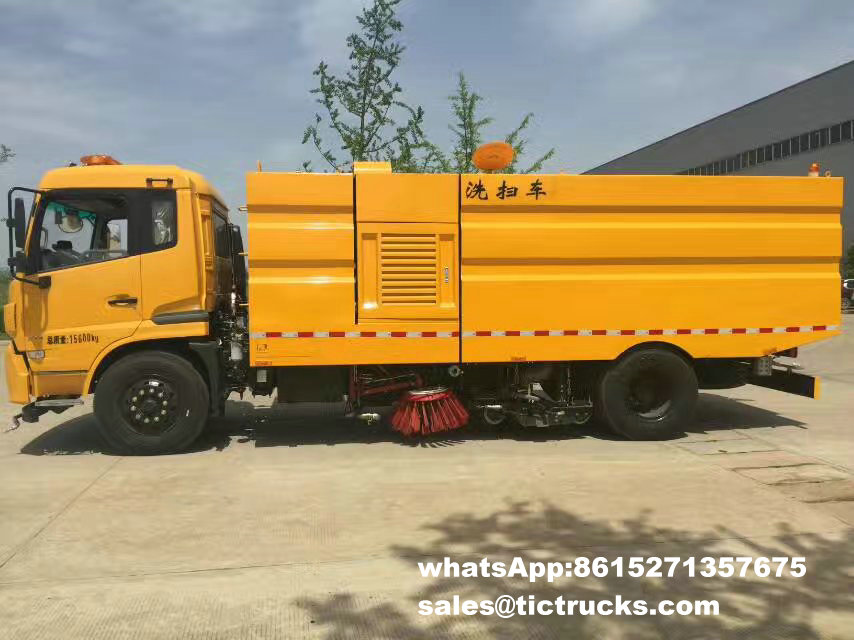

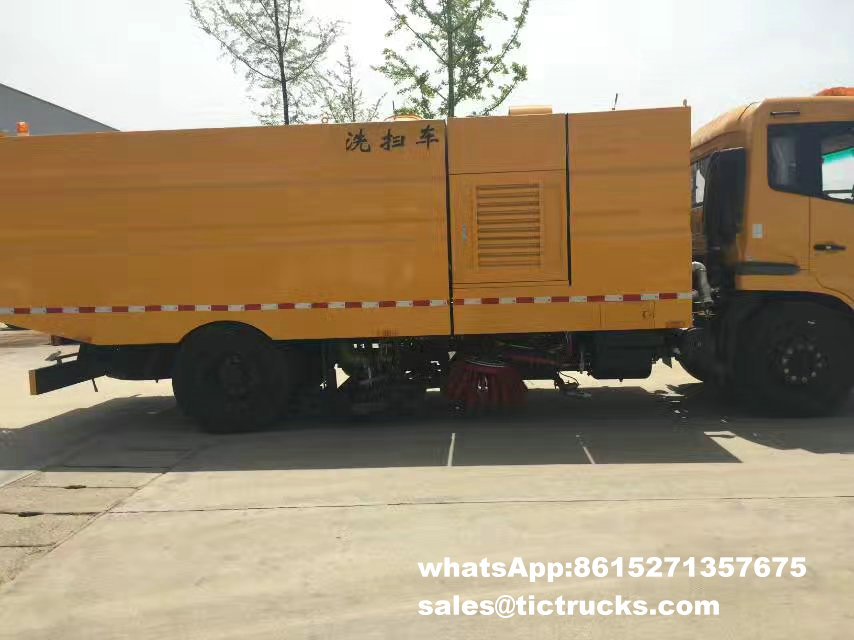

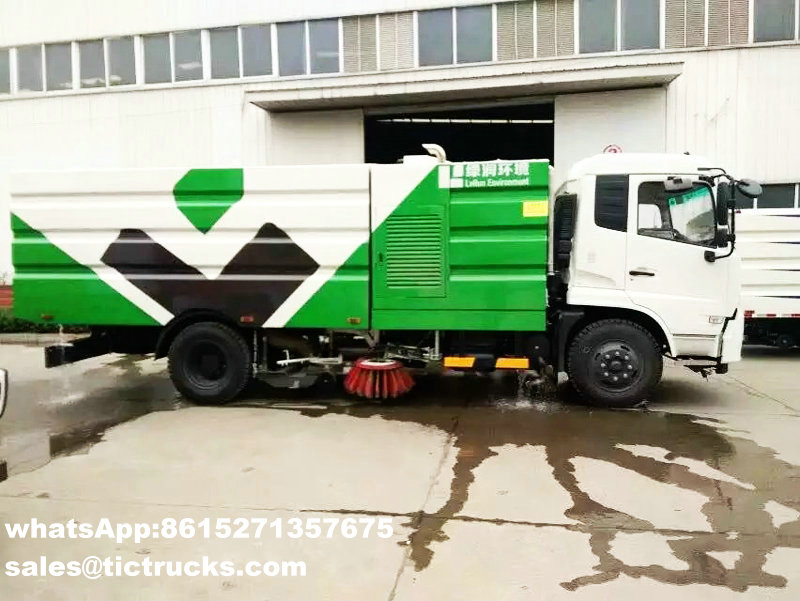

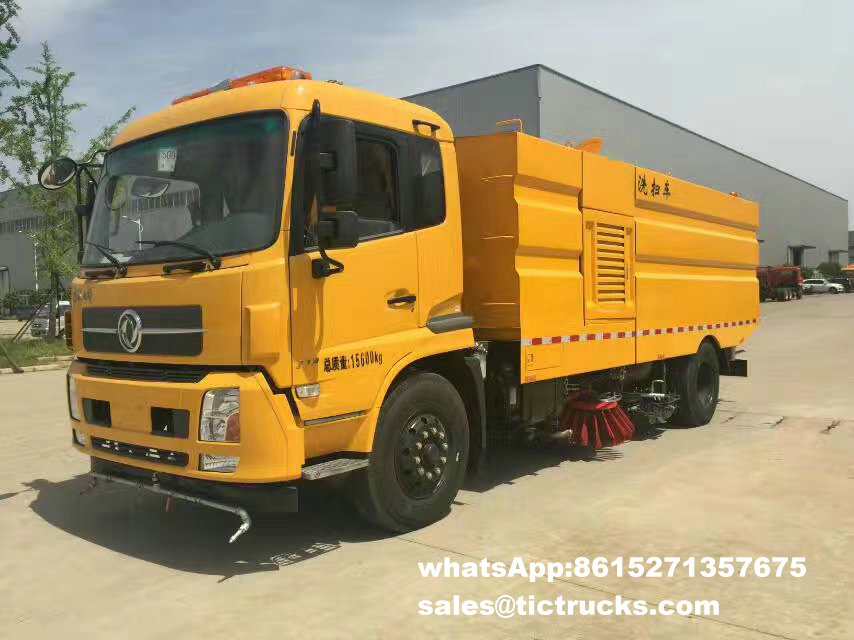

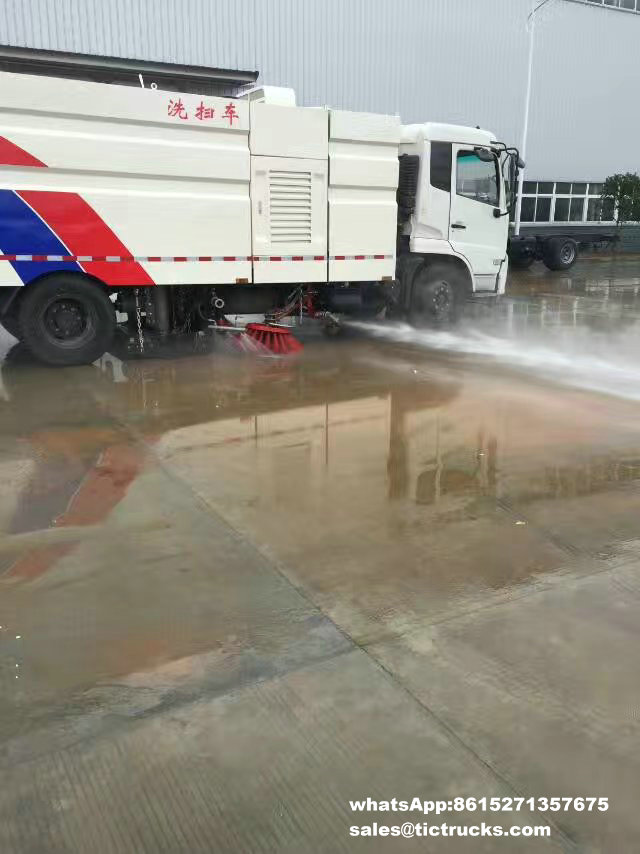

4. sweeper truck details picture show:
