Dongfeng 6x6 All wheel drive oil tanker truck 8000-16000L Sale

Views: 1117     Author: Dong Runze Special Vehicle     Publish Time: 2017-11-09      Origin: Dong Runze Special Vehicle

 Dongfeng 6x6 All wheel drive oil tanker truck 8000-16000L Sale

 Dongfeng 6x6 All wheel drive oil tanker truck 8000-16000L Sale

All wheel drive Dongfeng 6x6 oil tank truck made in China

6X6 Army off Road Desert All Wheel Drive 6wd Refuel Truck Dongfeng 8000-16000L Fuel Tank Truck

  • Chassis: Dongfeng

  • Fuel Type: Diesel

  • Horsepower: 190HP

  • Emission Standard: Euro 3/4

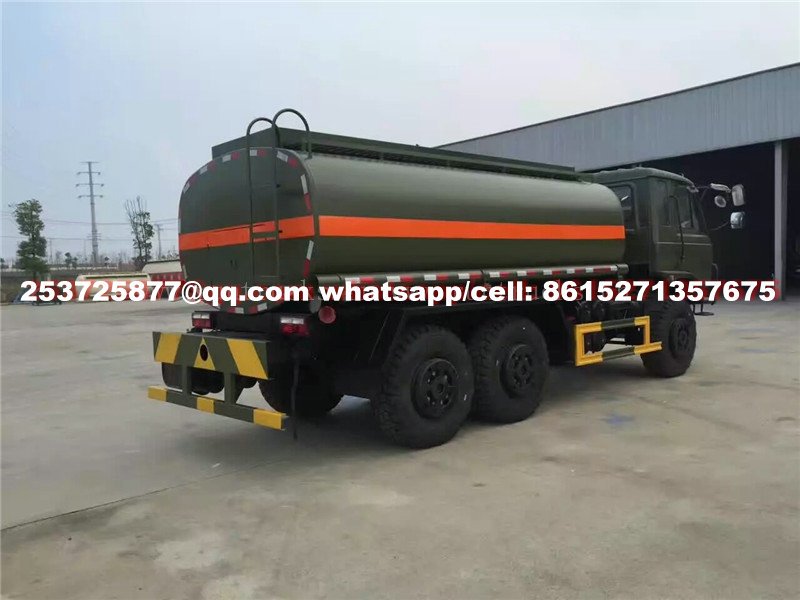

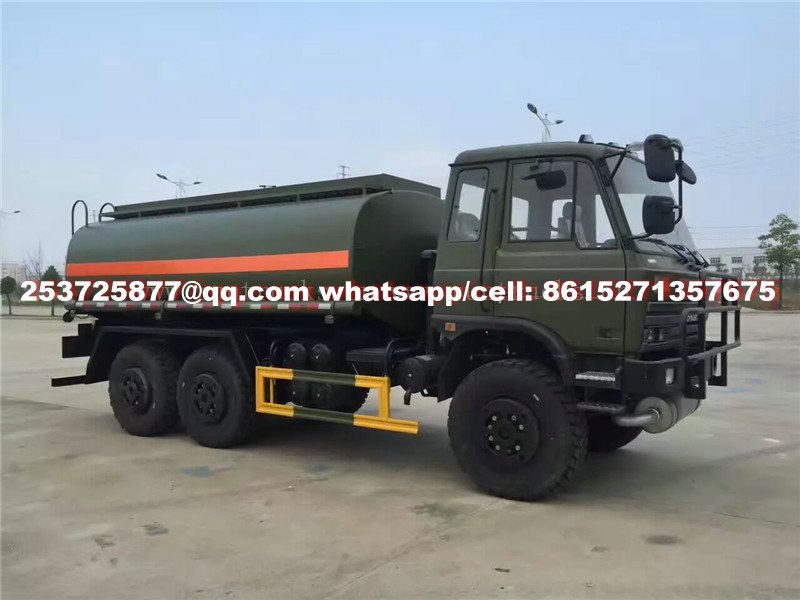

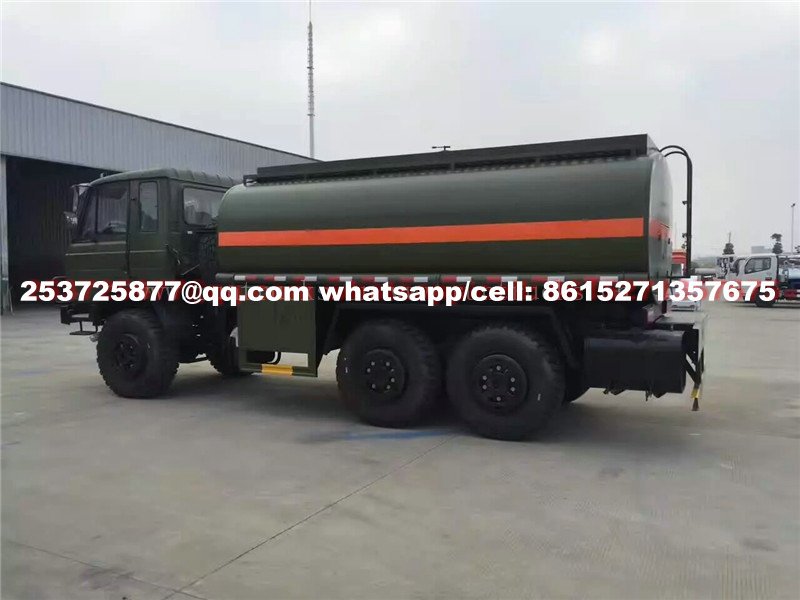

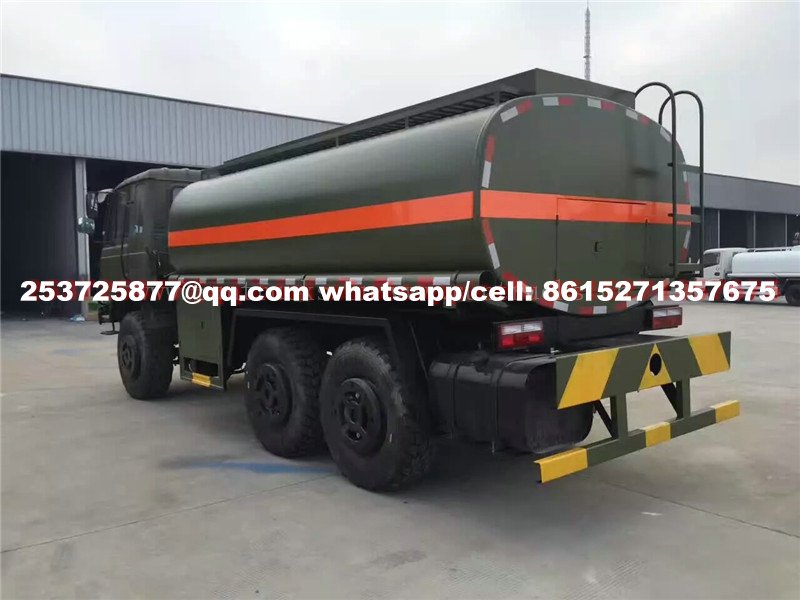

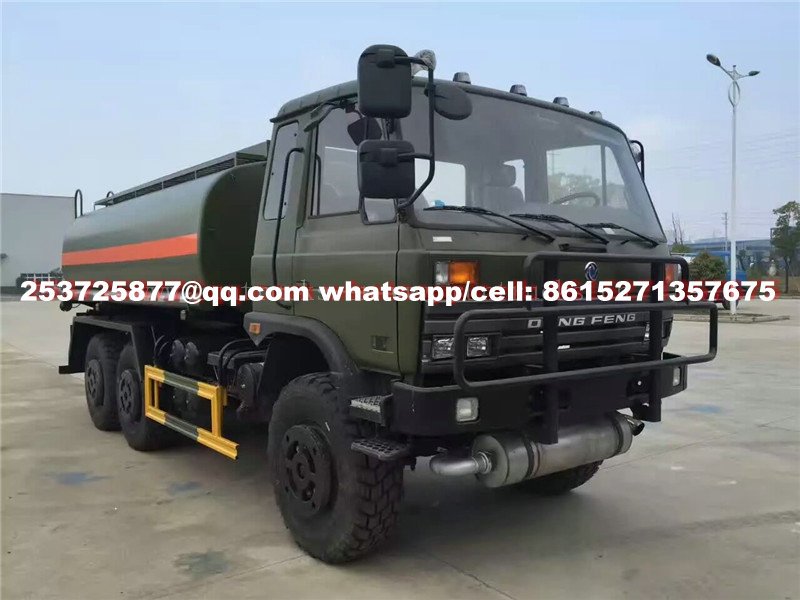

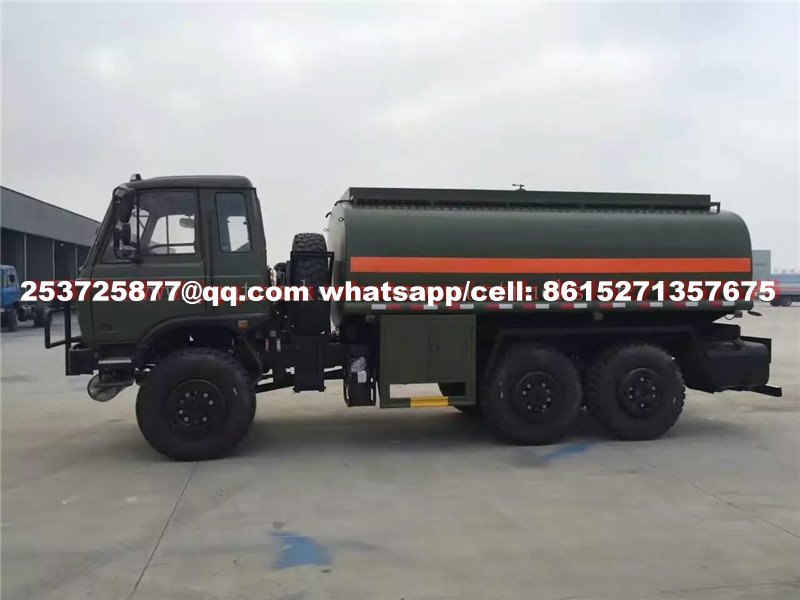

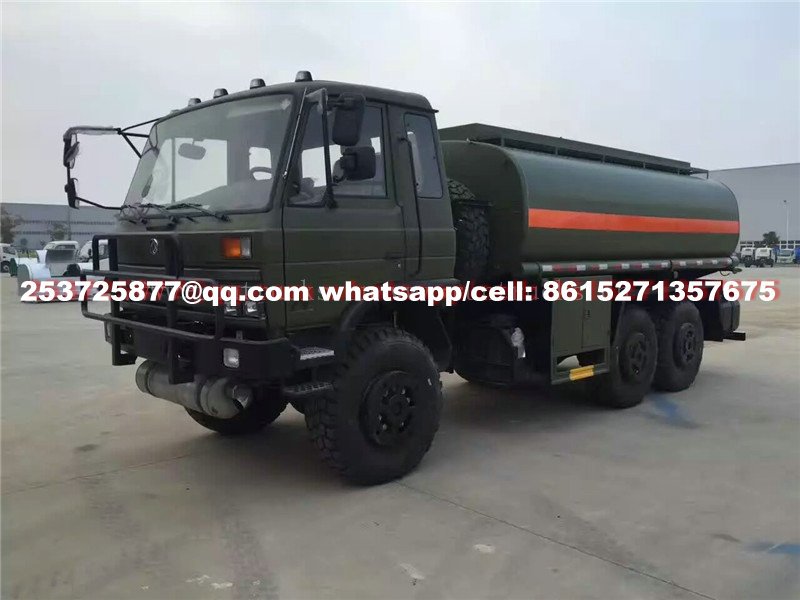

Dongfeng 6x6 oil tank truck -10T 6x6 Oil fuel Tank Truck_2.jpgDongfeng 6x6 oil tank truck -18T 6x6 Oil fuel Tank Truck_2.jpgDongfeng 6x6 oil tank truck -11T 6x6 Oil fuel Tank Truck_2.jpgDongfeng 6x6 oil tank truck -12T 6x6 Oil fuel Tank Truck_2.jpgDongfeng 6x6 oil tank truck -13T 6x6 Oil fuel Tank Truck_2.jpgDongfeng 6x6 oil tank truck -14T 6x6 Oil fuel Tank Truck_2.jpgDongfeng 6x6 oil tank truck -22T 6x6 Oil fuel Tank Truck_2.jpg


 Fuel tank truck Technical Specification


Product Name


Dongfeng 6x6 Oil fuel Tank Truck


Fuel type


 Diesel


Cabin


Single row
Right hand drive or  left hand drive


Overall dimensions (L×W×H)


8950*2480*3100


Max payload


12000-20000kg


Engine horse power


210-260hp


Gear box


Number of gears


 8 forward gears & 1 reverse


Axle


Front Load capacity (ton)


5


Rear Load capacity (ton)


10/10


Brake system


Service brake


Air braking


Electric device


Rated voltage


24V


Tyres & Quantity


10.00-R20,11.00-R20,12.00-R20  &10+1


Fuel tank truck Special Performance & Equipment


Tanker


Fact cubage


12000-20000L


Thickness


5-8mm


Tank material


Q235 Carbon Steel
(stainless carbon,glass fiber reinforced plastics,polyethylene are optional)


Optional equpment description


1. equipped with fuel dispenser, refueling pump , tanker aircraft,
2. Can be separated into several small unattached tanks


Tanker features description

1.Tank is made of carbon steel .The whole tank can be separated into several unattached parts . Diaphragm is welded in the middle of tank to reduce the pressure during the transportation .

2.Antirust paint is pained and container indicator is installed to show the capacity of the tank during the pump in or out

3.In order to ensure  the tank pressure and atmospheric pressure are basically the same during their working , breathing valve is installed  in the covered pot CUHK .When the tank pressure is higher than the outside pressure 8KPa , the front breathing valve would open ; when the tank pressure is lower than the outside pressure 3KPa , the real breathing valve would open

Special function description

1.Can load different oils , chemicals ,and food separately
2.Can be designed  to pump in -out and downgrade flow measured by flow meter or not!
