Views: 1828 Author: Dong Runze Special Vehicle Publish Time: 2017-06-21 Origin: Dong Runze Special Vehicle

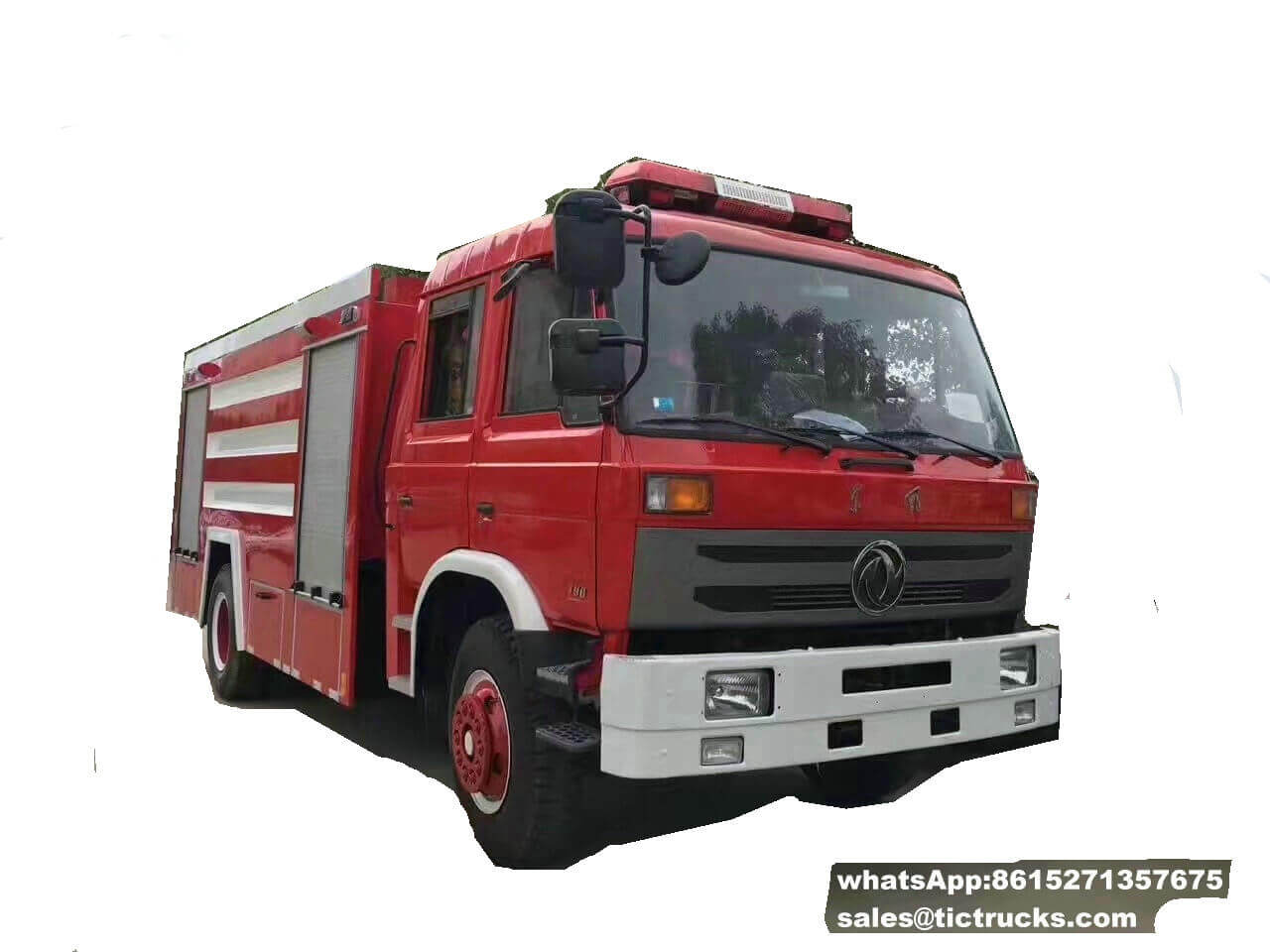

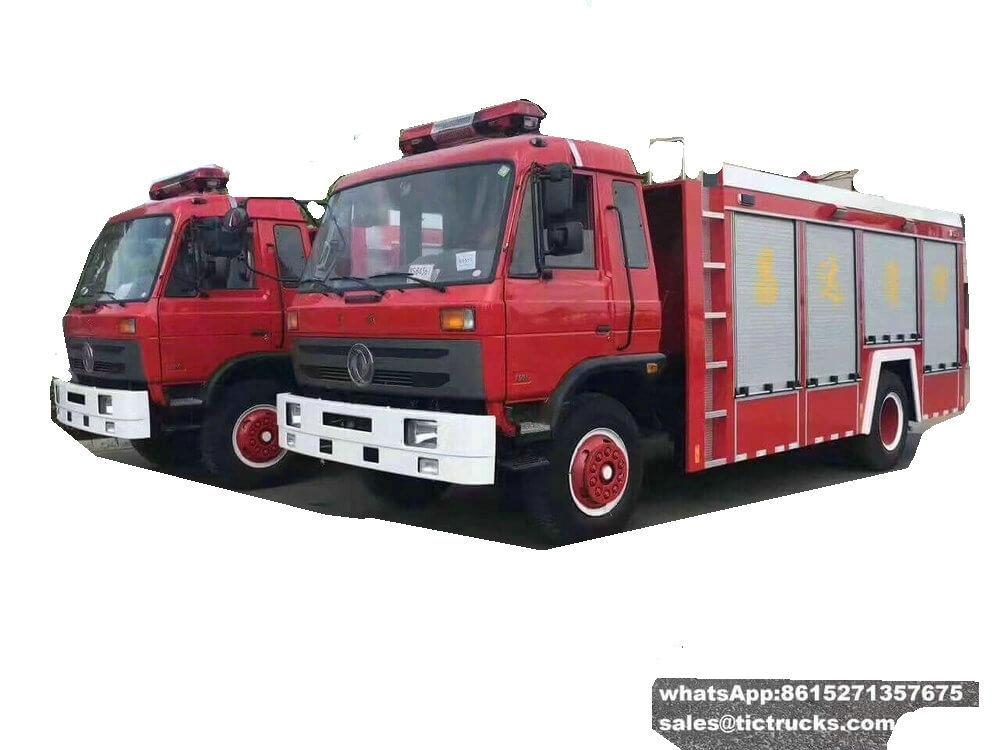

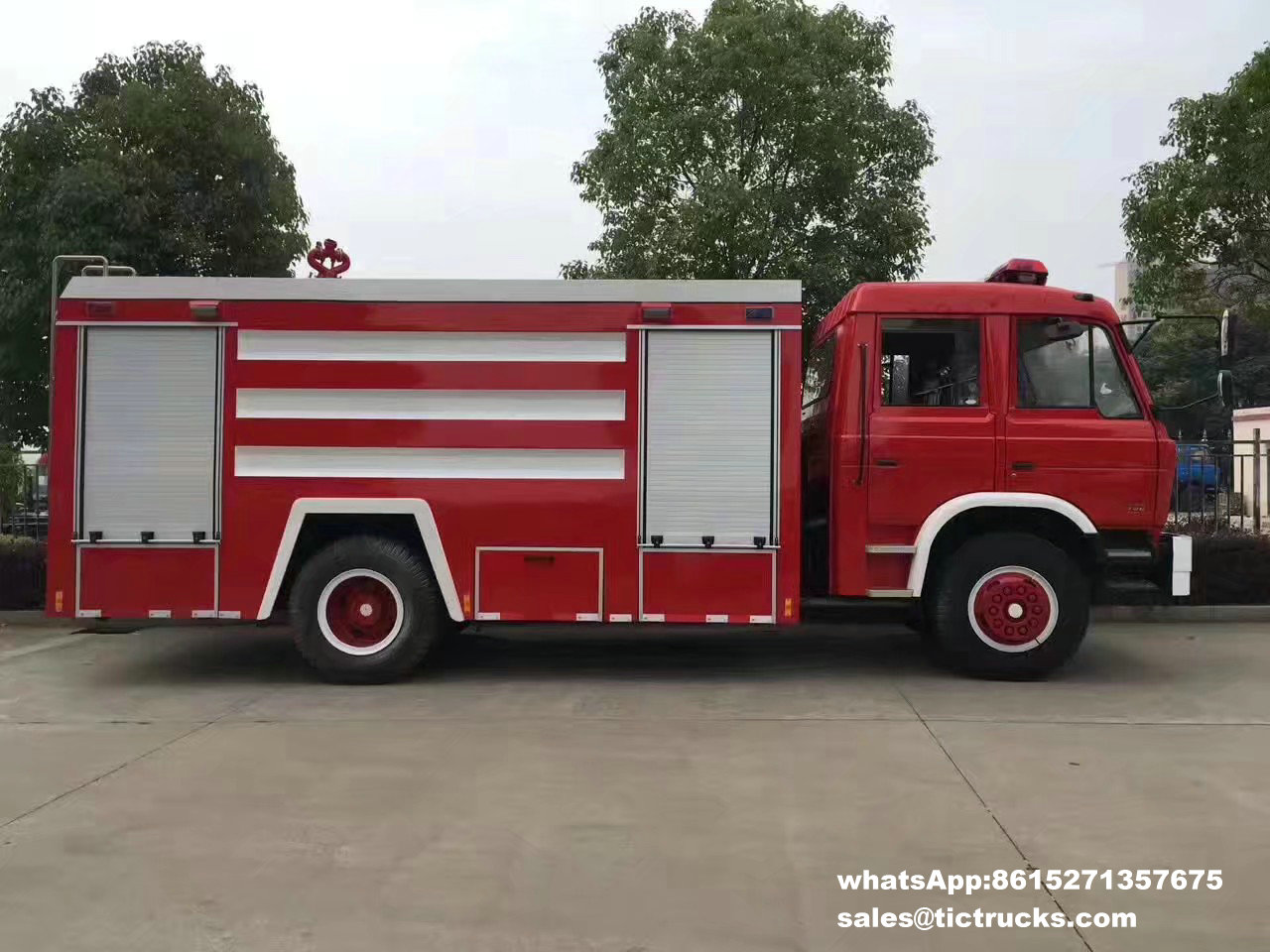

Dongfeng 6000L Water Tank Fire Fighting Truck
Unit Price: LHD FOB USD 38000.00 - 40000.00
Unit Price: RHD FOB USD 38000.00 - 40000.00
DRZ5126GXFSGE
Overall dimensions 8315X2500X3300mm Curb weight 5500kg
Water tank volume 6000L
Chassis parameters
Chassis model EQ1126KJ1 Chassis brand DONGFENG
Overall dimensions 7955x2462x2690mm Wheel base 4700mm
Front/rear wheel track 1900/1800mm Front/rear suspension 1205/2050mm
Approach/departure angle 20/13° Maximum speed 90km/h
Chassis Manufacturer Dongfeng Motor Company
Cab Configuration Double rows cab, allowable 3+3 passengers
Color white, other color is optional
Engine Model B190 33
Emission Euro 3
Type 6 cylinders, in-line,4-stroke,water-cooled,turbo inter-cooling, diesel engine
Rated power 190hp,rated power speed 2500rpm
Displacement 5900ml
Max.torque 640N.m
Bore x stroke 102x120mm
Manufacturer Dongfeng Cummins Engine Co., Ltd.
Tire Size 9.00-20 nylon tire
Number 6+1 nos
Frame (250×80×7)mm, parts are double layers.
Fuel tank 160L,steel
Front axle 3.6T
Rear axle 9.0T
Drive form 4X2
Rated voltage 24V,DC
Transmissions Gearbox DF6S750, 6 speed forward 1 reverse.
Steering device Power assisted steering
Steering wheel Left hand drive
Selective configuration Steel wire tire, air conditioner
If there is a slight change in the chassis parameters above, please take the actual product as the standard
Fire truck structure parameters
Water tank volume 6000L Tank material Carbon steel
Tank thickness 5mm Fire pump CB10/40
Fire gun PS40/PL32 Color and Logo Optional
Standard configuration Chassis, sub frame, van body, America DOPPON paint baking varnish, national standard equipment box, 25 units national standard fire-fighting equipment, fire pump(CB10/20, CB10/30,CB10/40,CB10/60 according to the capacity), fire gun(PS20,PS30,PS40,PS50 according to the capacity),fire power take off, sliding gate, row type lights, reel, common tools, rear climbing ladder, water tank.
Selective configuration foam type, dry powder type, stainless tank, other requirements.fire engines usually equipped with ladders, water gun, portable fire extinguishers, self-contained, door clothing, rescue tools, first aid kits and other equipment, the part will be equipped with water tank, a water pump, foam fire extinguishing device and other large fire equipment. In most parts of the fire truck appearance is red, but there are also parts of the fire truck appearance is yellow, part of the special fire truck is also true, at the top of the fire truck usually has alarm sirens, lights and flashing lights. On the roof of a siren and flashing lights.
Fire truck, also known as fire engines, refer to special vehicles used to perform fire fighting tasks. The fire department in most countries of the world will also use it for other emergency rescue purposes.
Fire engines can transport firefighters arrived at the scene of the disaster, and to provide a variety of tools for the implementation of disaster relief tasks.
Fire truck is equipped with a variety of fire equipment, fire fighting equipment of all types of fire vehicles in general, the main tool of the fire brigade and the fire fight, is the most basic of mobile fire equipment common types of fire engines including tank fire engines, foam fire truck, fire pumper, aerial platform fire truck, ladder fire trucks and other.
DRZ5108GSSXFE :Overall dimensions 7450X2480X3185mm Curb weight 5400kg
Tank dimensions 4060×2100×1360mm Tank volume 6000L
Chassis parameters
Chassis model EQ1108KJ Chassis brand DONGFENG
Overall dimensions 6975X2462X2690mm Wheel base 3950mm
Front/rear wheel track 1900/1800mm Front/rear suspension 1205/1820mm
Approach/departure angle 25/18° Maximum speed 90km/h
Chassis Manufacturer Dongfeng Motor Company
Cab Configuration A row and a half deluxe cab(with sleeping berth),allowable 3 passengers
Color Blue, other color is optional
Engine Model B170 33
Emission Euro 3
Type 6 cylinders, in-line,4-stroke,water-cooled,turbo inter-cooling, diesel engine
Rated power 170hp,rated power speed 2500rpm
Displacement 5900ml
Max.torque 560N.m
Bore x stroke 102x120mm
Manufacturer Dongfeng Cummins Engine Co., Ltd.
Tire Size 9.00-20 nylon tire
Number 6+1 nos
Frame (250×80×7)mm, parts are double layers.
Fuel tank 160L,steel
Front axle 3.6T
Rear axle 9.0T
Drive form 4X2
Rated voltage 24V,DC
Transmissions Gearbox DF6S, 6 speed forward 1 reverse.
Steering device Power assisted steering
Steering wheel Left hand drive
Selective configuration Air Conditioner, steel wire tire, new driver`s cab
If there is a slight change in the chassis parameters above, please take the actual product as the standard
Fire water tank structure parameters
Fire truck structure parameters
Water tank volume 5000L Tank material Carbon steel
Tank thickness 5mm Fire pump CB10/40
Fire gun PS40/PL32 Color and Logo Optional
Standard configuration Chassis, sub frame, van body, America DOPPON paint baking varnish, national standard equipment box, 25 units national standard fire-fighting equipment, fire pump(CB10/20, CB10/30,CB10/40,CB10/60 according to the capacity), fire gun(PS20,PS30,PS40,PS50 according to the capacity),fire power take off, sliding gate, row type lights, reel, common tools, rear climbing ladder, water tank.
Vehicle model | Chassis brand | Chassis model | Load | Overall dimensions | Wheel base | Engine model | hp/standard | Tire |
L | mm | mm | ||||||
DRZ5050GXFSGE | DONGFENG | EQ1050NJ20D3 | 2500 | 6260X1900X2750 | 3300 | CY4102-C3F | 95/Euro 3 | 6.15-16 |
DRZ5060GSSXFE | DONGFENG | EQ1060TJ20D3 | 5000 | 5980X1980X2380 | 3300 | CY4102-C3F | 95/Euro 3 | 7.00-16 |
DRZ5090GSSXFE | DONGFENG | EQ1090T9ADJ3AC | 6000 | 6995X2285X2980 | 3800 | CY4102-E3C | 120/Euro 3 | 7.50R16 |
DRZ5090GXFSGE | DONGFENG | EQ1090T9ADJ3AC | 4000 | 7025X2095X2840 | 3800 | CY4102-E3C | 120/Euro 3 | 7.50R16 |
DRZ5100GSSXFE | DONGFENG | EQ1100FKJ | 7000 | 7350X2440X2990 | 3950 | YC4E140-33 | 140/Euro 3 | 9.00-20 |
DRZ5108GSSXFE | DONGFENG | EQ1108KJ | 9000 | 7450X2480X3185 | 3950 | B170 33 | 170/Euro 3 | 9.00-20 |
DRZ5108GXFSGE | DONGFENG | EQ1108KJ | 5000 | 7490X2500X2280 | 3950 | B170 33 | 170/Euro 3 | 9.00-20 |
DRZ5126GXFSGE | DONGFENG | EQ1126KJ1 | 6000 | 8315X2500X3300 | 4700 | B190 33 | 190/Euro 3 | 9.00-20 |
DRZ5141GSSXFE | DONGFENG | EQ1141KJ | 11000 | 8105X2490X3250 | 4500 | B190 33 | 190/Euro 3 | 10.00-20 |
DRZ5141GXFSGE | DONGFENG | EQ1141KJ | 6000 | 8115X2500X3300 | 4500 | B190 33 | 190/Euro 3 | 10.00-20 |
DRZ5253GSSXFE | DONGFENG | EQ5253GFJ2 | 15000 | 9950X2480X3750 | 4350+1300 | B210 33 | 210/Euro 3 | 10.00-20 |
DRZ5090GXFSGPME | DONGFENG | EQ1090T9ADJ3AC | 2400 | 7025X2095X2840 | 3800 | B140 33 | 140/Euro 3 | 7.50R16 |
DRZ5070GXFSGQ | ISUZU | QL1070A1KWY | 3000 | 6820X2000X2820 | 3815 | 4KH1-TCG40 | 120/Euro 4 | 7.00-16 |
DRZ5160GXFSGQ | ISUZU | QL1160AMFRY | 6000 | 8360X2485X3420 | 4500 | 6HK1-TCNG40 | 240/Euro 4 | 10.00-20 |
DRZ5250GXFSGQ | ISUZU | QL1250DRFZY | 15000 | 9775X2490X3560 | 5100+1300 | 6HK1-TCSG40 | 280/Euro 4 | 11.00-20 |
DRZ50703GXFSGQ | ISUZU | QL10703HWRY | 2500 | 6260X1980X2780 | 3360 | 4JB1CN | 98/Euro 4 | 7.00-15 |
DRZ51609GXFSGQ | ISUZU | QL11609MFRY | 6000 | 8070X2500X3370 | 4500 | 4HK1-TCG40 | 190/Euro 4 | 10.00-20 |
DRZ5167GXFSGZ | SINOTRUK | ZZ1167M4617C | 8000 | 8820X2500X3450 | 4600 | WD615.92 | 266/Euro 3 | 11.00-20 |
DRZ5257GSSXFZ | SINOTRUK | ZZ1257M4641W | 20000 | 9895X2496X2958 | 4325+1350 | WD615.92 | 266/Euro 2 | 12.00-20 |
DRZ5257GXFSGZ | SINOTRUK | ZZ1257N4347C | 15000 | 9680X2500X3650 | 4325+1350 | WD615.69 | 336/Euro 3 | 12.00-20 |
DRZ5257GXFSGZ1 | SINOTRUK | ZZ1257S4647C | 16000 | 10265X2500X3580 | 4600+1350 | WD615.96 | 375/Euro 3 | 12.00-20 |
