Dongfeng 4x2 RHD Fuel Tanker Truck Capacity 6CBM/6000L

Dongfeng 4x2 Mini Oil Delivery Truck Capacity 6000L USD 12000.00 - 15000.00 / Set/Sets

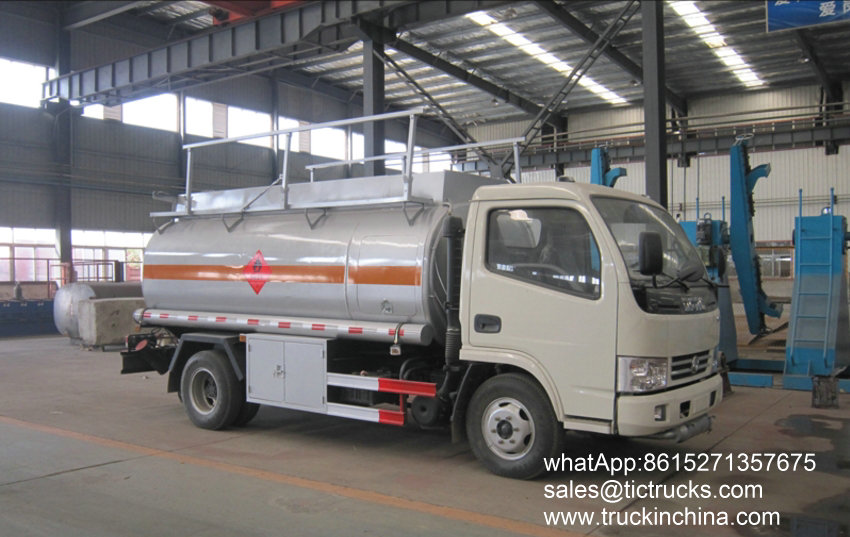

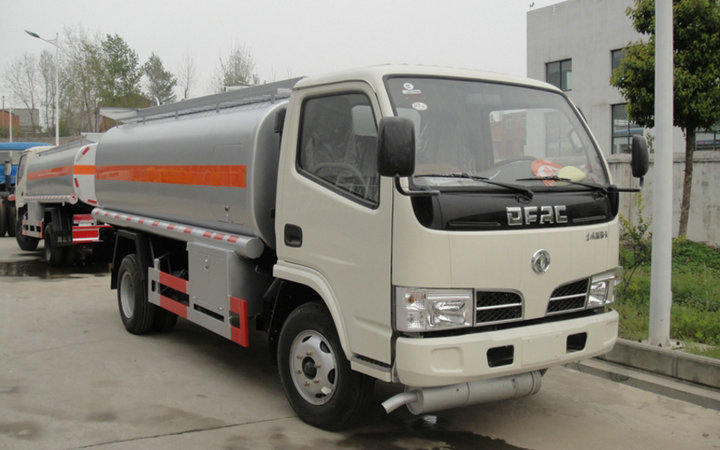

DFAC 4x2 RHD Fuel Tanker Truck Capacity 6CBM  Unit Price: USD 17000.00 - 18000.00

DFAC 4x2 RHD Aluminium Oil Tank Truck Capacity 6CBM  USD 21000.00 - 23000.00 / Set/Sets

DFAC 4x2 RHD Aluminium Oil Tank Truck Capacity 6CBM

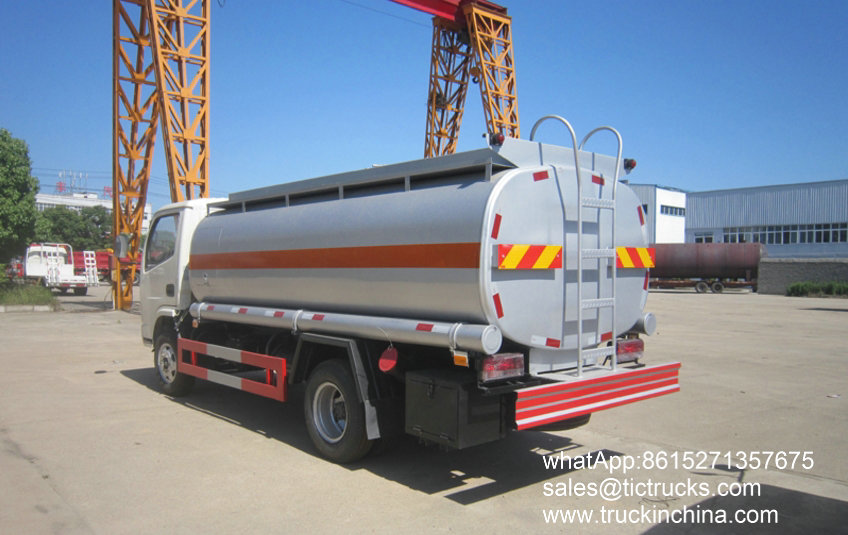

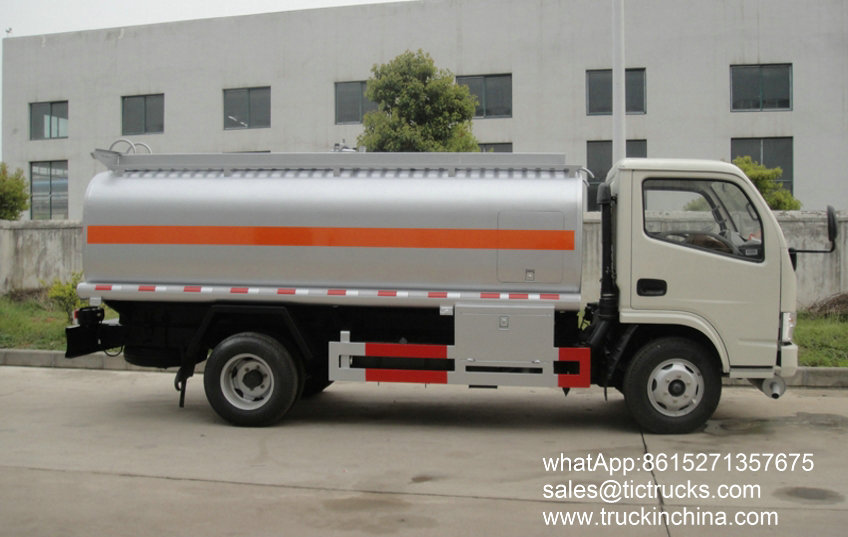

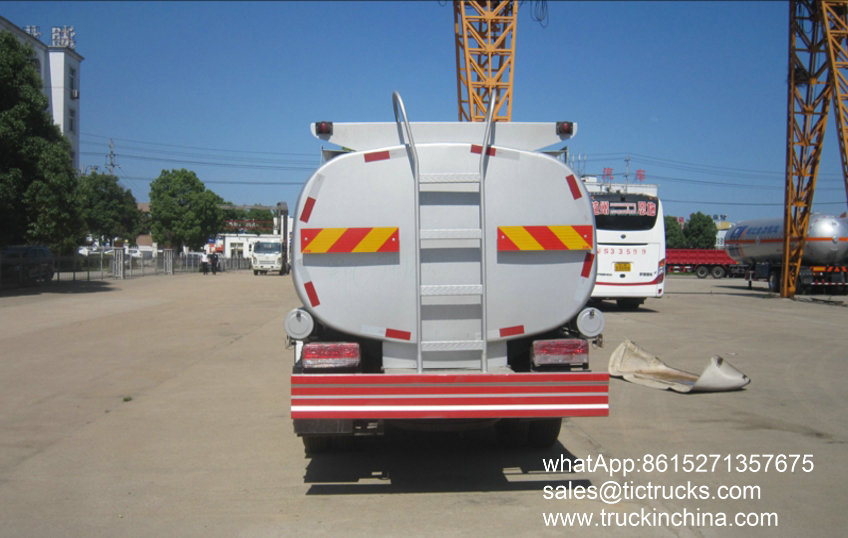

Dongfeng 4x2 Mini Oil Delivery Truck Capacity 6000L

Vehicle Model DRZ5060GYYERHD
Overall dimensions 5990×1980×2350mm Curb weight 3300kg
Tank dimensions 4100×1720×1150mm Tank volume 6000L

Chassis parameters
Chassis model EQ1060TJ20D3 Chassis brand DONGFENG
Overall dimensions 5820x1940x2080mm Wheel base 3300mm
Front/rear wheel track 1506/1466mm Front/rear suspension 1032/1488mm
Approach/departure angle 19/15° Maximum speed 80km/h
Chassis Manufacturer Dongfeng Automobile Co.,Ltd
Cab Configuration Single row cab,allowable 3 passengers
Color White,other color is optional
Engine Model CY4102-C3F
Emission Euro 3
Type in-line,4-stroke,water-cooled,turbo inter-cooling,diesel engine
Rated power 95hp,rated power speed 3200rpm
Displacement 3856ml
Bore x stroke 102x118mm
Manufacturer Dongfeng Chaoyang Diesel Power Co. Ltd.
Tire Size 7.00-16 nylon tire
Number 6+1 nos
Fuel tank 100L,steel
Front axle 2.0T
Rear axle 4.0T
Drive form 4X2
Rated voltage 24V,DC
Transmissions 5 speed forward 1 reverse.
Steering wheel Right hand drive
Selective configuration Air Conditioner,steel wire tire,power assisted steering
If there is a slight change in the chassis parameters above,please take the actual product as the standard

Fuel tank structure

Tank dimensions 4100×1720×1150mm Tank volume 6000L
Tank material Carbon steel Tank thickness 5mm
Color and Logo Optional
Standard configuration Chassis, carbon steel fuel tank, sub frame,oil pump, two aluminum alloy flow valves, tool box, manhole,climbing ladder, fire extinguisher, oil hose.
Selective configuration Aluminum alloy fuel tank, flow meter, oiling machine, European standard manhole, pneumatic valve, AIP valve, anti overflow sensor plug, oil and gas recovery system,divided into several bins.

Dongfeng Fuel Tanker Truck , Fuel Tanker Transport Truck , Dongfeng Fuel Tank Truck , Dongfeng Fire Tanker Truck , Dongfeng Oil Tank Truck , Dongfeng Acid Tanker Truck

RHD Fuel Tanker Truck , RHD Oil Tanker Truck , RHD Oil Delivery Truck , RHD Used Fuel Tanker Truck , RHD Fecal Tank Truck , RHD Diesel Tanker Truck , RHD Milk Tanker Truck , RHD Water Tanker Truck

Fuel tank truck

Here the price is for standard configuration. Selective configuration and any change according to the buyer’s requirements please confirm the price with our company.

Standard configuration Chassis, carbon steel fuel tank, sub frame,oil pump, two aluminum alloy flow valves, tool box, manhole,climbing ladder, fire extinguisher, oil hose.

Selective configuration Aluminum alloy fuel tank, flow meter, oiling machine, European standard manhole, pneumatic valve, AIP valve, anti overflow sensor plug, oil and gas recovery system,

divided into several bins.

Vehicle model Chassis brand Chassis model Load Overall dimensions Wheel base Engine model hp/standard Tire FOB Price

L mm mm RMB USD

DRZ5240GYYH CAMC HN1240P29E2M3J 20000 10400×2500×3200 5220+1350 WP10.270E32 270/Euro 3 11.00R20 288800 42480

DRZ5160GYYD DONGFENG DFL1160BX 15000 8700X2460X2900 4700 B190 33 190/Euro 3 9.00-20 170400 25060

DRZ5250GYYD DONGFENG DFL1250A9 22000 11080X2480X3500 5350+1300 C260 33 260/Euro 3 11.00R20 277200 40770

DRZ5311GYYD DONGFENG DFL1311A4 35000 11980X2500X3690 1850+4600+1350 C260 33 260/Euro 3 11.00R20 299800 44090

DRZ5060GYYE DONGFENG EQ1060TJ20D3 6000 5990X1980X2350 3300 CY4102-C3F 95/Euro 3 7.00-16 75600 11120

DRZ5090GYYE DONGFENG EQ1090T9ADJ3AC 8000 7000X2300X2850 3800 CY4102-E3C 120/Euro 3 7.50R16 100200 14740

DRZ5110GYYE DONGFENG EQ1100FKJ 8000 7400X2365X2580 3950 YC4E140-33 140/Euro 3 9.00-20 100700 14810

DRZ5108GYYE DONGFENG EQ1108KJ 10000 7275X2495X2950 3950 B170 33 170/Euro 3 9.00-20 123300 18140

DRZ5126GYYE DONGFENG EQ1126KJ1 15000 8700X2460X2900 4700 B190 33 190/Euro 3 9.00-20 140300 20640

DRZ5141GYYE DONGFENG EQ1141KJ 15000 7850X2490X2950 4500 B190 33 190/Euro 3 10.00-20 136800 20120

DRZ5290GYYE DONGFENG EQ1290WFJ 30000 11995X2495X3690 1950+4250+1300 C280 33 280/Euro 3 11.00-20 274700 40400

DRZ5162GYYE4X4 DONGFENG EQ5162GLJ 15000 8500X2470X3040 4500 B190 33 190/Euro 3 10.00R20 203000 29860

DRZ5253GYYE DONGFENG EQ5253GFJ2 22000 9950X2480X3550 4350+1300 B210 33 210/Euro 3 10.00-20 189000 27800

DRZ5060GYYERHD DONGFENG EQ1060TJ20D3 6000 5990X1980X2350 3300 CY4102-C3F 95/Euro 3 7.00-16 75600 11120

DRZ5090GYYERHD DONGFENG EQ1090T9ADJ3AC 8000 7000×2300×2850 3800 CY4102-E3C 120/Euro 3 7.50R16 114300 16810

DRZ5250GYYC FAW CA1250P63K1L5T1AE4Z 22000 10140X2500X3300 4800+1350 BF6M1013-28E4 280/Euro 4 11.00R20 312300 45930

DRZ1310GYYC FAW CA1310P63K2L6T4E 30000 11950X2495X3100 1950+4550+1350 CA6DL1-31E3F 310/Euro 3 11.00R20 309800 45560

DRZ5073GYYB FOTON BJ1073VEJEA-A 6000 5900X1960X2190 3360 4DW91-63NG2 98/Euro 2 6.50-16 65600 9650

DRZ5102GYYB FOTON BJ1102VDPEA-G1 8000 7000X2250X2600 3900 4102QBZL 130/Euro 2 8.25-16 97200 14300

DRZ5163GYYB FOTON BJ1163VKPGG-1 12000 9000X2496X2760 5000 Phaser160Ti-33 160/Euro 3 9.00R20 157400 23150

DRZ5312GYYB FOTON BJ1312VPPJJ-1 30000 11810X2482X2800 1860+4700+1300 SC9DK270Q3B1 270/Euro 3 11.00R20 281800 41450

DRZ5257GYYB FOTON BJ5257GNFJH-S1 23000 10233X2490X3010 4725+1300 SC9DK270Q3B1 270/Euro 3 10.00-20 262200 38560

DRZ5073GYYBRHD FOTON BJ1073VEJEA-A 5000 5900X1960X2190 3360 4DW91-63NG2 98/Euro 2 6.50-16 84200 12390

DRZ51609GYYQ ISUZU QL11609NFRY 18000 9000X2465X2900 5000 4HK1-TCG40 190/Euro 4 10.00-20 272500 40080

DRZ5070GYYQ ISUZU QL1070A1KAY 8000 7250X2300X2350 3815 4KH1-TCG40 120/Euro 4 7.00-15 155400 22860

DRZ5160GYYQ ISUZU QL1160ANFRY 18000 9000X2465X2900 5000 6HK1-TCNG40 240/Euro 4 10.00-20 347000 51030

DRZ5250GYYQ ISUZU QL1250DNFZY 22000 9480X2495X3550 4350+1300 6HK1-TCSG40 280/Euro 4 11.00-20 437700 64370

DRZ50503GYYQ ISUZU QL10503HARY 6000 5875X1900X2175 3360 4JB1CN 98/Euro 4 7.00-15 125300 18430

DRZ51009GYYQ ISUZU QL11009MARY 15000 8490X2390X2550 4475 4HK1-TCG40 190/Euro 4 8.25-20 197000 28980

DRZ5161GYYH JAC HFC1161P3K2A47F 12000 8500X2500X3150 4700 YC4E160-42 160/Euro 4 11.00R20 195500 28750

DRZ5241GYYH JAC HFC1241P2K1C54F 22000 11990X2500X3560 1900+5400 CA6DF4-20E4 200/Euro 4 11.00R20 270200 39740

DRZ5311GYYH JAC HFC1311P2K4H45F 30000 11995X2500X3600 1900+4500+1350 WP10.270E40 270/Euro 4 11.00R20 334900 49250

DRZ5254GYYN North-Benz ND1254B41J 22000 9450×2480×3030 4100+1350 WP10.270E32 270/Euro 3 11.00R20 271200 39890

DRZ5310GYYN North-Benz ND1310D46J7Z01 30000 11560X2495X3100 1950+4650+1350 WP10.310E32 310/Euro 3 11.00R20 319900 47050

DRZ5255GYYFS SHACMAN SX1255NN464 22000 9935X2490X3210 4575+1400 WP10.290E32 290/Euro 3 12.00R20 294800 43360

DRZ5315GYYFS456 SHACMAN SX1315NN4561 30000 12000X2490X3340 1800+4575+1400 WP7.270E31 270/Euro 3 11.00R20 284300 41810

1

DRZ5315GYYMS456 SHACMAN SX1247GL456 30000 12000X2490X3340 1800+4575+1350 WP7.270E31 270/Euro 3 11.00R20 273700 40250

DRZ5165GYYS SHACMAN SX1165UN461 15000 8620X2490X3100 4600 WP10.270E32 270/Euro 3 12.00R20 222600 32740

DRZ5255GYYS434 SHACMAN SX1255UM434 22000 9800X2495X3130 4325+1350 WP10.290E32 290/Euro 3 12.00R20 267200 39300

DRZ5315GYYS SHACMAN SX1315TM4561 30000 11996X2496X3474 1800+4500+1350 WP10.310E32 310/Euro 3 12.00R20 316400 46530

DRZ5167GYYZ4X4 SINOTRUK ZZ2167M4627A 15000 8600X2500X3300 4600 WD615.62 266/Euro 2 12.00-20 303300 44610

DRZ5167GYYZ SINOTRUCK ZZ1167M4611W 15000 8600X2500X3300 4600 WD615.92 266/Euro 2 12.00-20 232100 34140

DRZ5257GYYZ SINOTRUCK ZZ1257N4341W 22000 10315×2496×3125 4325+1350 WD615.69 336/Euro 2 12R22.5 280800 41300

DRZ5258GYYZ SINOTRUCK ZZ1257N4641W 25000 10315×2496×3125 4600+1350 WD615.69 336/Euro 2 12R22.5 280000 41180

DRZ5317GYYZ SINOTRUCK ZZ1317N4667W 30000 11900×2500×3400 1800+4600+1350 WD615.69 336/Euro 2 12R22.5 313400 46090

DRZ5417GYYZ SINOTRUCK ZZ1317N4667W 40000 12400×2500×3500 1800+4600+1350 WD615.69 336/Euro 2 12R22.5 318400 46830

Oil tanker truck refers to the vehicle that loading and transporting of gasoline, diesel, kerosene, lubricating oil, and other liquid fuel, etc. It is mainly composed of oil tank, oil pump, flow meter, refueling gun, filling mouth, fuel release valve, manhole covers, oil hose, chain etc.

According to the different transport medium, oil tanker truck can be called, oil tanker, tank truck, tanker, fuel trucks, oil delivery tanker, flow oil truck, refueling vehicle, computer refueling truck, diesel delivery vehicles, gasoline delivery vehicles, oil transport vehicle, edible oil transport vehicle, crude oil transport vehicle, heavy oil truck, oil truck.

According to the brand oil tanker truck can be divided into, Yuejin tank truck, Dongfeng tanker truck, FAW tanker truck, Foton tank truck, Sinotruk tanker truck,Auman tanker truck, North-Benz tanker truck, JAC transport tanker truck, tanker truck, Shacman oil tanker truck, CAMC oil transport tanker truck, Isuzu tanker truck, JMC tanker truck, etc.
