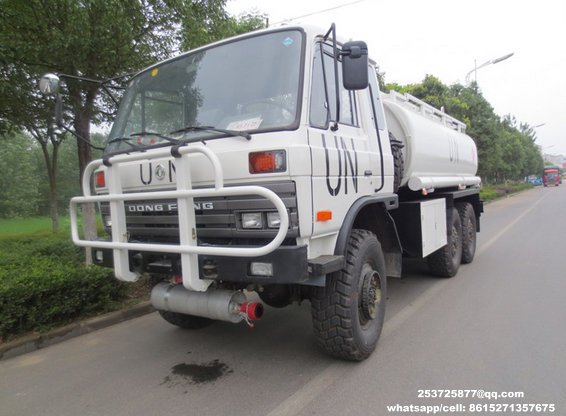

Customized dongfeng 6x6 Off-road 8000L fuel tank for UN
Views: 1122 Author: Dong Runze Special Vehicle Publish Time: 2017-11-07 Origin: Dong Runze Special Vehicle
Customized dongfeng 6x6 Off-road 10000L fuel tank for UN
dongfeng 6x6 10000 liters military fuel tanker is also called fuel tank truck,mobile fueling truck,etc, widely used in storage, transporting and refilling for all kinds of oil (gasoline, diesel, crude oil, lubricating oil and coal tar, etc) .
Main Parameters of dongfeng 6x6 10000 liters military fuel tanker for UN as below
1.Tank materials: Optional for carbon steel, stainless steel, rotational lining plastic, and FRP;
2.Tank shape: Optional for round square, oval, and round;
3.Functions: The tank can be made to be made to be separated chambers to load different oil or chemical varieties .and can be designed as as pump-in and pump-out through measurement;
4.Oil pump:Optional single counting, double counting, and tax control tanker;
5.Pump: According to the use of tankers, can choose centrifugal pumps, gear pump, copper gear pump, stainless steel pump, it has big flow,fast speed of suction and some other characteristics.
Euro 4:
| Vehicle main technical information: | ||
| Product Name | Dongfeng 6*6 off-road oil tank truck | |
| Product Model | Dongfeng | |
| Water tank volume | 8000L | |
| Overall size(L*W*H) | 7760,7825*2500*2845,2925mm | |
| Gross weight | 16050kgs | |
| Rated capacity | 7900kgs | |
| Curb weight | 7955kgs | |
| Approaching/Departure Angle | 35/30,38/30(°) | |
| Front/Rear suspension | 1385/1625,1450/1625mm | |
| Max.speed | 95km/h | |
| Chassis Parameters: | ||
| Chassis Brand | Dongfeng | |
| Chassis model | DFS5160GLJ | |
| Drive type | 6*6, LHD/RHD | |
| Fuel Type | Diesel | |
| Tire Specification | 12.5R20 | |
| Tire No. | 6 | |
| Wheelbase | 3500+1250mm | |
| Alex No. | 3 | |
| Leaf Spring No. | 10/12 | |
| Front trend | 1916mm | |
| Rear trend | 1876/1876mm | |
| Passengers in cab | 3 | |
| Axle loading | 4020/6015/6015 | |
| Engine Parameters: | ||
| Manufacturer | Dongfeng Cummins Engine | |
| Model | ISDe185 40 | |
| Horse Power | 185HP | |
| Displacement/Power | 6700ml/136kw | |
| Emission standard | Euro 4 | |
Euro 3:
Product model | DRZ5250GYYE5 | ||
Chassis model | DFS5160TSML | ||
Vehicle spec. | Overall dimensions(mm) | 9400*2500*3400 | |
Tank dimensions(mm) | 6700*2150*1450 | ||
Weight(kg) | GVW | 25000 | |
payload weight | 13105 | ||
curb weight | 11700 | ||
Approach/departure angle(°) | 12013 | ||
Front/Rear overhang(mm) | 1500/2200 | ||
Fuel type | Diesel | ||
Fuel consumption(100km/L) | 36.4 | ||
Max speed (km/h) | 80 | ||
Engine spec. | Model | C245 33 | |
Displacement(cc) | 6700 | ||
Horsepower(kw/ps) | 180/245 | ||
Engine type | 6 cylinder, in-line , turbo charge and after cooled | ||
Chassis spec. | Drive style | 6X6 | |
Wheelbase(mm) | 4350+1300 | ||
Front tread(mm) | 1986 | ||
Rear tread(mm) | 1860 | ||
Front axle loading(T) | 7000 | ||
Rear axle loading(T) | 18000 | ||
Gearbox | 8 speed | ||
Brake | Air brake, with power assisted , pressure boost,With A/C | ||
Tire spec. | 10.00-20 | ||
Tire nos. | 10+1(spare part) | ||
Equipment | 1. Tank can be separated to several unattached small tanks to fill different fuels 2. Tank material: carbon steel, stainless steel, FRP etc. optional 3. Tank shape: roundless,quadrate,oval optional 4. Oil pump: self-priming pump,gear pump optional 5. Oil meter:single,double,Fiscal processor optional | ||
Euro 2:
| Product Name | dongfeng 6x6 10000 liters military fuel tank truck for sale | |
| Cab | Single sleeper cab, two doors, rated passengers 3, with an A/C | |
| Volume(L/m3) | 10000L | |
| Chassis | Brand | dongfeng |
| Chassis model | DFS5160GLJ | |
| Drive type | Left hand drive or right hand drive, 6*6 | |
| Tire | 12.5R20 off-road tire with 1 spare tire | |
| Tire No. | 6+1(spare) | |
| Braking System | air brake | |
| Transmission | Manual , 6 forward and 1 reverse | |
| Engine | Model | 6BT190 |
| Engine brand | DONGFENG Cummins | |
| fuel type | diesel | |
| Horse Power(kw/hp) | 140kw/190hp | |
| Displacement(ml) | 6700ml | |
| Emission standard | Euro 5/4/3 | |
| Dimension & weight | Overall dimension (L*W*H/mm) | 7760x2500x2845mm |
| Axles No. | 3 | |
| Curb Weight(kg) | 7955 | |
| Max speed(km/h) | 95 | |
| performance ¶meter | Transport medium | Gasoline/diesel |
| Tank material | 5mm/6mm carbon steel or 304 stainless steel or aluminum alloy | |
| unattached warehouse | One or more | |
| Standard configuration | Equipped with one carbon steel fuel pump, large flow Tax fuel dispenser, refueling gun with 20m reel, one aluminum alloy subsea valve, one European standard manhole cover, two fuel Pipes, two fire extinguisher, one tool box, one or two discharge valve, front-mounted exhaust pipe, etc | |
2.Dongfeng Cummins Engine 170-190HP Engine
3.Dongfeng Gear Box
4. All Wheel Drive 4WD Truck, Right Hand Drive or Left Hand Drive for Choice
5. With air condition
2.Dongfeng Cummins Engine 170-190HP Engine
3.Dongfeng Gear Box
4. All Wheel Drive 4WD Truck, Right Hand Drive or Left Hand Drive for Choice
5. With air condition
