Auto Transport trailers specifications
Name: double axle + double tire car carrier trailer
Loading capacity: 7~8 vehicles

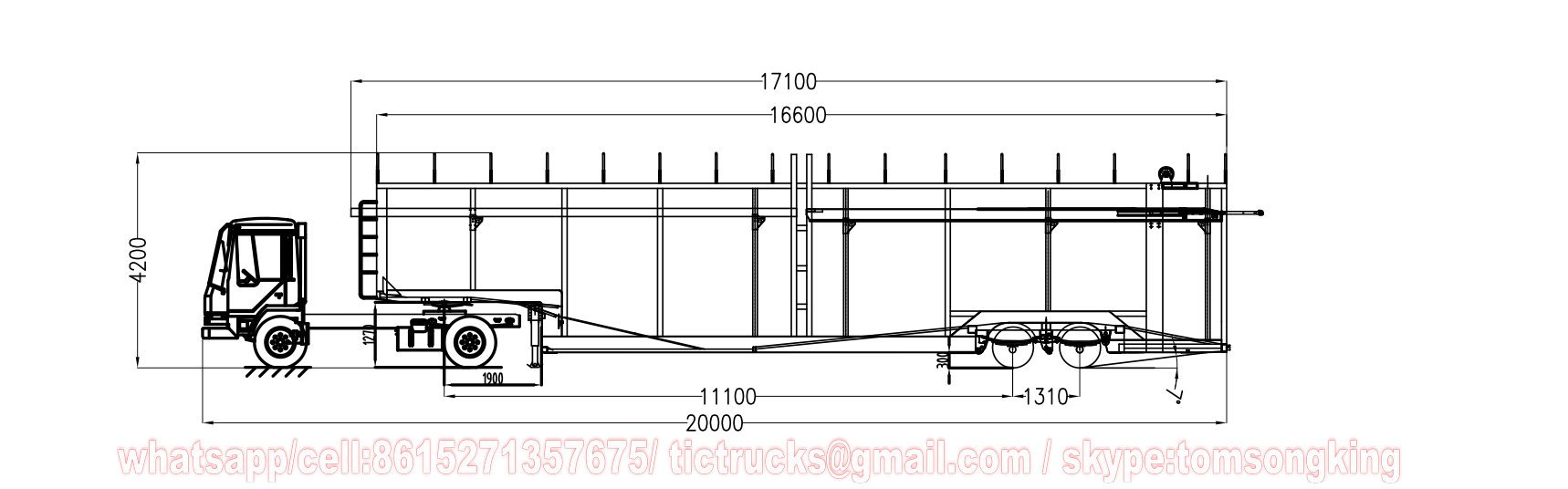

Overall dimension: 17100*2500*4200mm
Axles: 13T*2 (FUWA, Anqiao, Man, York or BPW)
Suspension: Leaf Spring 90*20*4, air suspension is optional
Tires: 235/75R17.5, 8 tires + 1 spare tire (Triangle, Chaoyang, Double Coin, Bridgeston, etc)
Frame: T770 high tension steel
Kingpin: 2'' Kingpin JOST
Landing gear: double speed JOSF
Hydraulic system: 5 pairs of hydraulic cylinders
Spare tire carrier: 1~2
Brake system: Wabco Dual line pneumatic brake line
Electrical system: 12/24V, 7 pin socket (US, EU or Australian standard)
Tool box: 1 set
Sidewall: Optional
Surface process: Sandblasted
Painting: Base coating + Surface painting
car trailers that are ideal for long-distance moves. Our auto transport trailersare equipped with an easy-access loading ramp
Main frame made from high tension steel with light
Key parts purchased from famous brand from China or oversea
Hydraulic cylinders for layer lifting
Loading capacity: 5 vehicles to more than 10 vehicles
Rigid type or trailer type both available
The model of china car carrier trailer is decided by how many vehicles to be loaded. Standard model of car carrier trailer includes 5 rigid type, 6-vehicle carrier, 8-vehicle carrier, 10-vehicle and more, normally 2 layers. The carrier design varies according to the vehicle model to be loaded (Sedan, Hatchback, SUV, MPV, etc). Normally, the carrier has single axle + double tire, double axle + single tire or double axle + double tires, etc. The main frame of the carrier is made from high tension steel with light weight, which enable the car carrier trailer to carry more within a limited payload. Hydraulic cylinders are also equipped for the lifting of both upper layer and lower layer.
Car Carrier Trailer Features,Car Carrier Trailer,Auto Transport trailers,car-carrying trailer, car hauler, auto transport trailer,
