Views: 2041 Author: DRZ Publish Time: 2016-04-14 Origin: Dong Runze Special Vehicle

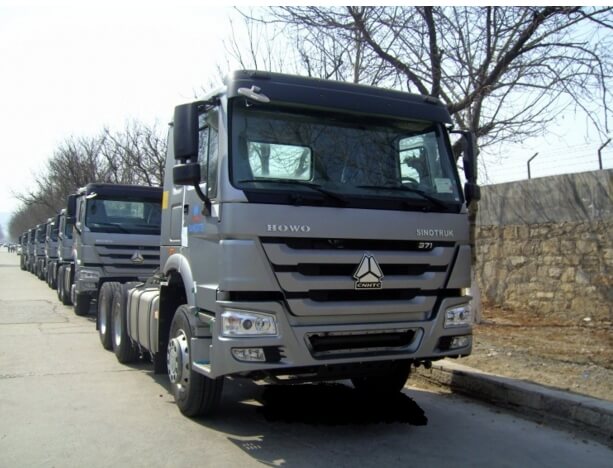

8 SINOTRUK TRACTOR|ZZ4257V3241W export to GHANA FOB price ZZ4257V3241W 2016-04-14
HS | Product name | Specification model | Quantity | Final destination country | Unit price | Total price | Currency |
87012000 | TRACTOR | POWER FOR TRACTION VEHICLES | SINOTRUK |ZZ4257V3241W | 8 | GHANA | 36500 | 292000 | EUR |
China Truck Sinotruk HOWO Tractor Truck For Sale
ZZ4257S3241V
Traction type: 6X4
Driving type: LHD (RHD is optioned)
Cabin: HOWO cab, flat head, double sleepers, tippable, high-roof
Engine brand: Sinotruk(Steyr technology)
Engine model: WD615.47
Engine type: Diesel 4-stroke direct injection engine, 6-cylinder in-line
With water cooling, turbo-charging & intercooling
Displacement: 9.726 liters
Max. Output: 371HP@2200RPM
Max torque: 1100-1600
Bore/Stroke(mm): 126/130
Mean Position Speed: 9.53m/s
Compression ratio: 15.5: 1
Specific fuel consumption: 198g/Kwh
Gear box
Model: HW79
No. Of speeds: 9 forward, 1 reverse
Forward ratio: 12.42, 8.29, 6.08, 4.53, 3.36, 2.47, 1.81, 1.35, 1.00
Reverse ratio: 12.99
Clutch: 430 Diaphragm type
Steering: ZF8098 integral type power-steering
Fuel consumption (L/100km): 36
Fuel tank capacity (L): 400
Max. Speed (km/h): 90
Max. Gradeability(%): 25
Kerb. Mass: 9180kg
Total mass: 25000kg
Max towing load: 39800kg
Max load on 5th wheel: 15690kg
Turning circle diameter: 24m
Approach angle: 16 degree
Departure angle: 70 degree
Parameters of HOWO Tractor (6×4, EURO Ⅱ, Extended Cab)
| ZZ4257M3241W | ZZ4257N3241W | ZZ4257S3241W | ZZ4257S3247AZ | ZZ4257V3241W | |
Cab | Model | HW76 | ||||
Type | Extended cab, single berth, up-down, front-rear adjustable steering wheel, VDO instrument and control module, double-locking safety belt, outer sun shade | |||||
| Model | WD615.87 | WD615.69 | WD615.47 | WD615.47 | D12.42 |
Rated Power kW/rpm | 213/2200 | 247/2200 | 273/2200 | 273/2200 | 309/2000 | |
Max. Torque Nm/rpm | 1160/1100-1600 | 1350/1300-1600 | 1460/1300-1600 | 1460/1300-1600 | 1820/1100-1400 | |
Discharge L | 9.726 | 11.596 | ||||
Type | In-line, six cylinders, supercharging intercooling; WD615 engine (two valves/rear supercharger); D12 engine (four valves/central supercharger). | |||||
Clutch | Φ430 diaphragm spring clutch, hydraulic control, air booster; WD615.47/D12.38/D12.42 standard configuration 430A; WD615.69 standard configuration 430B; WD615.62/WD615.87 standard configuration 430C. | |||||
Transmission | Sinotruk HW series 10-speed transmission; a primary gearbox + a secondary gearbox; primary gearbox: double countershafts; secondary gearbox: planetary reduction; WD615.62/WD615.87/WD615.69 standard configuration HW15710; WD615.47/D12.38/D12.42 standard configuration HW19710. | |||||
Front Axle | HF7 drum-type, rated load 7T | |||||
Drive Axle | HW1697 single reduction, speed ratio: standard configuration 3.73, optional configuration 4.22 | |||||
Suspension | Front/rear suspensions are plate springs; the front suspension has a damper and a lateral stabilizer; the rear suspension is a divided balanced suspension with a lateral stabilizer. | |||||
Steering System | ZF8098 steering gear, ZF steering pump, system pressure 18MPa | |||||
Braking System | Service brake: dual-circuit air brake; parking brake: energy storage spring air-break brake; auxiliary brake: engine exhaust brake; optional configuration engine EVB, ABS and automatic slack adjuster. | |||||
Electric System | Voltage: 24V; dynamo:1540W; starter: 7.5kW; storage battery: 2×12V/165Ah. | |||||
Tyre | 12.00-20; optional 11.00-20 | |||||
Tank Capacity L | 400 | |||||
Curb Weight kg | 9180 | 9180 | 9180 | 9180 | 9230 | |
Gross Mass kg | 25000 | 25000 | 25000 | 25000 | 25000 | |
Max. Towed Mass kg | 32400 | 39200 | 39800 | 39600 | 39640 | |
Allowable Load of Saddle kg | 15690 | 15690 | 15690 | 15660 | 15640 | |
Dimensions (L*W*H) mm | 6800×2496×2958 | 6800×2496×2958 | 6800×2496×2958 | 6800×2496×2958 | 6800×2496×2958 | |
Wheel Base mm | 3200+1400 | 3200+1400 | 3200+1400 | 3200+1400 | 3200+1400 | |
Front Overhang/Rear Overhang mm | 1500/725 | 1500/725 | 1500/725 | 1500/725 | 1500/725 | |
Wheel Track (Front/Rear) mm | 2022/ 1850 | 2022/ 1850 | 2022/ 1850 | 2022/ 1850 | 2022/ 1850 | |
Min. Ground Clearance mm | 267 | 267 | 267 | 267 | 267 | |
Approach Angle/Departure Angle ° | 16/70 | 16/70 | 16/70 | 16/70 | 16/70 | |
Max. Speed km/h | 102 | 102 | 102 | 102 | 92 | |
Max. Climbing Capacity % | 20 | 24 | 26 | 26 | 33 | |
Min. Turning Diameter m | 15 | 15 | 15 | 15 | 15 | |
Ground Clearance of Saddle Joint (Empty/Full) mm | 1360/1326 | 1360/1326 | 1360/1326 | 1360/1326 | 1360/1326 | |
Front/Rear Turning Radius mm | 2790/2230 | 2790/2230 | 2790/2230 | 2790/2230 | 2790/2230 | |
Traction Pin Size | 50#(2inches) | 50#(2inches) | 50#(2inches) | 50#(2inches) | 50#(2inches) | |
Remarks | Optional WD615.62 | OptionalD12.38 | OptionalD12.38 |
