Views: 865 Author: Dong Runze Special Vehicle Publish Time: 2021-10-20 Origin: Combined Vacuum And Jetting Trucks

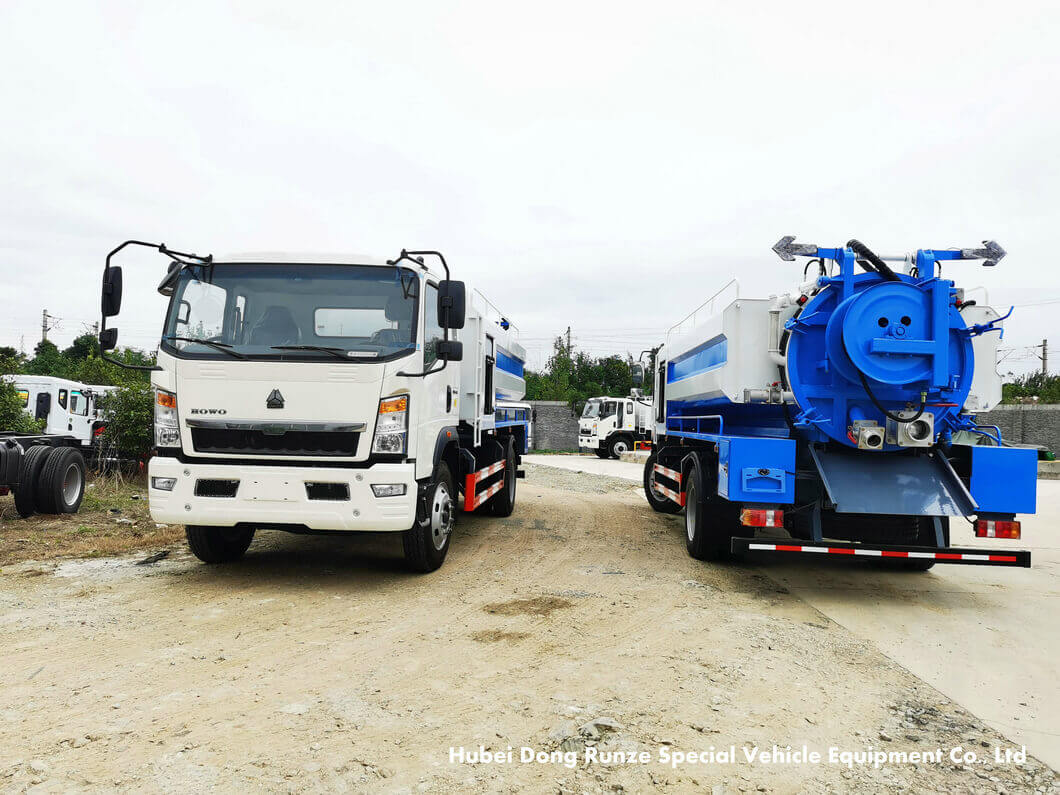

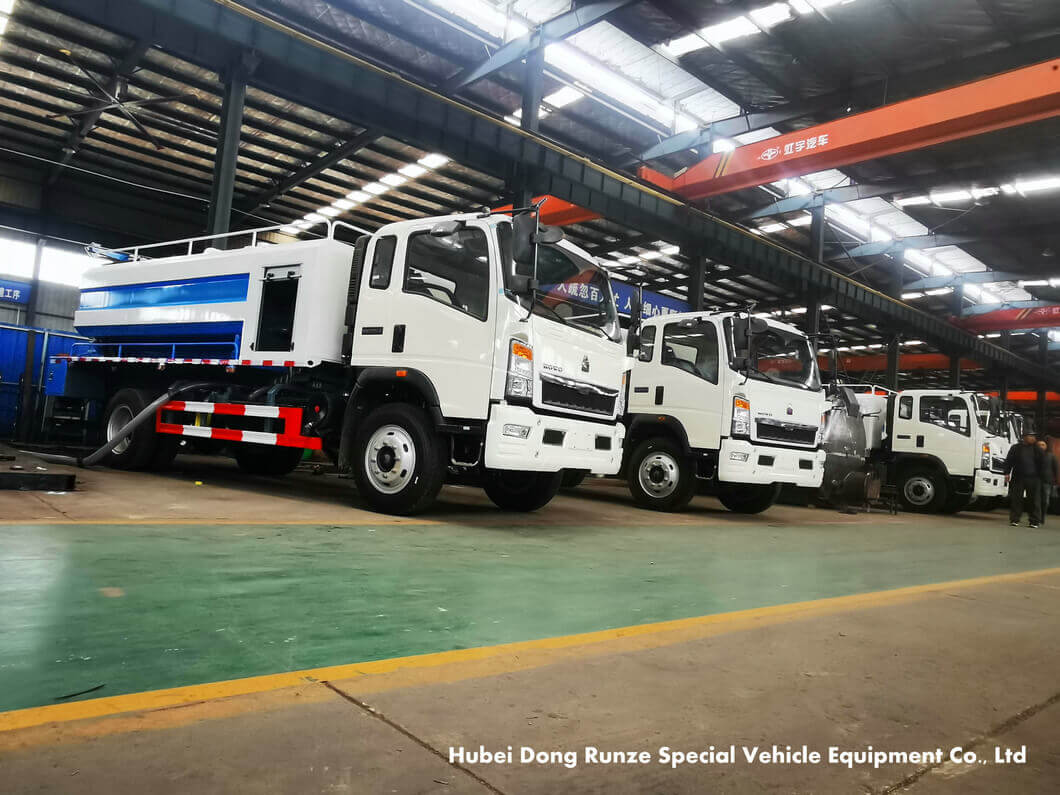

6 Sets Sinotruck HOWO 8 T Vacuum Jetting Flushing combination Trucks and 6Ton Water Bowser Tanker to MONGOLIA
Vacuum–Jetting Flushing combination truck for vacuuming and transport of oil mud, waste-water(sewage) as well as for high-pressure sewer pipe cleaning operations.
The tank capacity is 5 000 ltr vacuum tank and 3 000 ltr integrated fresh water tank
Tank shape: integrated
LOADING PORT &DESTINATION: Eelian Border | |||||||
Payment term: 100%T/T,40% deposit | |||||||
DESCRIPTION OF | MODEL | QUANTITY | PACKAGE | DIMENSION | N.W.(kg) | G.W.(kg) | |
HOWO SEWER JETTING VACUUM TANKER TRUCK | DRZ5127GQW | 5UNITS | naked | (7800kg/unit) 39000kg | 39,000 | ||
HOWO WATER TANKER TRUCK | DRZ5047GSS | 1UNIT | naked | 4,200 | 4,200 | ||
Hubei Dong Runze Special Vehicle Equipment Co., Ltd | |||||||
VIN:LZZ5BAFE5ME916058 ENGINE NO.:E3717MY0398 VIN:LZZ5BADC6ME903739 ENGINE NO.:AGC21000853 | |||||||

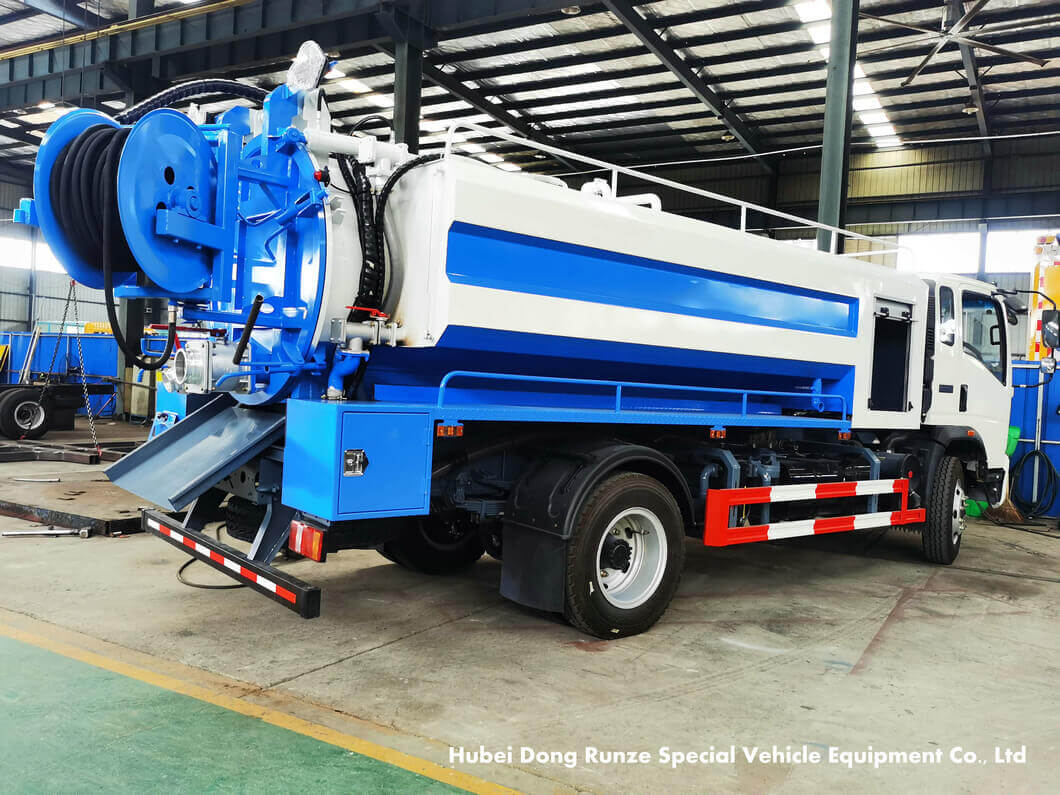

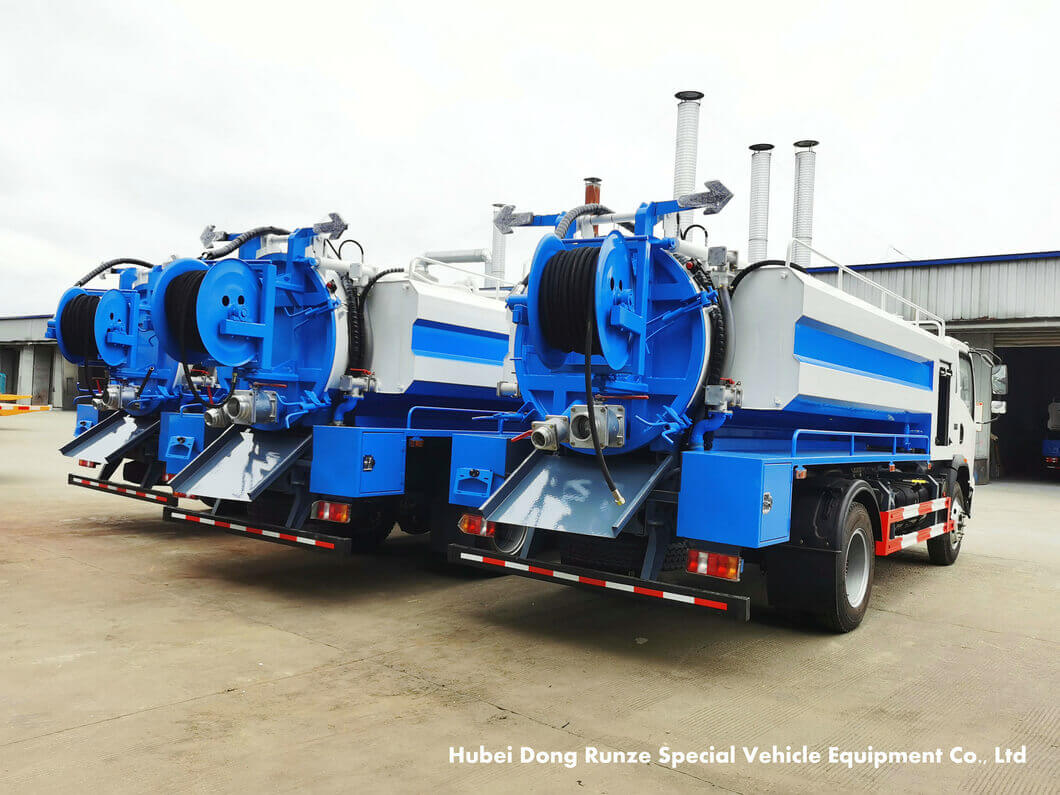

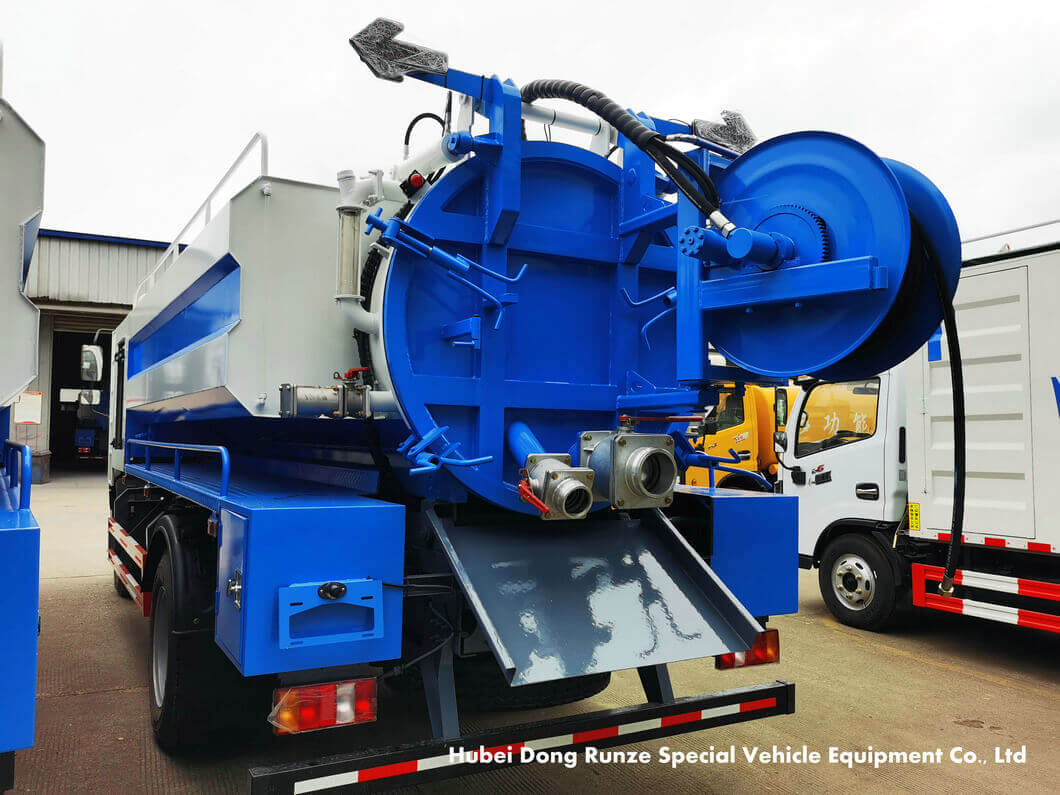

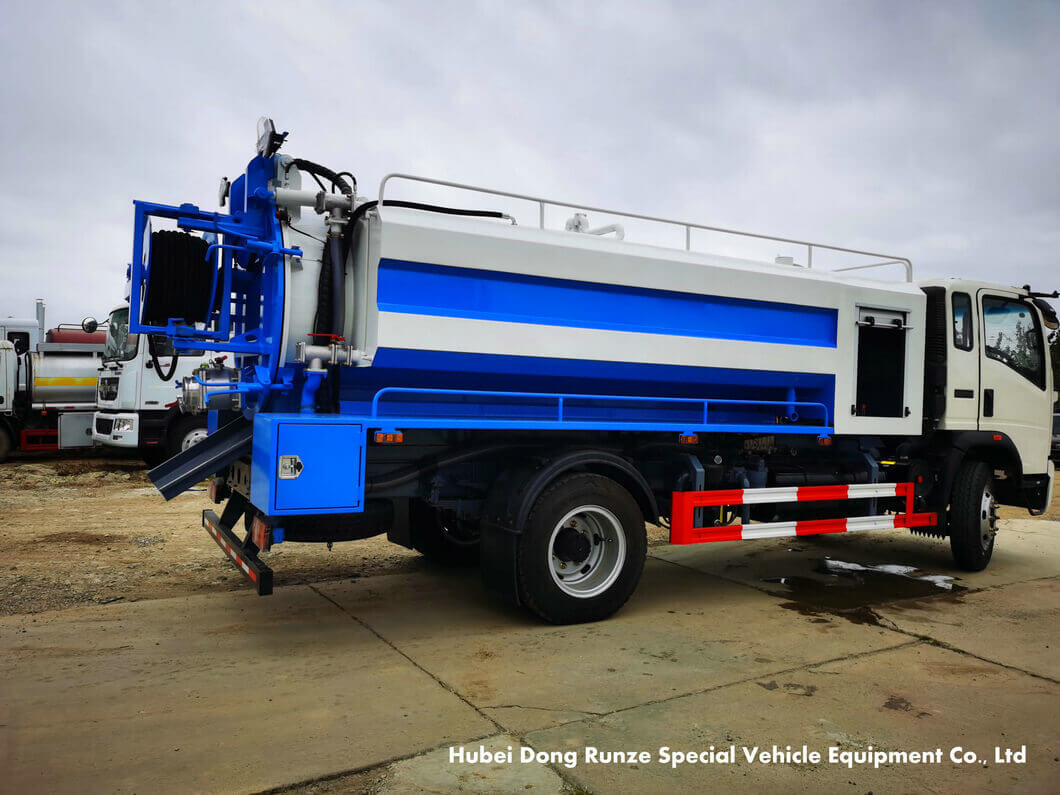

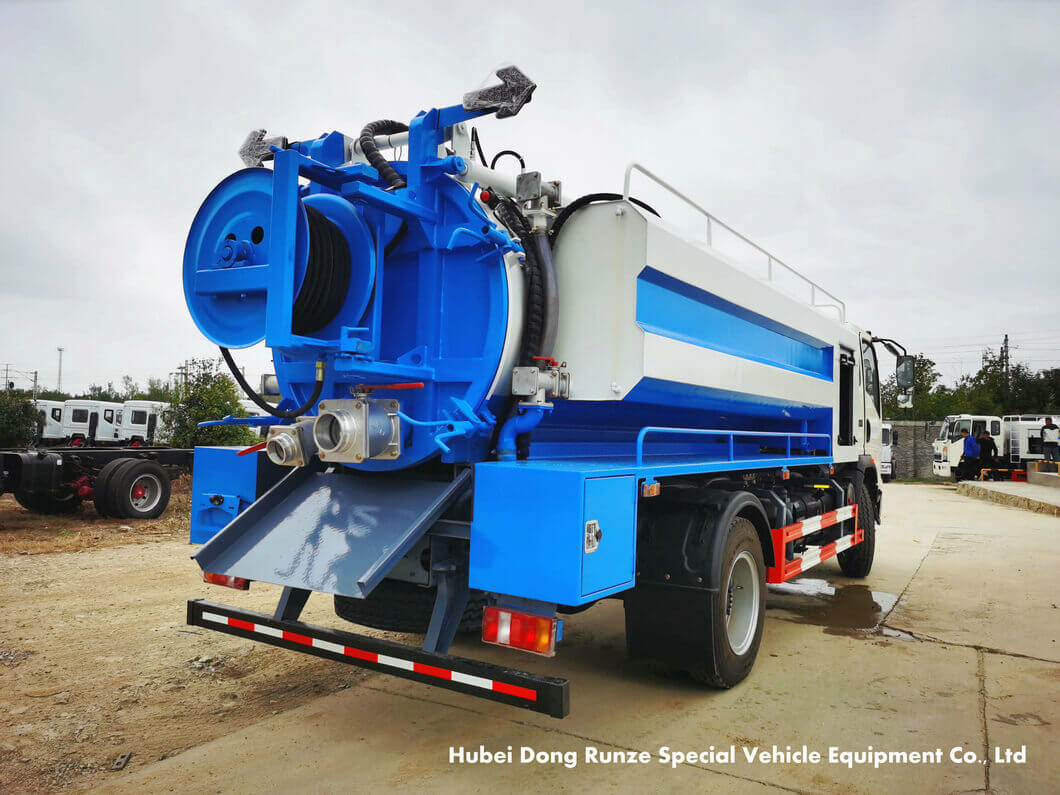

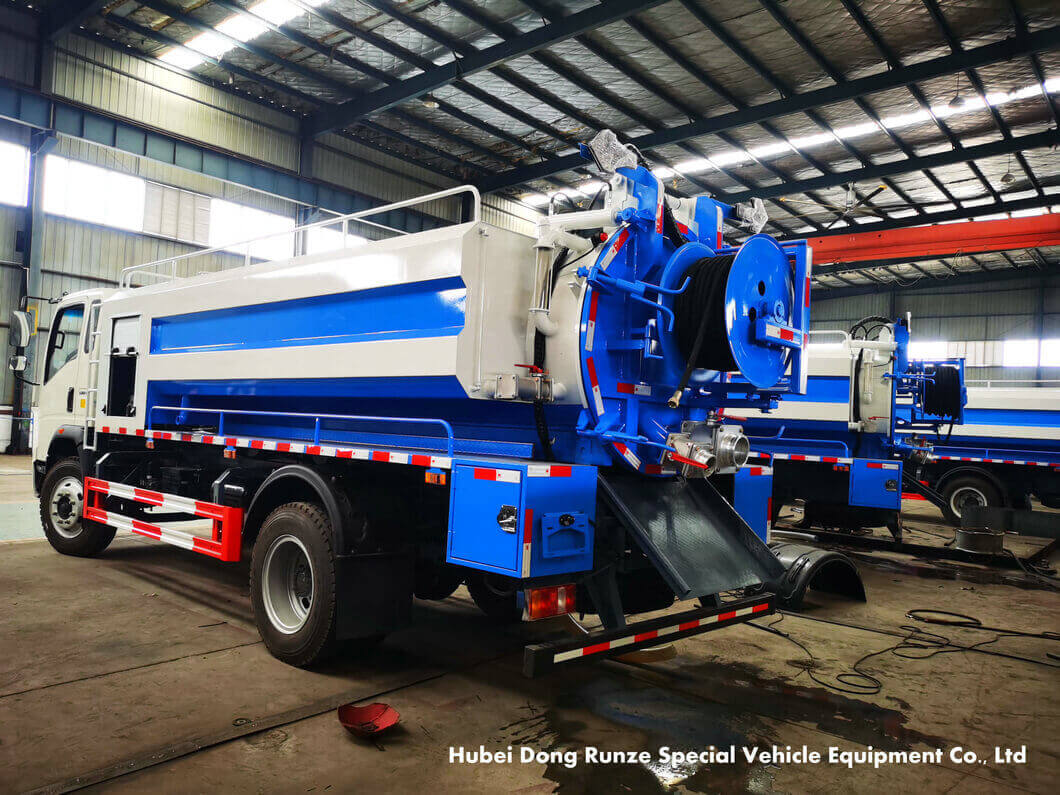

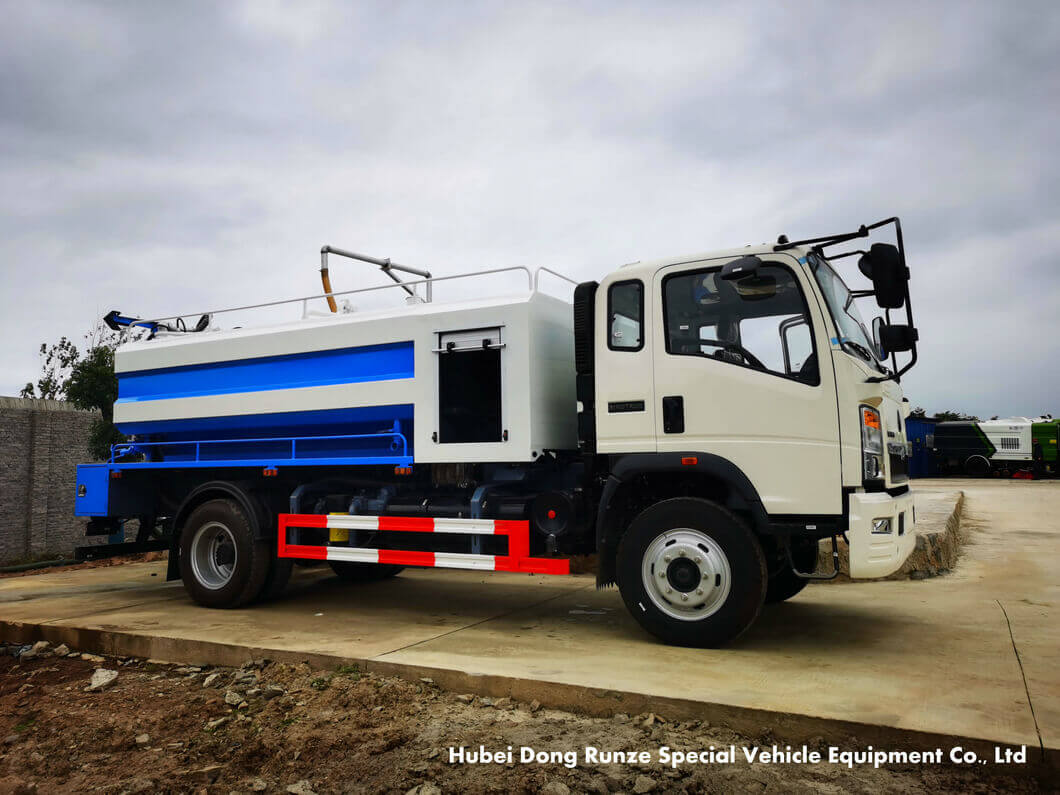

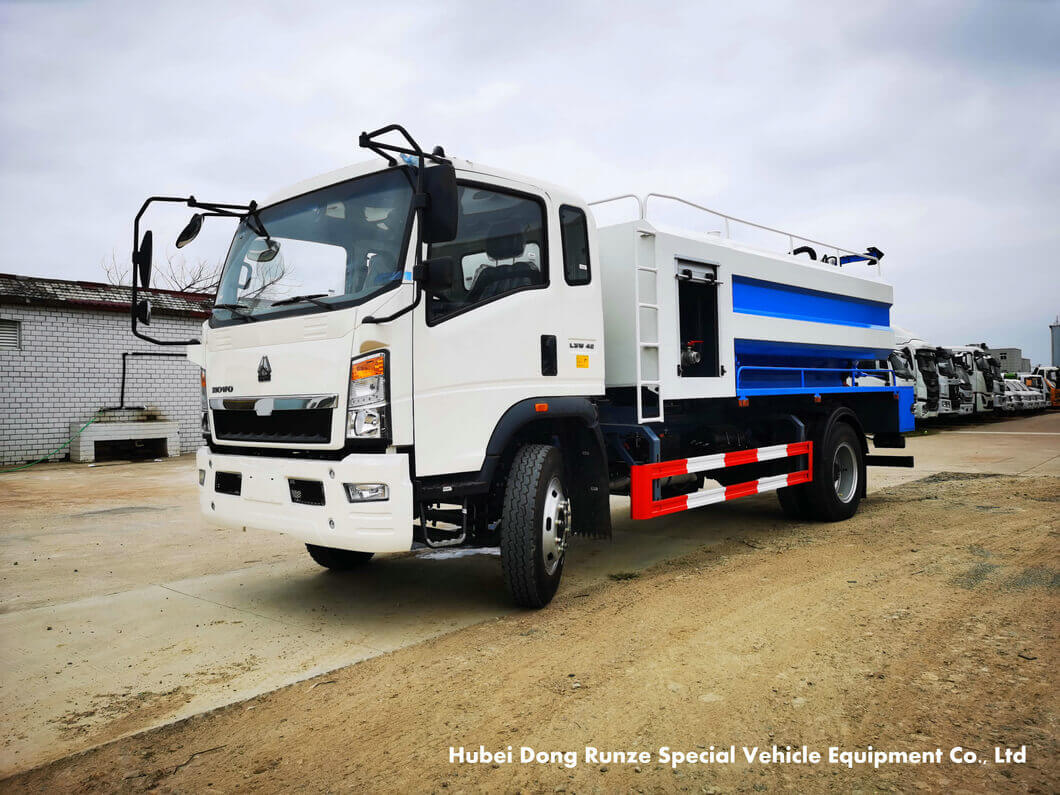

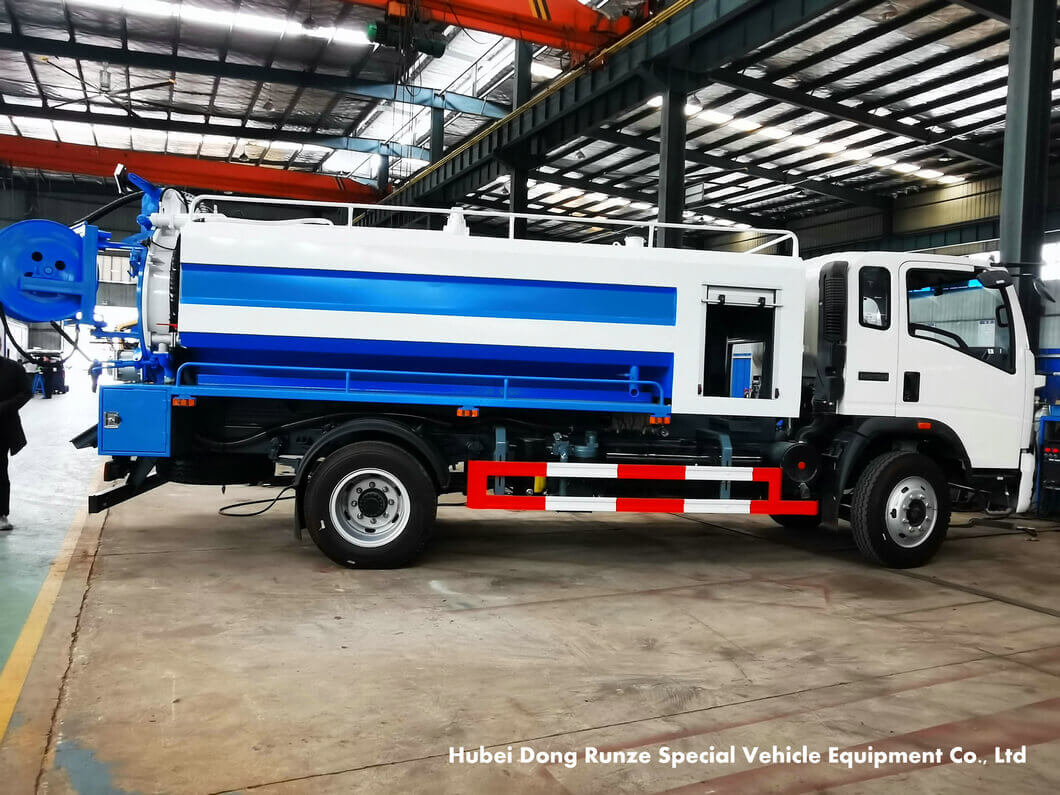

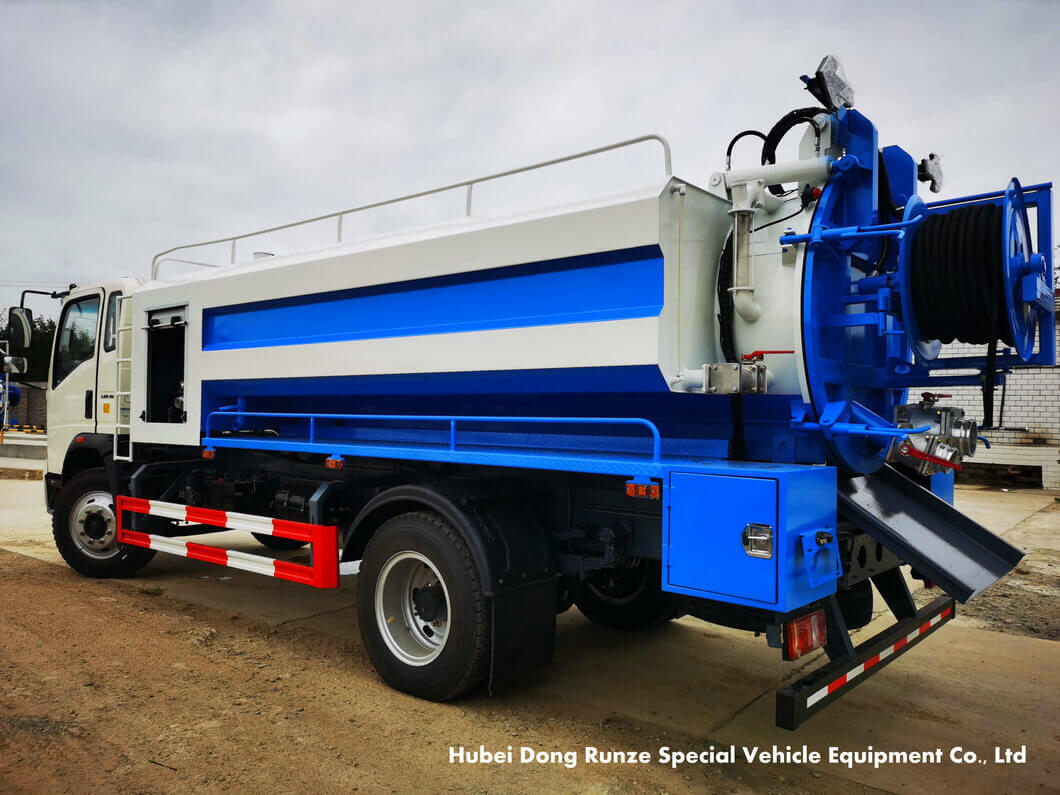

SINOTRUCK 4X2 HOWO Combined Sewer Jetting Vacuum Tanker Truck
Product Name | SINOTRUCK 4X2 HOWO Combined Sewer Jetting Vacuum Tanker Truck | |
Chassis | Chassis Model | ZZ1127 ZZ1107 Cabin is suitable for 1 drive+2 passenger |
Wheelbase | 4200mm | |
Total Weight | 14500 kgs | |
Curb Weight | 6500 kgs around | |
Engine | Engine Brand | YUCHAI |
Type | 4 strokes,4 cylinder water cooled, direct fuel injection, turbo-diesel engine. | |
Displacement (ml) | 4257 | |
Power | 160HP at rated RPM | |
Max torque | 600.N/m | |
Rotation speed | 1200-1400 rpm | |
Fuel Type | Diesel | |
Emission Standard | Euro 3 | |
Clutch System | Model | Single Plate, dry friction |
Steering System | Power Steering | Left hand driving |
Transmission System | Manually Operated | 6-speed |
Brake System | Service Brake | Air brakes |
Park Brake | Air Brake & Hand Brake | |
Suspension | 9/12+9B Semi-elliptical leaf spring with telescopic shock absorb | |
Axle | Front axle 3.2T,rear driving axle 8T | |
Type | Type Quantity | 6+1 pcs |
Type Specification | 8.25R20 high quality | |
Cabin | The cabin of 3 person (including driver), air condition | |
Body Superstructure | Tank Capacity | 5 m3 |
Tank Material | 6mm high quality carbon steel | |
Vacuum pump | China famous vacuum pump | |
Vacuum rate | 99% | |
Suction horse | 10m | |
Rotation speed | 500rpm, low noise, high efficiency | |
Water Tanker | Capacity | 3m3 |
Material | carbon steel | |
Basic Equipment | Install vacuum pumps and hydraulic systems driven by engine through PTO.One multi-way valve,pressure gauges, water-gas separator, oil-gas separator, hydraulic oil tank, a level inspection window, hand washing tank and 10m suction hose | |
Paint | Tank color is according to client’s requirements. | |
Main Equipment | 1).German brand PINFL high pressure pump(24Mpa),with 10 units high pressure drills,Rear automatic return high pressure tube reel,60m high pressure tube 2).big power PTO,china famous brand oil Vauum Pump or water-ring vacuum pump,with oil-water separator & overflow valve,6m length suction pipes,2 units DN100 ball valves. |
2).Specification for SINOTRUCK 4X2 HOWO 6000 Liters water Tanker Truck
Product Name | SINOTRUCK 4X2 HOWO 6000 Liters Water Tanker Truck | |
Chassis | Chassis Model | ZZ1047 Cabin is suitable for 1 drive+2 passenger |
Wheelbase | 3360mm | |
Total Weight | 9500 kgs | |
Curb Weight | 3800 kgs around | |
Engine | Engine Brand | YUNNEI |
Type | 4 strokes,4 cylinder water cooled, direct fuel injection | |
Displacement (ml) | 3760 | |
Power | 116HP at rated RPM | |
Max torque | 290.N/m | |
Rotation speed | 1800-2100 rpm | |
Fuel Type | Diesel | |
Emission Standard | Euro 3 | |
Clutch System | Model | Single Plate, dry friction |
Steering System | Power Steering | Left hand driving |
Transmission System | Manually Operated | 6-speed |
Brake System | Service Brake | Air brakes |
Park Brake | Air Brake & Hand Brake | |
Suspension | 11/9+7CH Semi-elliptical leaf spring with telescopic shock absorb | |
Axle | Front axle 2.7T,rear driving axle 7.2T | |
Type | Type Quantity | 6+1 PCS |
Type Specification | 8.25R16 high quality | |
Cabin | The cabin of 3 person (including driver), air condition, etc. | |
Water Tanker | Capacity | 6m3 |
Material | carbon steel | |
Basic Equipment | High quality Chinese good quality water pump Tanker body material 4mm carbon steel, with front & rear washing nozzles,side spray nozzles, You can choose rear platform watering gun or not. with fire valves and connects, 2 units water pipes,music horn. | |
Paint | Tank color is according to client’s requirements. |
