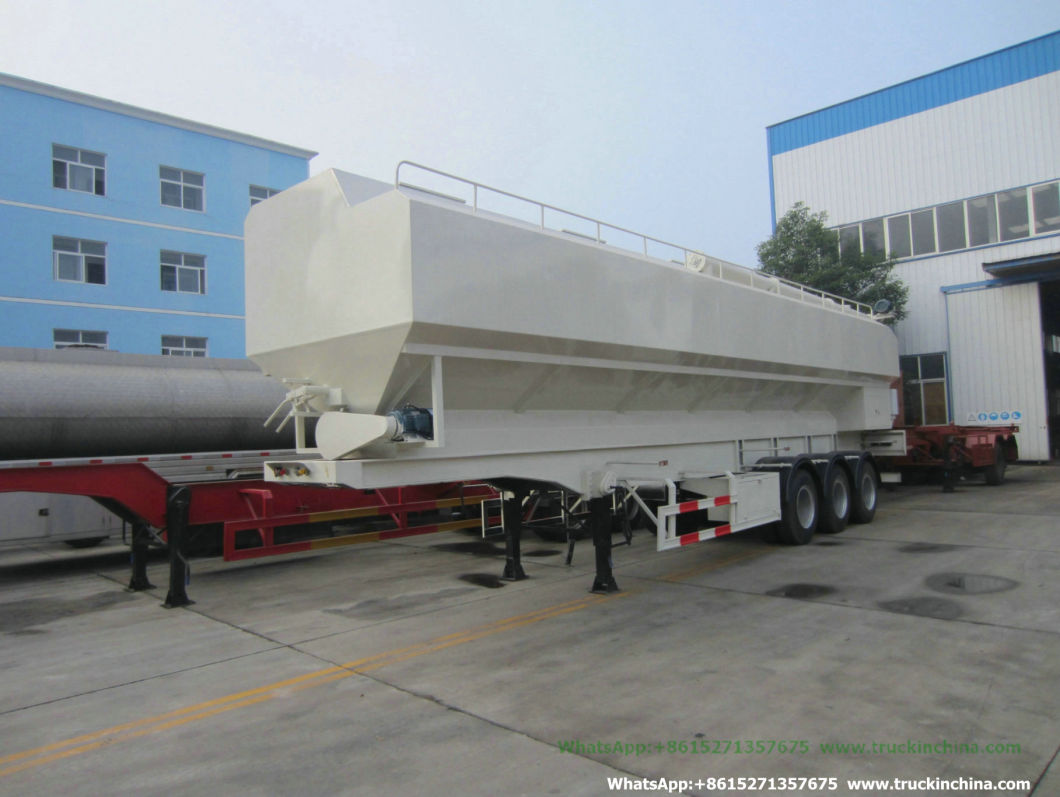

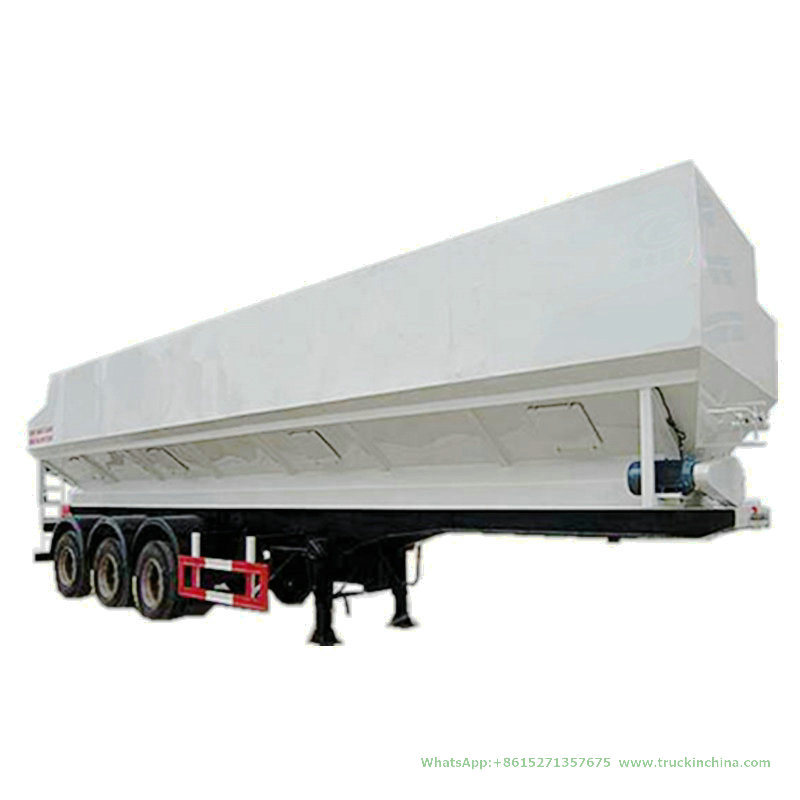

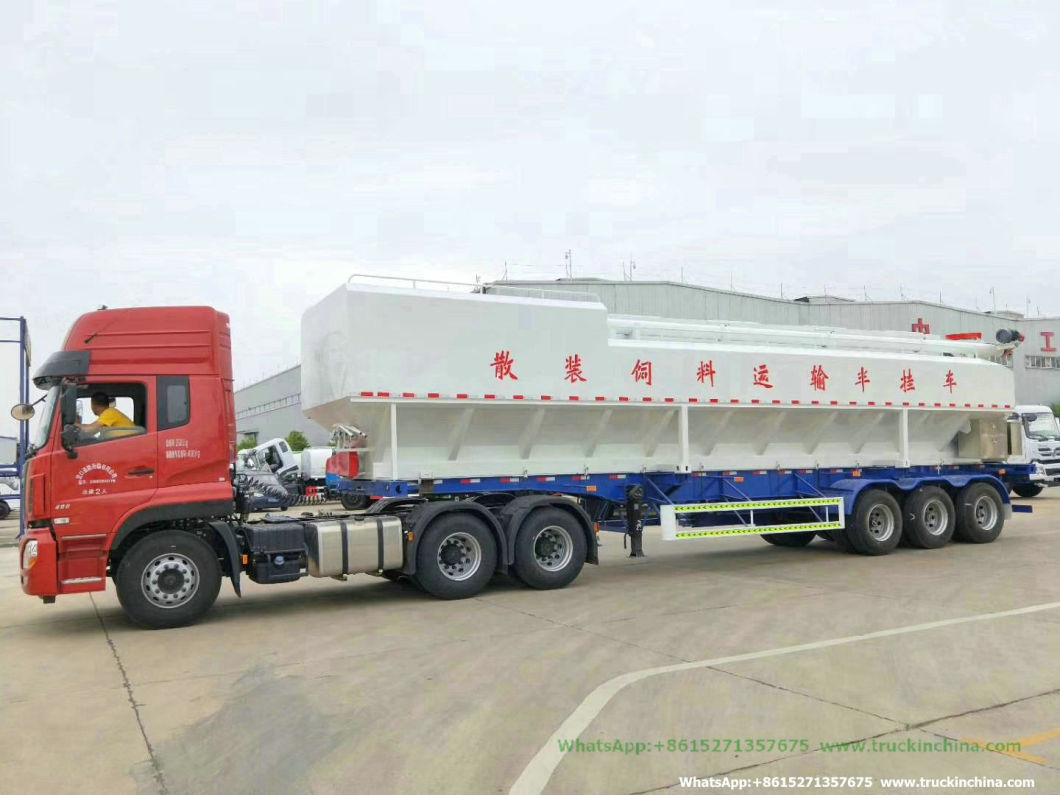

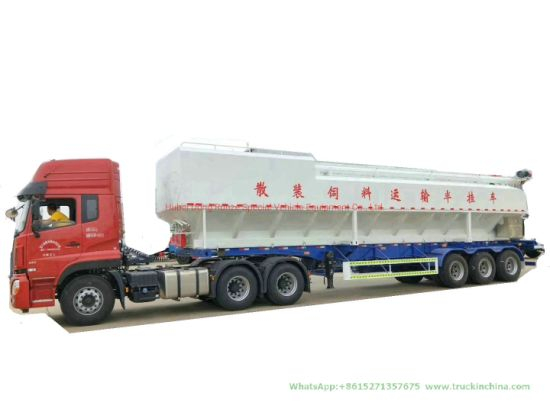

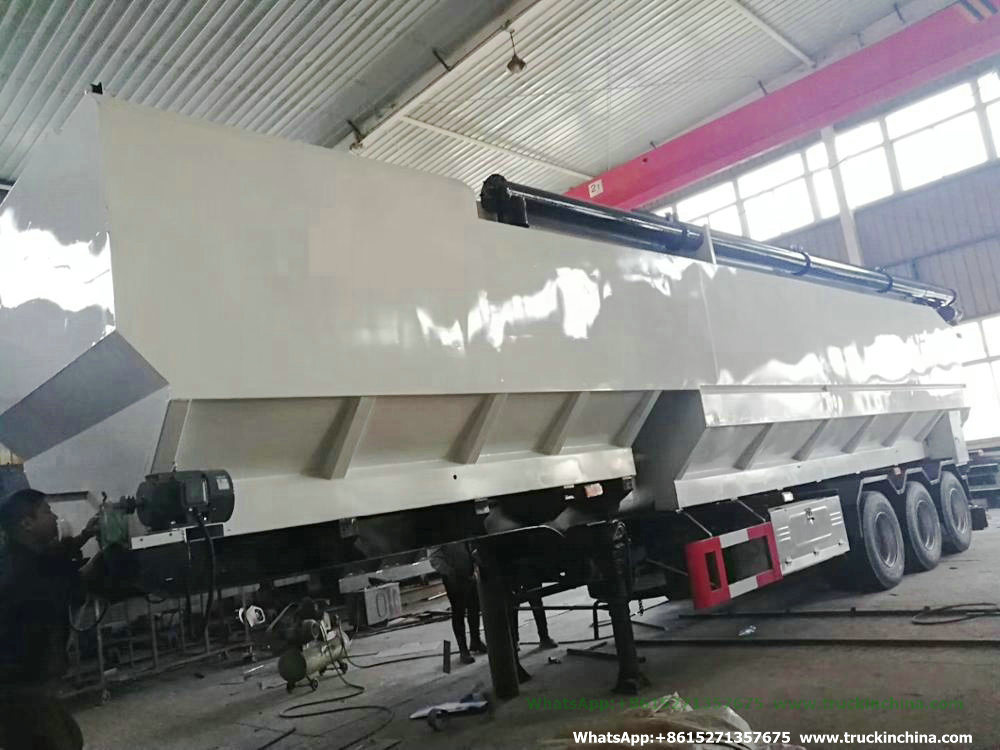

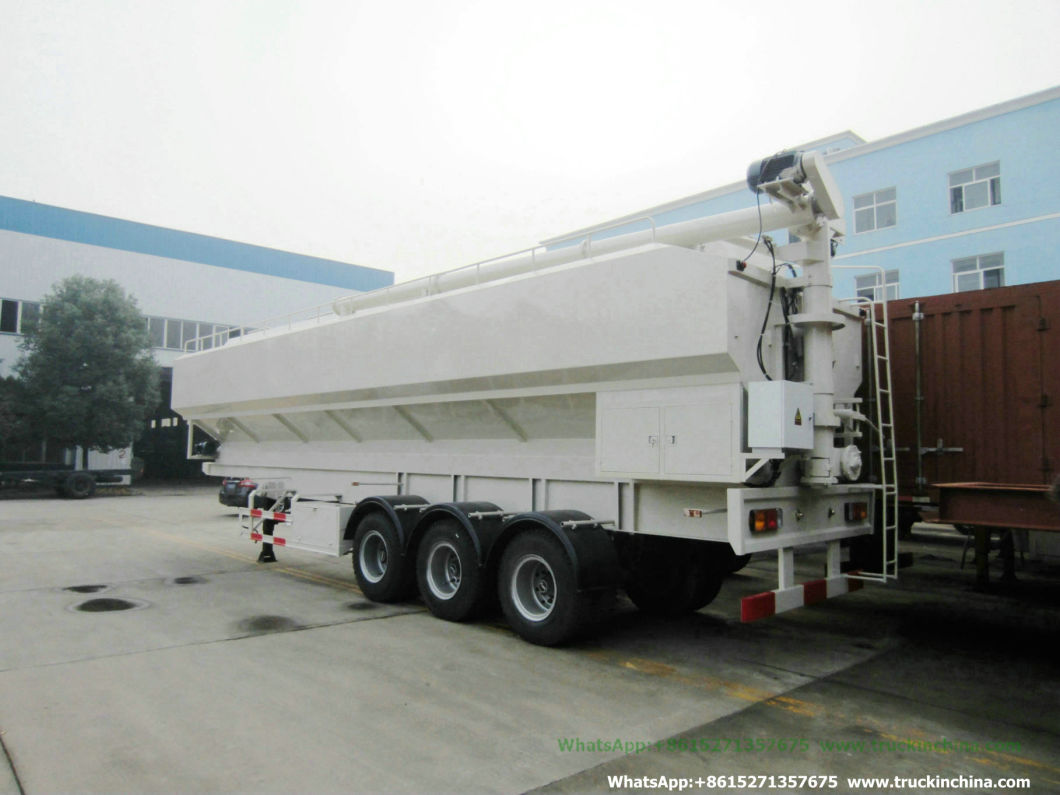

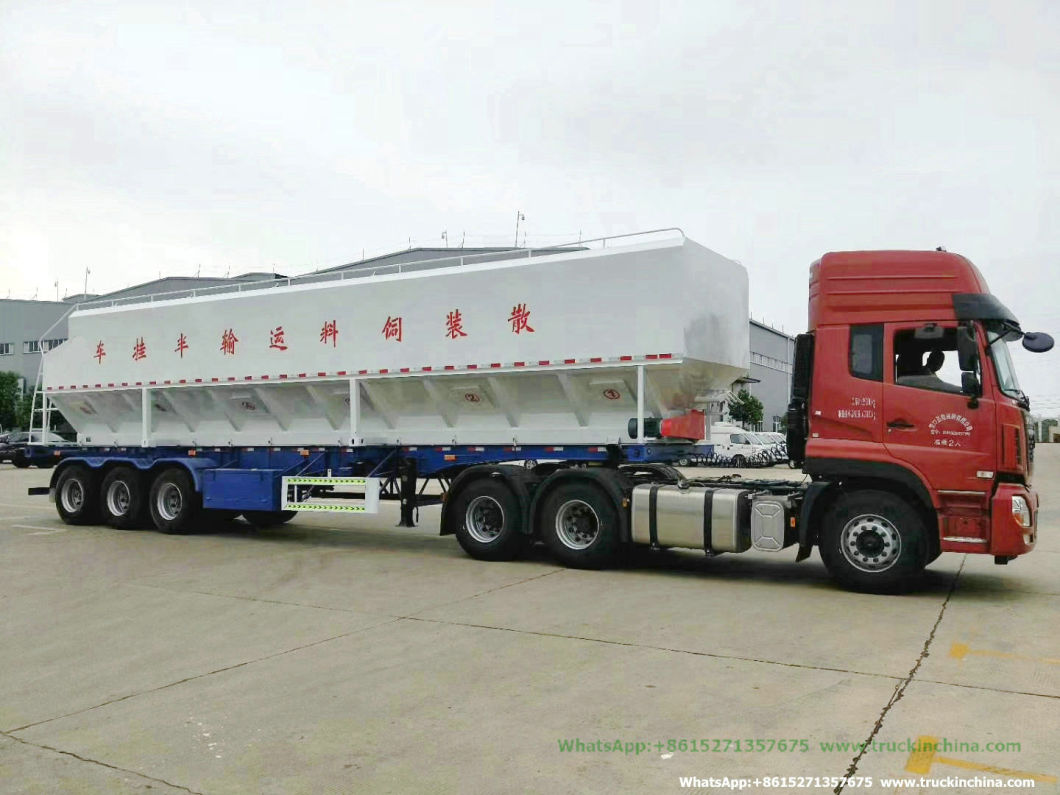

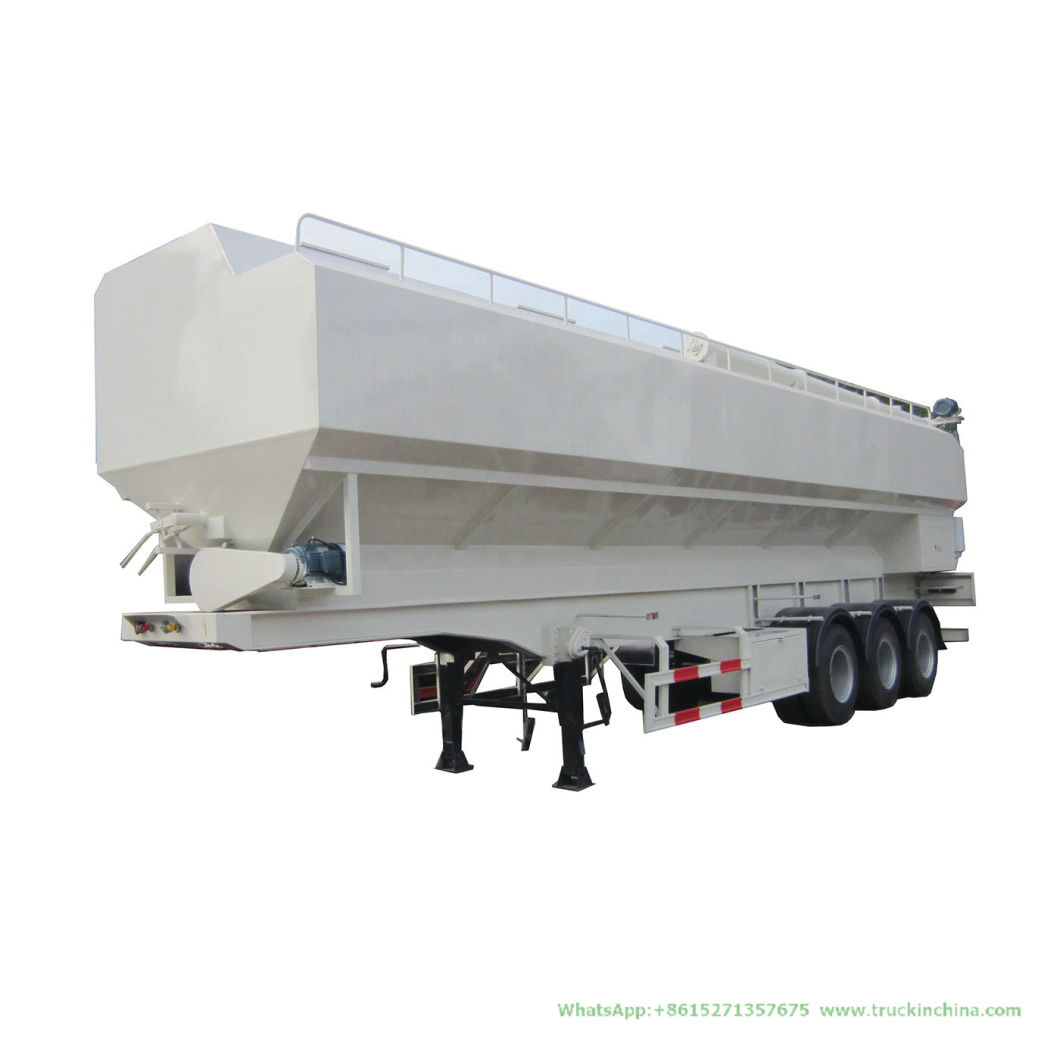

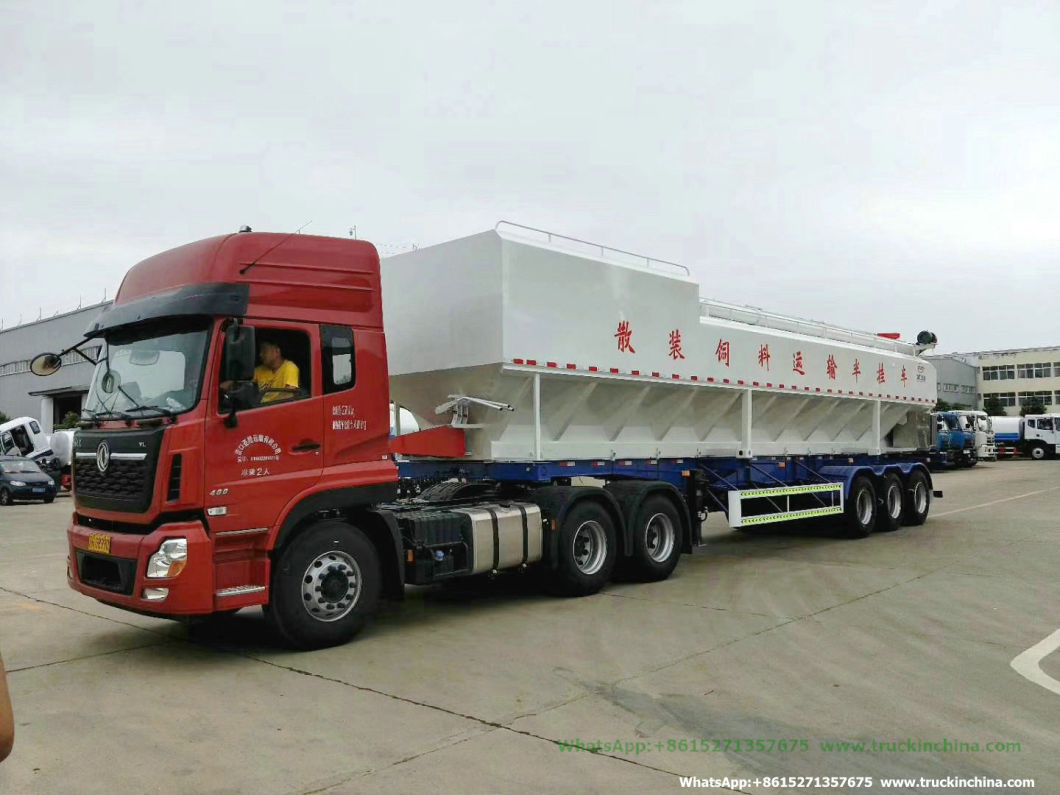

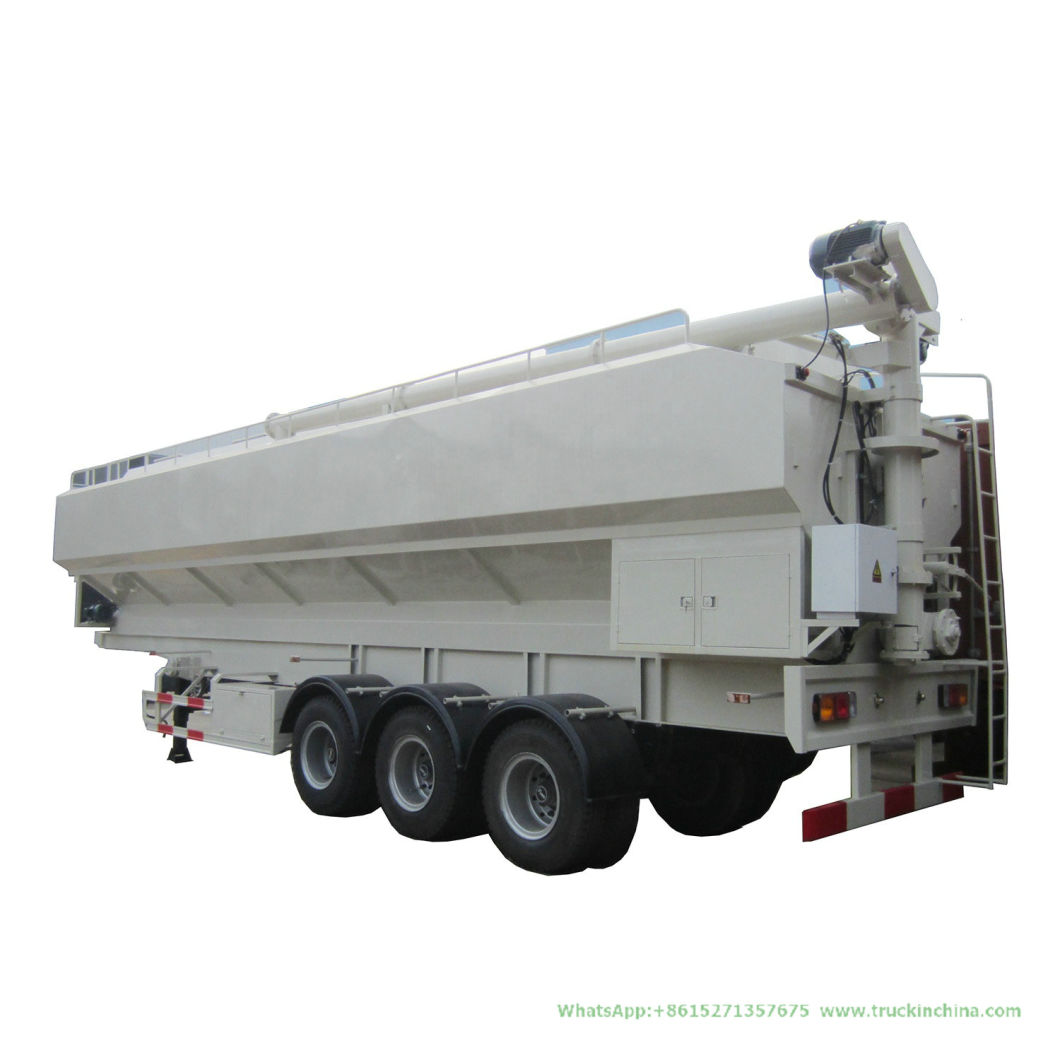

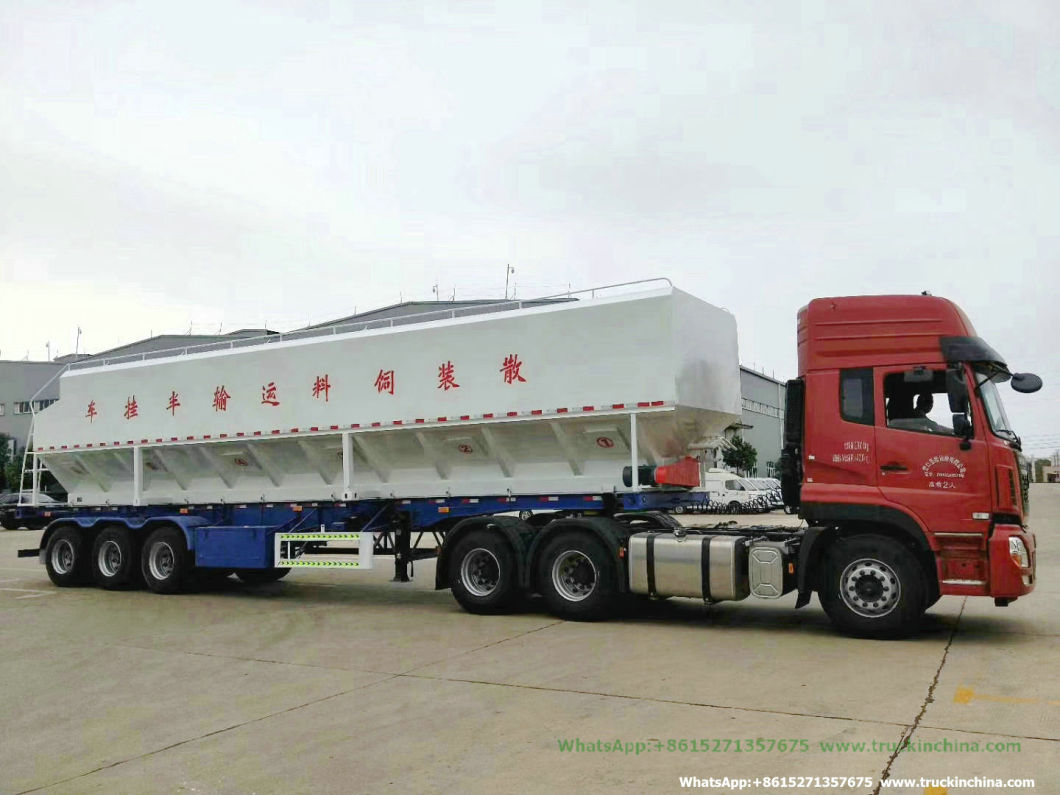

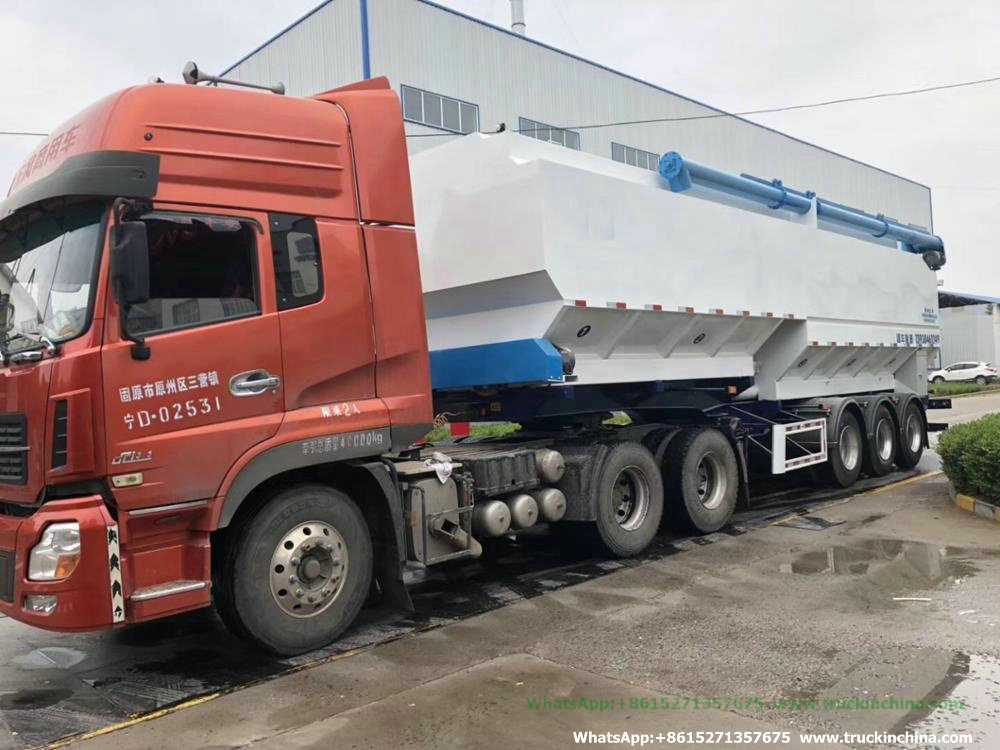

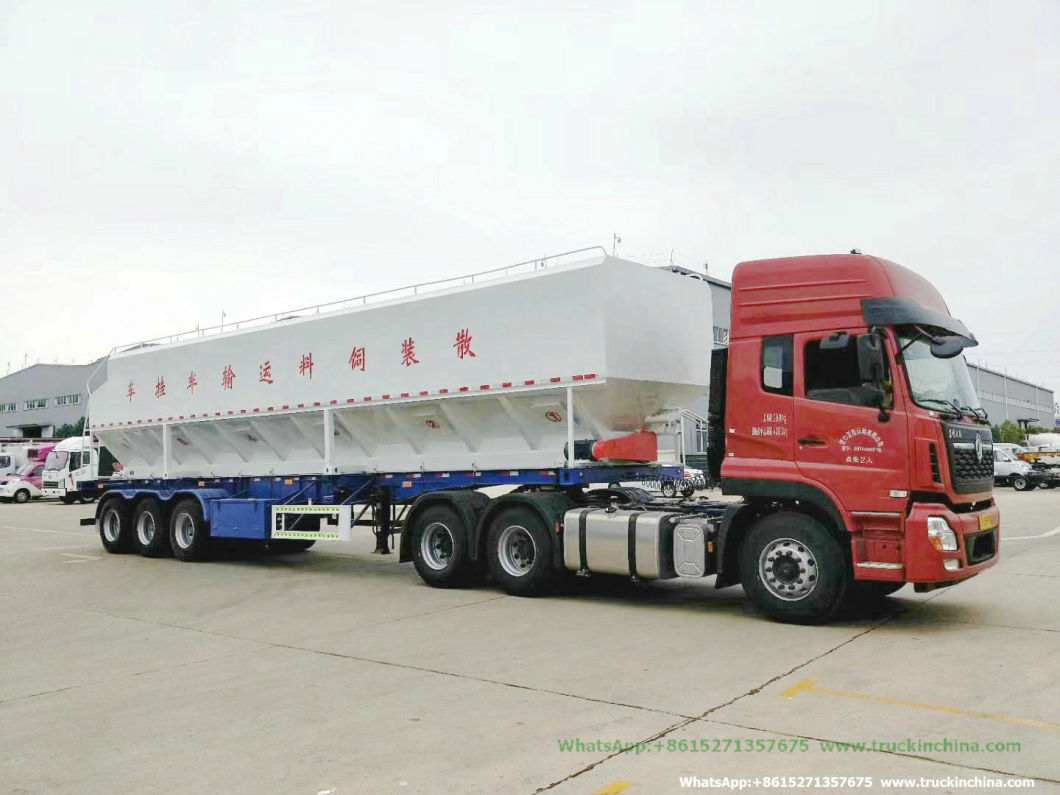

Tri-Axles Bulk Feed Tank Semi Trailer Customized with Electric Pump Hydraulic System Transport Livestock Chicken Duck Goose Feed
Quantity: | |
---|---|
Electric dischrage system bulk feed tank trailerThe voltage is 380V . If the volatege is different in your country . Please tell us , we will customize the electric motor and others for you .
Or we can add a generator also .
As for the bulk feed tanks series : we can make bulk feed tank truck from 4 tons to 20 tons .
Bulk feed trailer from 25 tons to 30 tons . Also we can provide you bulk feed tanks only .You can mounted the tank on your own chassis .
And the discharge system can be electric and hydraulic discharge system .
If you need the bulk feed tank trailer or trucks , please feel free to contact us .
Item | 11meters long tri-axle Hydraulic Chicken feed bulk transport performance semi-hanging trailer |
Chassis brand | Shacman |
Overall dimension | 14600×2550×4000mm |
Van body dimension | 13820×2330×2410,2360mm |
Axles | 3 |
Wheelbase | 7980+1310+1310mm |
GVW | 40000kg |
Curb weight | 10000kg |
Cabin Seat | 3 |
Axles loading | 7000/7000/11000 |
Max speed | NA |
Tyre quantity | 13(with one spare tyre) |
Emission standard | Euro 3/4/5 |
Main Dimensions | |||
Overall Length | 11000MM | ||
Overall Height | 3800MM | ||
Tare Weight | 13700KGS | ||
Total Volume | 47CBM | ||
Pay Load | 66Tons | ||
Tanker Body | |||
Loading Medium | Bulk feed, grain,powder, etc. | Tan size | 12.1x2.4x3.9 m |
Tanker Body | Q235A/ 6mm | Compartment | 1to 8 units |
End plate | Q235A/6mm | Shape | Box type |
Chassis | |||
Chassis | 3 axles, BPW 13 ton, FUWA, L1 brand are optional | ||
Suspension | Mechanical suspension with 8-pcs leaf spring | ||
Braking System | WABCO Emergency Relay Valve; T30/30+T30 air chamber | ||
Rim & Tire | 12R22.5 tubeless tire with one spare tire with 8.25R22.5 wheel rim, 13 pieces | ||
More Details | |||
Driving form | Hydraulic driven | ||
Conveying height | 8.2 M | ||
Conveying distance | 9.8 M | ||
Discharge time | 25 minutes | ||
Main Parts | Mobile conveyor | ||
Vertical conveyor | |||
Hydraulic pump & Wire cabinets | |||
Conveyor maintenance port | |||
Horizontal conveyor | |||
Discharging operation handle | |||
Ladder |
Standard Q235A high strength carbon steel ensure tanker durability and safety
Germany Siemens AUTO welding process technology, quality guarantee
Unique Optional Tank material: Stainless, carbon steel, Aluminum alloy, High strength plastic steel
Capacity including: 23,000L, 25,000L, 26,000L, 28000L, 30,000L, 32,000L, 36,000L, 40,000L. 45,000L.47,000L.50,000L~72,000L
Tri axle 30 tons 60000 Liters bulk feed tank trailer
Overall dimension | 13000*2550*3980mm |
Tank dimension | 13000*2550*2640 mm |
Compartment | 6 |
Material | Carbon steel |
Manhole | 900*1100 mm |
Discharge pipe | 6.86 m |
Discharge pipe Rotation angle | 360 degree |
The distance from Feed Outlet to ground when the discharge pipe lift degree in 60 | 8.5 m |
Voltage | 380 V |
Rated discharge capacity | Powder 600-800 kg/min Granular 800-1000 Kg /min |
Residual rate | <0.05 |
Axle | 3 |
Curb weight | 12600 kgs |
Gross vehicle weight | 40000 kgs |
Wheelbase | 7130+1310+1310 mm |
Wheel track | 1840/1840/1840 |
Tire size | 12.00R22.5 |
Electric motor | Feed conveyor and outlet motor5.5 KW Lift motor 4.0 KW |
< Electric dischrage system bulk feed tank trailer >
