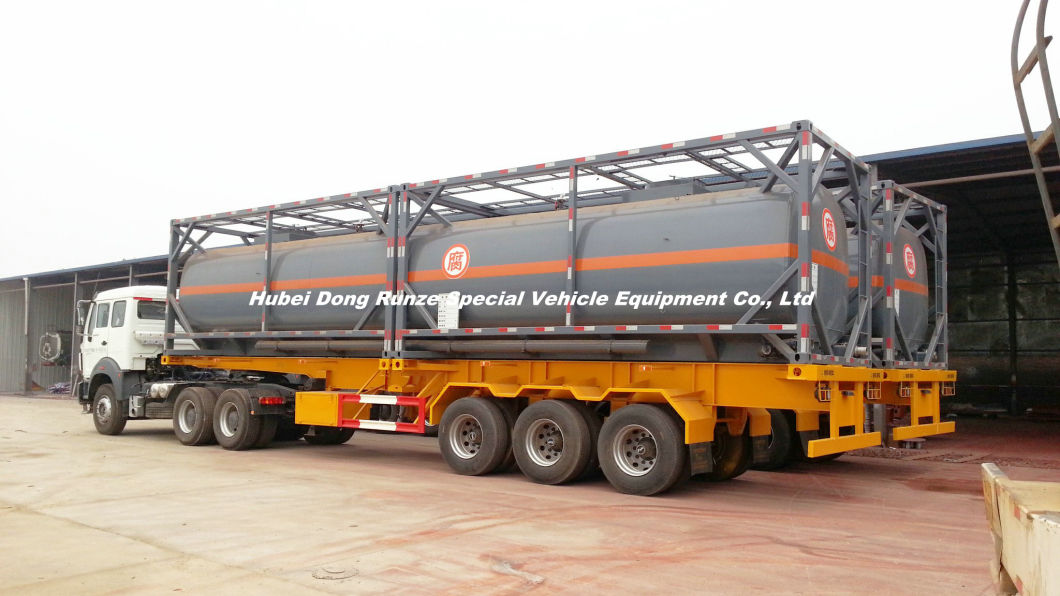

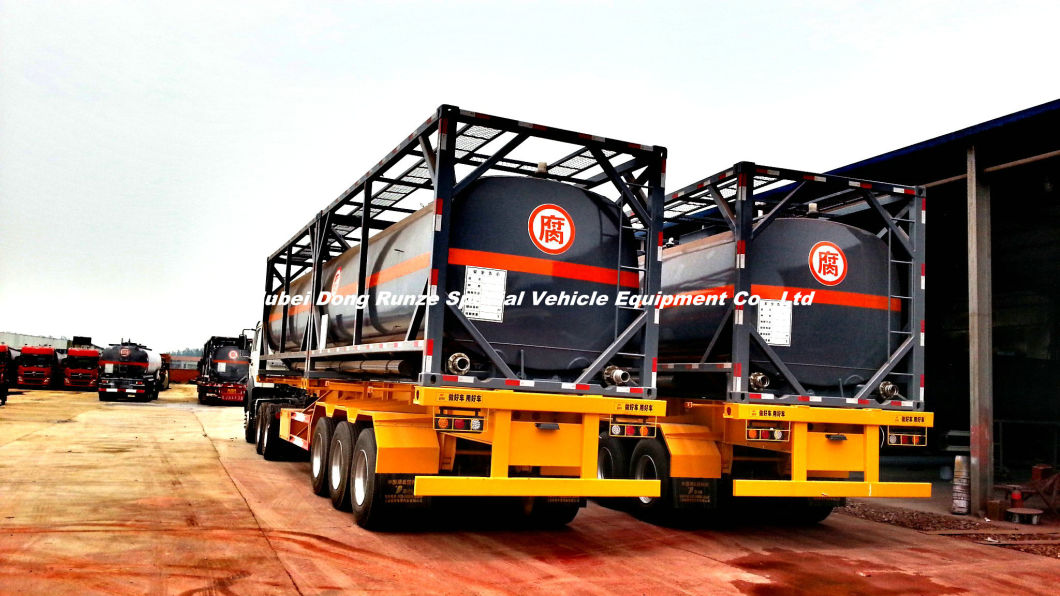

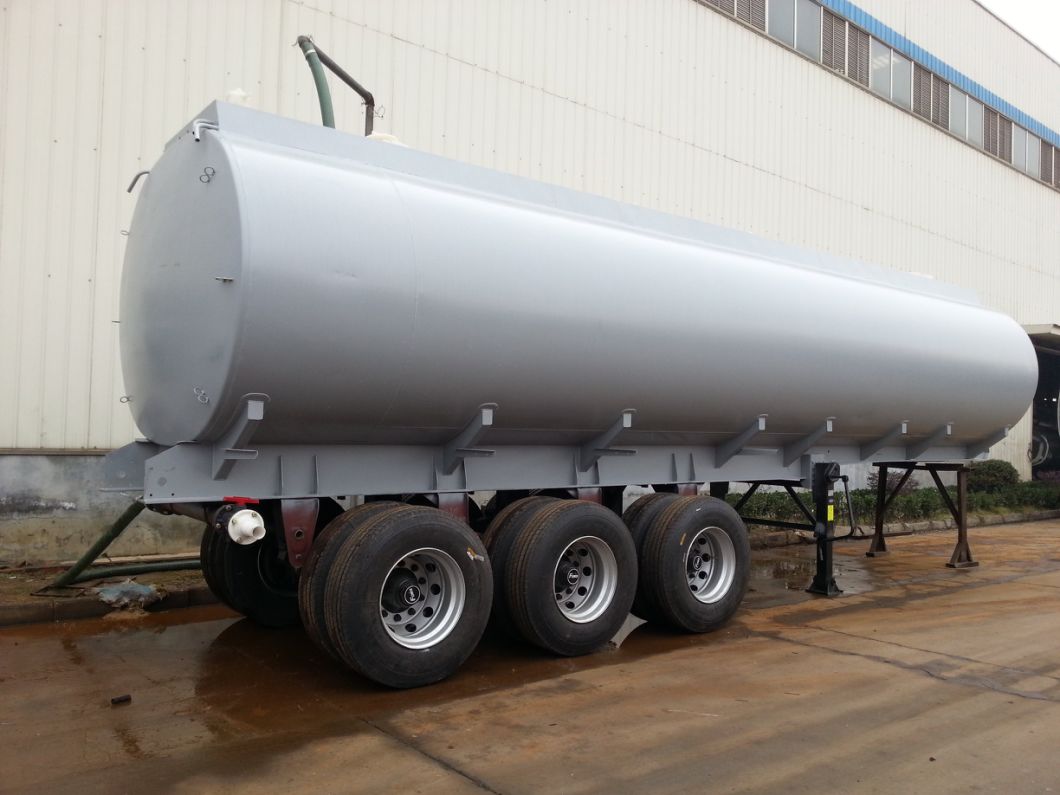

Acid Tanker Trailer for Road Transport (Hydrogen Fluoride) Hydrofluoric Acid Hf 48%

Acid Tanker Trailer for Road Transport (Hydrogen Fluoride) Hydrofluoric Acid Hf 48%
Availability:
Quantity:
  • Shanghai, China
  • 3000
  • T/T

Acid Tanker Trailer For Road  Transport (Hydrogen Fluoride) Hydrofluoric Acid HF 48%

Ask for better price

Cell +8615271357675

The pictures are for your reference only.
Acid Tanker Trailer for Road Transport (Hydrogen Fluoride) Hydrofluoric Acid Hf 48%
Acid Tanker Trailer for Road Transport (Hydrogen Fluoride) Hydrofluoric Acid Hf 48%
Acid Tanker Trailer for Road Transport (Hydrogen Fluoride) Hydrofluoric Acid Hf 48%
Acid Tanker Trailer for Road Transport (Hydrogen Fluoride) Hydrofluoric Acid Hf 48%
Acid Tanker Trailer for Road Transport (Hydrogen Fluoride) Hydrofluoric Acid Hf 48%

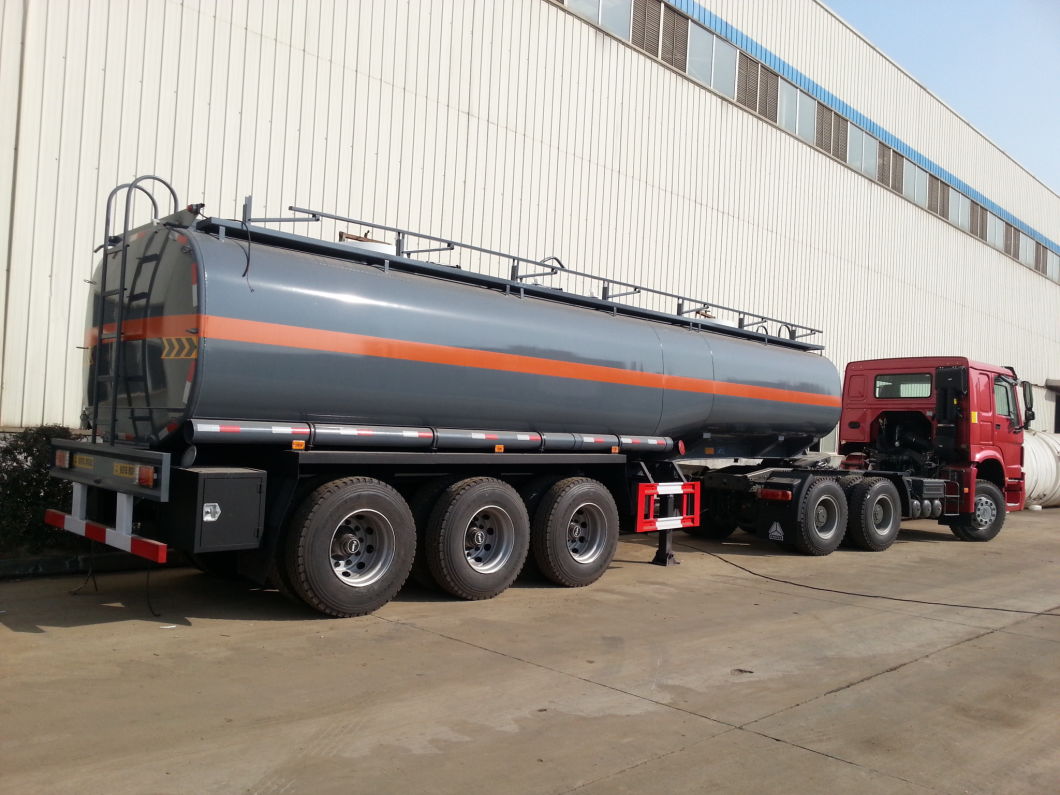

Hydrochloric acid tank semitrailer 3axles 29000Liters,32000liters,33800liters

Hydrochloric acid tank semitrailer
Tank volume: 22.4 -33 cbm: hydrochloric acid, dilute sulphuric acid ,acetic acid, acrylic acid

transport : hydrochloride, hydrogen chlorate, sodium hydroxide,acrylic
acetic acid, glacial acetic acid, hydrogen peroxide
Propionic acid, ammonia,NH3·H2O


iters

Fuwa 13tone axles,

Hydrochloric acid  tank transport semi-trailer


Acid Tanker Trailer for Road Transport (Hydrogen Fluoride) Hydrofluoric Acid Hf 48%

Acid Tanker Trailer for Road Transport (Hydrogen Fluoride) Hydrofluoric Acid Hf 48%
Acid Tanker Trailer for Road Transport (Hydrogen Fluoride) Hydrofluoric Acid Hf 48%
Acid Tanker Trailer for Road Transport (Hydrogen Fluoride) Hydrofluoric Acid Hf 48%

DRZ9350GFW Main technical parameters Tank volume: 23.8 cbm/23800liters

Overall   dimensions:

8600×2490×3650(mm)

Rated load:

27000(Kg)

Total mass:

35000(Kg)

Semi-trailer   saddle:

17000kg

Kerb mass:

8000(Kg)



Approach/departure   angle:

-/14 (°)

Front/rear   suspension:

-/1450(mm)

Axle load:

-/18000   (b-axis)

Wheelbase:

4700+1310(mm)

Axis:

2

Rear track:

1850/1850



spring leaf:

-/8/8,-/10/10,-/-/-,-/4/4

Number of   tires:

8

Tire size:

11.00R20   12PR,12R22.5 12PR

Other

tank body   effective volume: 23.82 cubic metres,

transport media   name: hydrochloride, hydrogen chlorate, sodium hydroxide,

acrylic (media   density are for 1190 kilograms/cubic metres),

acetic acid,   glacial acetic acid, hydrogen peroxide (media density are for 1140   kilograms/cubic metres)

Propionic acid, (density for   1110 kilograms/cubic metres),

ammonia, (NH3·H2O  density for 1090 kilograms/cubic metres),

dangerous goods   of class 8,

double D Elliptic tank body   shape size (mm): 8300x2450 X1650.

Elected round   tank body shape size (long x diameter) (mm) (containing seal head):   8300x2000, side protection device and vehicles bolt joins, and ABS brake   systems


DRZ9351GFW Main technical parameters Tank volume: 22.4 cbm/22400liters


verall dimensions:

8600×2490×3800(mm)

Rated load:

27000(Kg)

Total mass:

35000(Kg)

Semi-trailer saddle:

17000

Kerb mass:

8000(Kg)

Anti-lock braking system:

Yes

Approach/departure angle:

-/18 (°)

Front/rear suspension:

-/1450(mm)

Axle load:

-/18000 (b-axis)

Wheelbase:

4700+1310(mm)

Axis:

2

Rear track:

1850/1850

Number of tires:

8

Number of spring leaf:

-/8/8,-/10/10,-/-/-



Tire size:

12R22.5 12PR,11.00R20 12PR

Other

Tank volume: 22.4 cbm,

medium: hydrochloric acid, dilute sulphuric acid   (density is 1260 kilograms/cubic meter),

acetic acid, acrylic acid (medium density of 1140   kilograms/cubic meter)

dangerous goods class number 8,

tank size (including the dished head): tank length   8000mm, diameter:2000mm

optional air suspension models. ABS brake systems

Acid Tanker Trailer for Road Transport (Hydrogen Fluoride) Hydrofluoric Acid Hf 48%
Acid Tanker Trailer for Road Transport (Hydrogen Fluoride) Hydrofluoric Acid Hf 48%

Customization, Cost  Control Built How You Want it, at a Price You  Can

Afford. for sale call:+86-152 -7135-7675

Acid Tanker Trailer for Road Transport (Hydrogen Fluoride) Hydrofluoric Acid Hf 48%


Cell :+8615271357675
