40ft Tube Compressed Natural Gas CNG Tube Bundle Container Trailer
Long Tube Trailer
Operating pressure: 20MPa;
Product shape: two openings on both ends;
Material: 4130X;
Long tube trailers are used for transportation and storage of compressed natural gas and industrial gas, which provide safe and reliable equipment protection for transport and storage of dangerous gases. With the development of 8-pipe φ660mm CNG semi-trailer with the optimal volume-weight ratio and maximum gas carrying capacity in single carrier, the cost-efficiency ratio of vehicle transportation is significantly improved, and safety is also further improved due to the reduction of connecting pipelines.
Φ559 Compressed Natural Gas (CNG) Semi-trailer
φ660 CNG Semi-trailer
CNG long tube semi-trailer

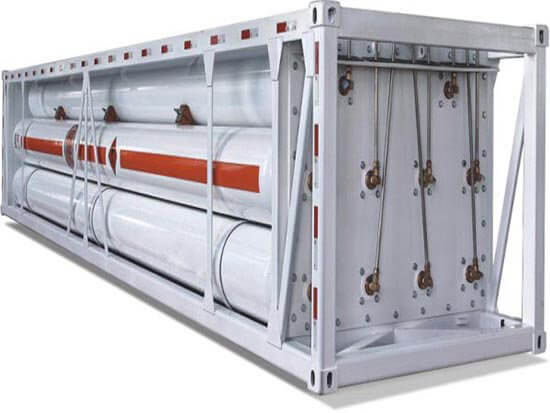

Tube bundle container
CNG tube skid container can store and transport CNG; they are designed, manufactured, inspected and accepted according to:
ISO11120 Cylinder-design, structure and test of seamless and reusable steel tube with a capacity between 150 L to 3000 L.
Series 1: ISO 668 Classification, dimensions and ratings of container
Application:
1. For CNG transportation from Mother station/ gas reserve to daughter station;
2. For CNG transportation to places where pipeline network hasn’t been built;
3. For CNG transportation to places where can’t reach existing distribution system etc;
4. For CNG storage at gas stations.
Specification of CNG container
12-tube bundle container ( 20ft ) | |||||
Tube Bundle Container | Item | Data | Cylinder | Item | Data |
Type | GSJ12-1050-CNG-25 | Working pressure | 25MPa | ||
Container weight | 19632Kg | Working temperature | -50~65 | ||
Filling weight | 2835Kg | Main material | 4130X | ||
Rated weight | 22467Kg | cylinder QTY | 12 | ||
Total volume | 12.6 M3 | ||||
Pressure for water pressure test | 37.5MPa | ||||
Filling medium | CNG | Dimension | 559x17.4x5400 | ||
Gas tightness test pressure | 25MPa | Design temperature | 65 | ||
Pipeline water pressure test pressure | 37.5MPa | Medium property | Explosive | ||
Filling volume | 3969 Nm3 | Bursting discs | Burst pressure | 37.5MPa | |
Dimension | 6058x2438x2000 | ||||
Transporting | Highway combined transport | Bursting disc device discharge aperture | ≥20 | ||
Design service life | Fifteen years | ||||
12-tube bundle container | |||||
Execution standard : ISO11120 Cylinder-design , structure and test of seamless and reusable steel tube with a capacity between 150 L to3000 L .ISO 668 Classification , dimensions and ratings of series 1 container | |||||
Tube Bundle Container | Item | Data | Cylinder | Item | Data |
Type | GSJ12-2450-CNG-25 | Working pressure | 25MPa | ||
Container quality | 34760Kg | Working temperature | -50~65℃ | ||
Filling quality | 6615Kg | Main material | 30CrMoLX | ||
Rated weight | 41375Kg | cylinder QTY | 12 | ||
Major risk category | 2.1 | Total volume | 29.4M3 | ||
UN code | 1049 | Pressure for water pressure test | 37.5MPa | ||
Filling medium | CNG | Dimension(mm) | 559x11570 | ||
Gas tightness test pressure | 25MPa | Design temperature | 65℃ | ||
Pipeline water pressure test pressure | 37.5MPa | Medium property | Explosive | ||
Filling amount | 9261Nm3 | Bursting discs | Burst pressure | 37.5MPa | |
Dimension (mm) | 12192x2438x2000 | ||||
Transporting | Highway combined transport | Bursting disc device discharge aperture | ≥20 | ||
Design service life | Fifteen years | ||||
