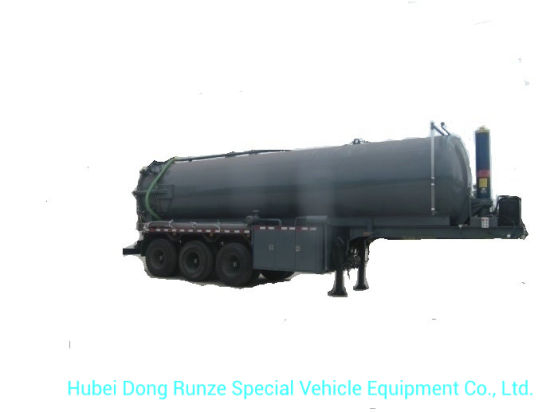

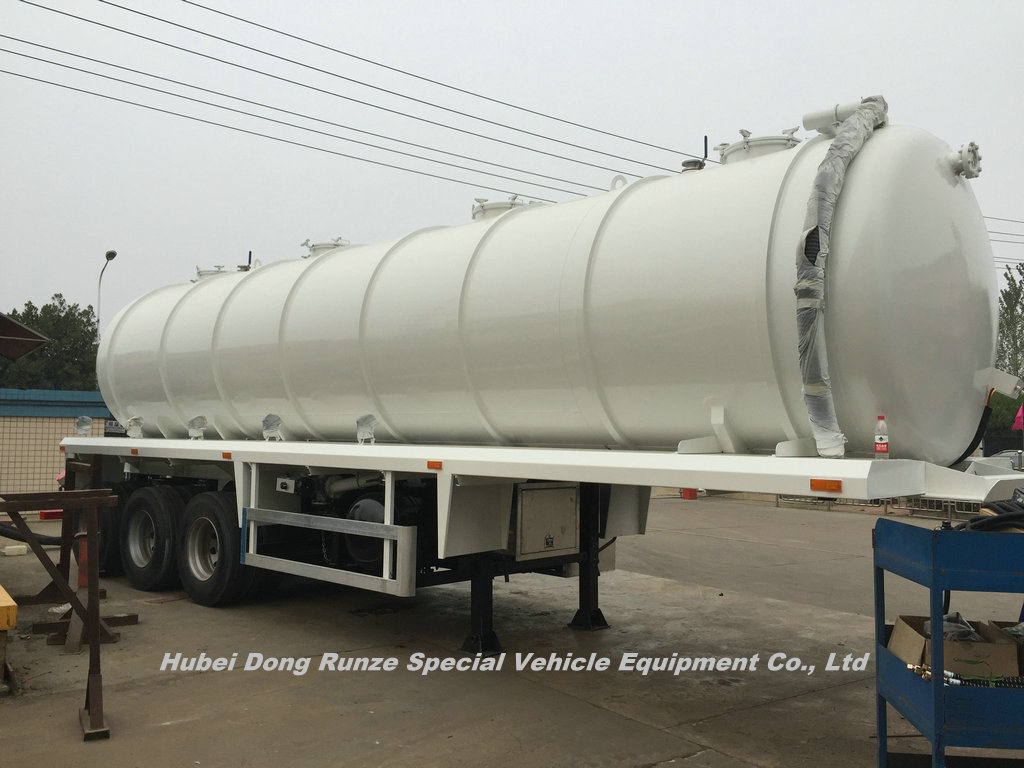

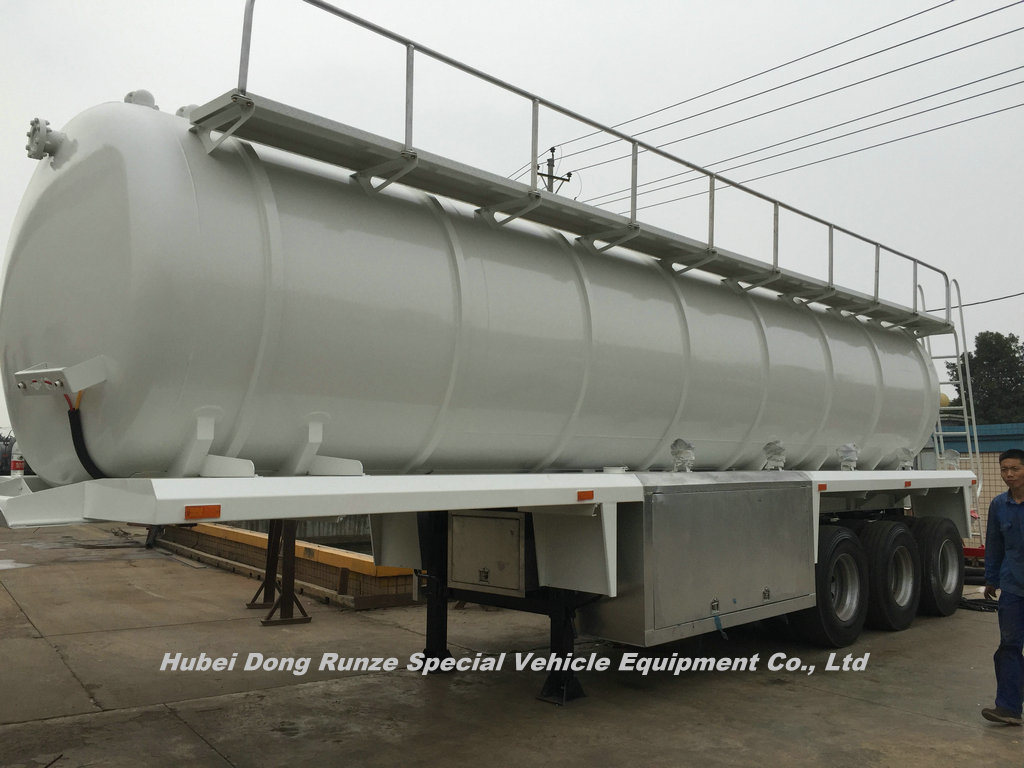

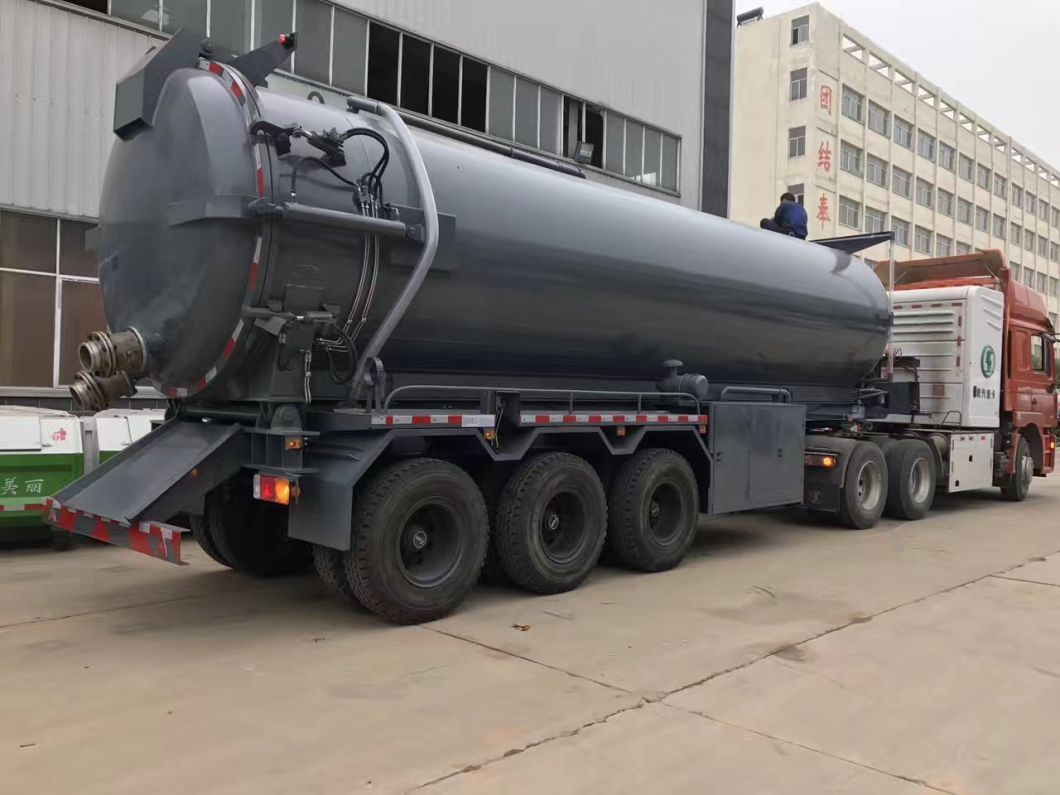

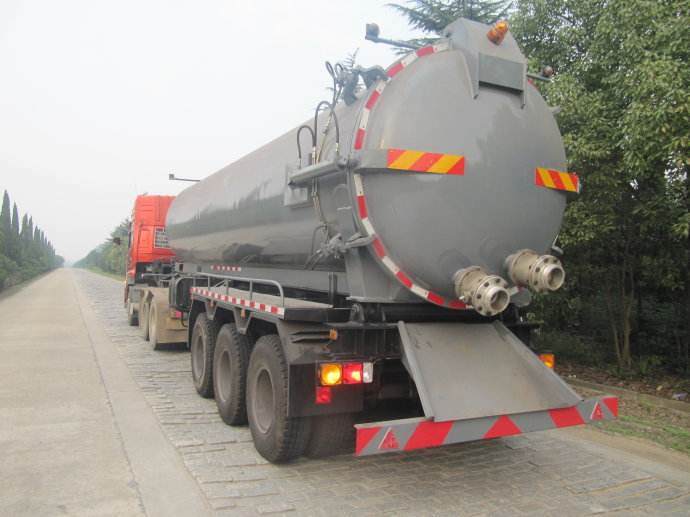

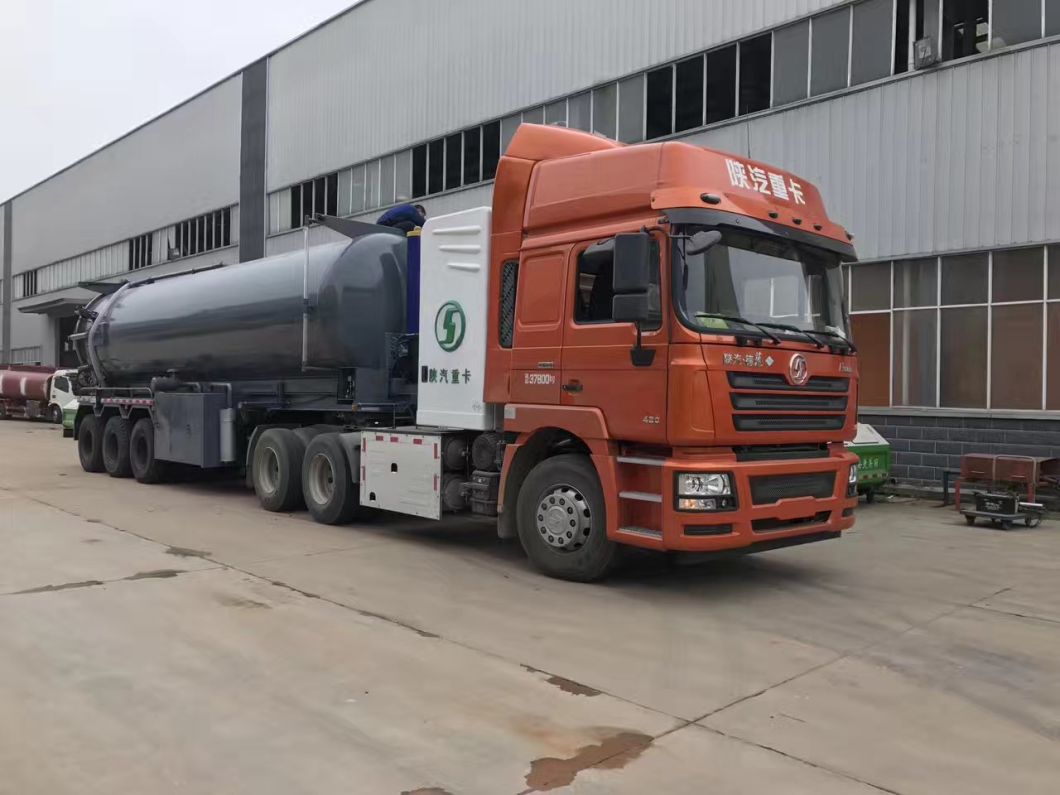

Tri Axles Vcuum Sewage Tank Tanker 25m3
| Quantity: | |
|---|---|
- Shanghai, China
- 3000
- T/T
3 Axles Vacuum Sewage Suction Tanker Waste Collection Suction Sewage Tanker 6000 Gallon Vacuum Pump For Sewage Tank Trailer
Vacuum Suction Tanker Truck Semi Trailer Volume 25000Liter
Vacuum Suction Tanker Truck Semi Trailer can help to clean the sewer under ground, clean the sludge in the river around city. Vacuum Suction Tanker Truck Semi Trailer also can help big factory to clean the greasy dirt and waste water.
Dimension: 9550X2490X3300 ,25000 Liters ,44KW diesel engine to drive the
liquid ring vacuum pump
Vac Tank Trailer with various specification to meet your needs, please contact us for more details of Semi Trailers.
Ask for better price
The pictures are for your reference only.
1.Fifth wheel height 1100mm.
2. king pin size 50# or 90#,
3. 3*13ton fuwa axles with airbag suspension , with ABS ,16T Brake Pads,
Trailer description
Vacuum Suction Tanker Truck Semi Trailer can help to clean the sewer under ground, clean the sludge in the river around city. Vacuum Suction Tanker Truck Semi Trailer also can help big factory to clean the greasy dirt and waste
Vacuum Suction Tanker Truck Semi Trailer can help to clean the sewer under ground, clean the sludge in the river around city. Vacuum Suction Tanker Truck Semi Trailer also can help big factory to clean the greasy dirt and waste water.
Vacuum Suction Tanker Truck Semi Trailer Volume 25000Liter Basic Parameters
Item | parameter |
Vehicle model | Vacuum Suction Tanker Truck Semi Trailer Volume 25000Liter |
Overall dimensions(L*W*H) | 12900x2500x3850 mm |
Tank capacity | 25000 Liters |
Rated Load | No less than 25000 liters / 38000 kg |
GVW | Approx 55000 kg |
Mass in working order | Approx 15000 kg |
Wheel base | 7500+1310+1310 mm |
F/R track base | -/1820/1820 mm |
Suspended before / after hanging | -/2450 mm |
Approach/departure angle | -/10° |
Tire specification | 11.00R20 / 12 units |
Axle | 3 units 13 tons axles |
Number of axles | 3 |
Spring few films | -/10/10/10 |
Axle | 7Unit |
Production cycle | 30-35 working days |
Vacuum Suction Tanker Truck Semi Trailer Remark | On this trailer. there will be 1 unit 44KW diesel engine to drive the liquid ring vacuum pump to work independently. 1 unit Water ring vacuum pump. |
Vacuum Suction Tanker Truck Semi Trailer Equipment
Waste water or oil suction semi trailer manure overflow devices to prevent the feces, sewage intrusion due to the vacuum system to suck. Turtle tank design, no permanent deformation. Installation of the first quality rating big powerful fecal imported vacuum pump.
Sewage Suction Tank Semi Trailer
Technical Parameter | ||
Tank Trailer Overall Size (mm) | 11840×2500×3500 | |
Tare Weight (kg) | 11000 | |
Payload (kg) | 40000 | |
Tank capacity (liter) | 25000 | |
Tank material | Q345 | |
Tank thickness (mm) | 8 | |
Baffle & Ring | 3 inner baffles and outside 5 rings | |
Water tank | One set, capacity 1000liters | |
Discharge valve | One set, 4" size | |
Sewage suction system | Generator | One set, Model type ZHBP1 |
Vacuum pump | One set | |
Axle | 3 axles 13tons, FUWA brand | |
Tire | 11R22.5, total 13 pieces with one spare tire, triangle brand | |
Wheel rim | 8.0R22.5, total 13 pieces with one spare tire, Sunrise brand | |
Landing leg | 18tons, JOST brand | |
Kingpin | 90# | |
Suspension | Mechanical suspension, JOST brand | |
Brake System | Air tank | One set |
Brake Chamber | 6 pieces, 2 pieces T3030, 4pics T30 | |
Air connector | One set standard air connector | |
Valve | One set, WABCO brand | |
Electrical system | 7-PIN socket | One set |
Lamb | One set of standard LED lights | |
Cable | One set | |
Spare wheel carrier | One set | |
Painting | Complete Chassis sand blasting to clean rust, 1 coat of anti-corrosive prime, 2 coats of final paint | |
Customization, Cost Control Built How You Want it, at a Price You Can
Afford. for sale call:+86-152 -7135-7675
Cell :+8615271357675
