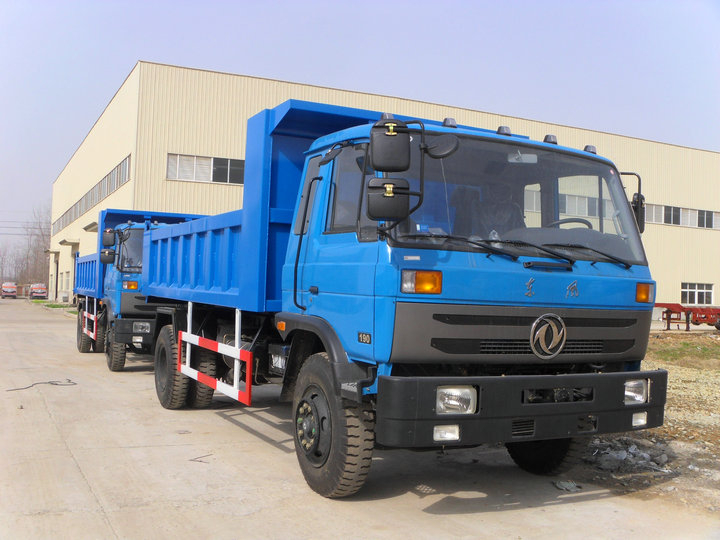

LHD /RHD 15 Tonne Tipper Truck Dump Truck

LHD /RHD 15 Tonne Tipper Truck Dump Truck
Availability:
Quantity:

LHD /RHD 15 tonne tipper truck dump Truck
Customization, Cost Control Built How You Want it, at a Price You Can Afford. for sale call:+86-152 -7135-7675

 DTA3120 15ton tipper truck dump truck with dongfeng cummins engine
 4*2 drive type Dimension:7700*2480*3000mm

RHD 15 tonne tipper truck  dump truck
Customization, Cost   Control Built How You Want it, at a Price You Can Afford. for sale call:+86-152 -7135-7675

 DTA3120 15ton tipper truck dump truck with dongfeng cummins engine
 4*2 drive type  Dimension:7700*2480*3000mm


       Chassis Information
       Chassis brand        Dongfeng  LHD / RHD
       Chassis model        EQ3121GLJ
       Drive type        4X2
       Dimension Parameter
       Overall dimension (L*W*H) (mm)        7700*2480*3000
       Cargo dimension (L*W*H) (mm)        5400*2300*1200
       Wheel base (mm)        3950 / 4200/ 4500
       Wheel No.        2
       Front/ Rear track (mm)        1940/1860
       Weight Parameter
       GVW (kg)        22000
       Payload weight (kg)        15000
       Kerb weight (kg)        7000
       Front / Rear axle (T)        5T / 13T
       Engine Parameter
       Model        B190 33
       Manufacturer        Dongfeng Cummins
       Horsepower (hp)        190
       Displacement / power (ml/kw)        5900/140
       Engine type        6 cylinder in-line, turbocharged cooling
       Emission Standard        Euro III
       Transmission
       Control type        manual
       Gear Shift        6 forward and 1 reverse speeds
       Tyre
       Type        10.00-20
       Tyre No.        6+1 spare tyre
       Cab
       Type        flat roof cab, blue color
       Up-load Special Parameter
       Cargo material        carbon steel
       Thickness of the cargo        side 4mm, bottom 6mm
       Lifting system        Medium lifting system
       Hydraulic cylinder        Domestic brand
