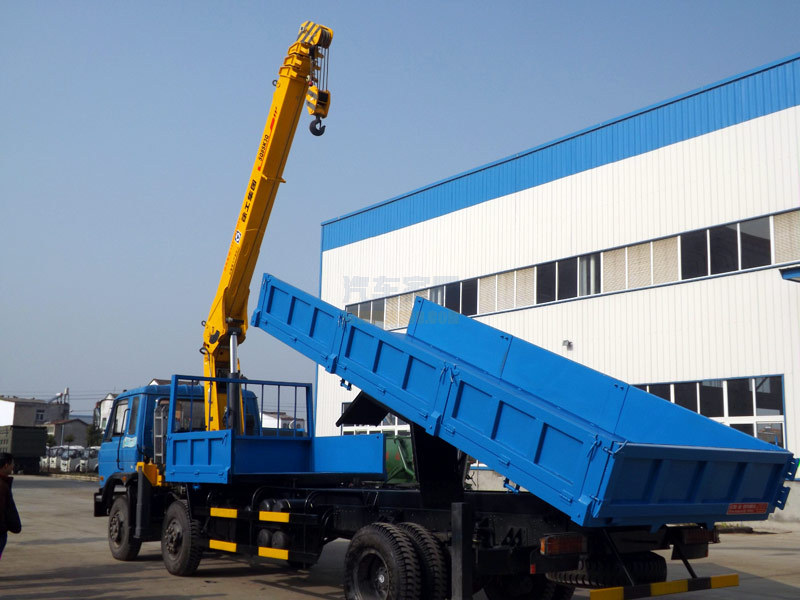

Dongfeng 15 Ton Tipper Dump Truck Mounted With Crane 8 Ton
| FOB: | |
|---|---|
| Quantity: | |
|
| |
-
DRZ5250TS
-
Dong Run ze
-
8705109100
Dongfeng 15 Ton Tipper Dump Truck Mounted With Crane 8 Ton / 6x2 / 6x4
| Main Specifications | ||
| Dimensions | Overall dimensions | 9250mm*2490mm*2890mm |
| Cargo box length | 7200mm | |
| Wheelbase | 1850mm+3450mm | |
Weight | Actual loading weight | 20000kg |
| The total mass | 27000kg | |
Engine | Model | Cummins B210-33 |
| Power | 154kw/2140hp | |
| Exhaust standand | Euro III | |
Gearbox | Model | Fast 8-speed |
| Type | Manual | |
Axle | Front axle | 7T*2 |
| Rear axle | 13T | |
| Crane | Lifting capacity | 12T |
Cabin
1. Single Sleeper
2. With Merit brand air condition
3. The curved dashboard is designed with driver in focus. All instruments and controls are easy to read and reach from the drivers position.
Option
* Left or right hand drive
Engine
1. Original Cummins diesel engine(B210-33)
2. 210HP(154kW)
3. 5900cc
Options
* Yuchai 210hp diesel engine
* Euro 2/ 3 / 4 emission standard
Gearbox
1. Original Fast`Fuller brand 8 gears manual gearbox
2. 8 forward gears
3. 2 reverse gears
Chassis Frame
1. Breadth 300mm,double deck (8+8)mm
2. Adopts shot blasting and anti-rust processing
Axle
1. 7T front axle *2
2. 10T rear axle
Suspensions
2. Rear suspension:10+8mm
With thicker rear leaf spring, ensure the shock absorption ability on rough road.
Fuel Tank
Capacity : 280L
Material: aluminum alloy
Tire
1. 12.00R22.5 tubelss tires
2. Qty : 9 units
3. Brand: Aeolus
Option
* 11.00R22.5 tires
* Nylon/radial/tubeless tire
More Professional Design Team
1. We have a professional team in the industrial design level to solve all the problems of vehicles,sure to answer all your question effectively within 24 hours.
2.Our professional marketing staff ensure timely feedback to customer,design team will find the cause of the problem asap and provide solutions.
Test Drive & Practical Training
2. Warmly welcome to visit us and have a test drive. We will recommend detailed flight information according to customer's specific situation.
Quickly Reply & Professional After-service Team
1. We have our own spare parts warehouse,at any time to maintain adequate supply of spare parts,ensure that all customer service issue to be solved within a week.
2.And we provide some free wearing parts once you place order,will send out the free wearing parts with the vehicle together.
