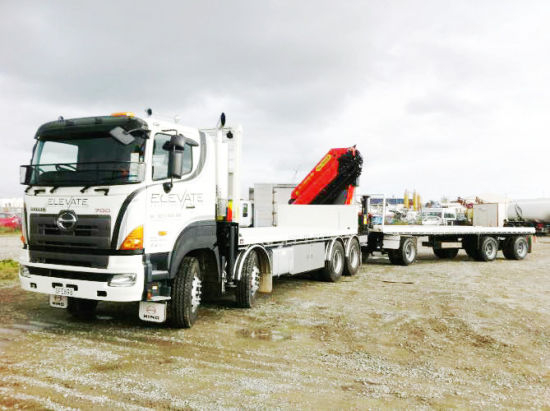

700 Hino 8X4 Flatbed Truck with 14tone Loading Crane and Full Flatbed Trailer for Sale
| Quantity: | |
|---|---|
- 200sets Per Month
- T/T, Western Union
- by Bulk Cargo Carrier, Roro or Frt Container
HOT sale 700 Hino 8X4 Flatbed Truck with loading crane and full flatbed trailer for Sale
Customization, Cost and Control Built How You Want it, optional with crane
at a Price You Can Afford. for sale call:+86-152 -7135-7635
XCMG brand cranes,2.5t~20t straight cranes and Kunckle Cranes
8x4 construction excavators truck,dongfeng heavy duty truck transportation,flatbed truck bodies
| Vehicle name | Hino 700 crane truck supplier for new hino truck with crane 8*4 14tons sale | ||||||||||
| Cabin | one cab | Emission standard | Euro III | ||||||||
| Steering wheel location | LHD | Vehicle body colour | white | ||||||||
| Crane brand | XCMG | Max lifting capacity(T) | 14ton | ||||||||
| Vehicle parameter | Overall demension(mm) | 10430*2495*3500 | Cargo demensions(mm) | 7600*2300*1100 | |||||||
| GVW(kg) | 31000 | Curb weight(kg) | 15100 | ||||||||
| Drive type | 8*4 | Max speed | 75 | ||||||||
| Chassis parameter | Chassis brand | Guangqi hino Co.,ltd | Chassis model | YC3310FY2PW | |||||||
| Wheelbase(mm) | 1850+3850+1410 | Number of axles | 4 | ||||||||
| F/R suspension | 1410/1910 | F/R tyre width | 2060/2060,1855/1855 | ||||||||
| Steel spring number | 11/11/13 | Tyre type | 11.00R20 | ||||||||
| Engine parameter | Engine manufacture | Shanghai Hino Co.,ltd | model | P11C-UJ P11C-UR | |||||||
| Hose power | 380,360hp | Displacement | 10520,10520 | ||||||||
| Crane parameter | Crane model | SQ14ZK4Q(XCMG) | max lifting capacity(kg) | 14000 | |||||||
| max lifting movement(T.M) | 35 | The largest hydraulic arm length(m) | 11.4 | ||||||||
| Outrigger span(mm) | 5390 | Max Pressure of Hydraulic System(mpa) | 31.5 | ||||||||
| Oil tank capacity(L) | 160 | Rotation angle | 360 | ||||||||
| Crane Weight(kg) | 4468 | Installation space(mm) | 1240 | ||||||||
| Delievery time | 25-30days | ||||||||||
| Warranty | one year | ||||||||||
| Payment term | TT | ||||||||||
| Packing port | Shanghai or Tianjin | ||||||||||
HINO 8X4 Euro IV 350-380HP Flatbed Cargo Truck
HINO 8x4 CARGO TRUCKDriving Type8x4Overall Length (mm)11800Overall Width (mm)2495Overall HeightStandard (mm)3110High (mm)3600WheelBase (mm)1850+4300+1410Wheel TrackFront (mm)2060/2060Rear (mm)1855/1855Min Grounnd Clearance (mm)240EngineModelP11C-URP11C-UJDisplacement10.52LMax Power (HP)380350Max Torque (Nm)16001460Transmission ModelZF9S182012JSD160TATires12.00R20
Truck Molde | Model | 5310 | ||
| Chassis Molde | YC1310FY2PY | |||
| Drive | 8×4 | |||
| Maximum gross weight (kg) | (××)(mm) | 11920×2550×3800 | ||
| Curb weight(kg) | (kg) | 14400 | ||
| Loading(kg) | (kg) | 16470 | ||
| Dimensions (L x W x H) (mm) | (kg) | 31000 | ||
| Wheelbase (mm) | (mm) | 1850+4300+1410 | ||
| Fron/rear track (mm) | / (mm) | 2060/2060/1855/1855 | ||
| Fron/rear overhang (mm) | / (mm) | 1410/2950 | ||
| Minimum ground clearance (mm) | (mm) | ≥240 | ||
| Minimum turning diameter (m) | (m) | ≤23 | ||
| Full load maximum speed (km/h) | (km/h) | 100 | ||
| VAN | (××)(mm) | 9600×2400×2400 | ||
| Engine model | P11C-UJ | P11C-UR | ||
| Rated power (PS) KW/r/min | (PS)kW/r/min | (350)259/2100 | (380)280/2100 | |
| Maximum torque Nm/r/min | Nm/ r/min | 1454/1100 | 1594/1100 | |
| Displacement L | L | 10.52 | ||
| Clutch Transmission | 12JSD160TA | ZF9S1820TD | ||
| Tires | 11.00R20 295/80R22.5 | |||
| Emission standards | GB 17691-2005(III) | |||
| Cab | Four-point full-floating, electronically controlled hydraulic cab tilting system, | |||
We have well experienced in reseaching and developing different trailers: Container trailer, Low bed trailer, Side wall semi trailer, Stake semi trailer, Tank trailer, Dump trailer, Car carrier trailer,Van trailer, Extendable trailer, Modular trailer, Special trailer and Heavy duty trailer etc Road you success business!
